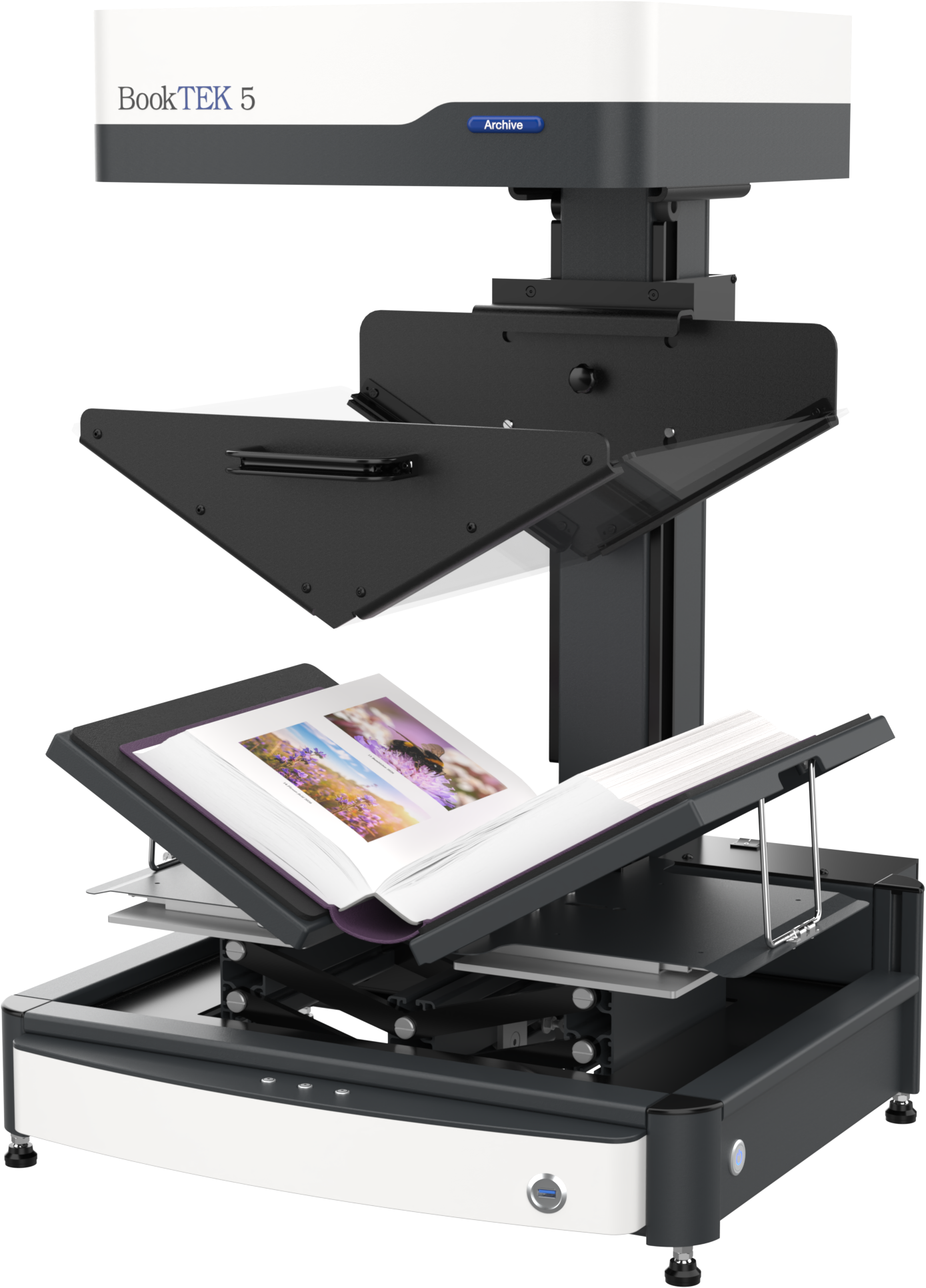

BookTEK 5 V3 Archive
Versatility meets efficiency
Productivity in brilliant quality

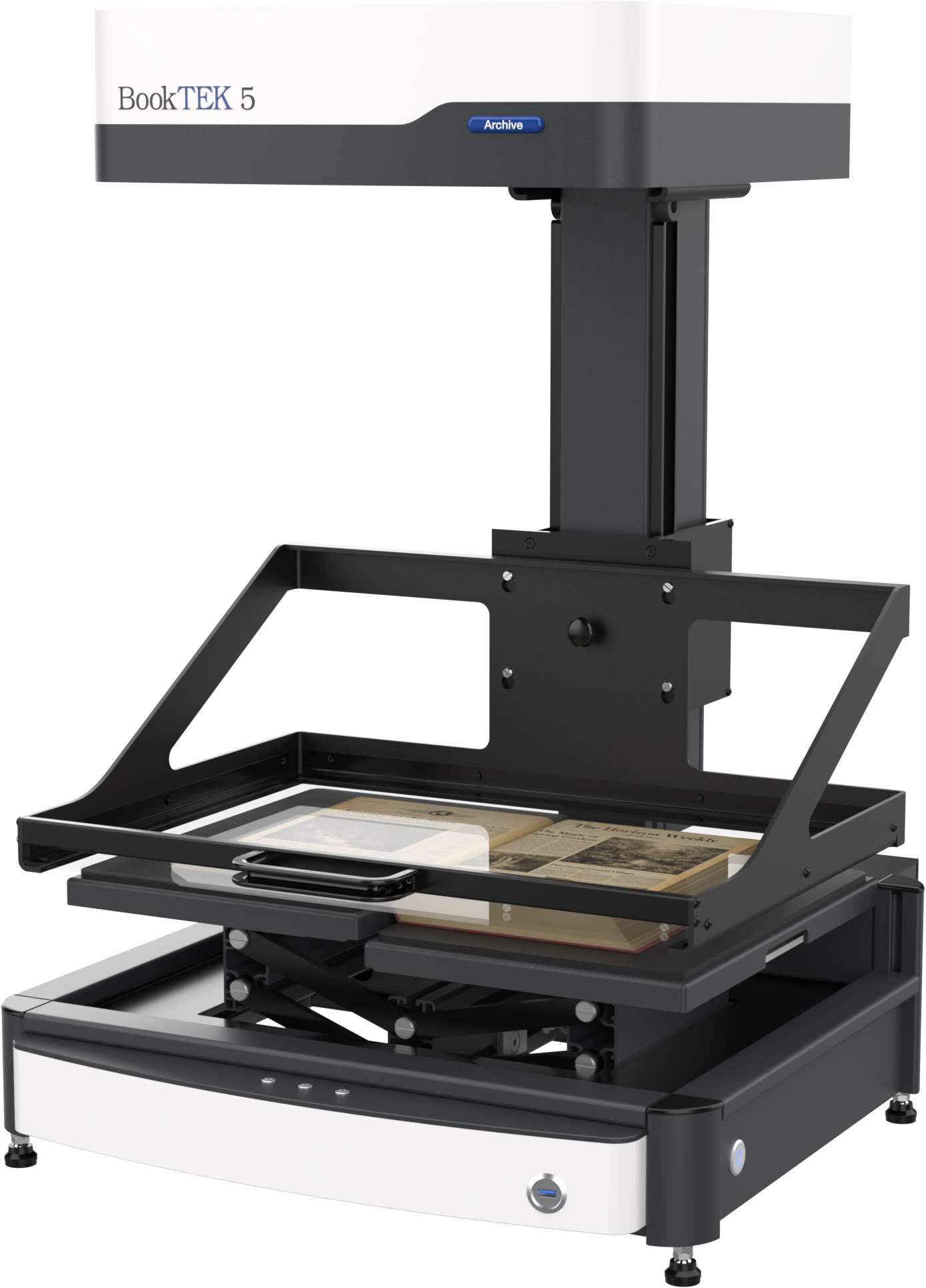

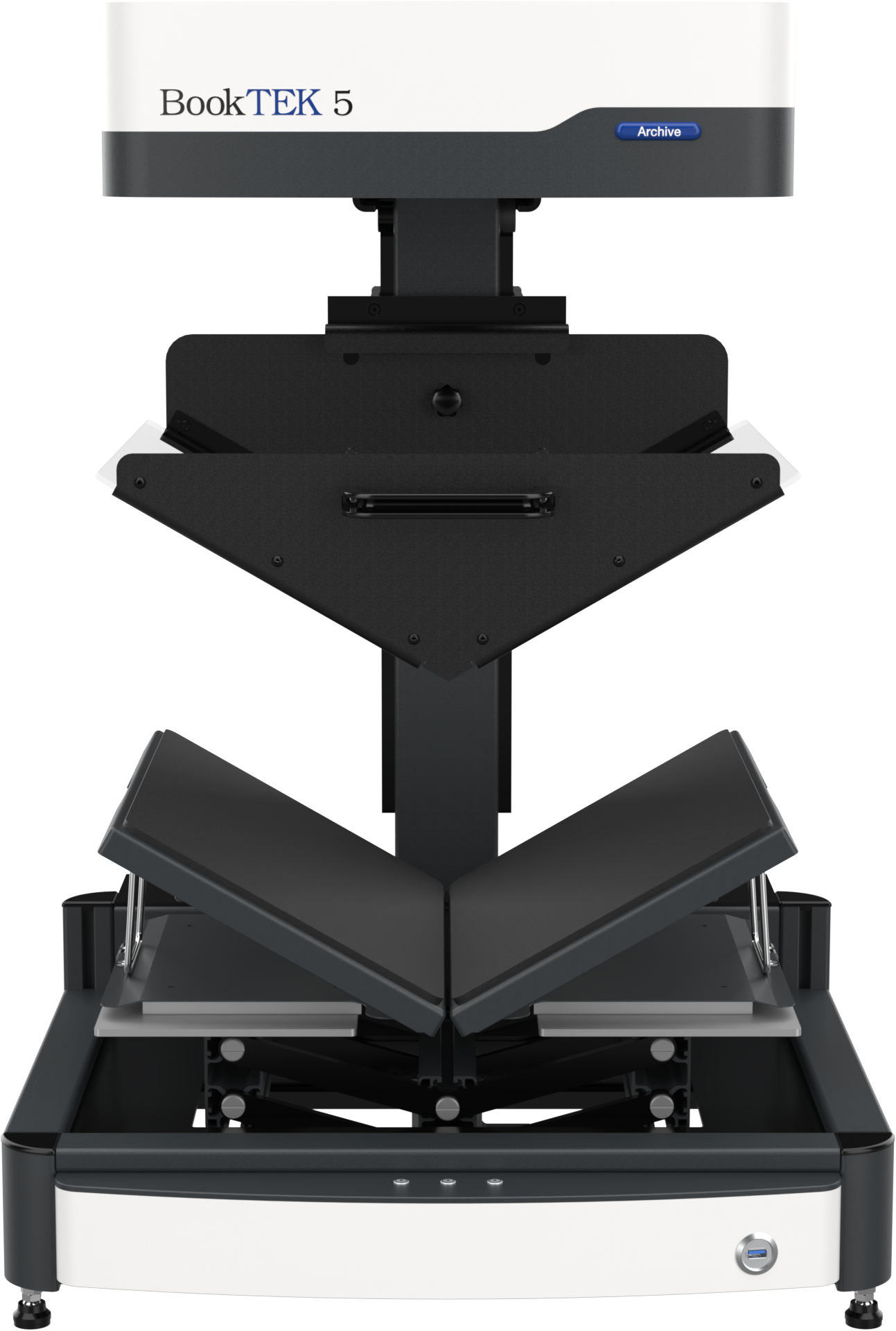

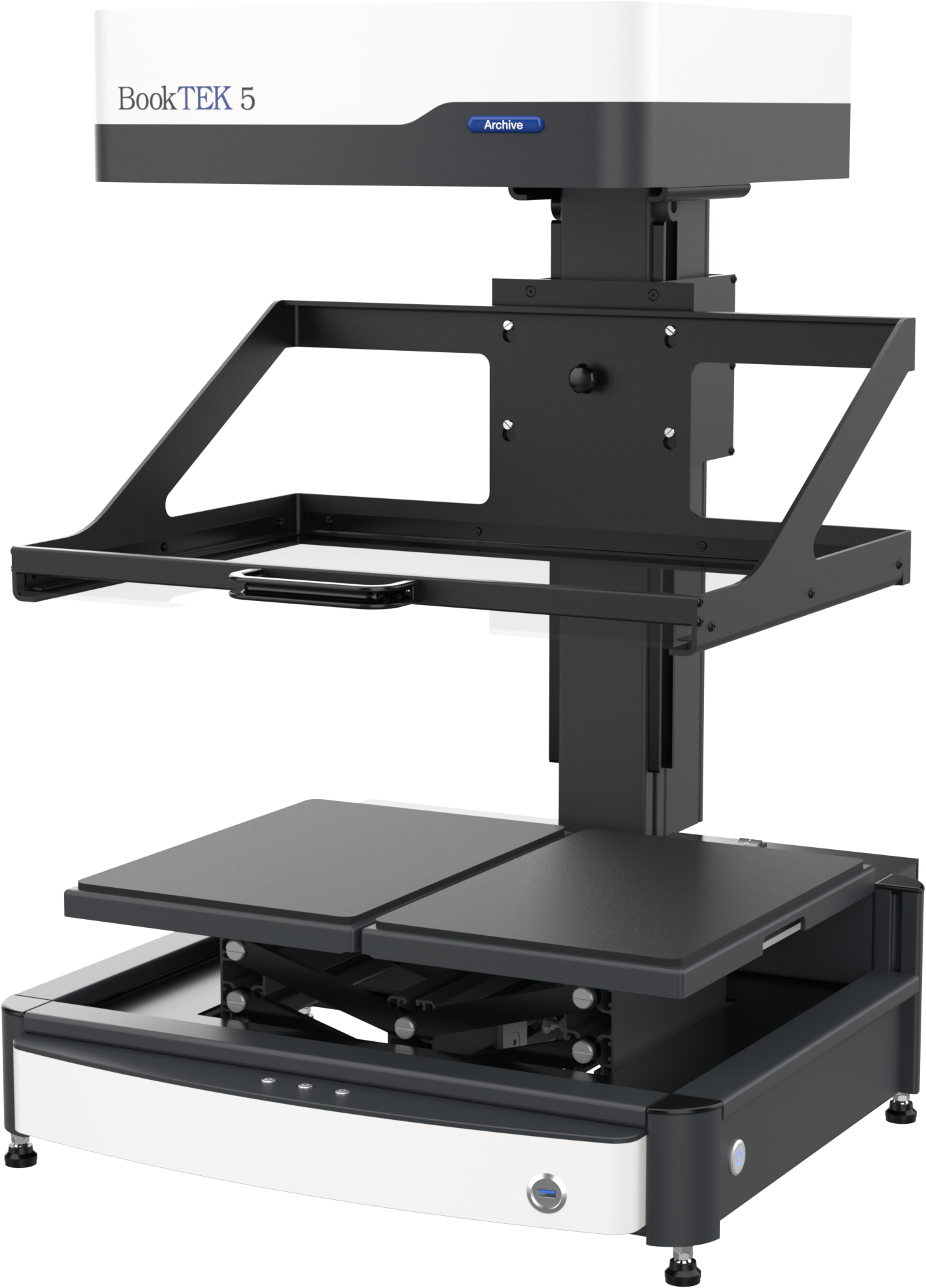

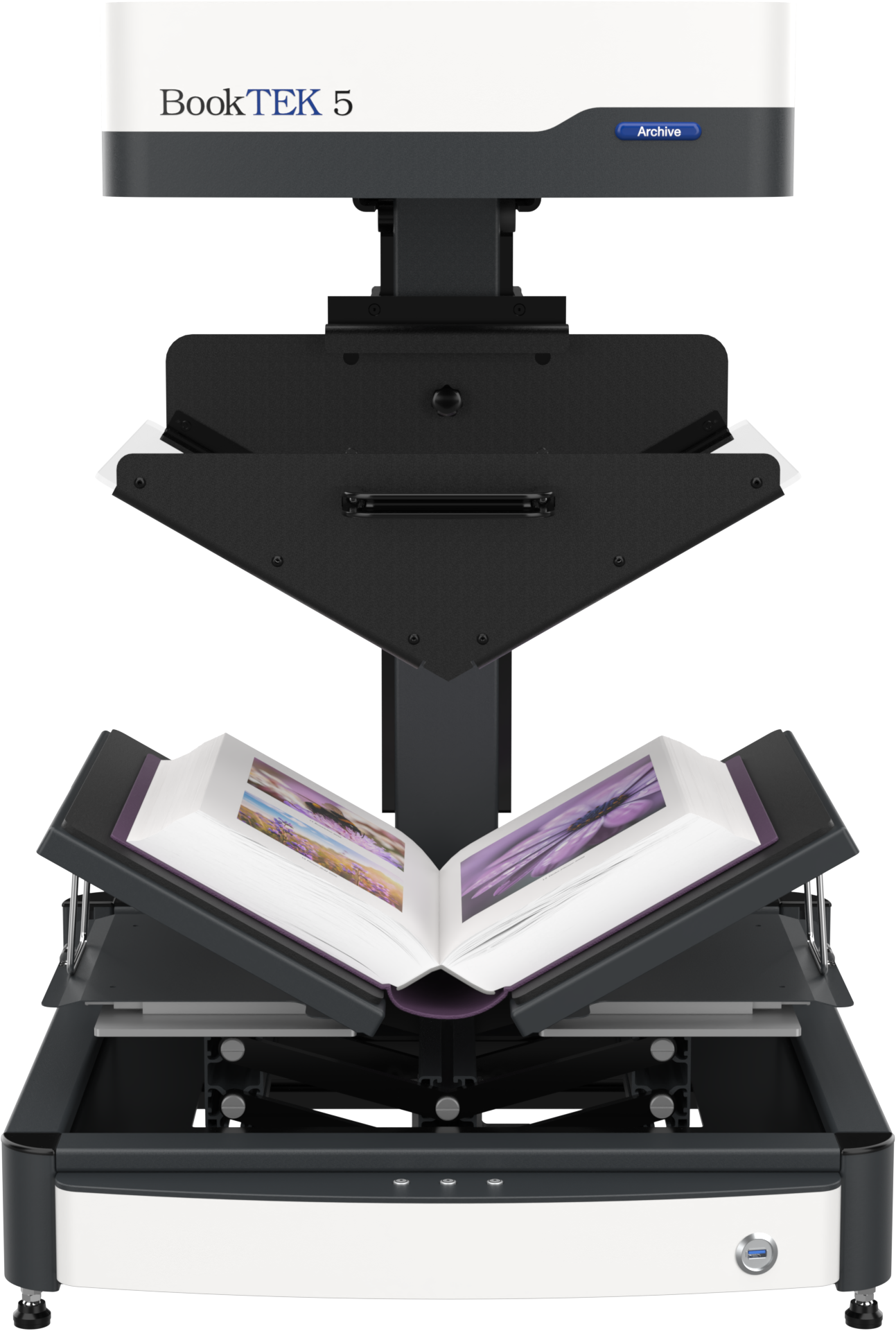

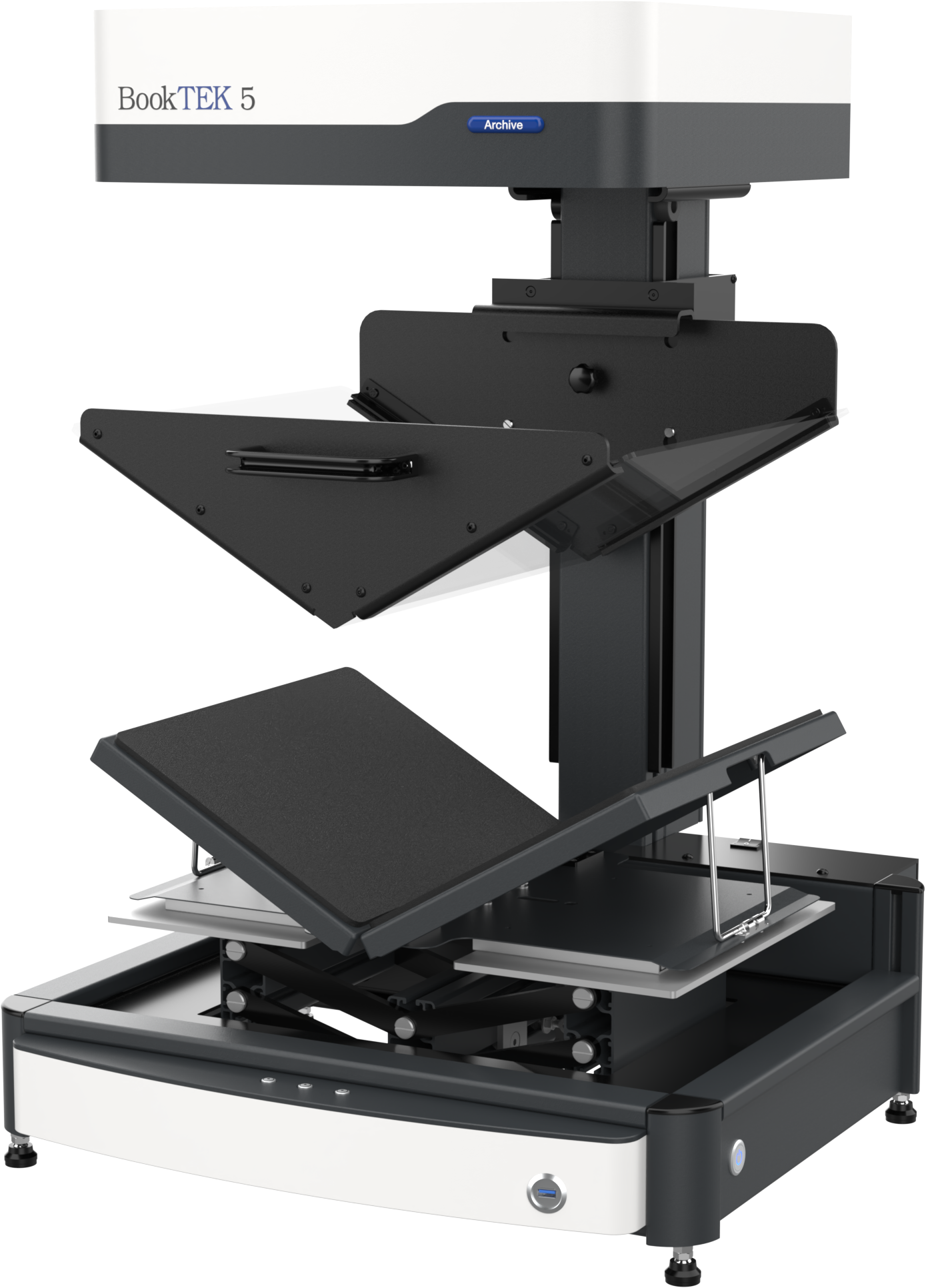

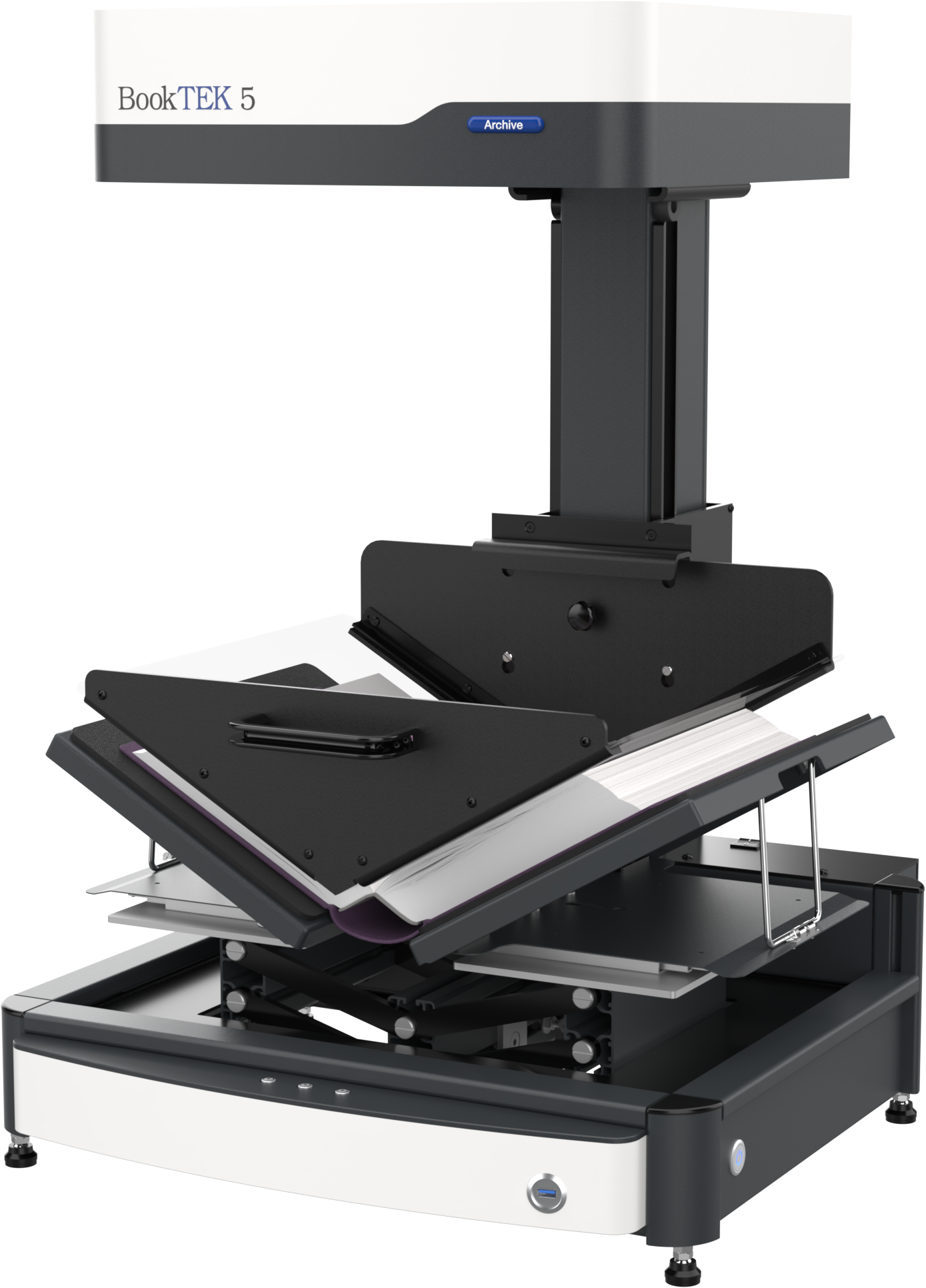

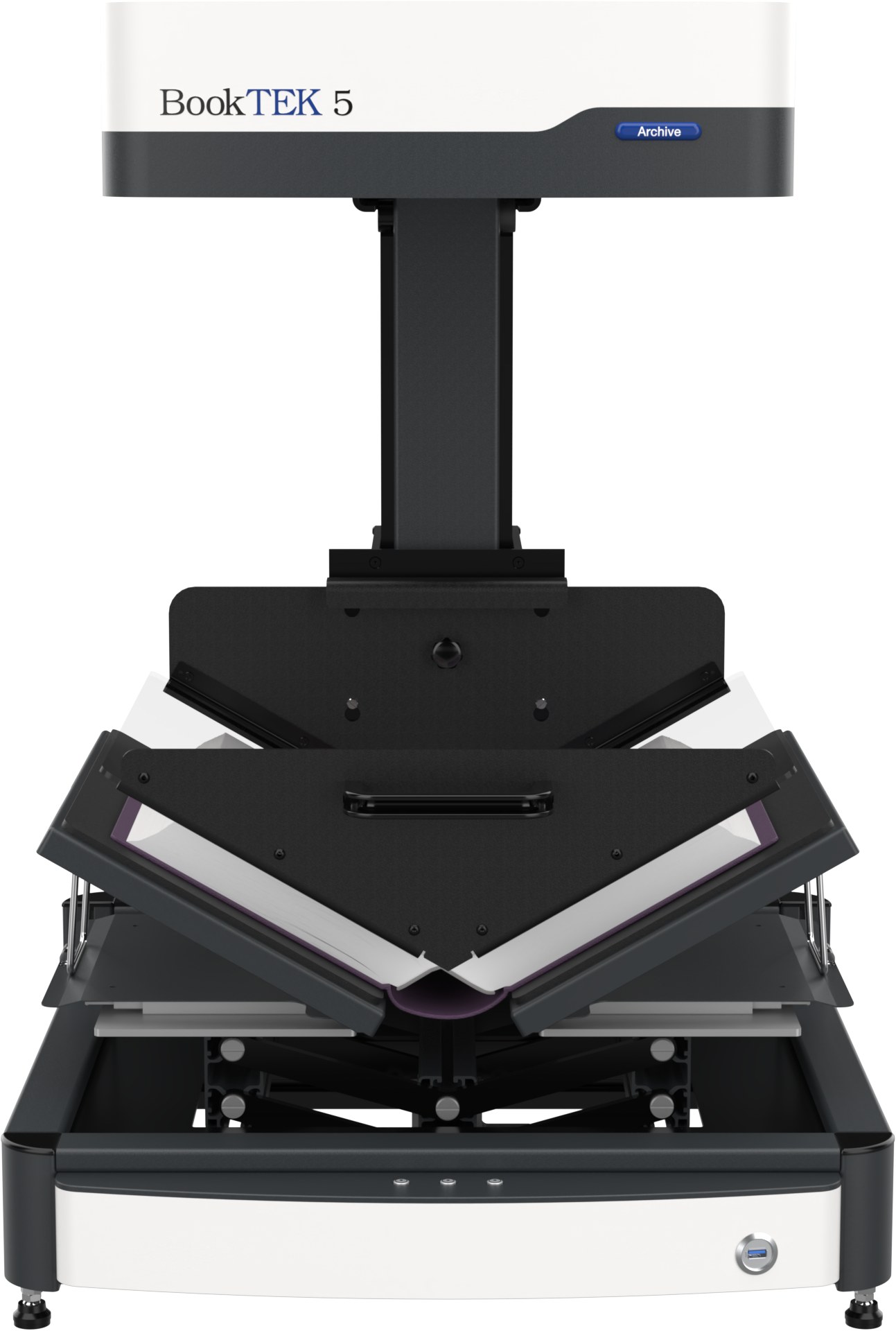

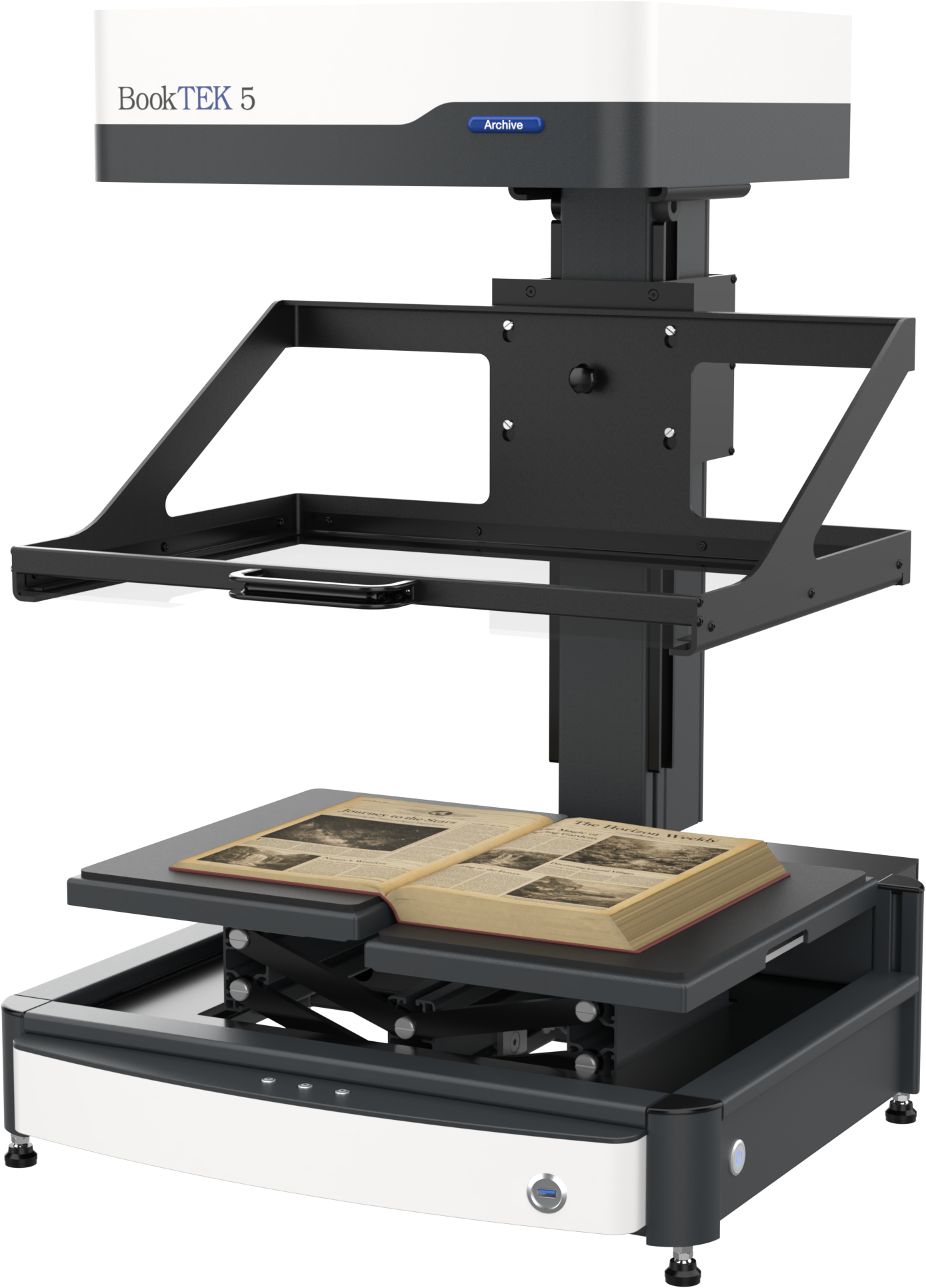

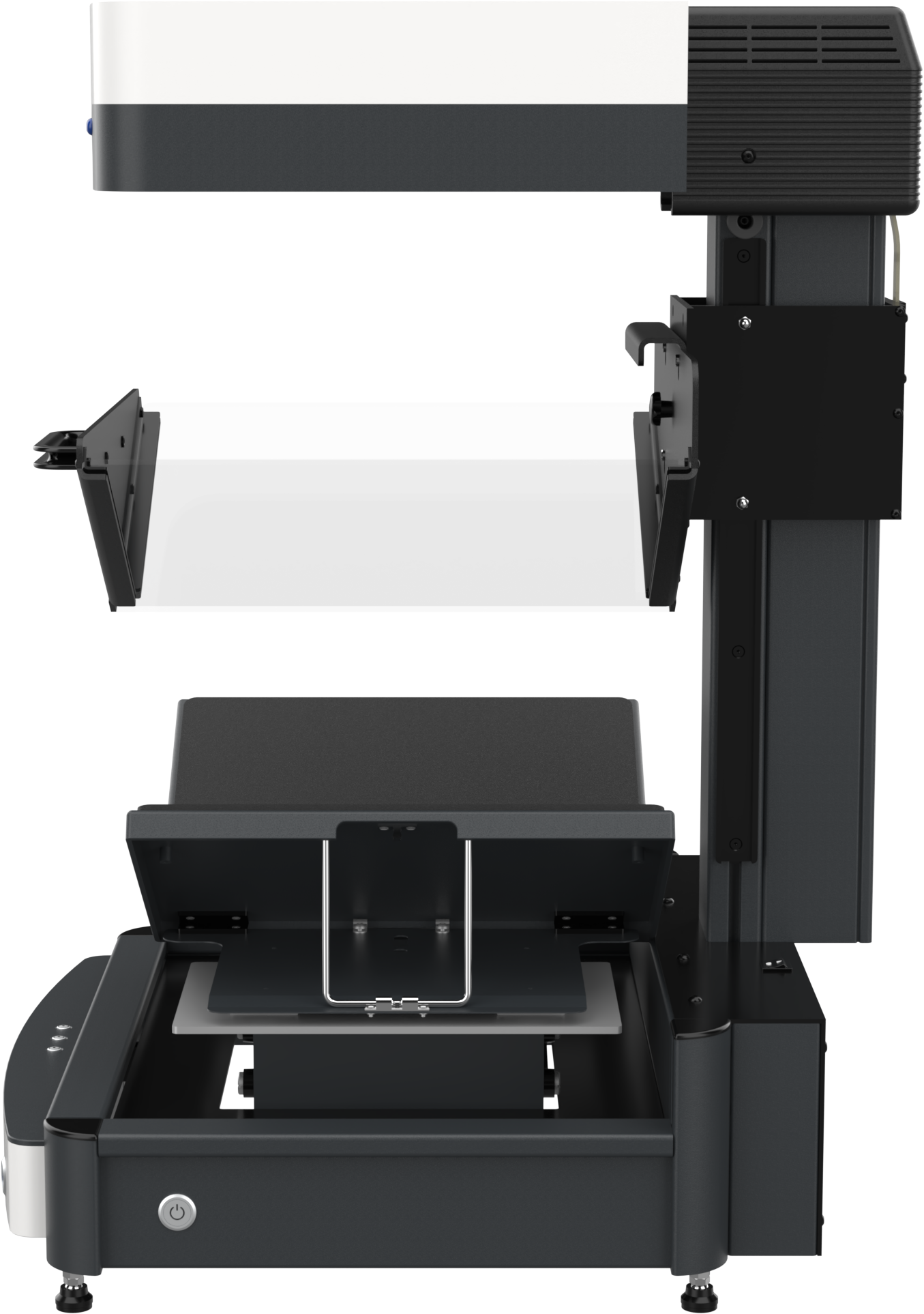

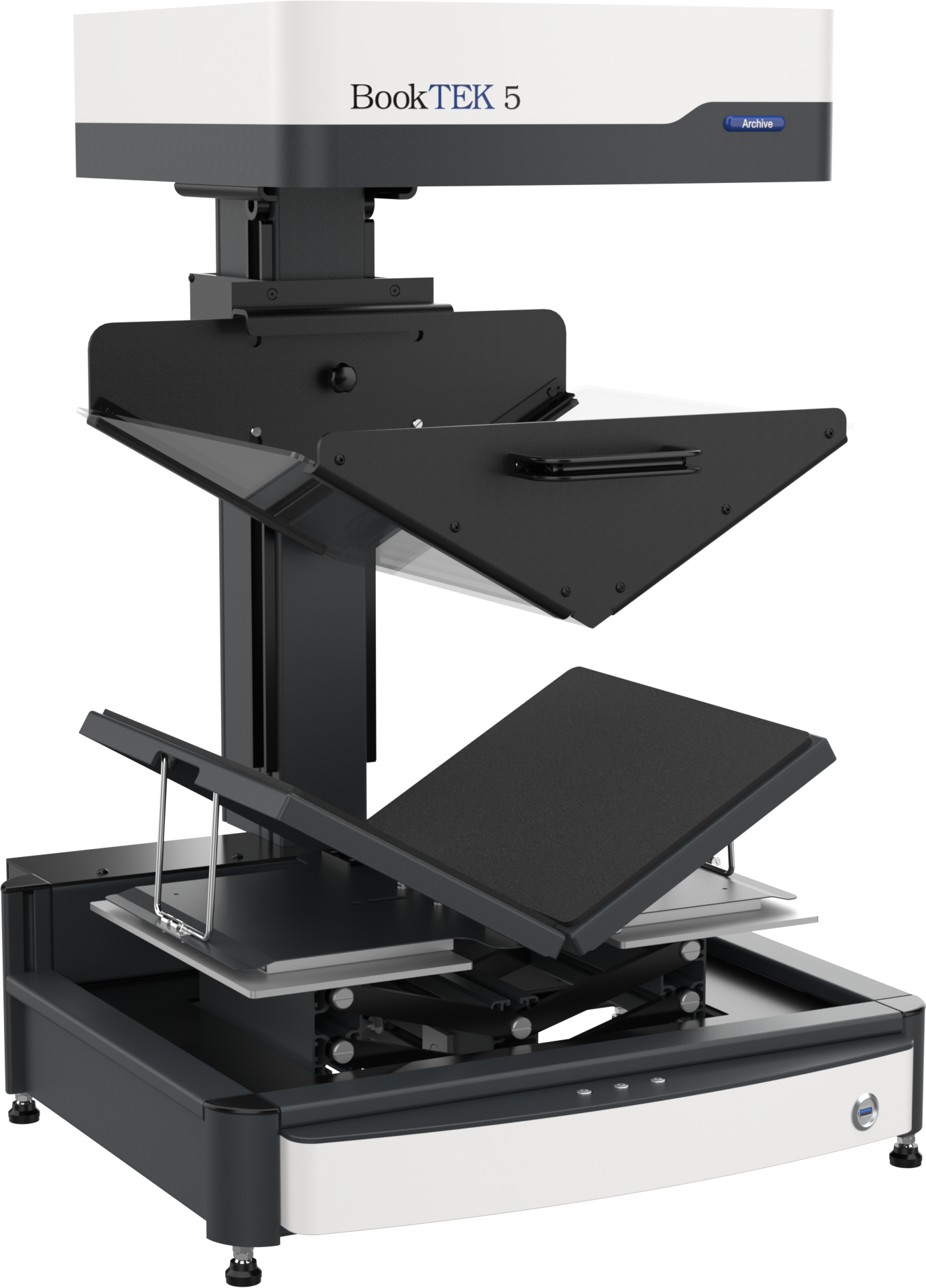

Advanced book cradle design
Software solutions for production scanning
Ergonomic and flexible

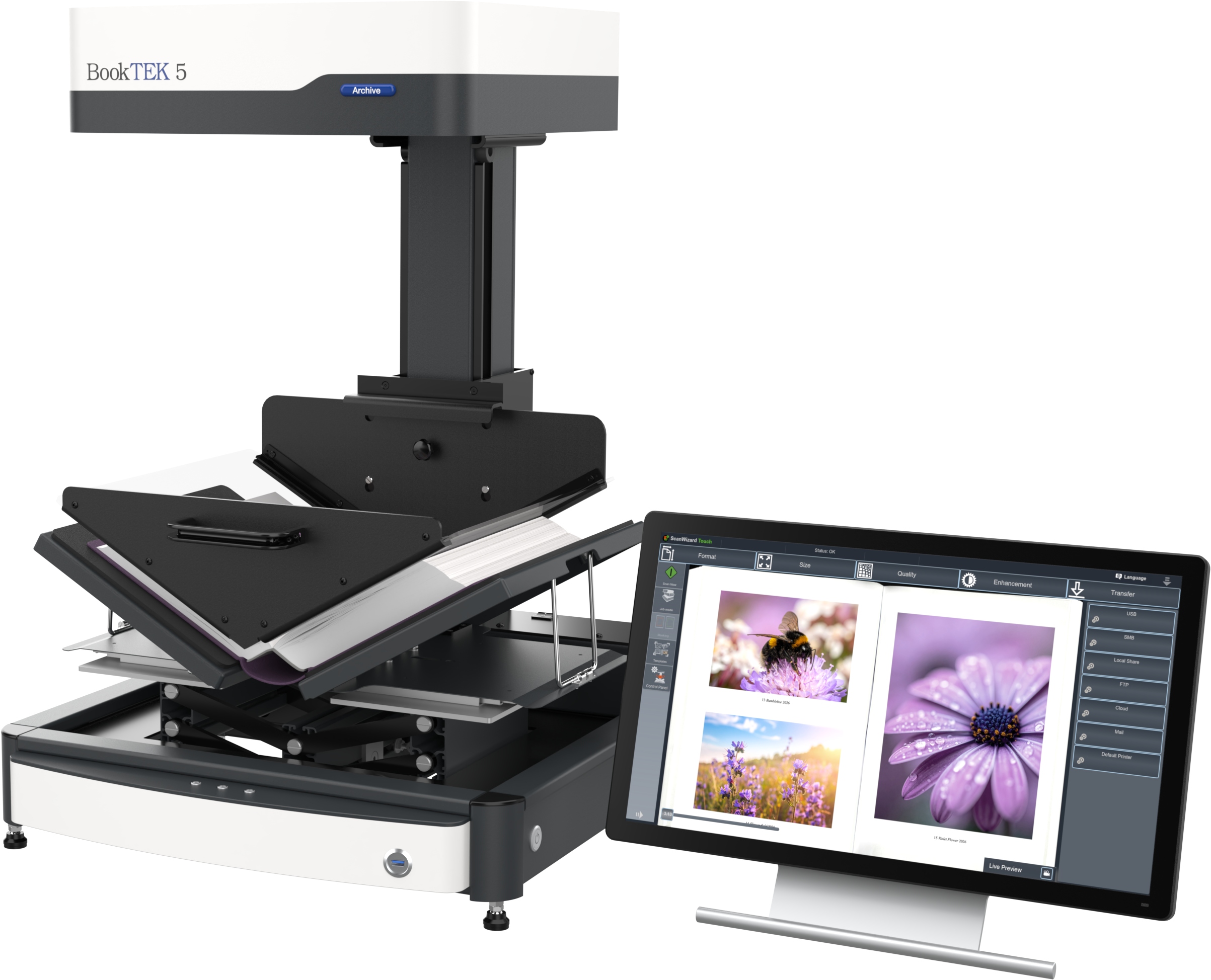

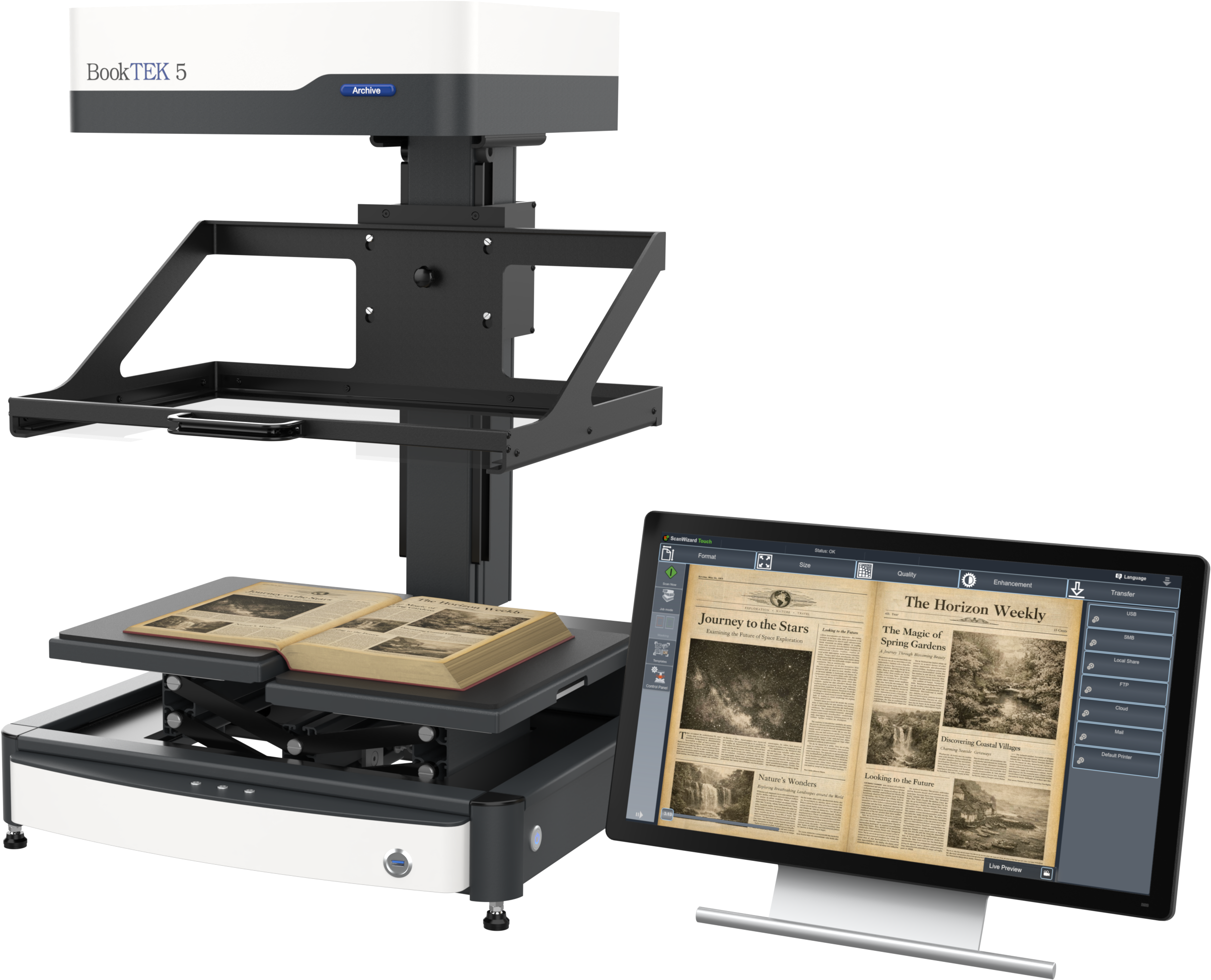

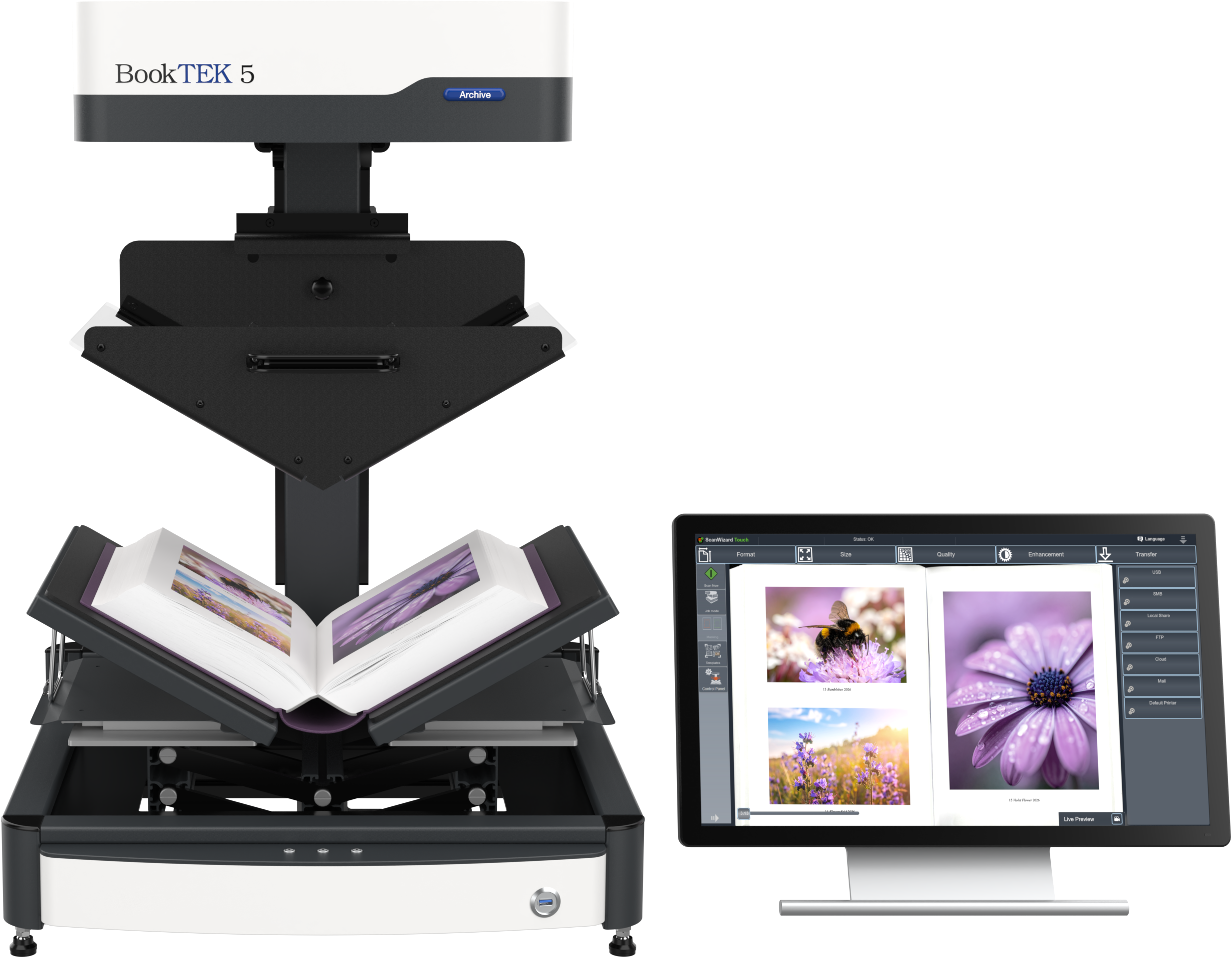

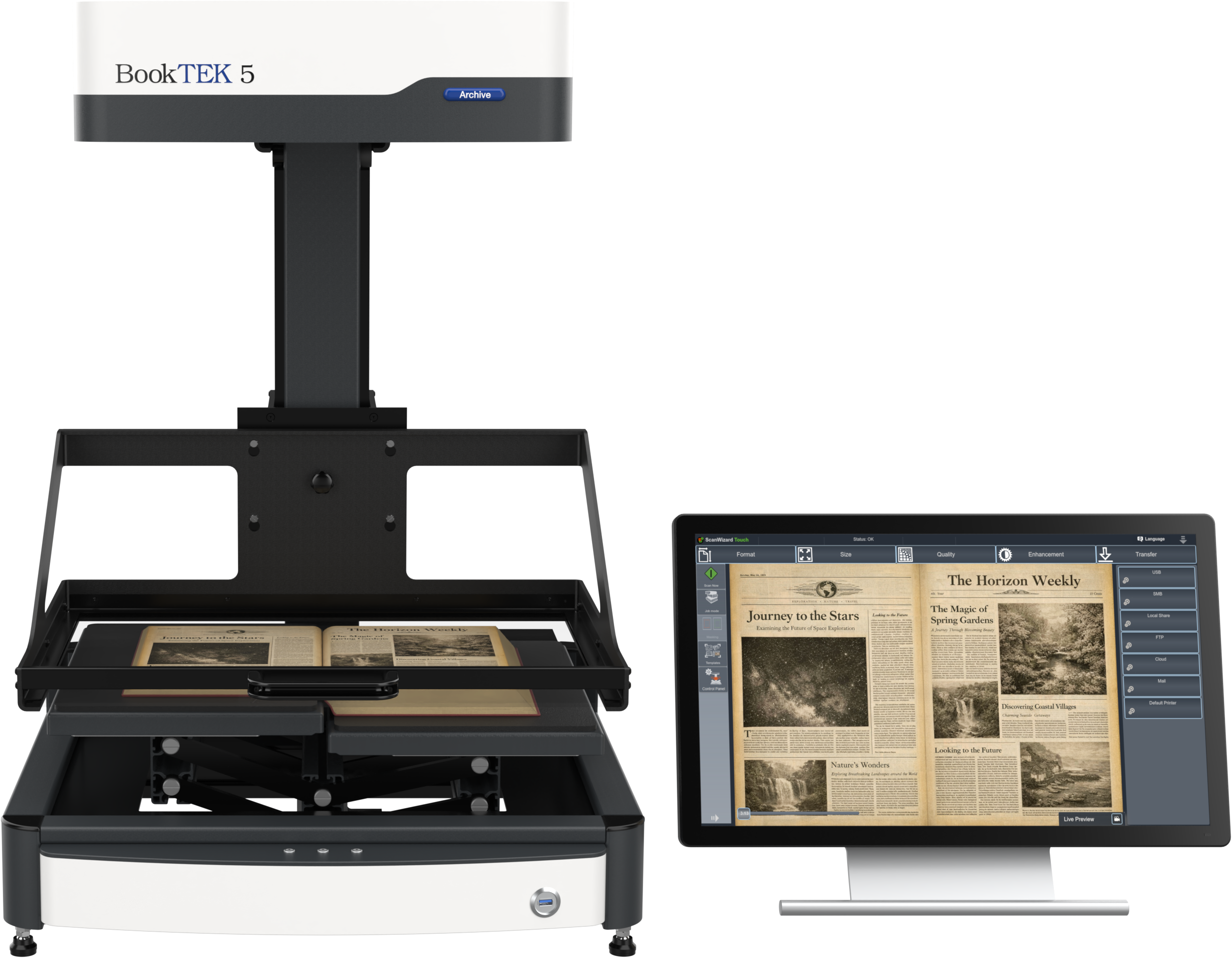

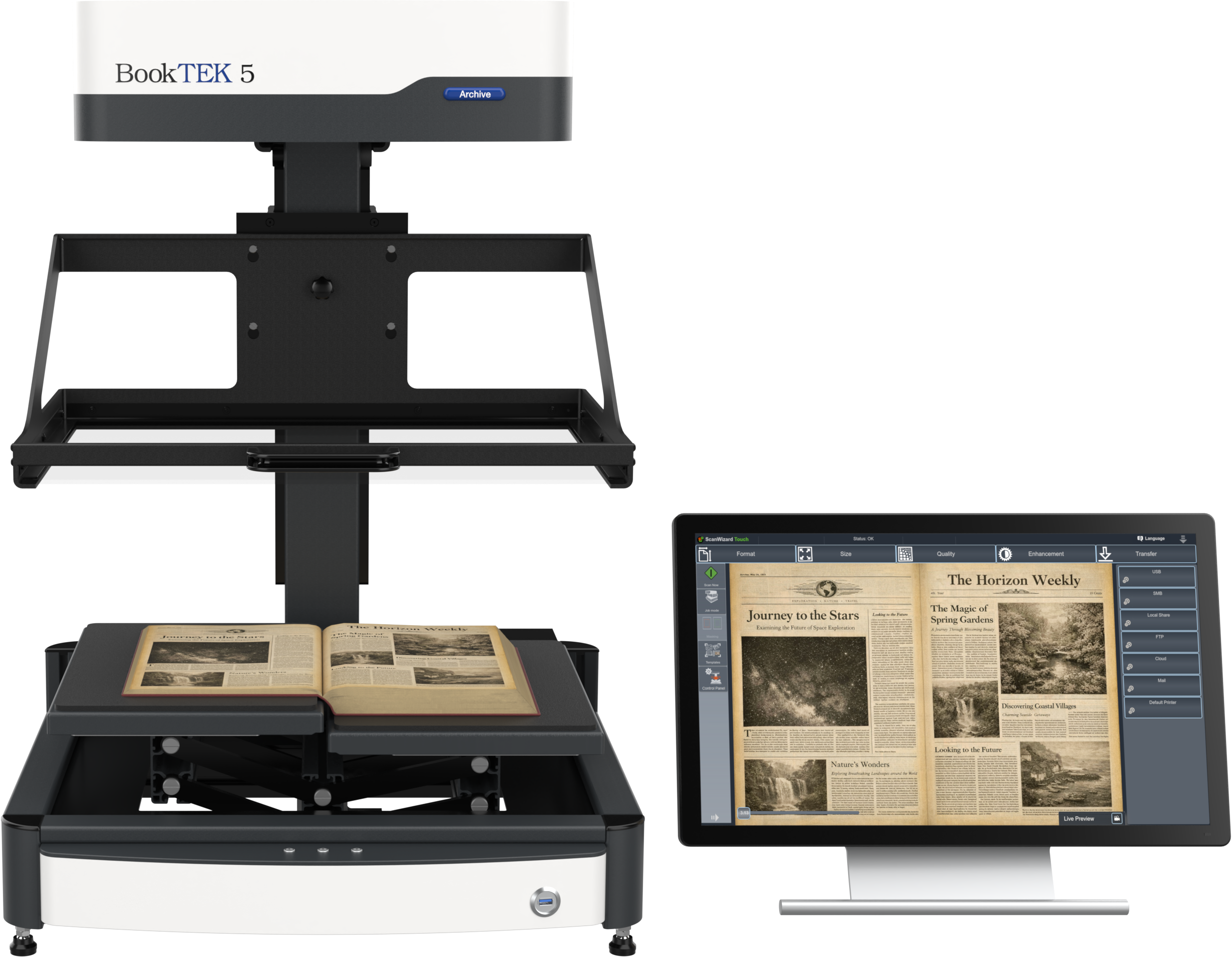

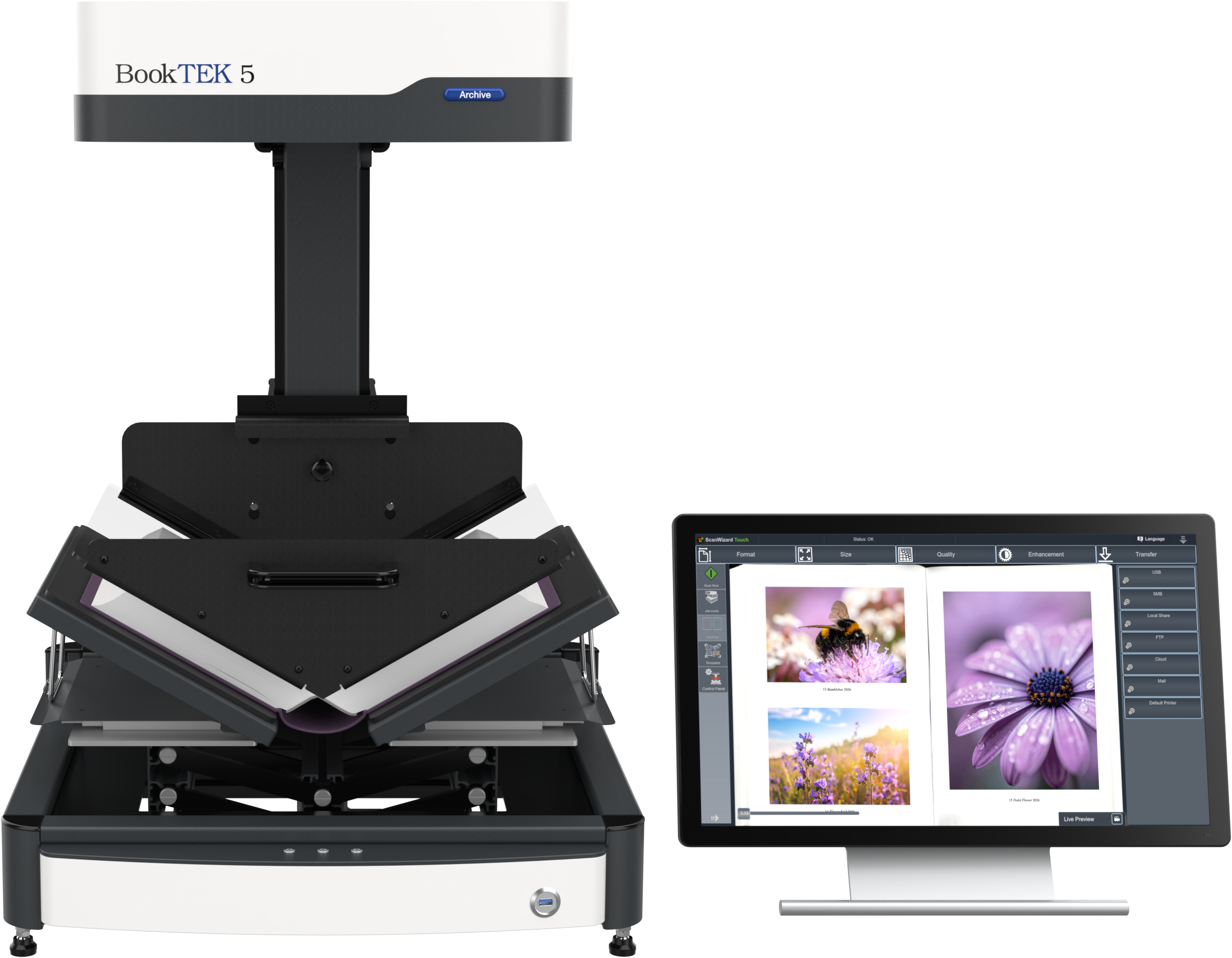

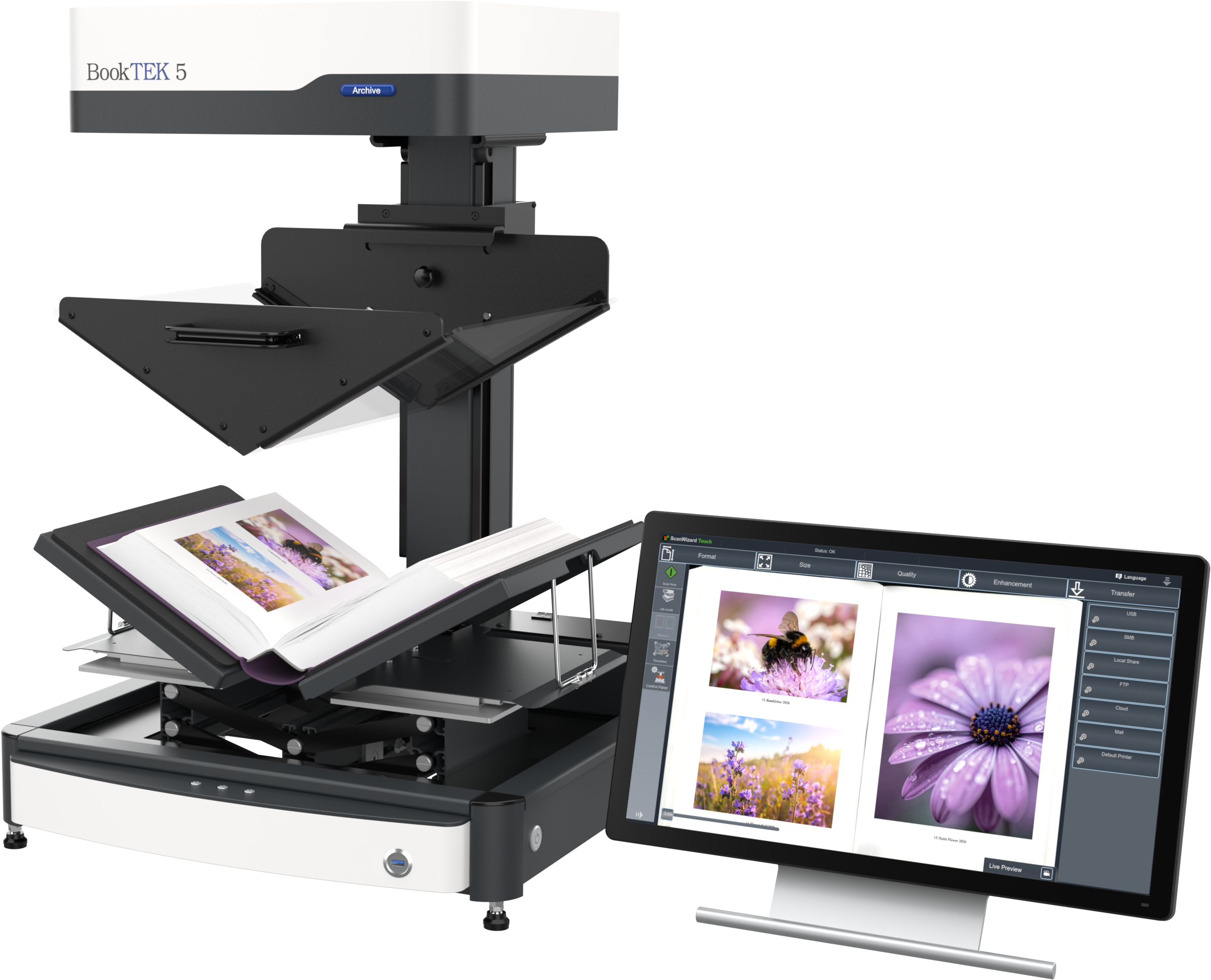

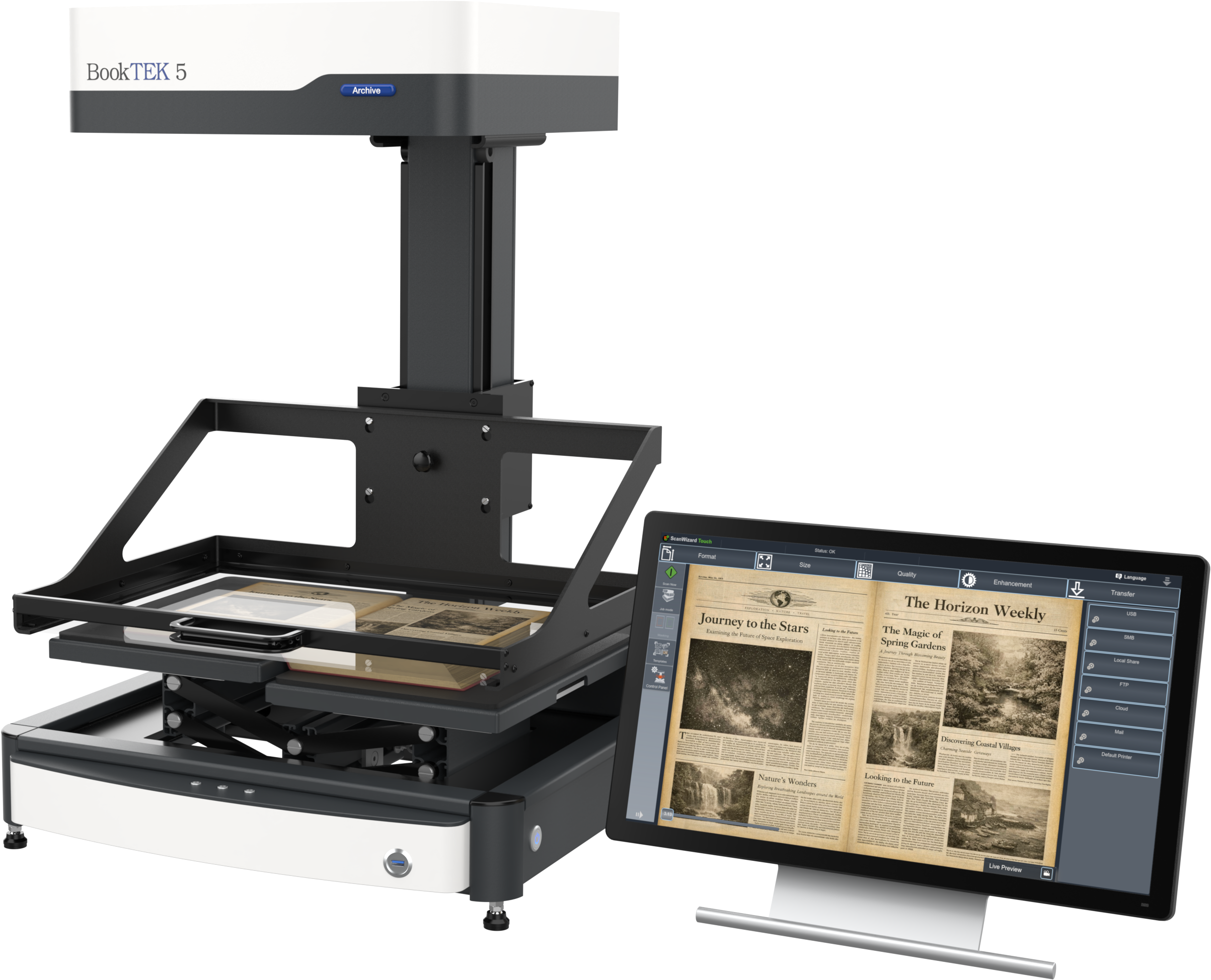

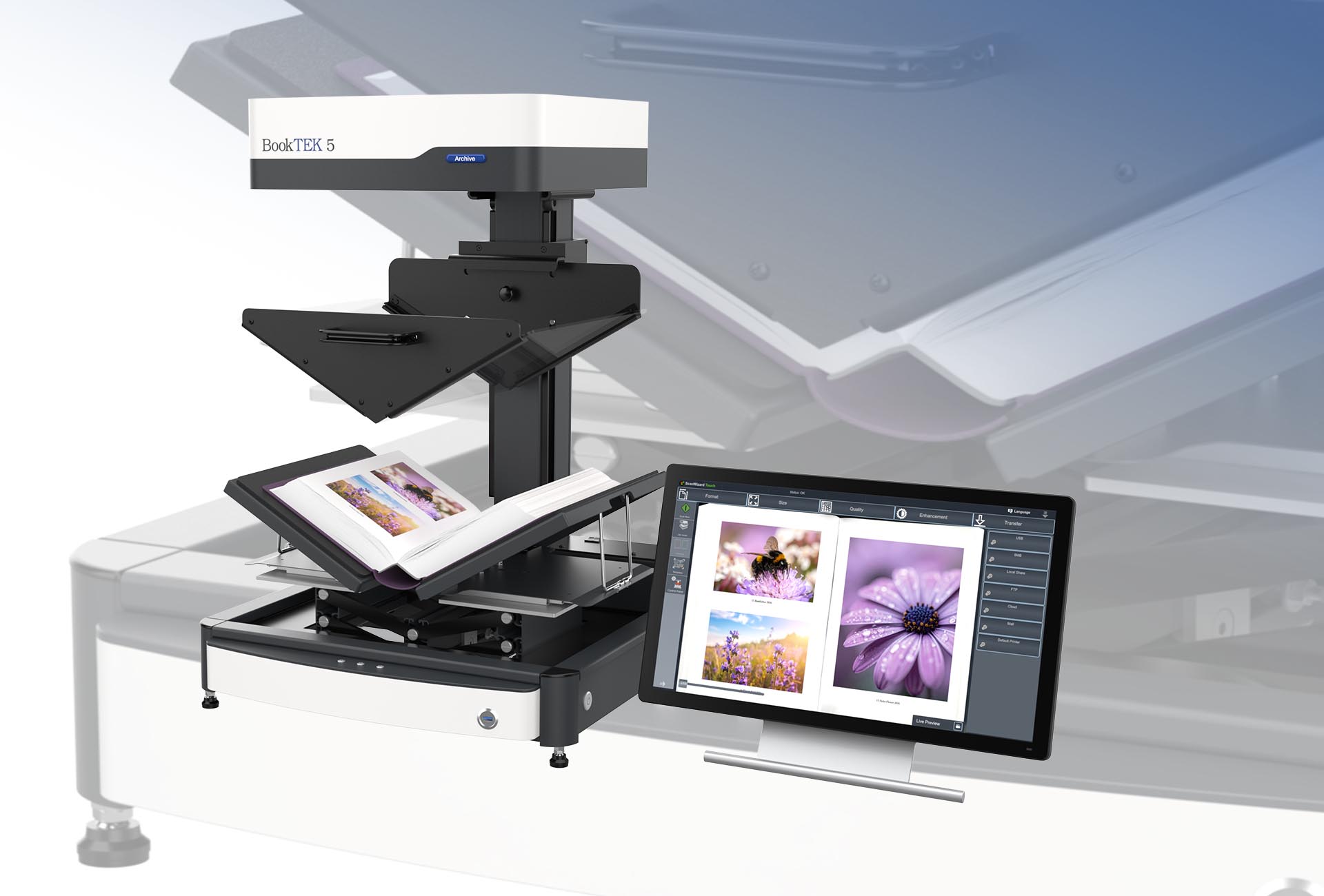

The BookTEK 5 V3 Archive is equipped with a 21-inch Full HD multitouch screen for an intuitive user experience. Centrally positioned control buttons ensure a symmetrical and ergonomic operation, making scanning more comfortable and efficient.
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Your interest, our expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochures
Firmware
specifications
Media
Fact Sheets
Service Videos
Manuals
Language
Format
Date
Legal Information BE5-V3-Archive
04/2025
Technical Specification BE5-V3-Archive
04/2025
Setup Instructions BE5-V3
03/2025
Assembly Instructions Scan2Pad® for BE5 Kiosk
03/2025
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Book Scanner Buyer´s Guide
02/2021
Brochures
Language
Format
Date
Product Brochure Scan2Net®
09/2022
Catalogs
Language
Format
Date
Image Access Product Catalog
04/2025
Fact Sheets
Language
Format
Date
Fact Sheet BE5-V3-Archive (Coming soon)
–
–.–.–
Document
Maximum Documents Size
390 x 480 mm (15.3 x 18.9 inch), 50% more than DIN/ISO A3
Output
Scanner Resolution
600 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
DIN A3+ @ 150 dpi: 0.8 s
DIN A3+ @ 200 dpi: 0.9 s
DIN A3+ @ 300 dpi: 1.3 s
DIN A3+ @ 400 dpi: 1.7 s
DIN A3+ @ 600 dpi: 2.4 s
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit grayscale, bitonal, enhanced halftone
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Complies to FADGI *** guidelines, Metamorfoze Light, ISO 19264-1
Technical Specifications
Computer
64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen
21 inch Full HD 1920 * 1080 multitouch screen
USB Port
2 x USB 3.0 port, 4 x USB 2.0 port
Interface
2.5 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
CCD line sensor, 22,500 pixels (11,000 scan lines equals to a 245 MPixel matrix camera)
Live Preview Camera
CMOS matrix, area sensor
Light Source
White LEDs, tested according to IEC 62471, no IR/UV emission
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 h typ. Lamps are covered by the Extended Warranty Option
Dimensions
Dimensions Scanner (H x W x D)
840 x 585 x 625 mm (33 x 23 x 24.5 inch)
Weight Scanner
48.5 kg (107 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
< 0.5 W (Sleep) / 1.5 W (Standby) / 40 W (Ready to scan) / 110 W (Scanning)
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 42 dB(A) (Scanning) / < 33 dB(A) (Standby)
Technical changes, errors and omissions excepted. All information subject to change.
