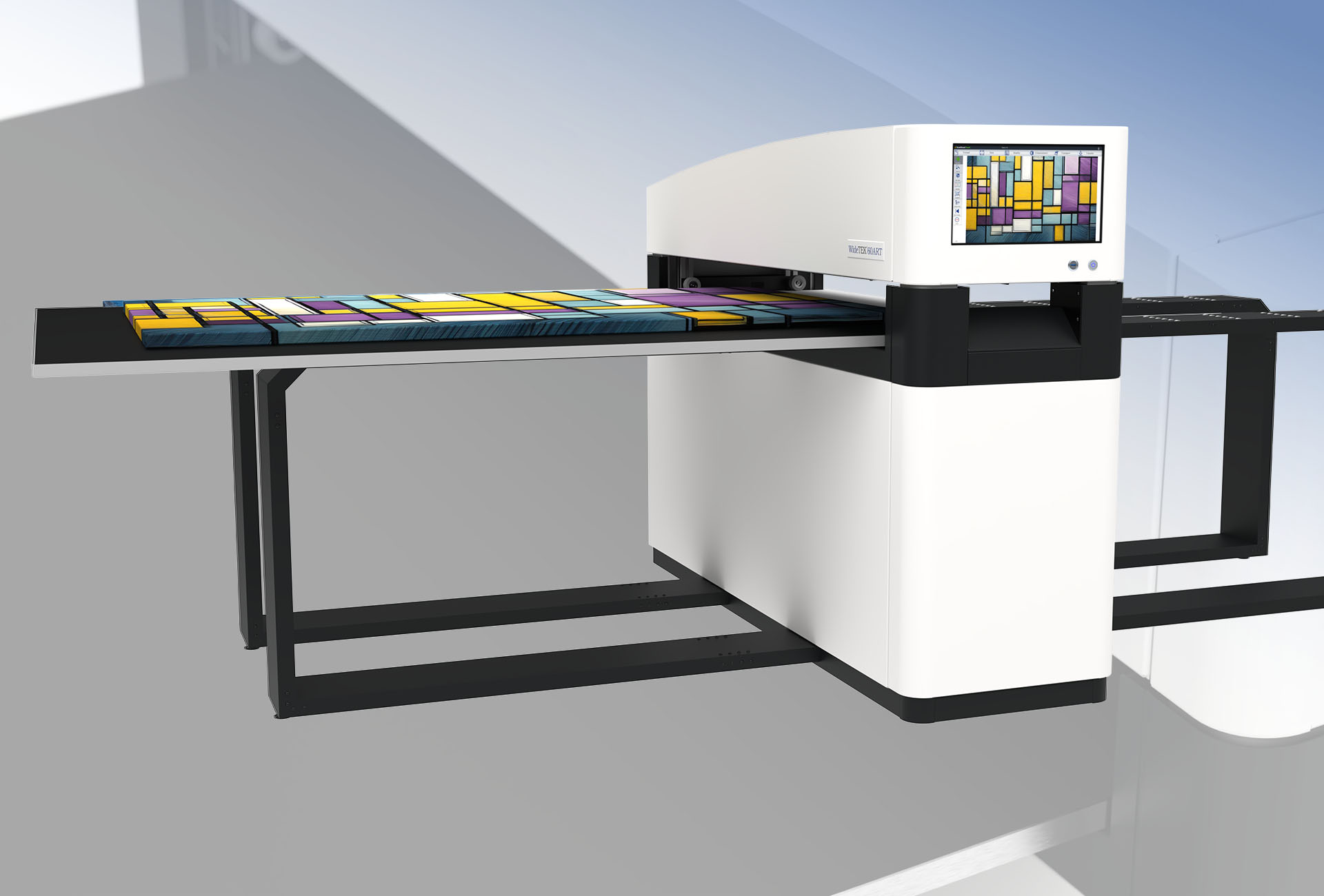

WideTEK 60ART
Fine art scanner for gentle, contact-free digitization of paintings, drawings, and other delicate artworks, capturing every detail with precision.
Perfecting the art of art scanning
Available in a 48-inch and a 60-inch version, the WideTEK ART sets a new standard for scanning fine art, capturing exceptional detail and color accuracy. From oil and acrylic paintings to watercolors, charcoal sketches, pastel drawings, mixed media collages, and antique pieces, it handles artworks up to 60 x 80 inches (1524 x 2032 mm) and 5.5 inches (140mm) in height, delivering stunning results at 1200 dpi.

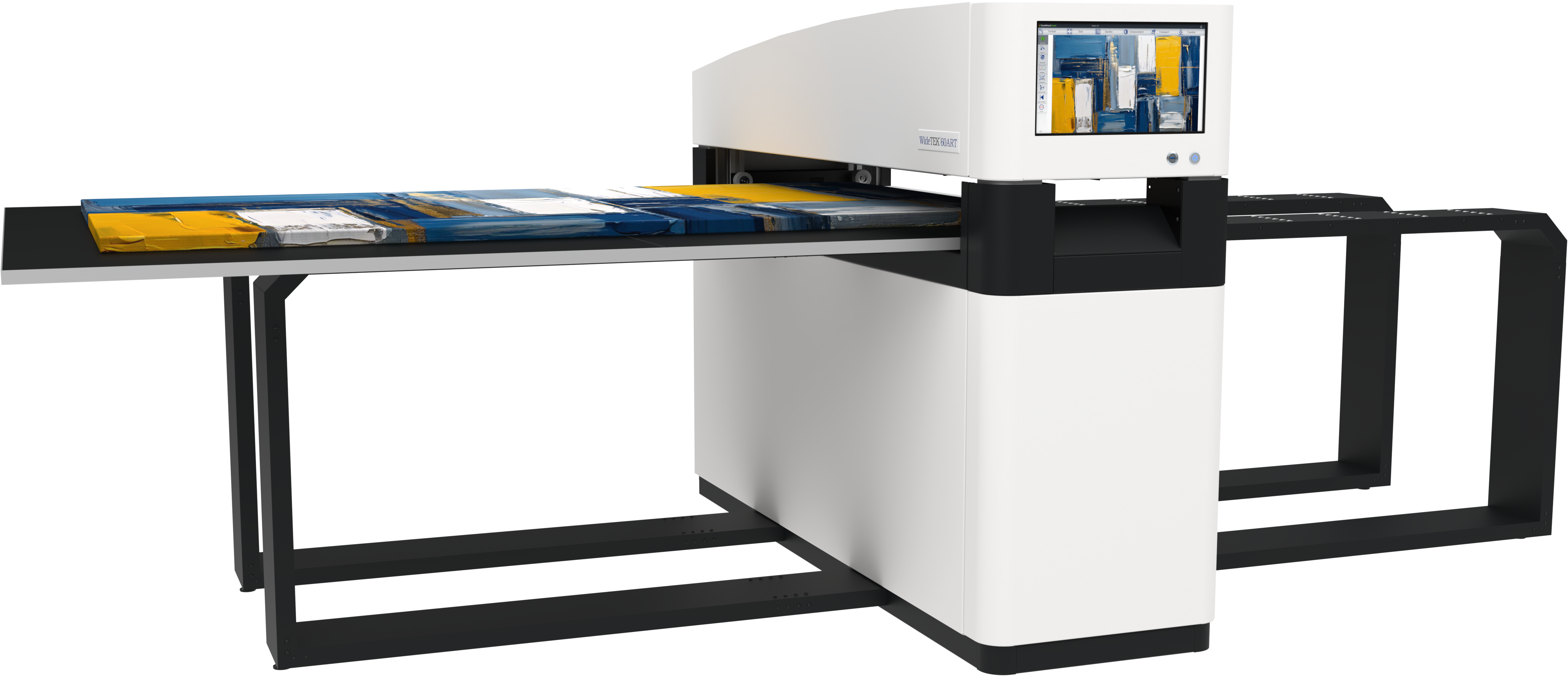

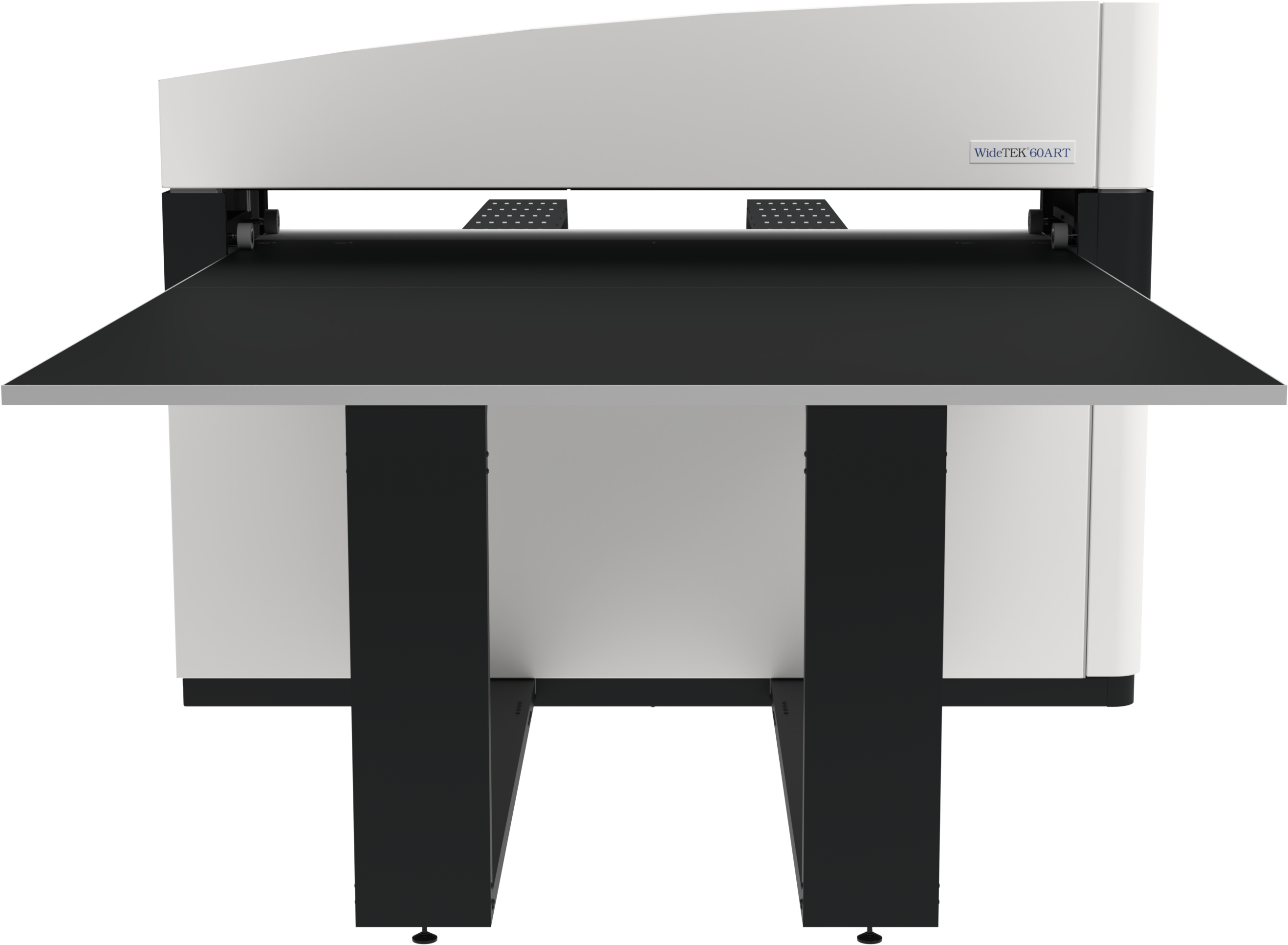

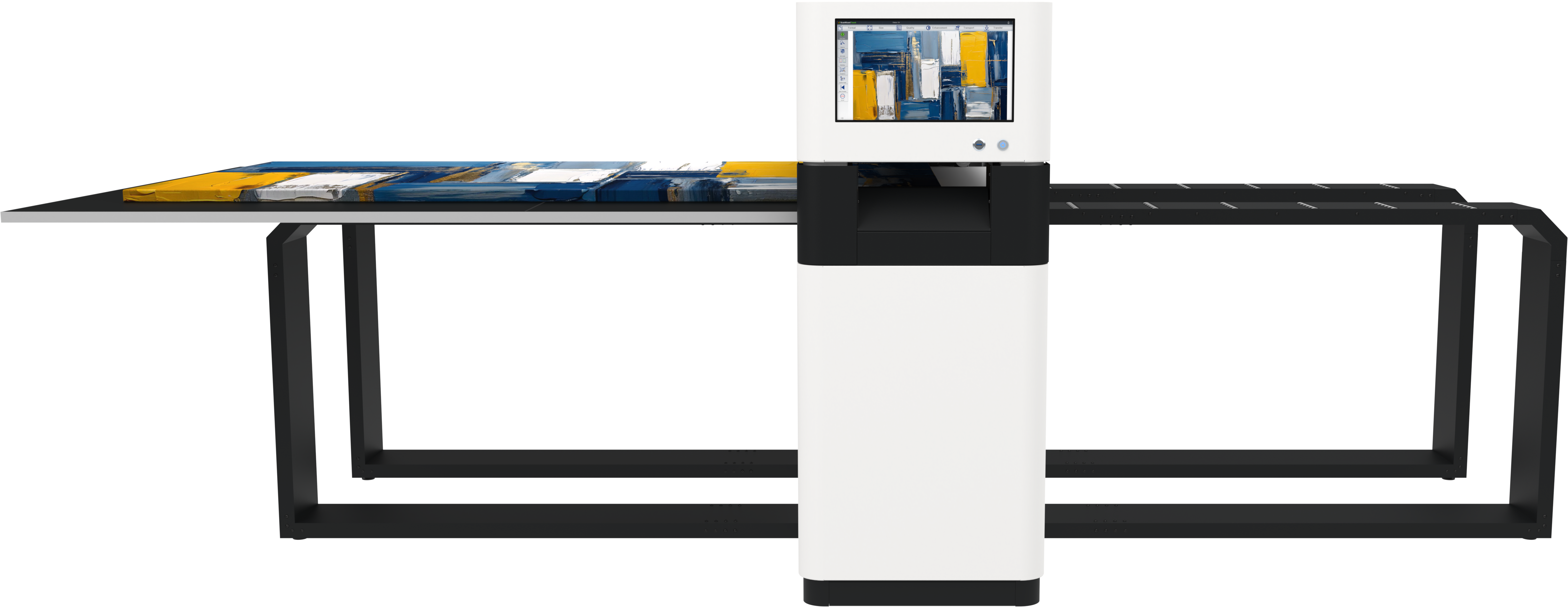

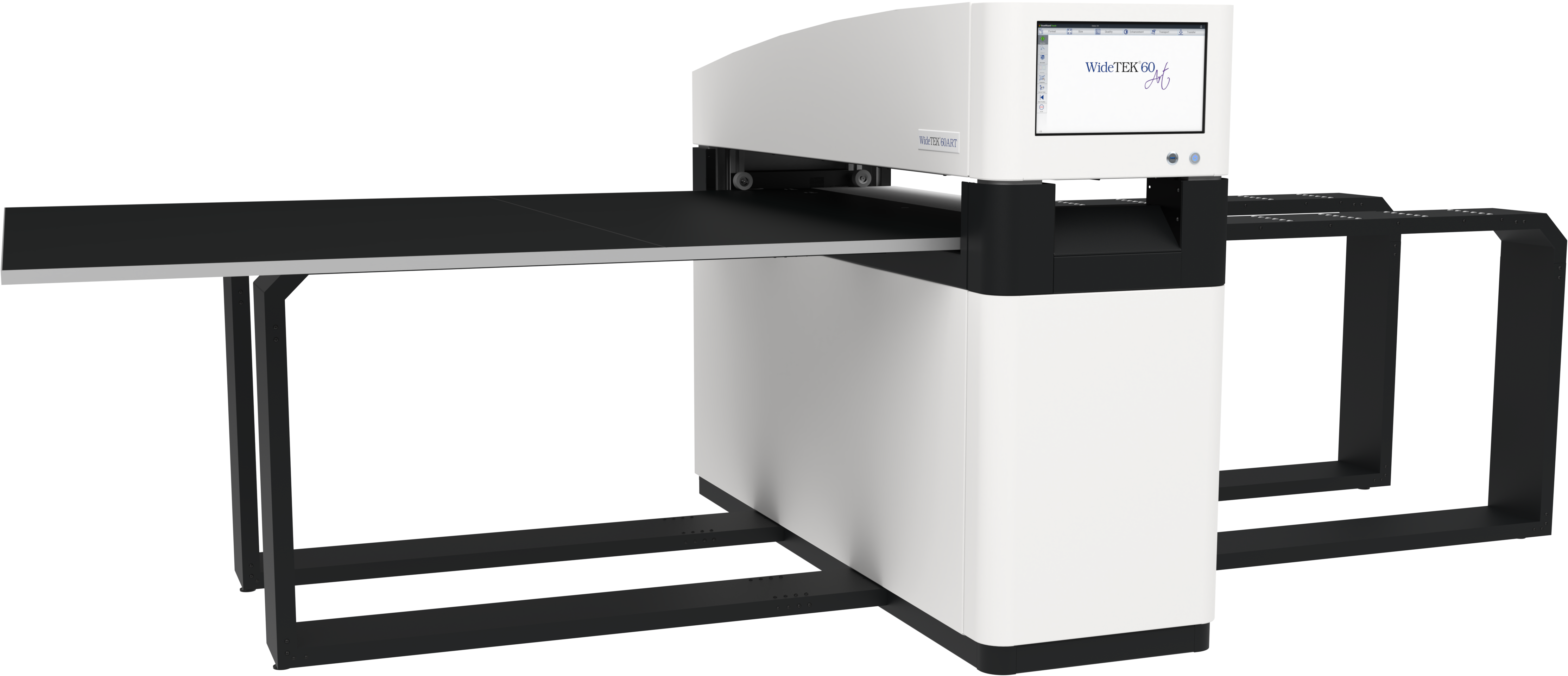

360° view
Scroll mouse wheel or click and drag to rotate
Unveiling texture
The WideTEK ART excels in capturing surface textures through advanced 3D scanning. Whether emphasizing subtle textures or enhancing pronounced features, it provides adjustable settings to perfectly showcase the intricate details of artworks.
This capability ensures that every scan captures the essence and depth of the original piece, making it an invaluable tool for art preservation and reproduction.
Contactless digitization
Original artwork is scanned without any physical contact, as the CCD camera system captures the image while the artwork is gently moved below it. This process eliminates the risk of damage, making it possible to digitize even framed pieces or freshly painted works without compromising their condition.
Professional art reproduction
The WideTEK ART integrates effortlessly with large-format printers from HP, Canon, and EPSON, delivering a complete solution for professional art reproduction. With native printer drivers installed directly on the scanner, it ensures exceptional color accuracy for stunning, true-to-original results.
3D surface scanning
Beyond capturing fine art textures, our WideTEK ART stands out in 3D surface scanning for a variety of uses. From inspecting coins, Braille prints, and textiles to analyzing SMD components on circuit boards, this scanner delivers precise imaging for detailed surface inspection and quality control.
Two versions, upgradable from 48" to 60"
The scanner is available in two versions: the 60-inch version and a more cost-effective 48-inch version for users with smaller format needs up to 48 x 80 inches (1270 x 2032mm). For maximum flexibility, the WideTEK 48ART can be seamlessly upgraded to the full 60-inch width at any time with an upgrade key, ensuring your scanner adapts to your evolving requirements.
Rapid data transfer
The 1 Gbit Fast Ethernet connection with TCP/IP-based Scan2Net® interface provides ultra-fast data transfer speeds. Scanned images move across your network nearly instantaneously, ensuring efficient workflow.
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Your interest, our expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochures
Firmware
specifications
Media
Fact Sheets
Service Videos
Manuals
Language
Format
Date
Best Practices WideTEK 36ART
03/2018
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Wide Format Scanner Buyer´s Guide
05/2022
Brochures
Language
Format
Date
Product Brochure WideTEK® 60ART
03/2025
Product Brochure Scan2Net®
09/2022
Catalogs
Language
Format
Date
Image Access Product Catalog
04/2025
Fact Sheets
Language
Format
Date
Fact Sheet WT48ART-60ART-800 (Coming soon)
–.–.–
Document
Maximum Document Size
1524 x 2032mm (60 x 80 inches),
This is suitable for almost all commercially available canvas formats
Maximum Scan Width
140 mm (5.5 inch)
Document Thickness
240 mm (9.5 inch)
E.g. Canvas up to max. 140 mm in a frame up to 240 mm thickness
Autoformat Size Recognition
yes
DIN Format
DIN A5 – DIN A0
ANSI Format
Legal, US E
User Defined Format
yes
Output
Optical Resolution
1200 x 1200 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
300 dpi – 42.2 mm/s (1.66 inch/s)
600 dpi – 21.1 mm/s (0.83 inch/s)
Scan Speed Color 3D
300 dpi – 21.1 mm/s (0.83 inch/s)
600 dpi – 10.7 mm/s (0.42 inch/s)
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone
File Formats
Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data
Quality
Exceeds FADGI **** guidelines, ISO 19264-1
Technical Specifications
Computer
64 bit Linux, Intel® Core™ Gen 9 processor, 250GB SSD, 64GB RAM
Touchscreen
Internal 17 inch full HD color touchscreen
Monitor
Optional external monitor for up to 86 inch, 4K resolution
USB Port
1 x USB 3.0 port
Interface
10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
5 x Tri-Color CCD, 112,500 pixels, encapsulated and dust-proof
Light Source
Two linear lamps with white LEDs, no IR/UV emission
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 hours typ.
Dimensions
Dimensions Scanner (H x W x D)
Scanner, scantrack assembled: 1380 x 3260 x 1900 mm (54.5 x 128.5 x 75 inches), needs 4300 mm (170 inch) wall to wall
scan table: 25 x 1610 x 2400 mm (1 x 63.4 x 94.5 inches), ships in two parts 1200mm each
shipping crate: 1600 x 800 x 2000 mm (63 x 31.5 x 78.74 inches), fits through almost all doors
Weight Scanner
200 kg (440 lbs.) / total shipping 300 kg (660 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
P(Off) 0.3W / P(Sleep) 4.7W / P(Ready) 70W / P(Active) 120W 61% below
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
