Overhead Book Scanner

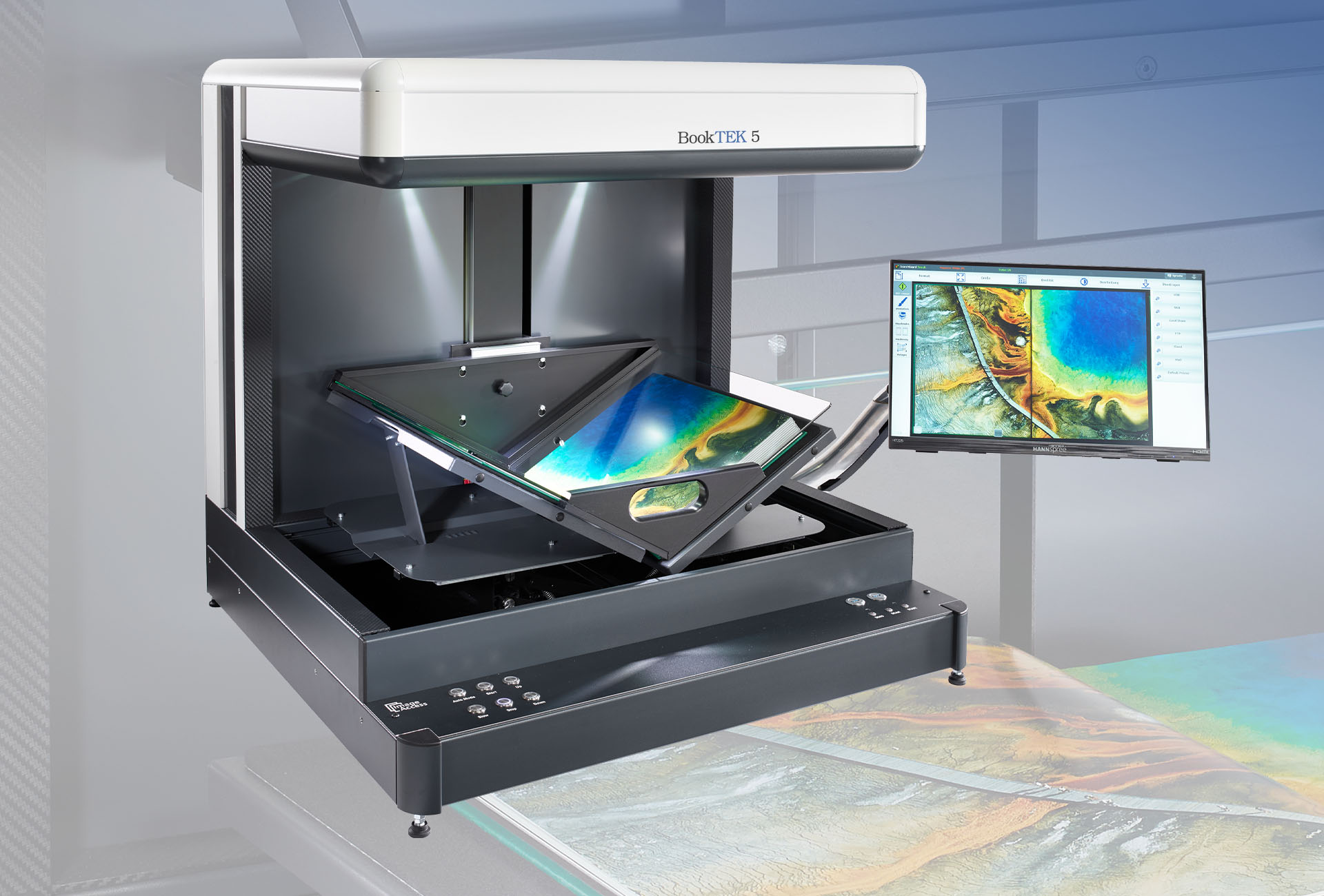

BookTEK 5 V2 Semiautomatic

High level 600 dpi production system.
Unique self-adjusting and V-shaped book cradle with motor driven glass plate.

High quality and maximum productivity

The BookTEK 5 V2S Semiautomatic delivers high-quality, high-speed digitization, ideal for 24/7 operation. Its standout feature is a self-adjusting book cradle with a motorized V-shaped glass plate, plus an optional flat glass plate. It efficiently scans originals up to A2+—including books, magazines, posters, and bound documents—at up to 600 dpi.

Gentle on books

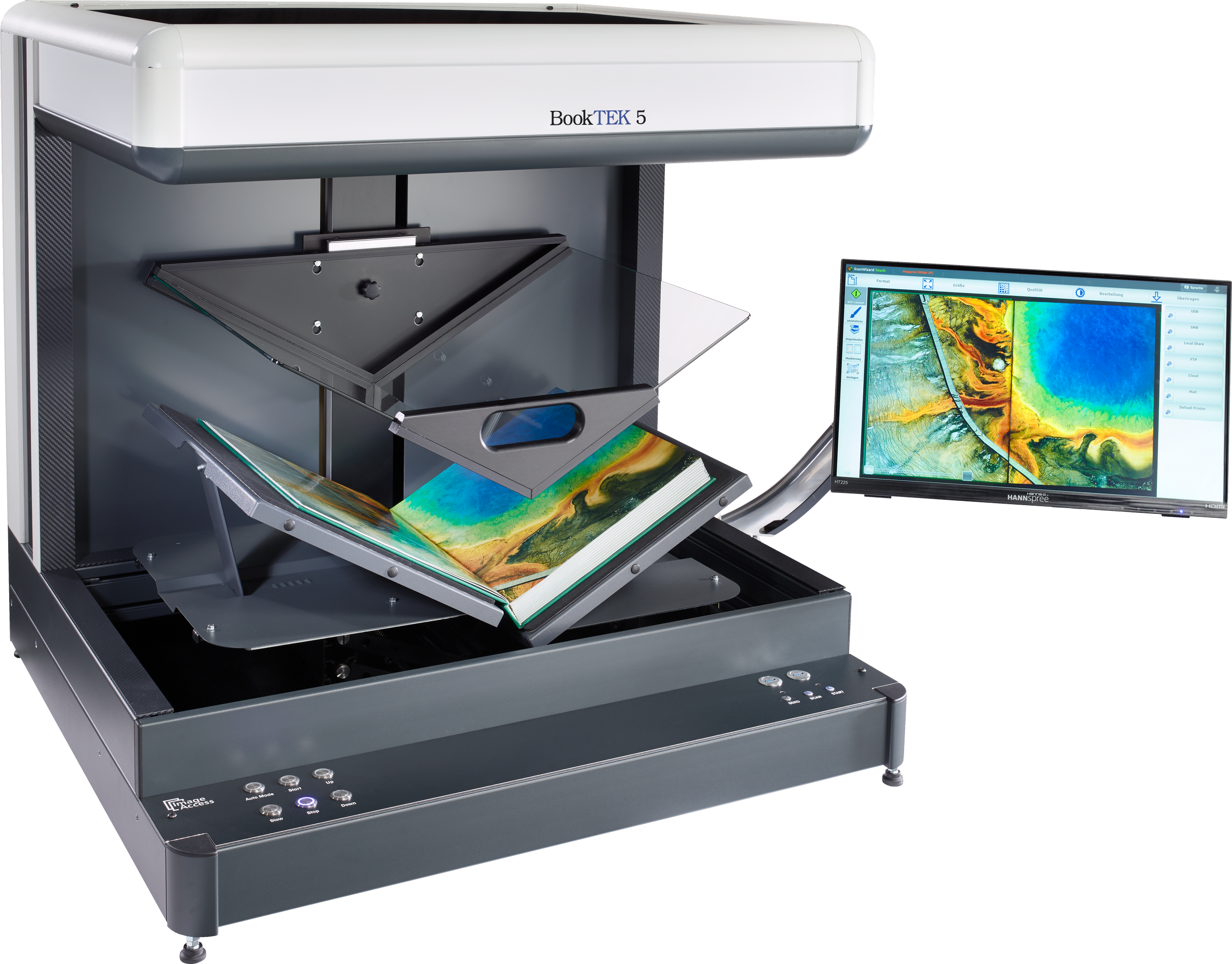

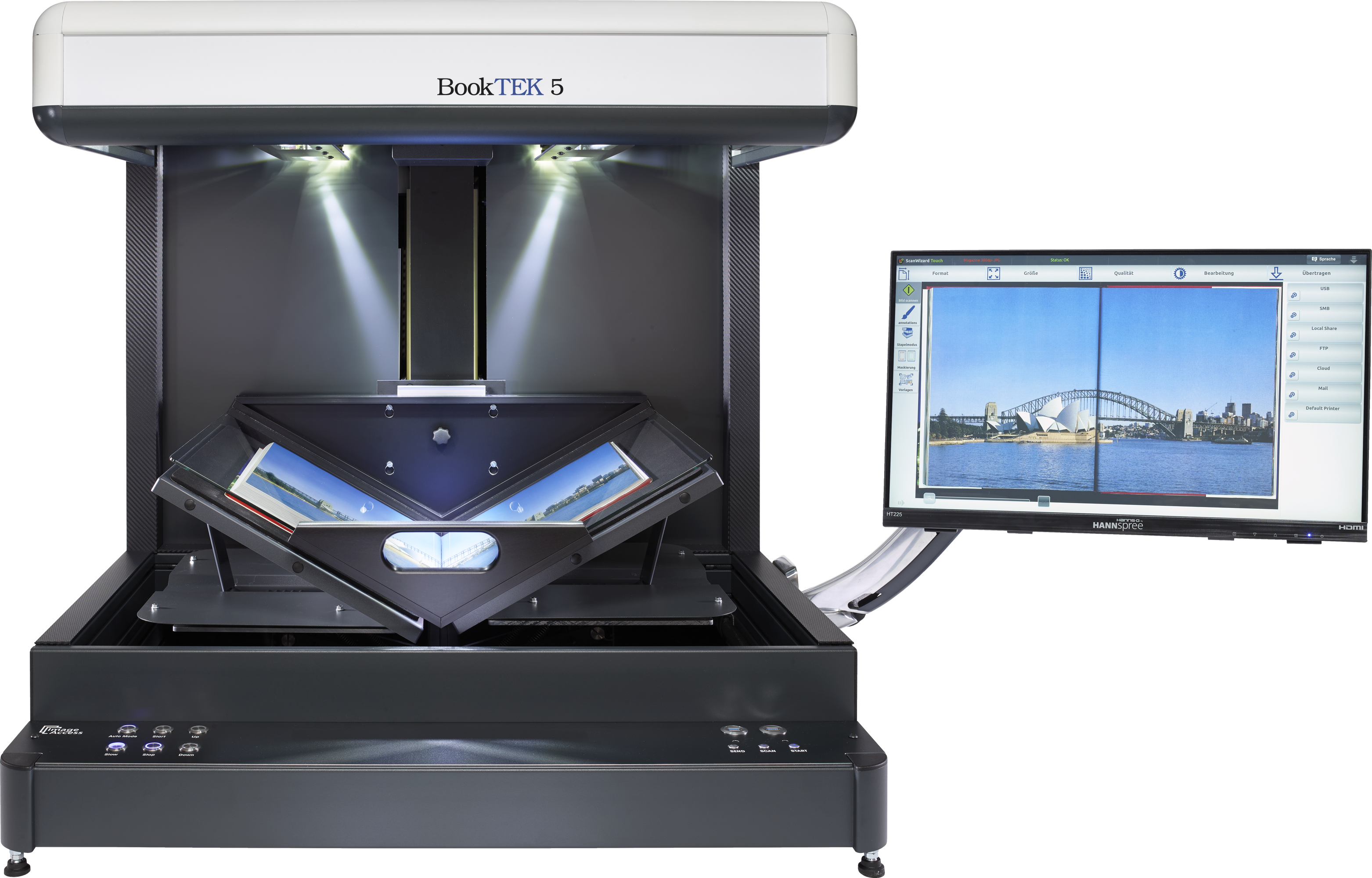

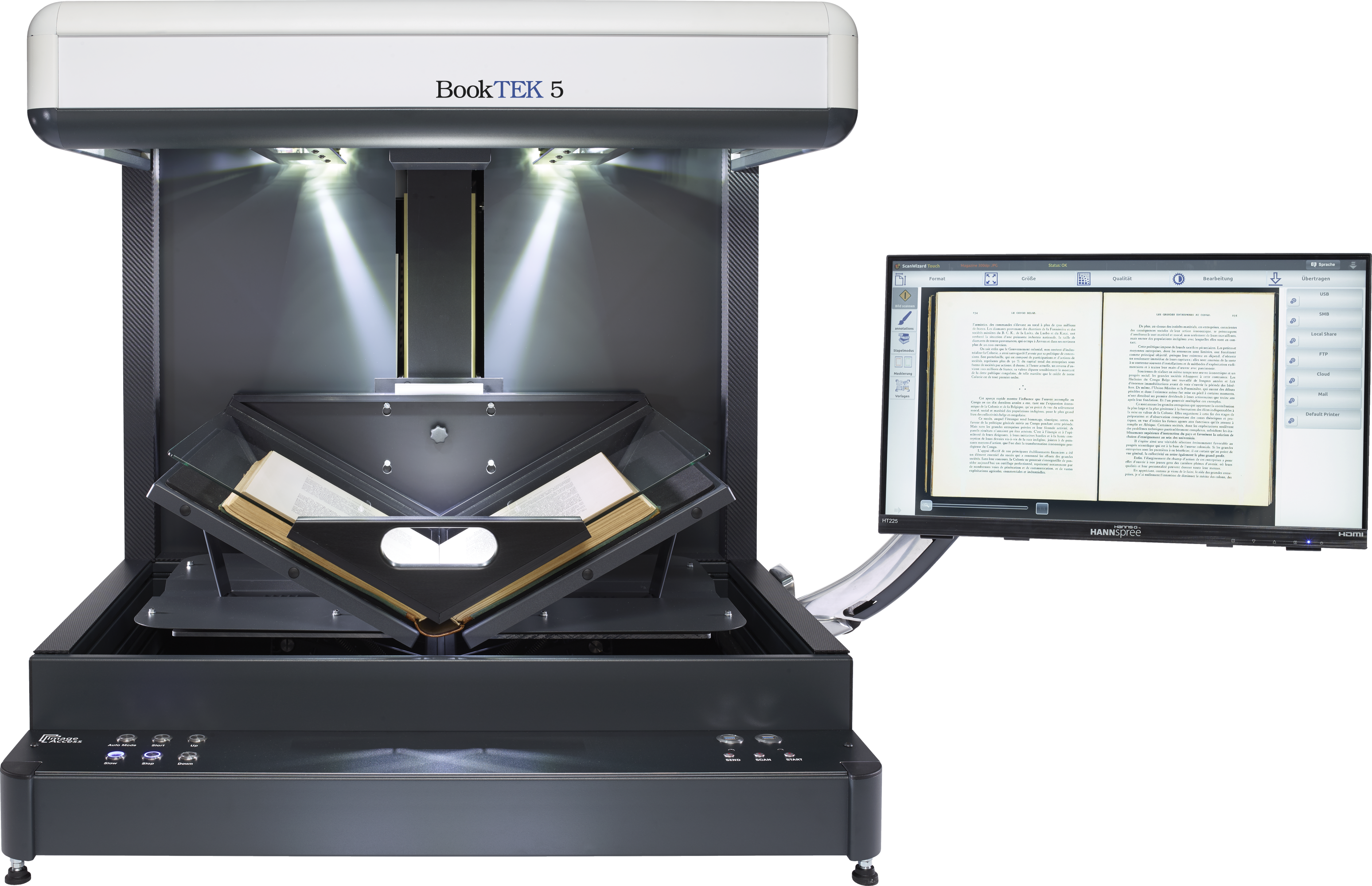

The unique self-adjusting book cradle offers the flexibility to scan in V-mode at a gentle 120-degree angle or in flat mode with the optional flat glass plate. This thoughtful design minimizes strain on delicate book spines, ensuring high-quality, preservation-friendly scans while safeguarding document integrity.

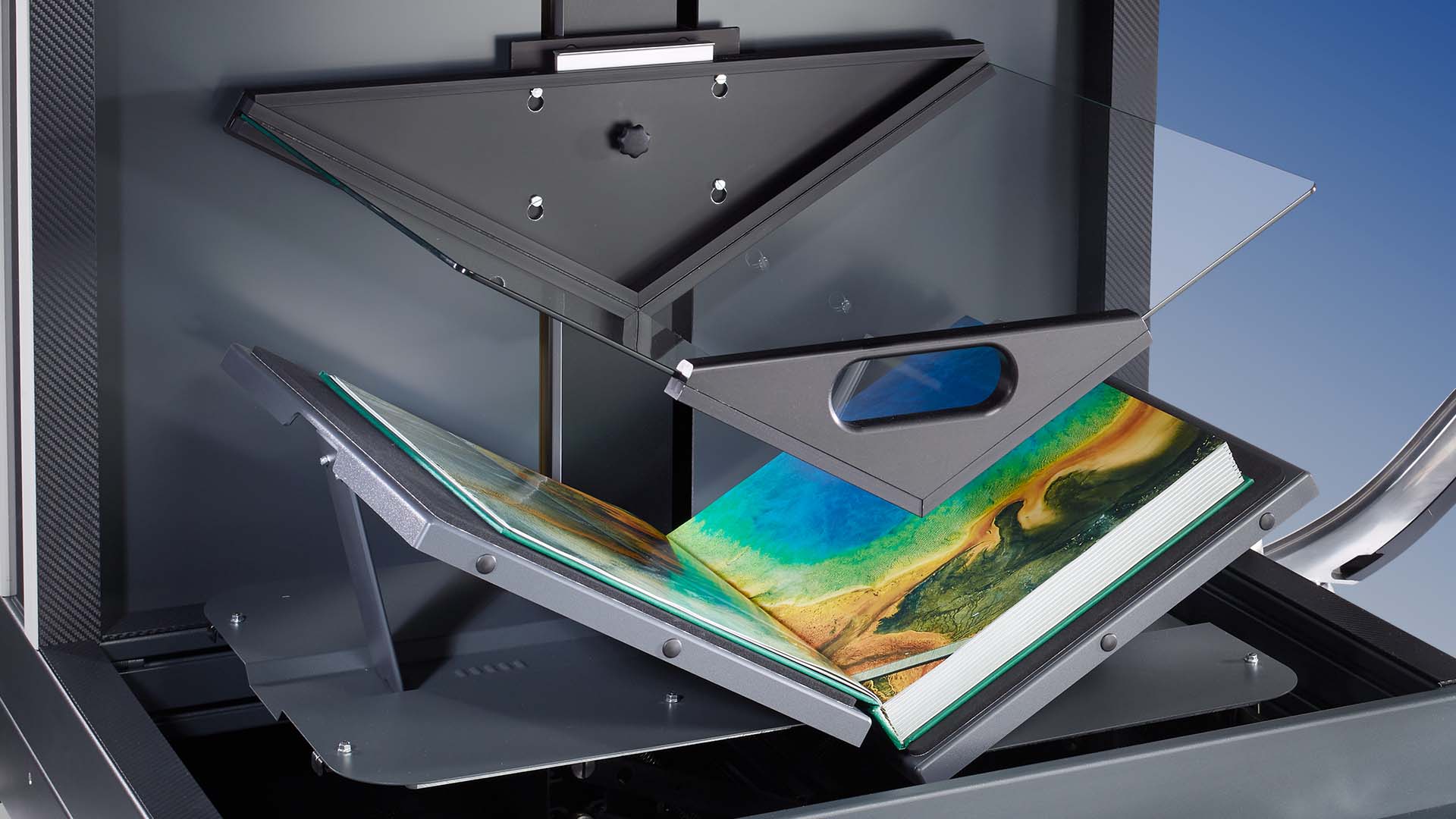

Motorized glass plate

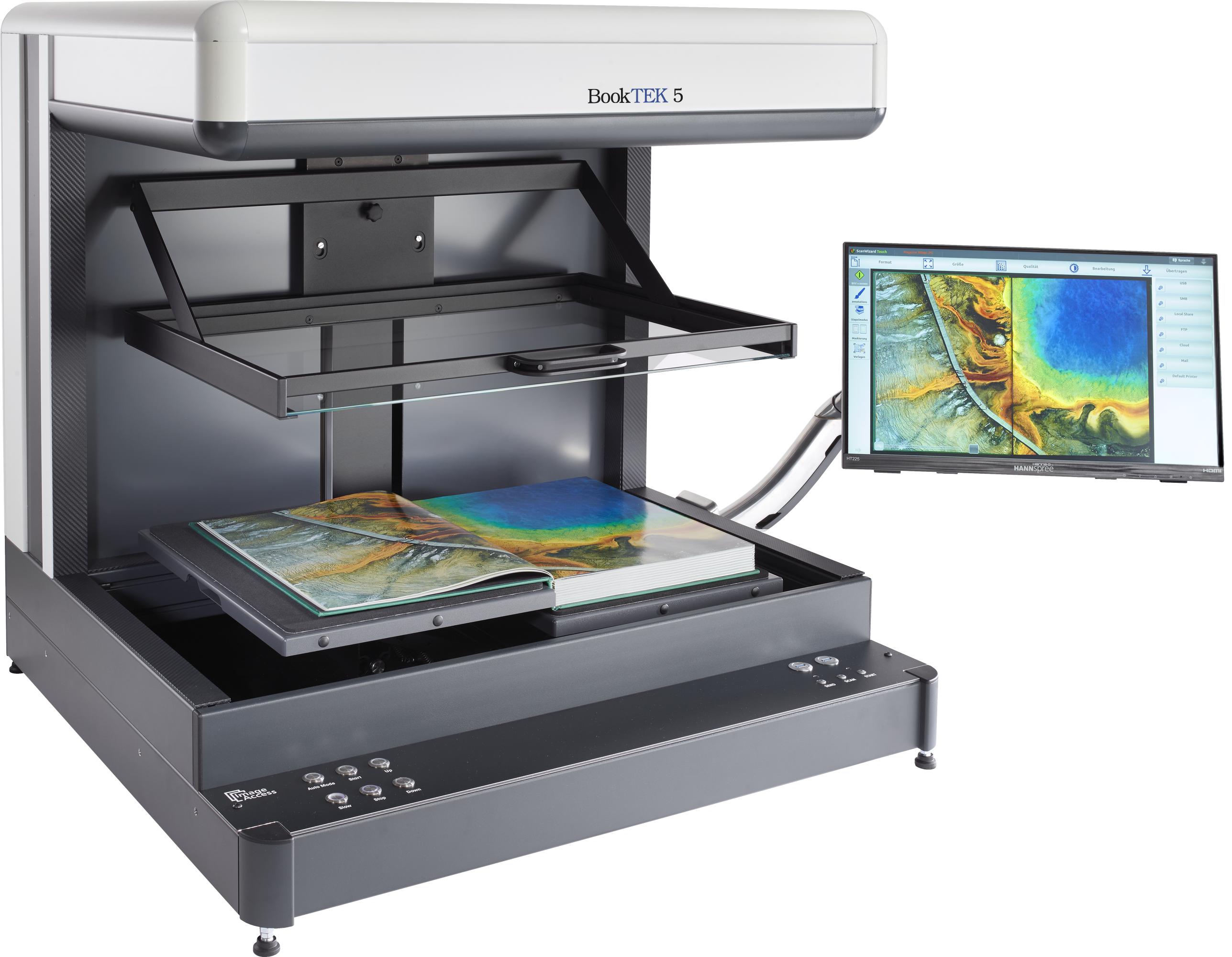

The motorized glass plate ensures distortion-free scans while protecting the book binding. Its balanced design enables effortless scanning without physical strain. For precise alignment with the book fold, the glass plate can be adjusted horizontally.

Software solutions for production scanning

A high-performance production scanner relies on robust capture software. Image Access offers powerful software solutions for the BookTEK 5 V2 Semiautomatic, designed to streamline and optimize high-volume digitization projects.

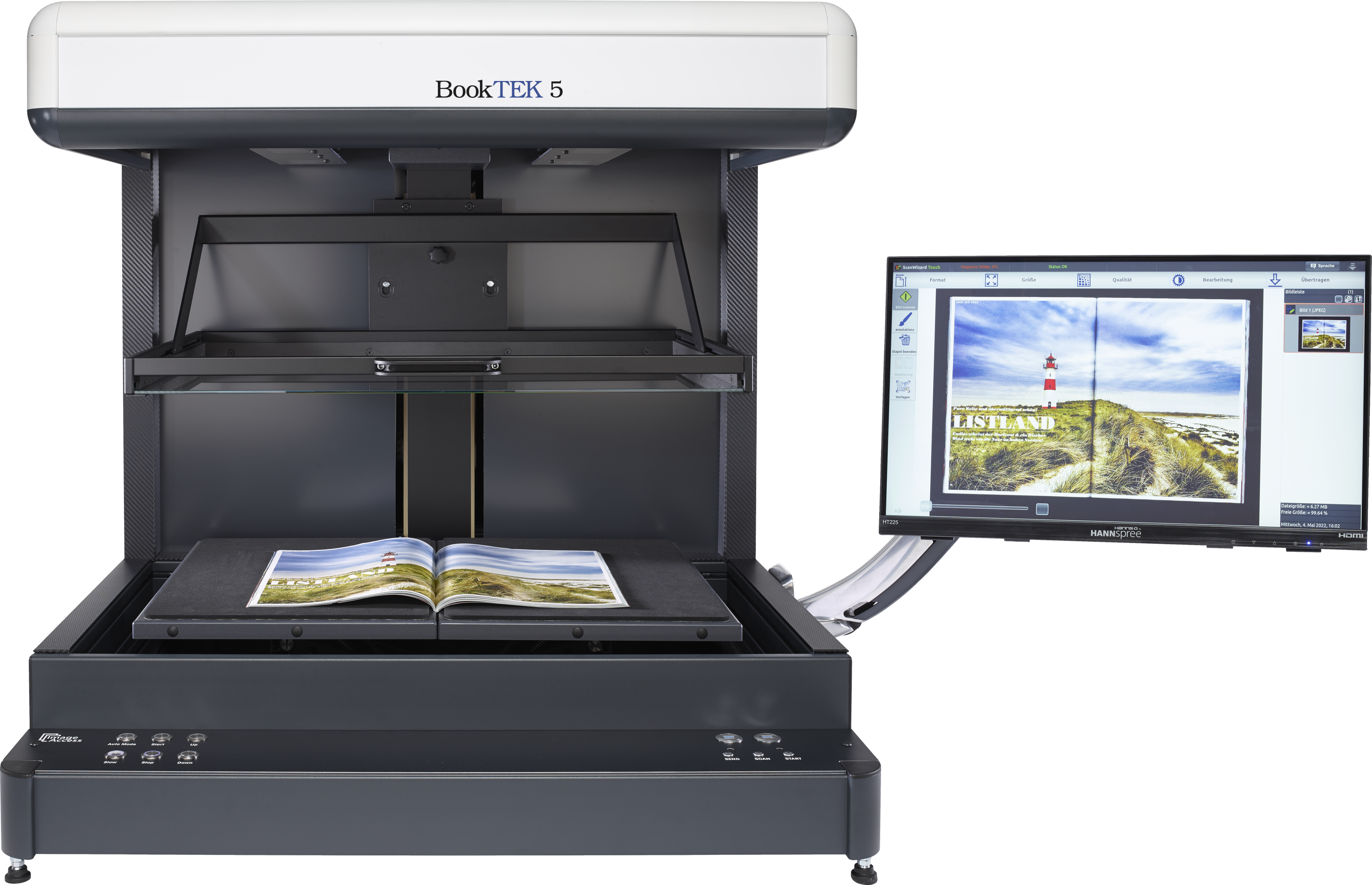

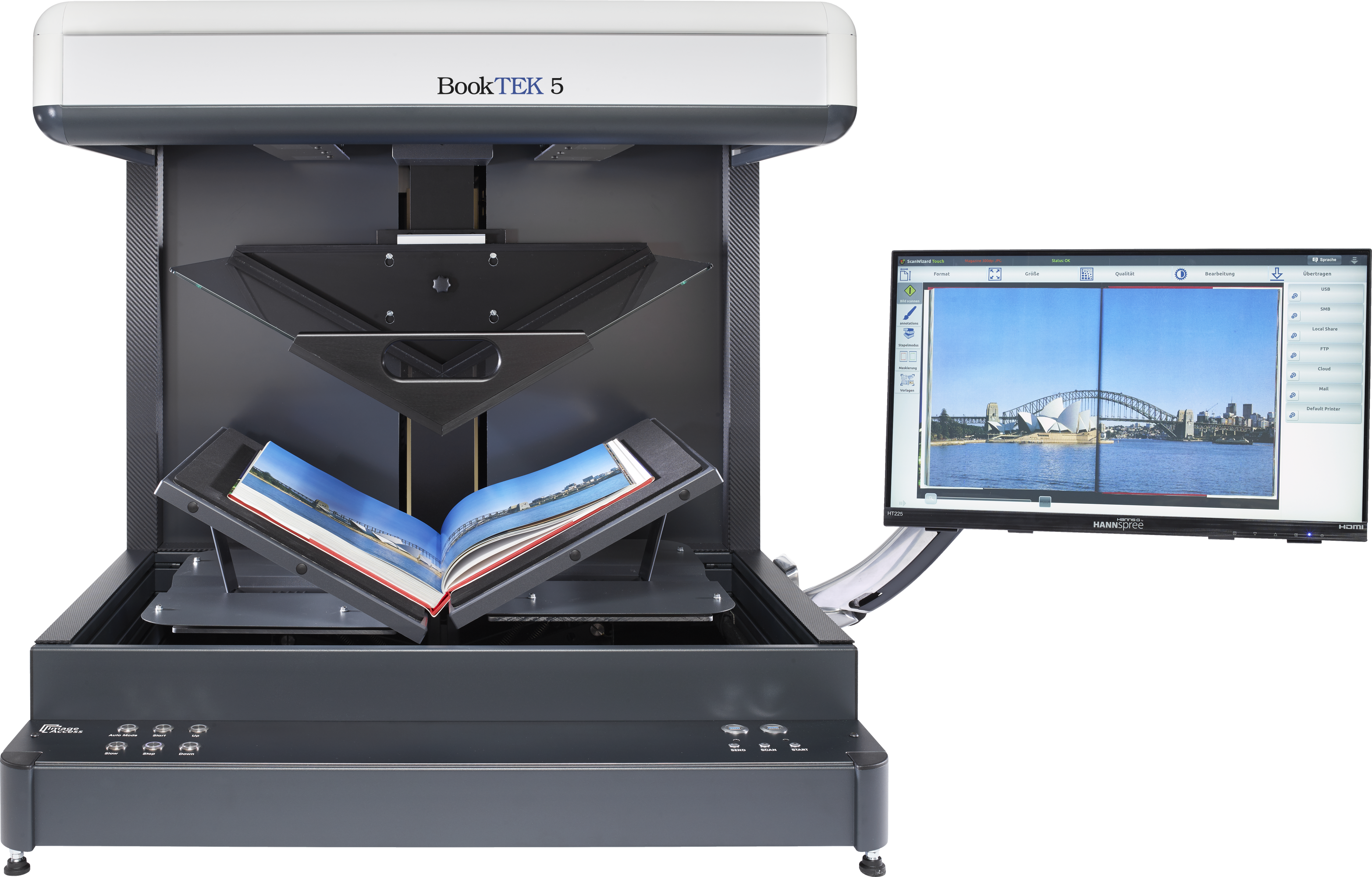

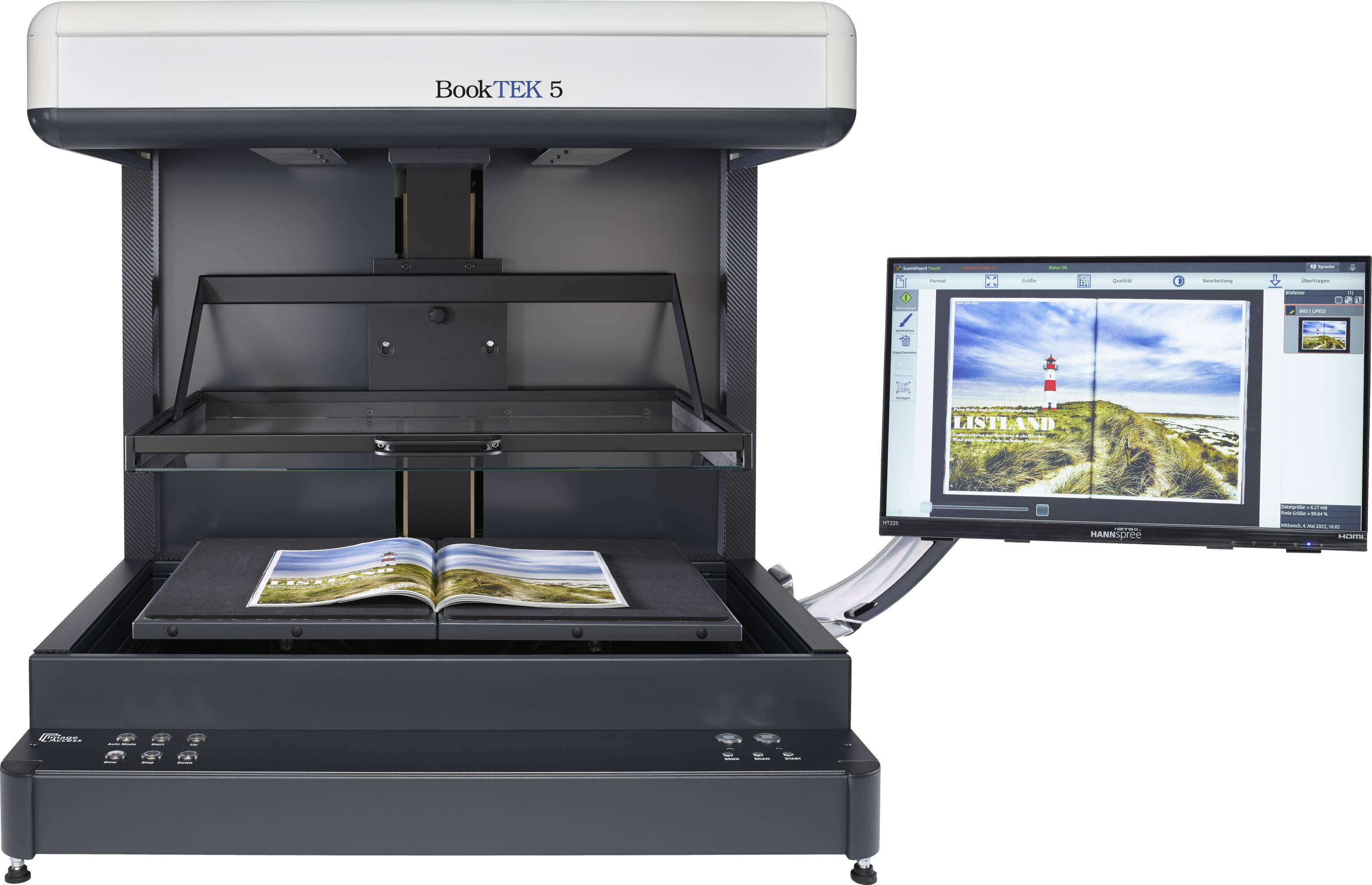

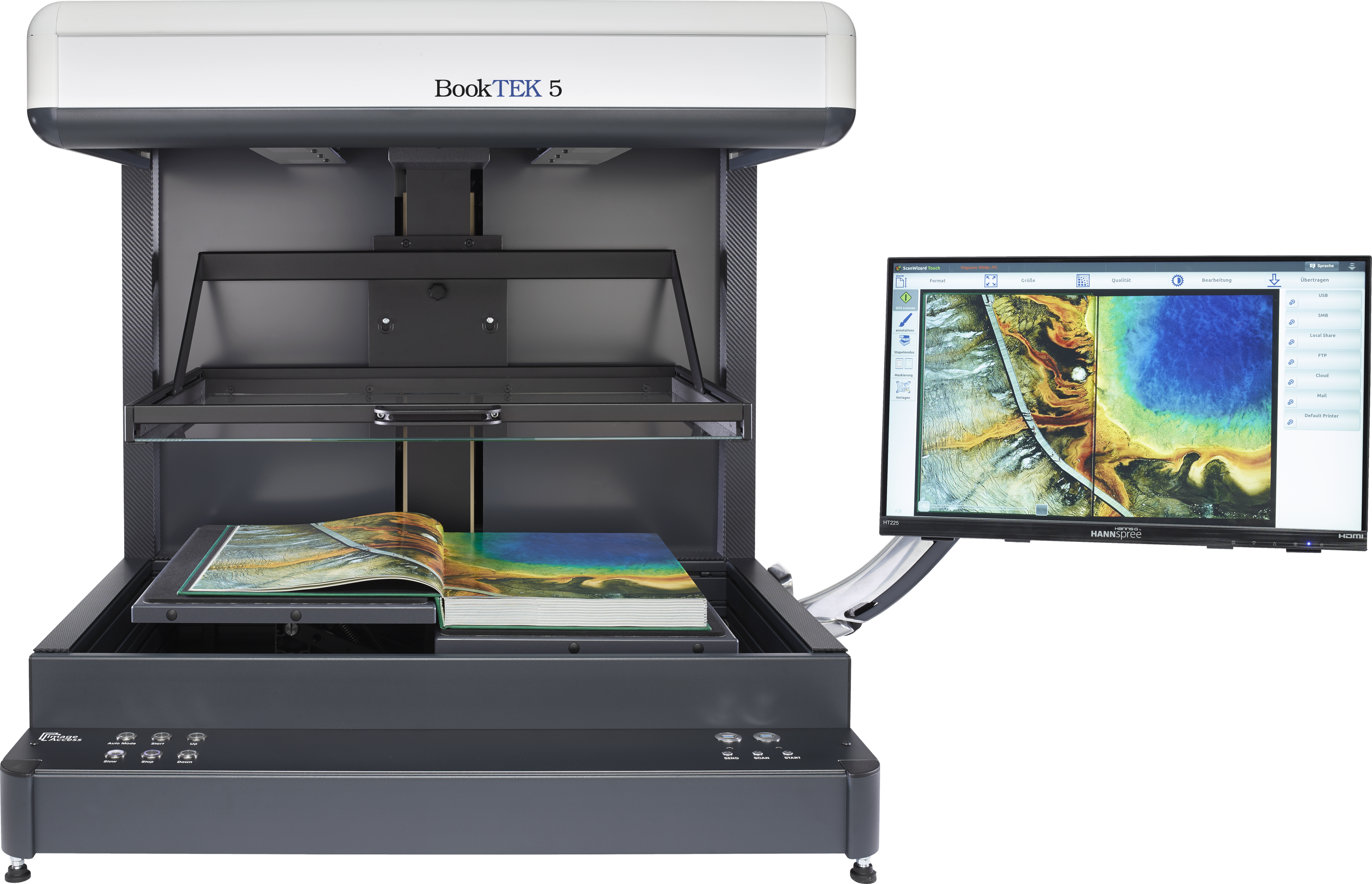

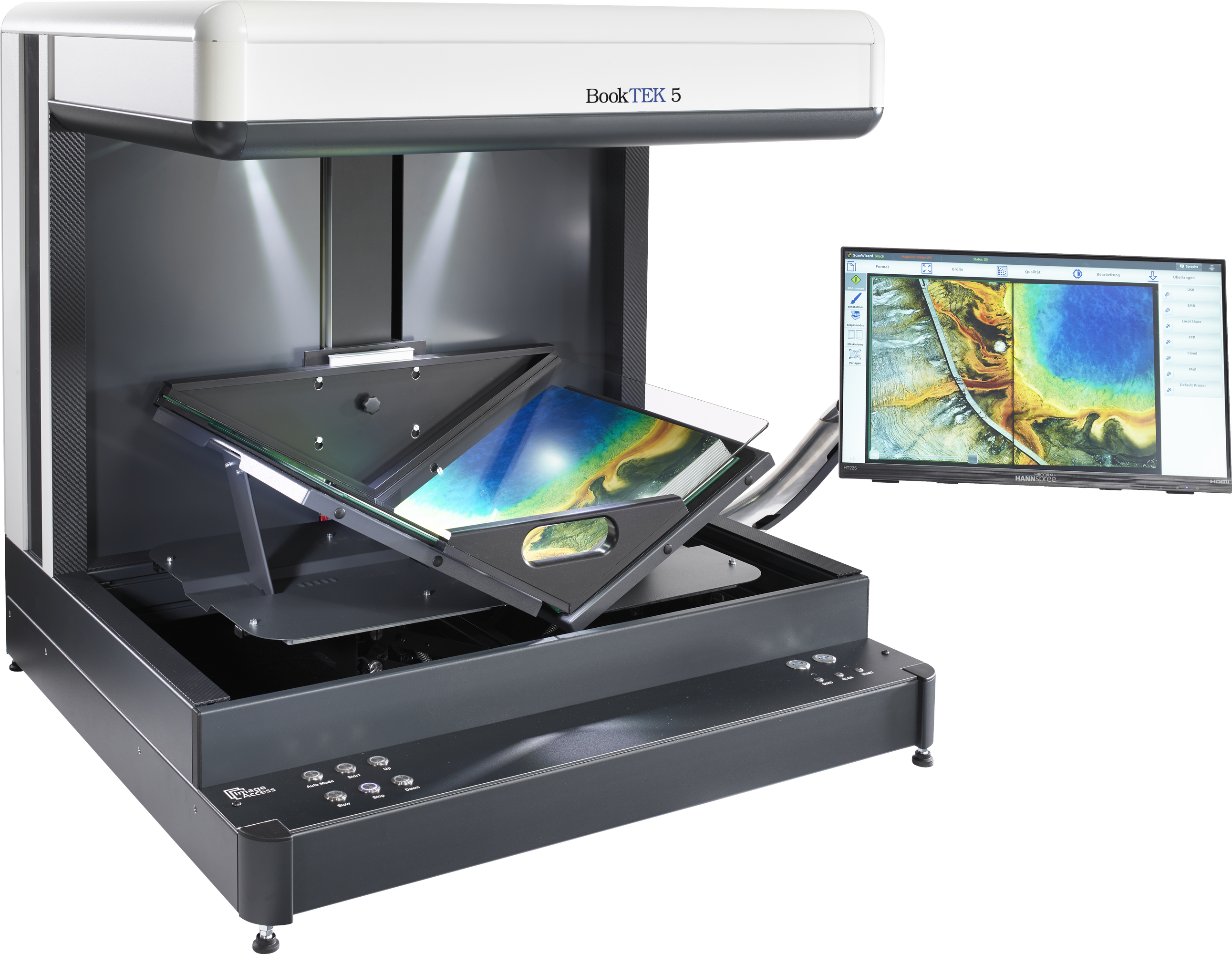

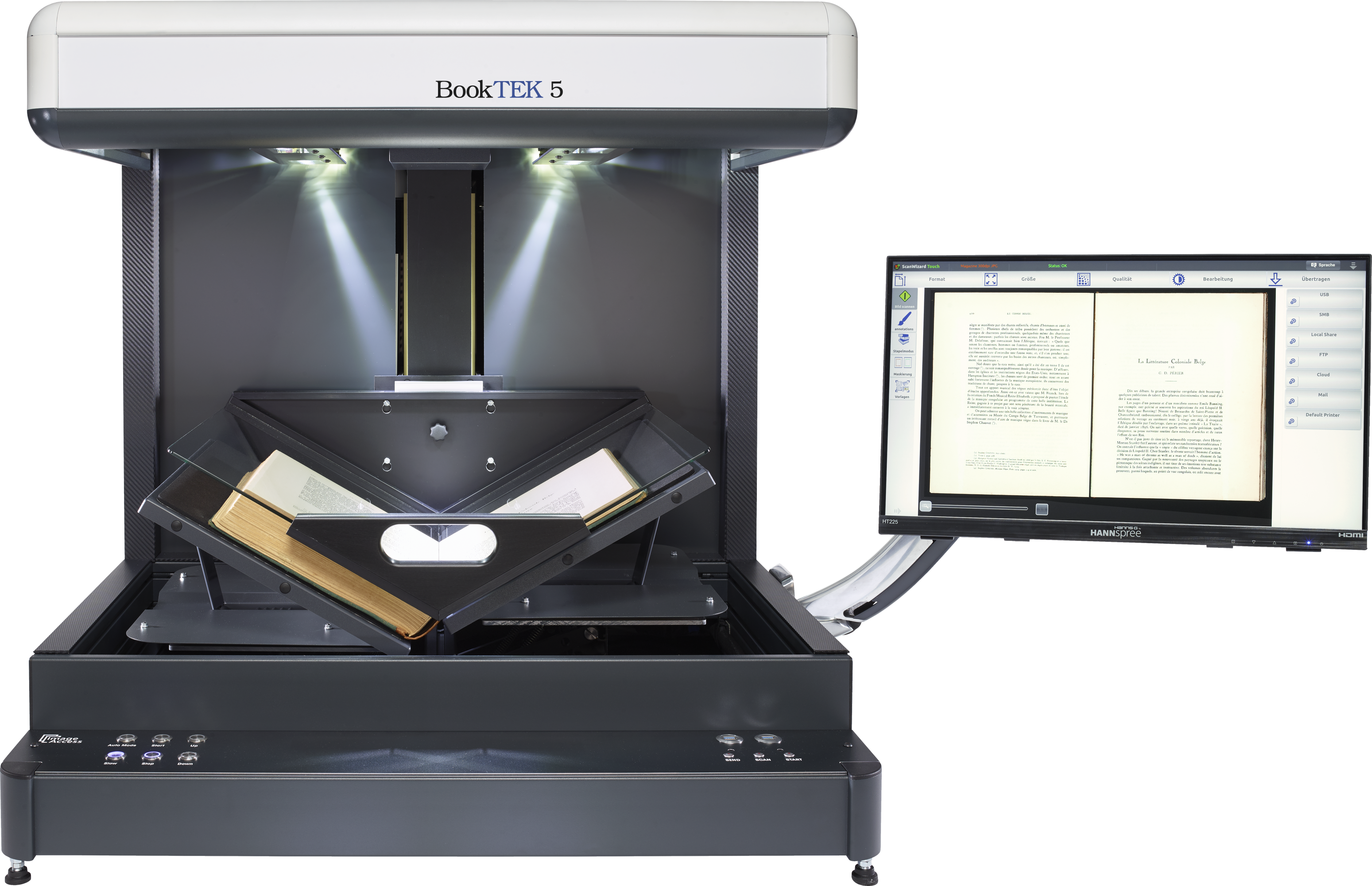

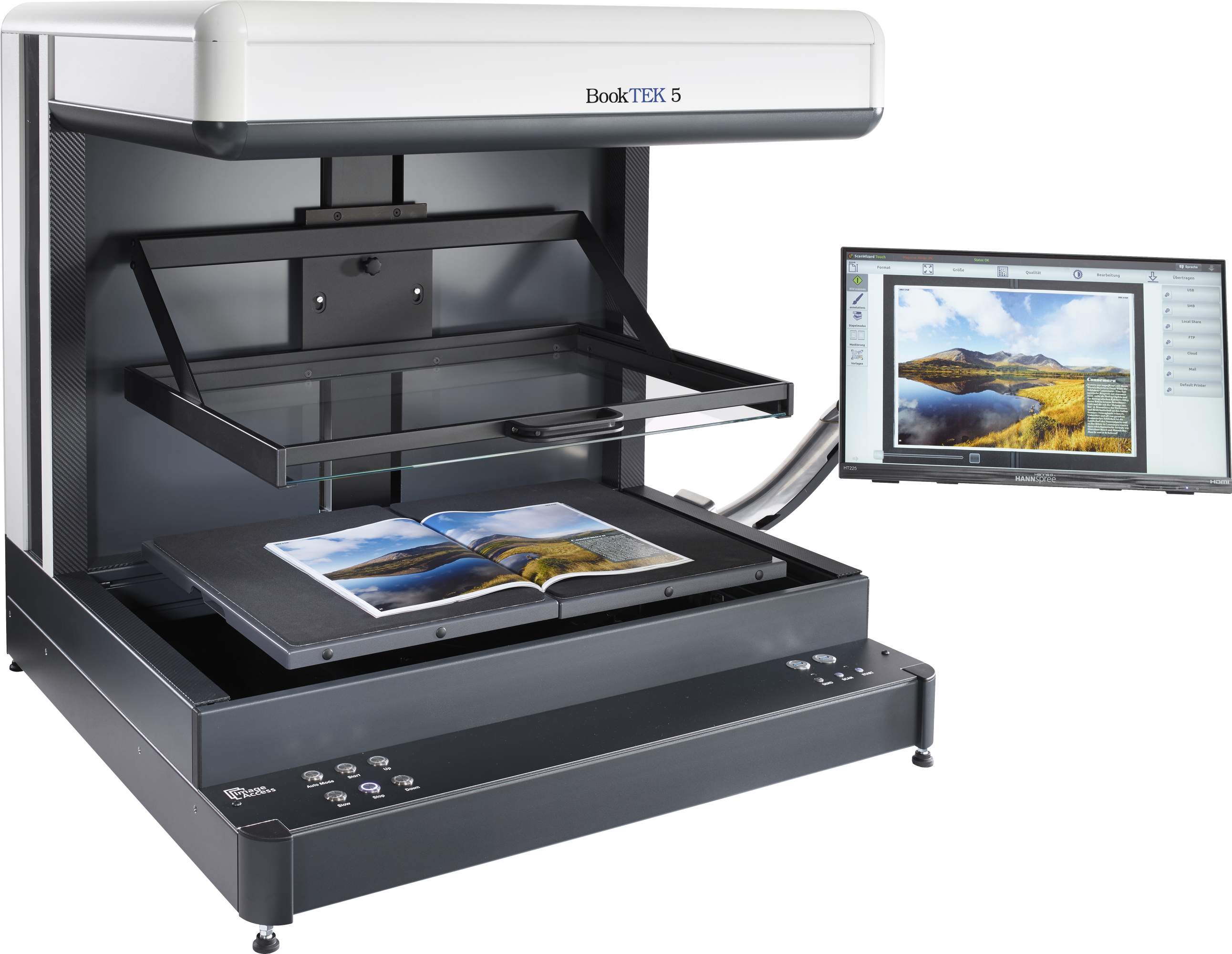

Choose your glass plate

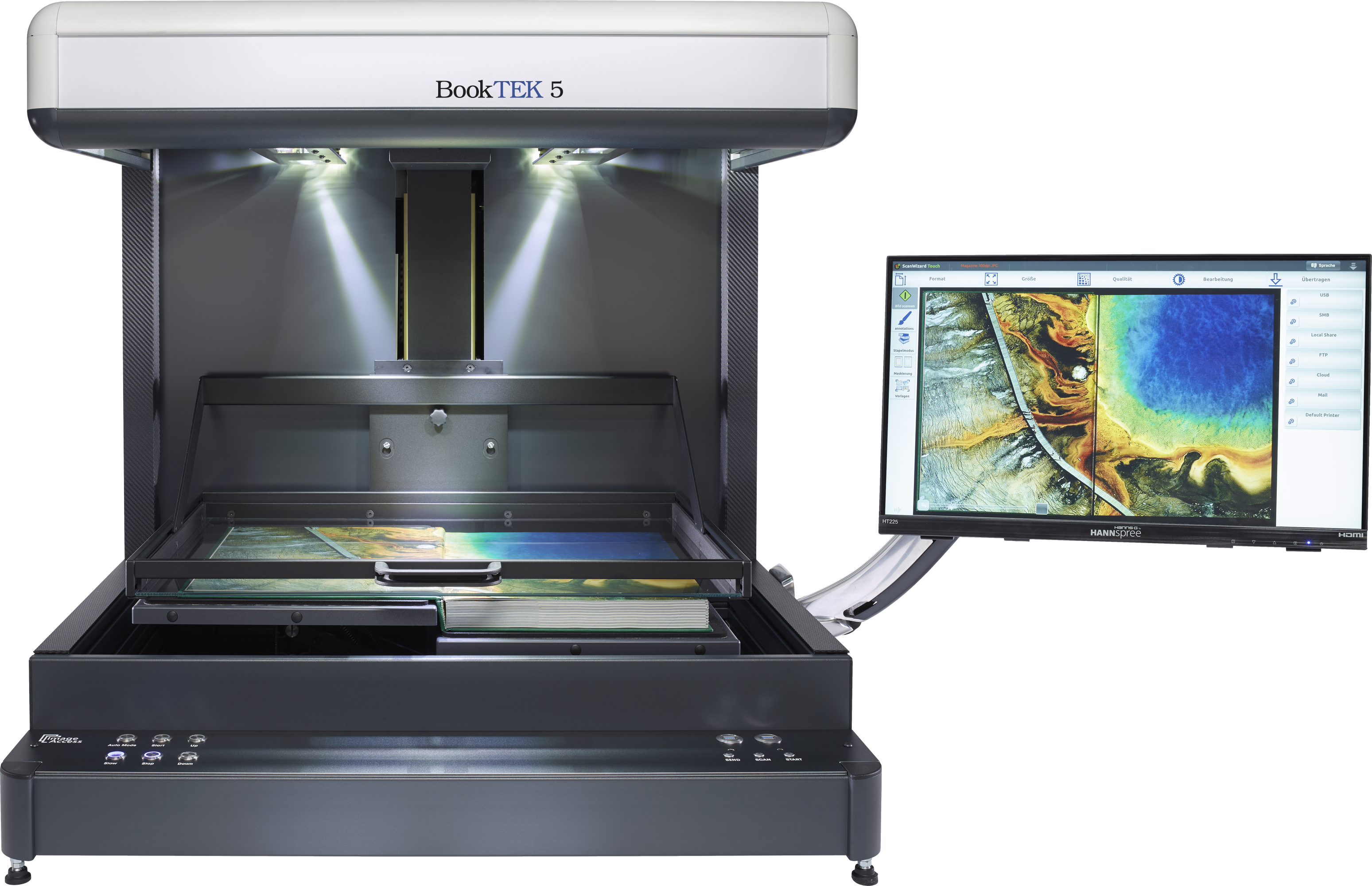

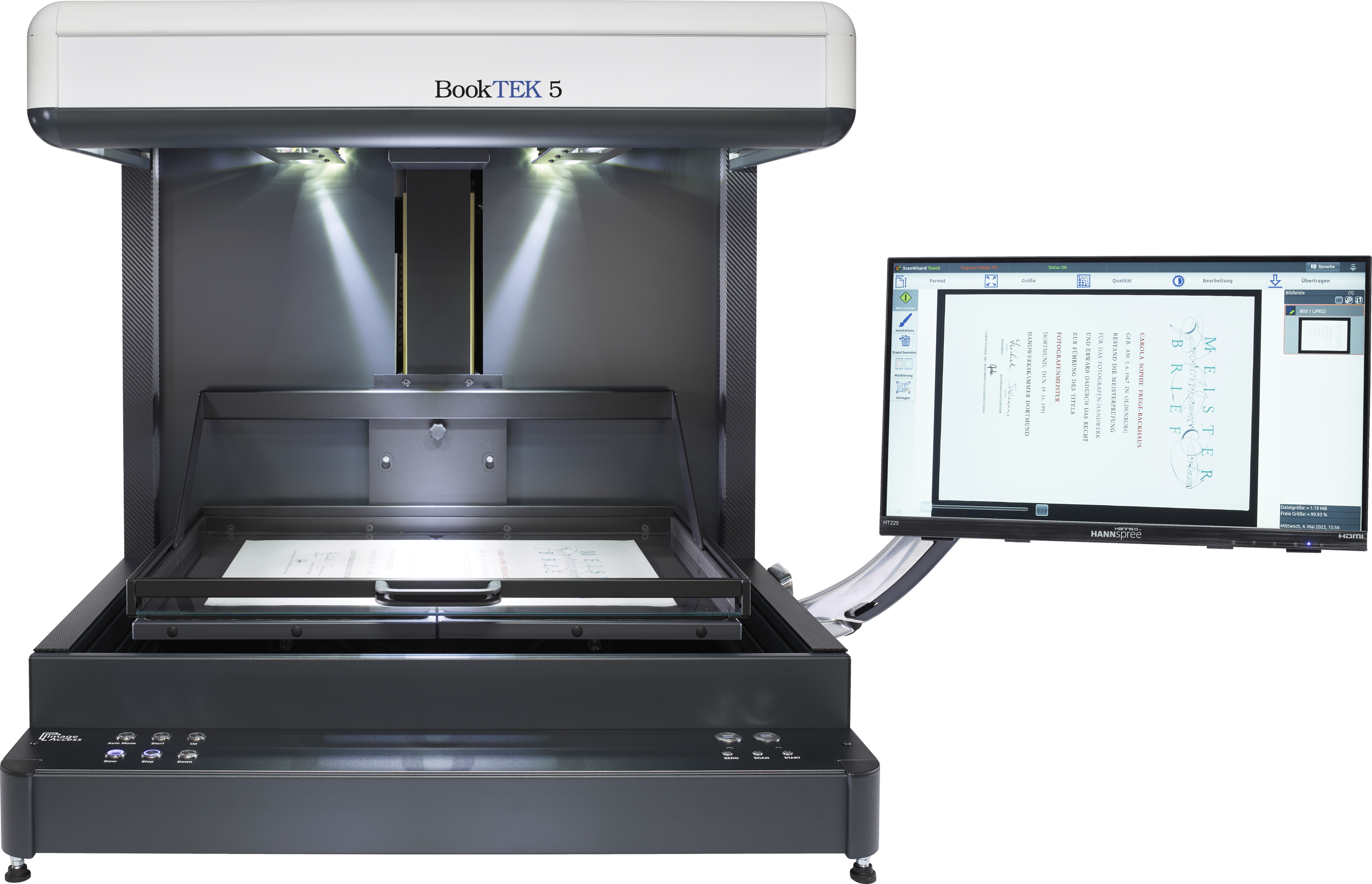

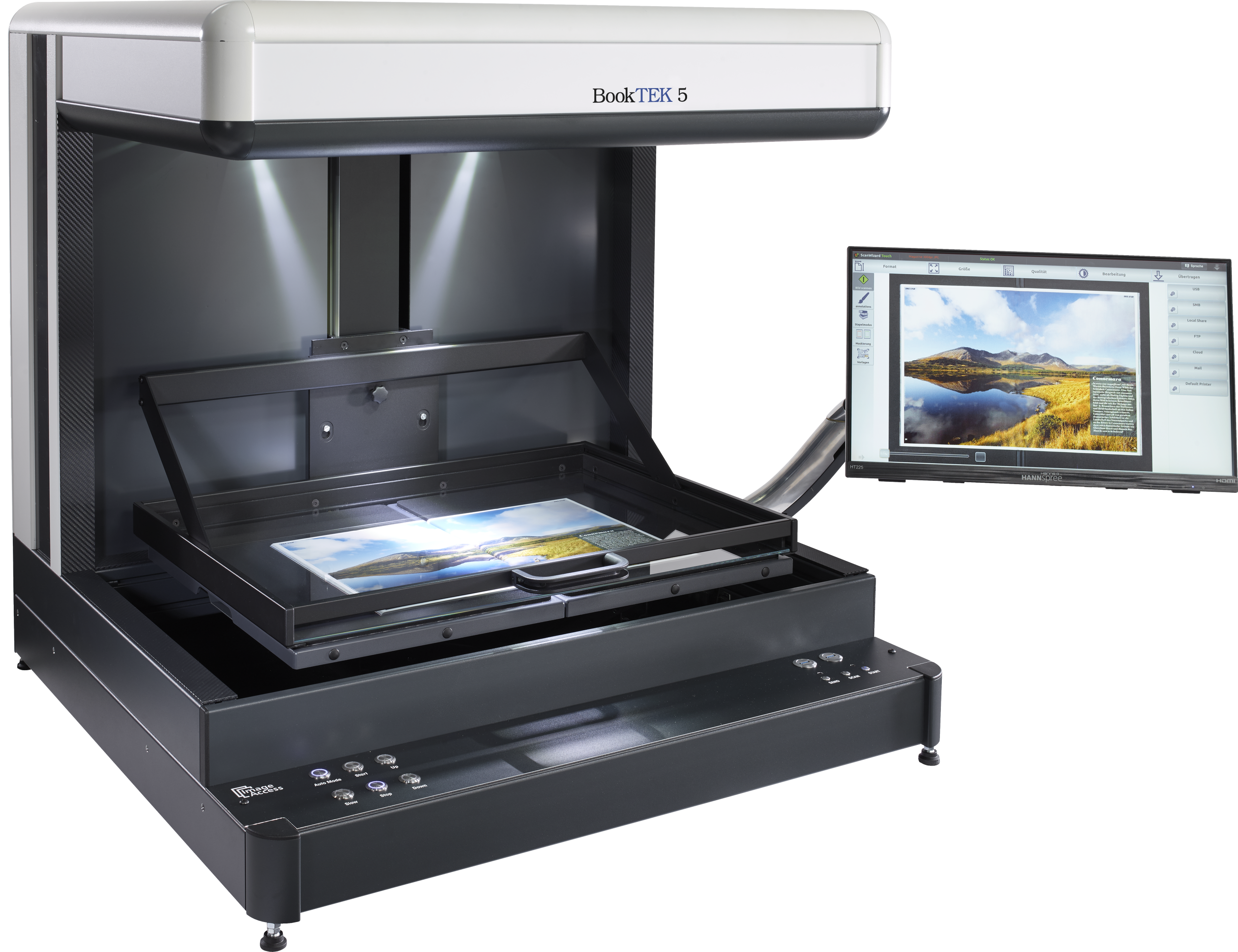

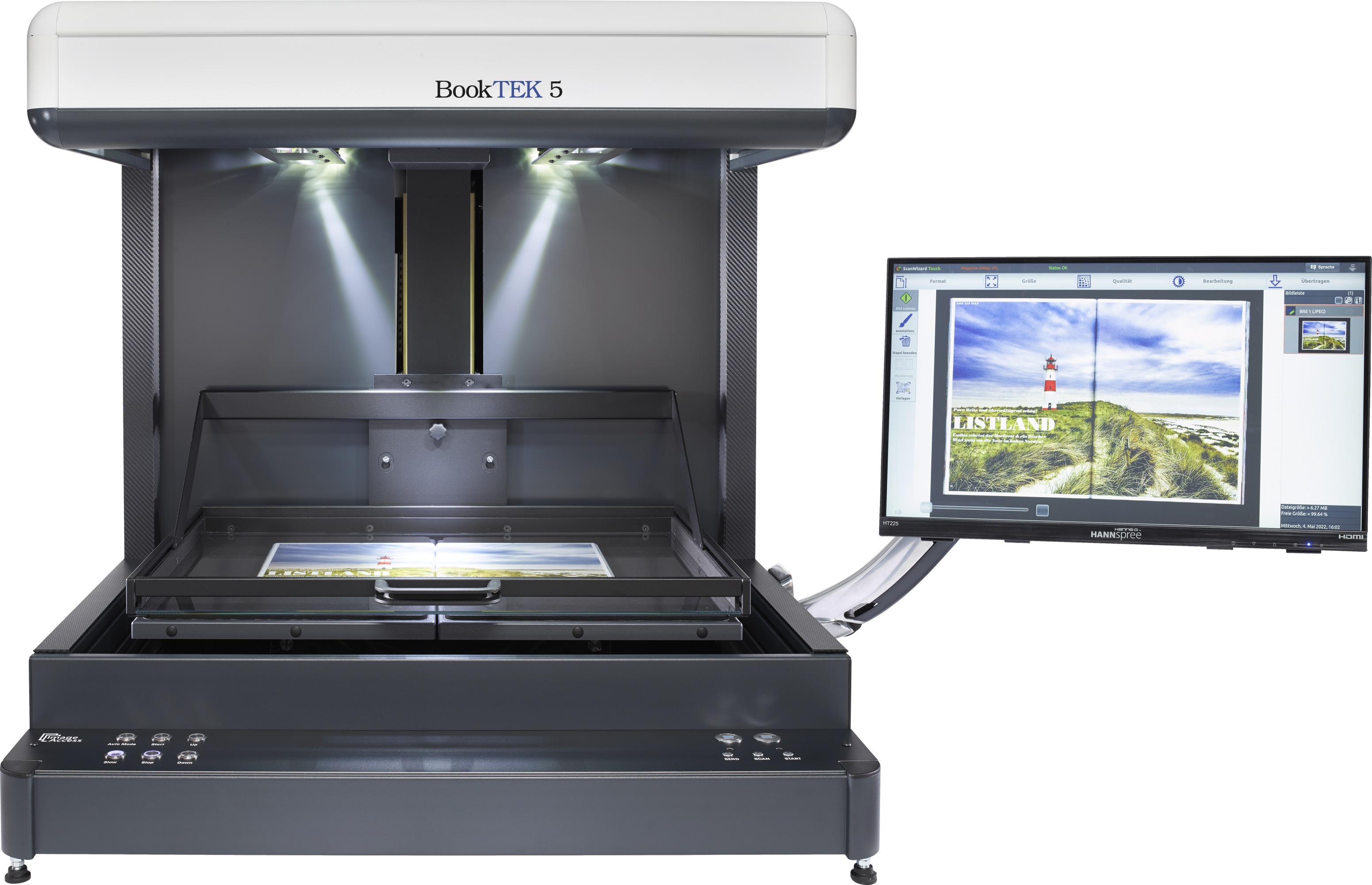

Flat glass plate or V-shaped glass plate: Whether it is a book, certificate or newspaper, the document is digitized gently.

This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.

Powerful software

Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.

Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.

No compromises on security

All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.

Dark mode

Enhances scan quality through less light reflection and improves operation by reducing eye strain

Laser-assisted book fold correction

Effectively reduces annoying shadows and distortions in the center of a scanned image of a book when operators are scanning thick bound documents, resulting in a perfectly flat scanned image

LED Lighting

Four light bars, each containing bright white LEDs, provide always ready, IR/UV free illumination

Virtual Rescan

Optimize images without rescanning, real time display of scanned images

Multilingual operation

With over 20 languages available for the unique Scan2Net and ScanWizard user interfaces. Customize the interfaces to comply with corporate identity norms and standards

Your Interest, Our Expertise

Contact us now and explore a new dimension in scanning technology!

Support & Downloads

Documentation

Brochure

Firmware

specifications

Media

Fact Sheets

Service Video

Manuals

Language

File Format

Release Date

Legal Information BE5-V2S

EN

PDF

07/2022

Technical Specification BE5-V2S

EN
DE
FR
ES

PDF

06/2022

Setup Instructions BE5-V2S

EN
DE
FR
ES

PDF

10/2022

Instruction Scan2ICC

EN

PDF

09/2021

Declaration about the Emission of UV and IR radiation

EN

PDF

11/2021

Book Scanner Buyer´s Guide

EN
DE
ES

PDF

02/2021

Brochure

Language

File Format

Release Date

Product Brochure BE5-V2S

EN
DE
ES

PDF

09/2022

Product Brochure Scan2Net®

EN

PDF

09/2022

Catalogs

Image Access Product Catalog

EN
DE
ES

PDF

09/2023

Fact Sheets

Language

File Format

Release Date

Fact Sheet BE5 V2S (Coming soon)

PDF

–.–.–

Document

Maximum Documents Size

460 x 620 mm (18 x 24 inch), 14% more than DIN/ISO A2

Output

Scanner Resolution

600 x 600 dpi

Pixel Dimension

9.3 x 9.3 µm

Scan Speed Color

DIN A2+ @ 150 dpi: 0.9 s
DIN A2+ @ 200 dpi: 1.1 s
DIN A2+ @ 300 dpi: 1.6 s
DIN A2+ @ 400 dpi: 2.0 s
DIN A2+ @ 600 dpi: 3.0 s

Color Depth

48 bit color, 16 bit grayscale

Scan Output

24 bit color, 8 bit grayscale, bitonal, enhanced halftone

ICC Profiles

Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription

Quality

Complies to FADGI *** guidelines, Metamorfoze Light, ISO 19264-1

Technical Specifications

Computer

64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs

Touchscreen

21 inch Full HD 1920 * 1080 multitouch screen

USB Port

2 x USB 3.0 port, 4 x USB 2.0 port

Interface

1 GBit Fast Ethernet with TCP/IP based Scan2Net® interface

Camera

CCD line sensor, 22,500 pixels (11,000 scan lines equals to a 245 MPixel matrix camera)

Live Preview Camera

CMOS matrix, area sensor

Light Source

White LEDs, tested according to IEC 62471, no IR/UV emission

Declaration about the Emission of UV and IR radiation

Lamp Lifetime

50,000 h typ. Lamps are covered by the Extended Warranty Option

Dimensions

Dimensions Scanner (H x W x D)

880 x 1000 x 850 mm (35 x 39 x 33 inch)
without monitor

Weight Scanner

105 kg (231 lbs.)

Electrical Specifications

Electrical Connection

100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)

Power Consumption

16.5 W (Standby) / < 75 W (Ready to scan) / 150 W (Scanning) / 150 W (Fully automatic scan cycle)

ENERGY STAR requirements

Image Access FAQ

Ambient Conditions

Operating Temp

5 to 40 °C (40 to 105 °F)

Rel Humidity

20 to 80% (non-condensing)

Noise

< 56 dB(A) (Fully automatic scan cycle) / < 40 dB(A) (Scanning) / < 33 dB(A) (Standby)

Technical changes, errors and omissions excepted. All information subject to change.
