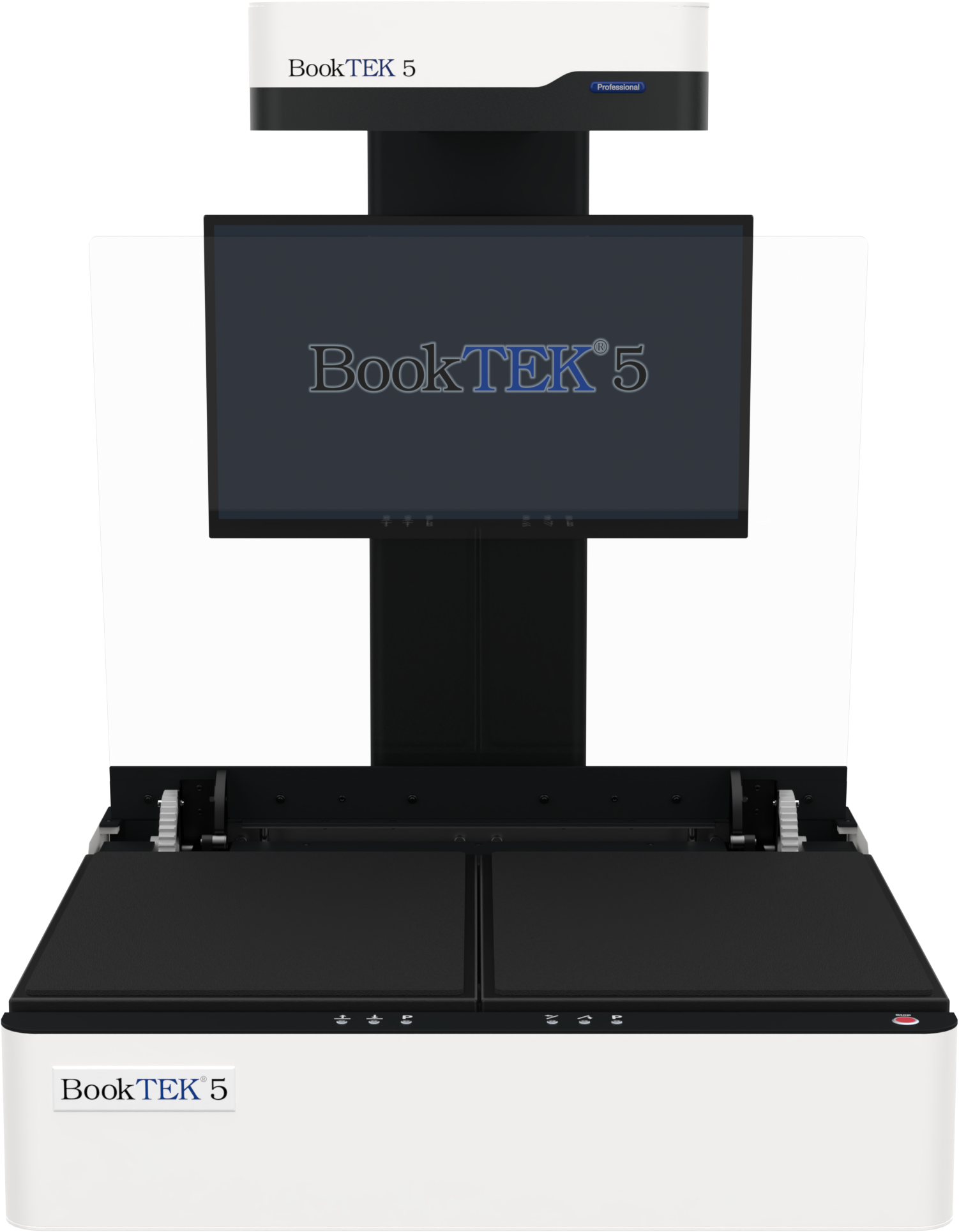

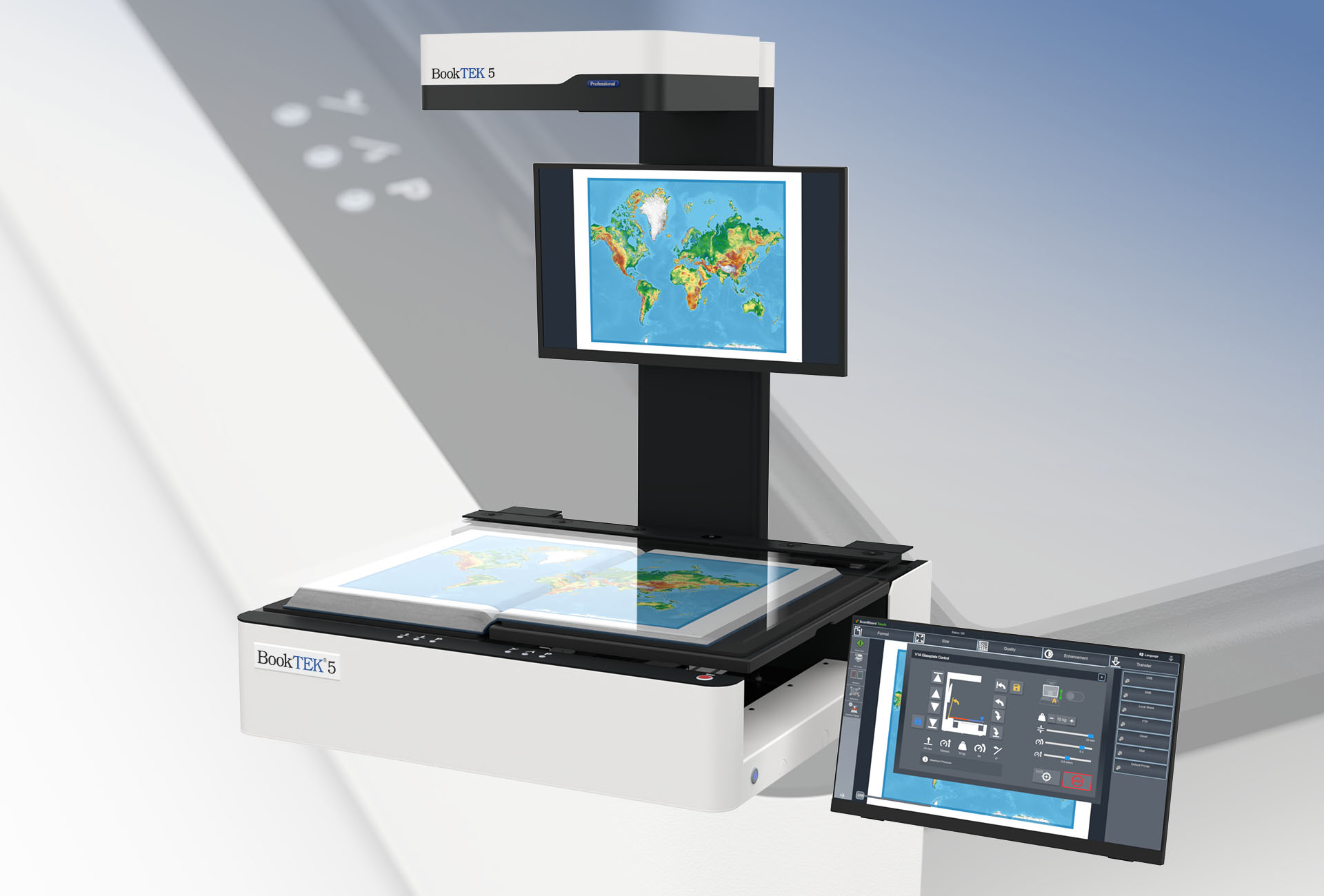

BookTEK 5 V1A Professional
Our tabletop book scanner for professional digitization of formats up to A1+ / 25×36 inches
Revolutionizing automated book scanning
Designed for large-format digitization projects, the BookTEK 5 V1A Professional combines precision, speed, and user-friendly technology in one powerful device. Whether you are working with fragile manuscripts or heavy tomes, this scanner ensures the highest quality digital reproductions while maintaining the integrity of the original materials. Its advanced features and robust design make it an indispensable tool for libraries, archives, and institutions dedicated to preserving valuable documents.
360° view
Scroll mouse wheel or click and drag to rotate
Digitization in brilliant quality
A high-resolution linear CCD camera with laser-controlled autofocus precisely follows the curvature of books, scanning along the reading direction.
Even at 600 dpi with all image enhancements activated, scanning takes only 4 seconds, and the complete cycle time, including all glass plate movements, is under 8 seconds.
Advanced book cradle design

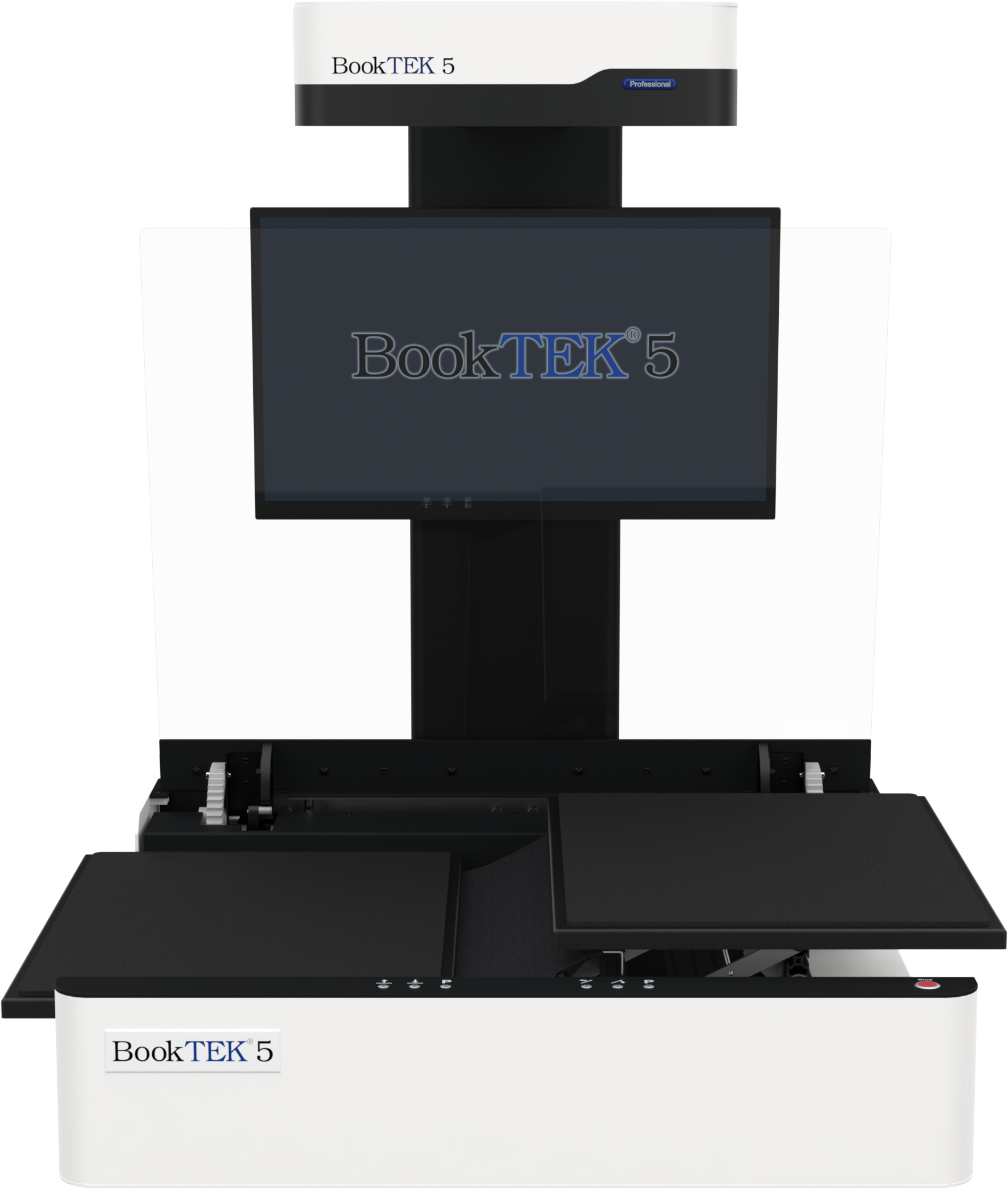

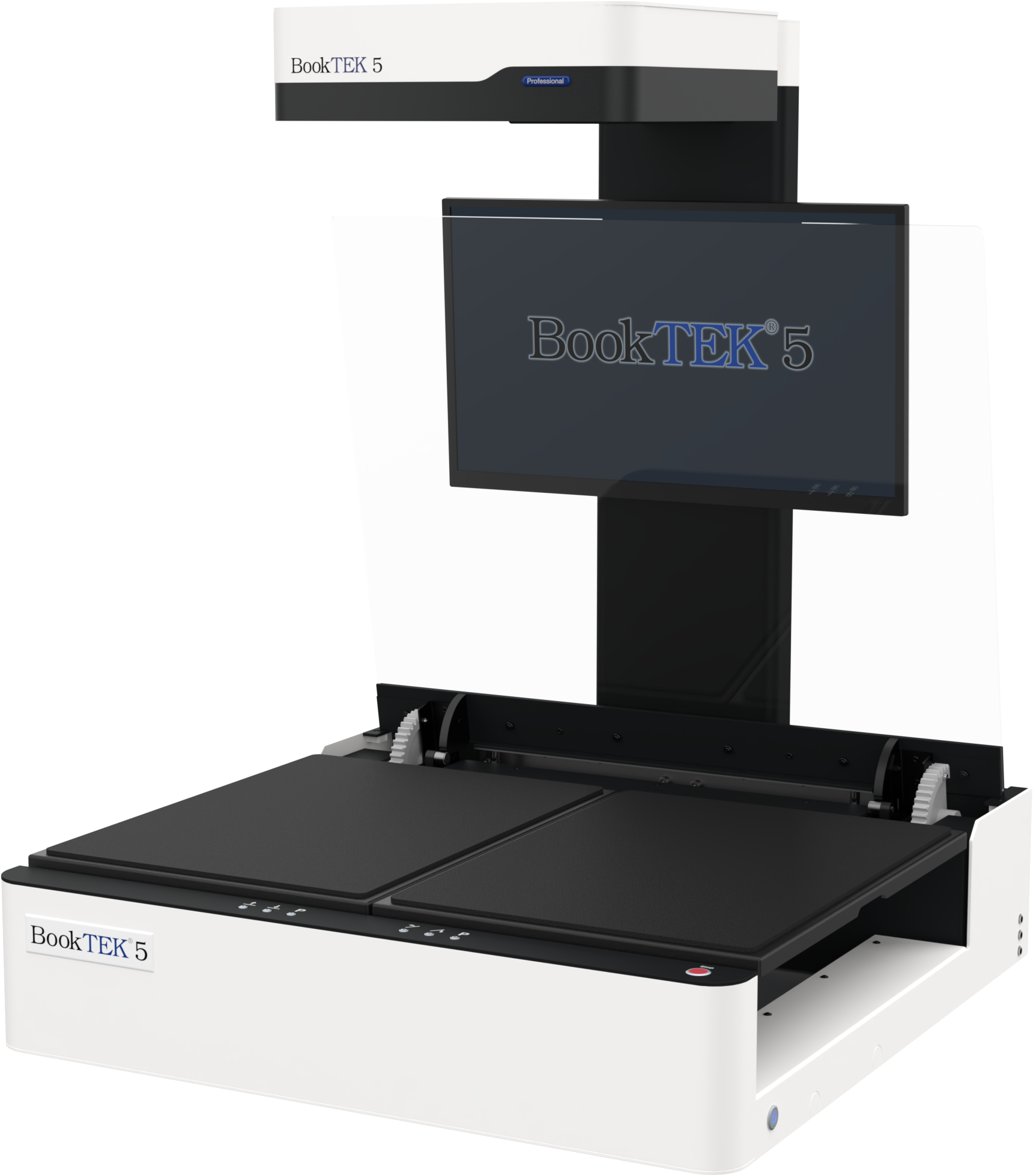

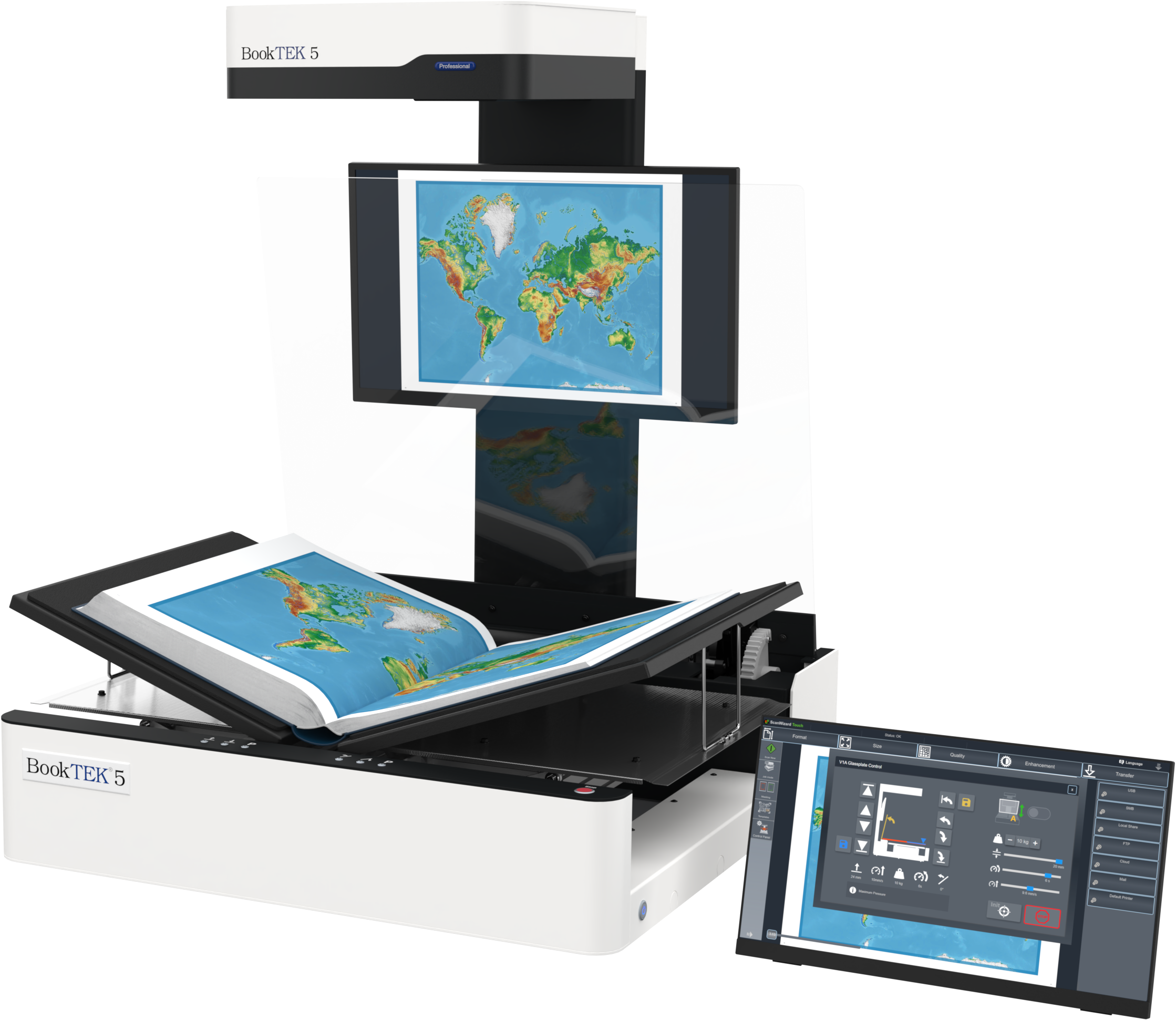

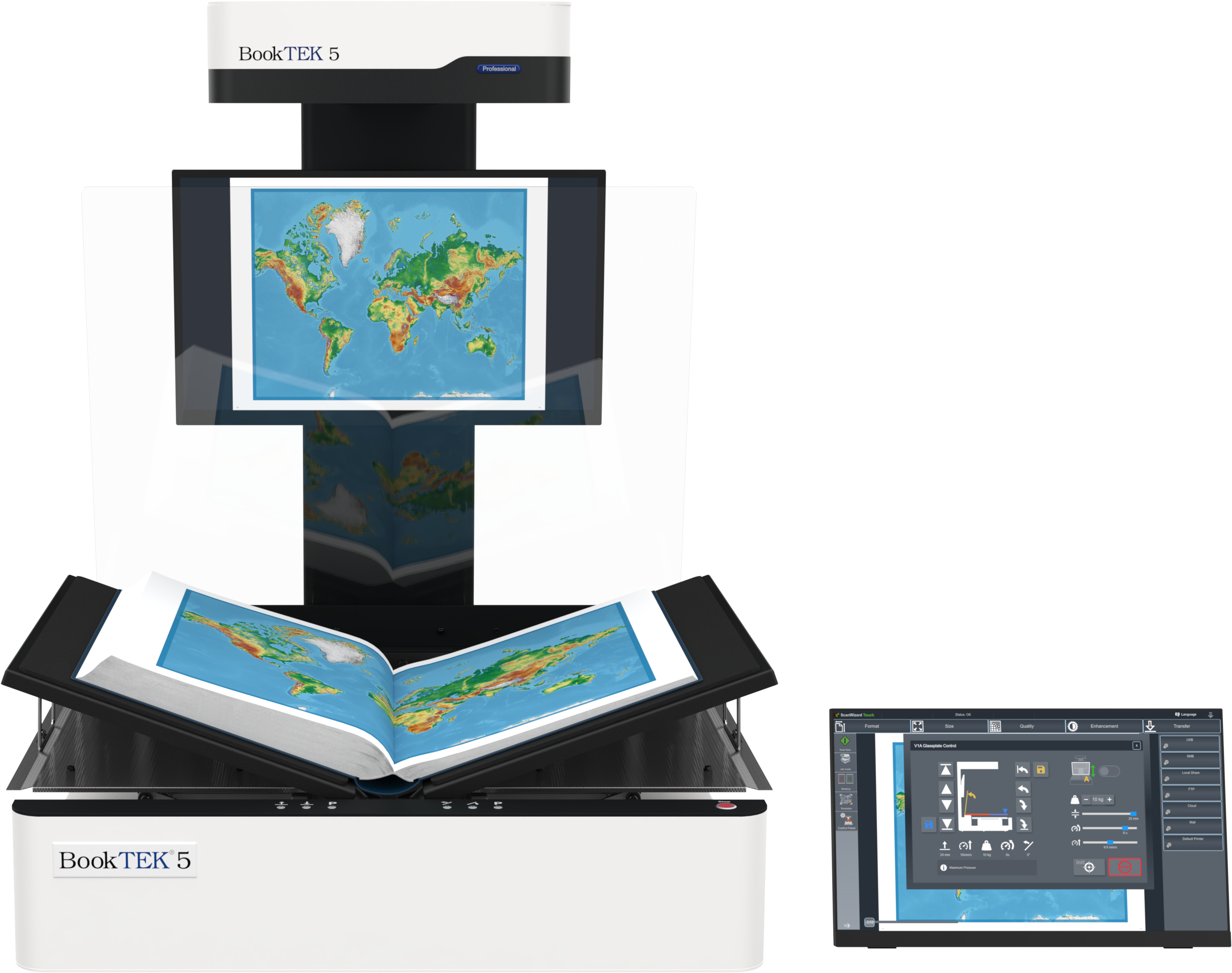

The self-leveling book cradle supports books up to 30 kg and offers a 20 cm lift, enabling flexible scanning in either flat mode or V-mode with a 140° opening angle. The cradle’s adjustable plates separate to accommodate spines up to 20 cm, and books up to 25 cm thick can be scanned without using the glass plate.
Enhanced with flexible fabric, it bridges gaps between plates, offering optimal support for damaged spines.
Motorized glass plate

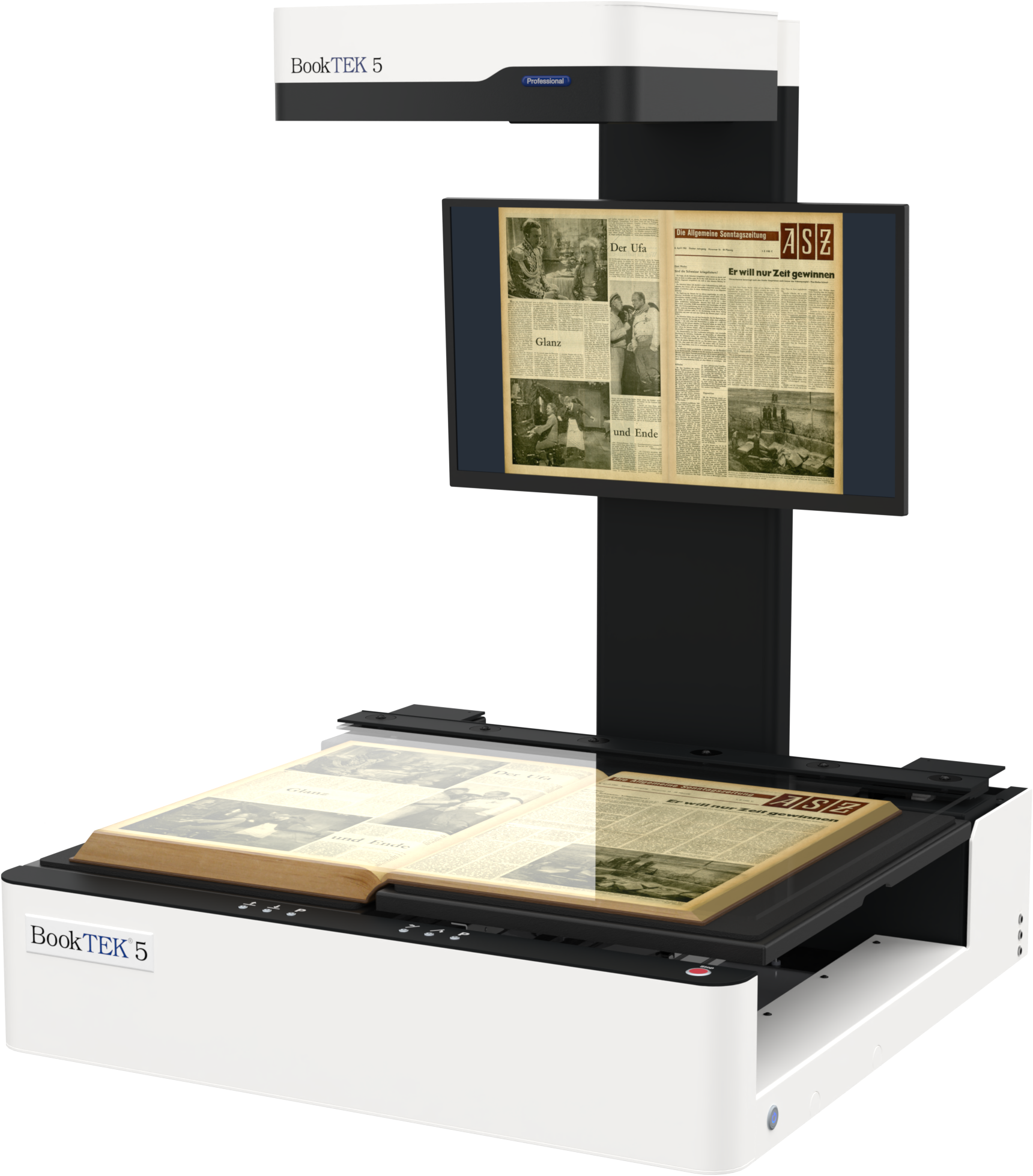

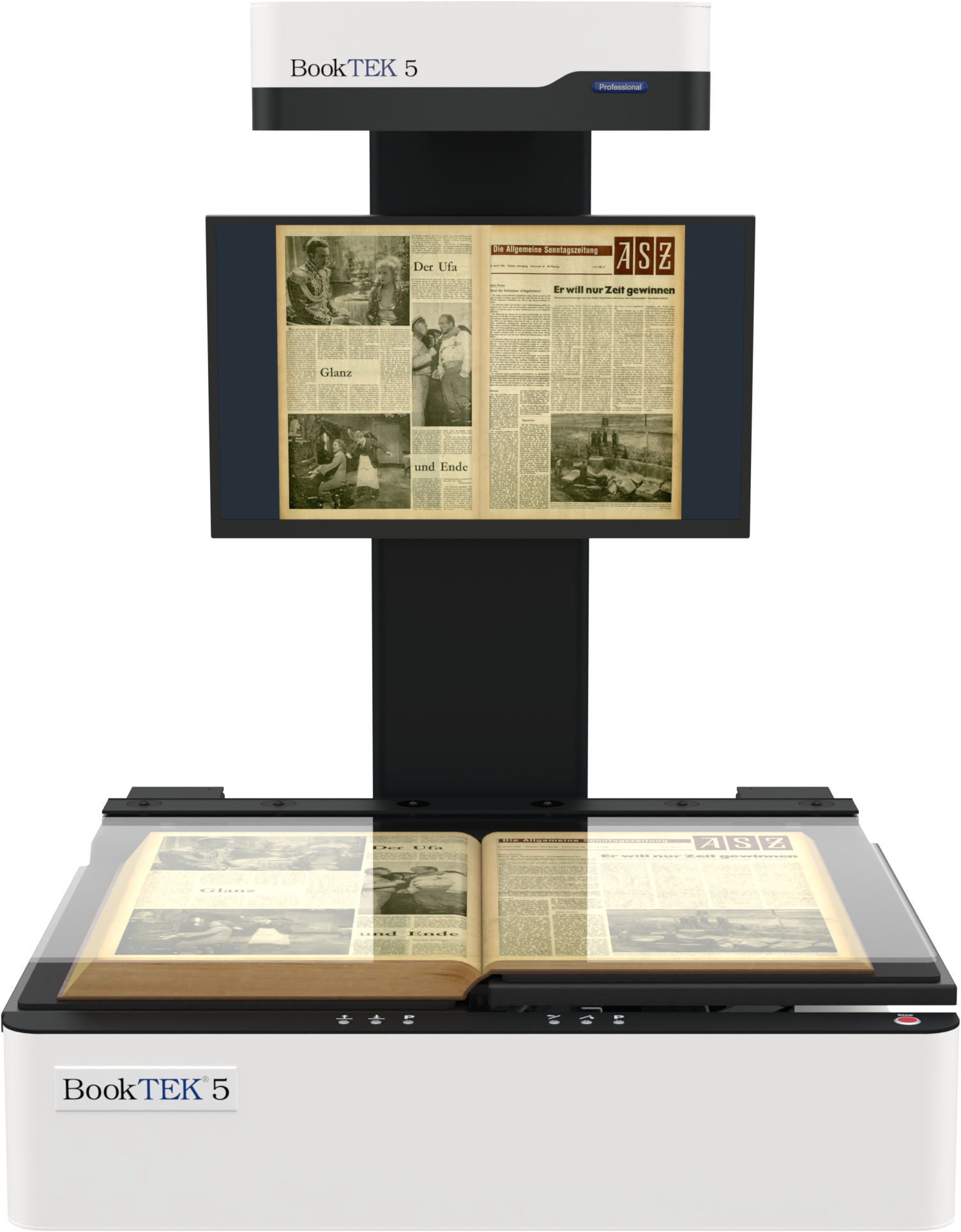

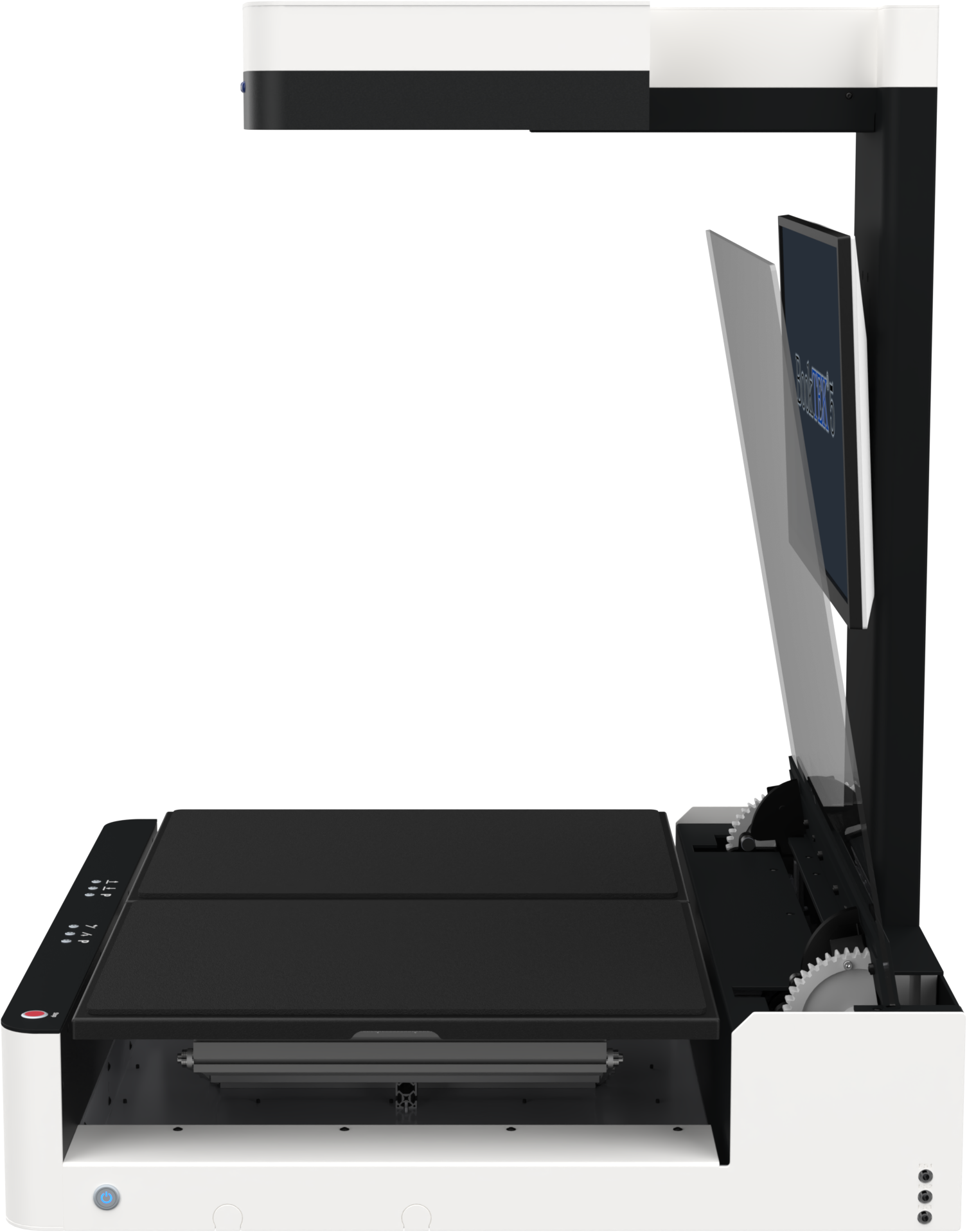

The BookTEK 5 V1A features a motorized, height-adjustable, borderless glass plate that opens to any user-defined angle. Its automated movements streamline the scanning process, gently lowering onto the book to apply just the right amount of pressure for high-quality scans without damaging delicate pages.
Ergonomic control with dual monitor setup

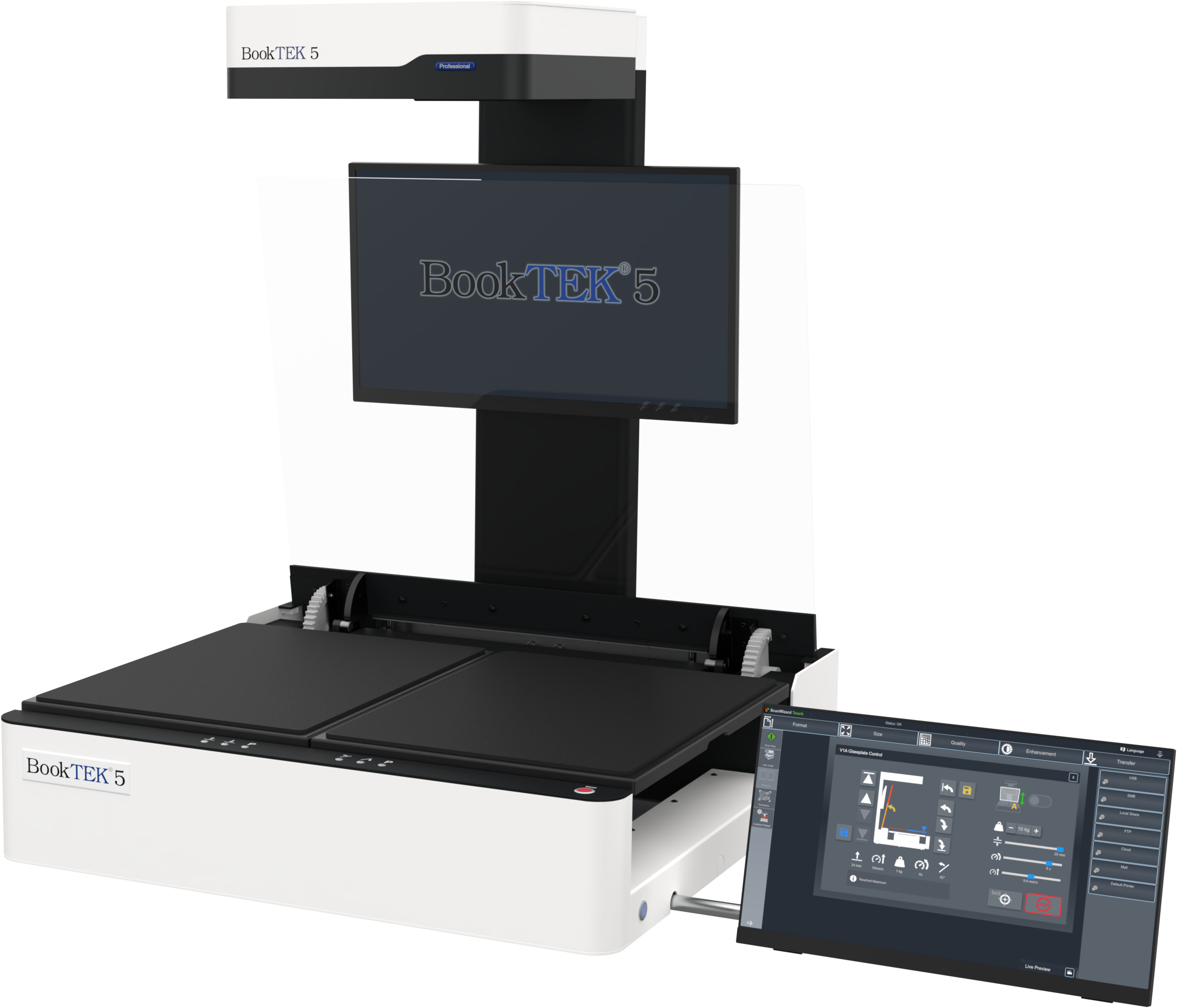

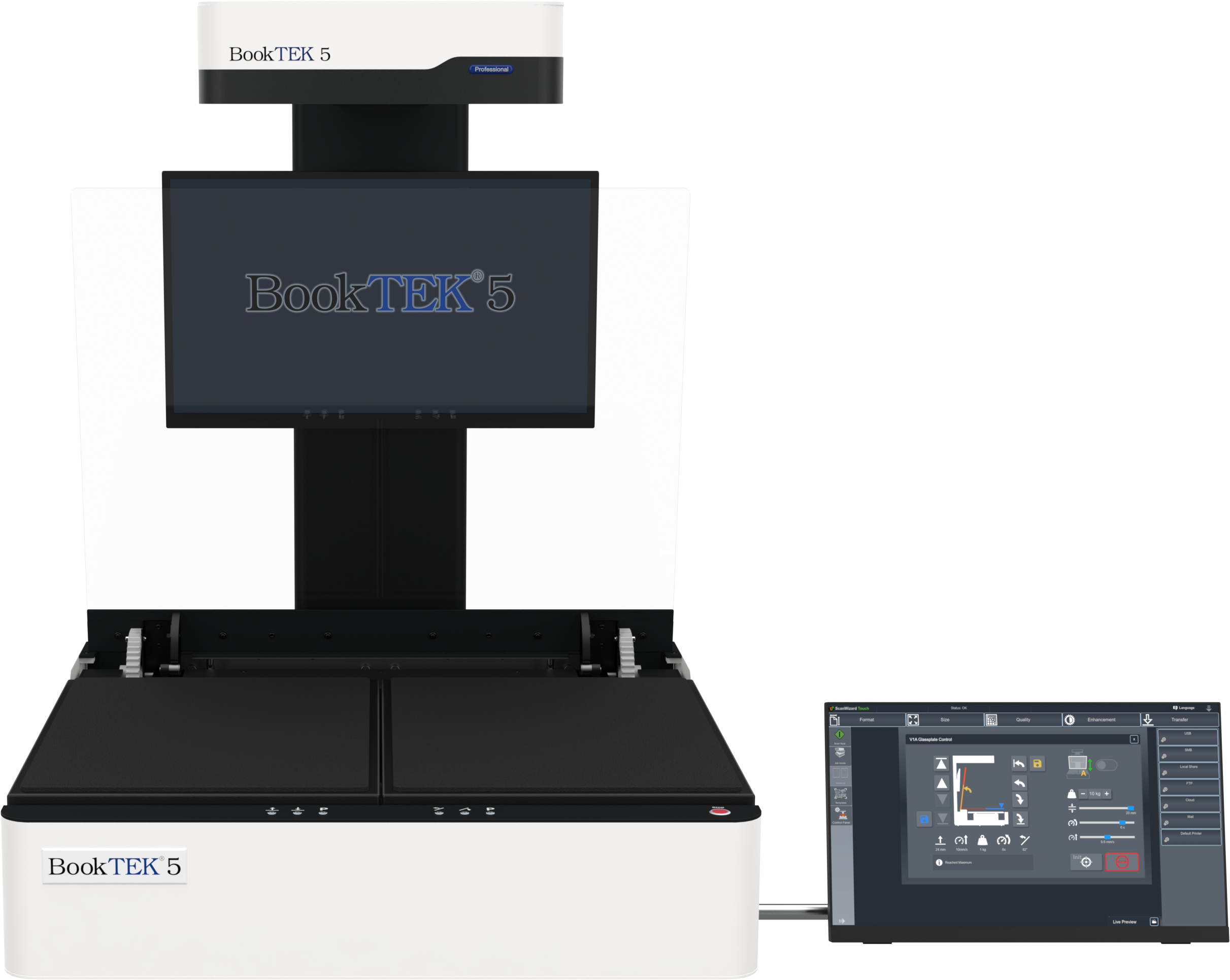

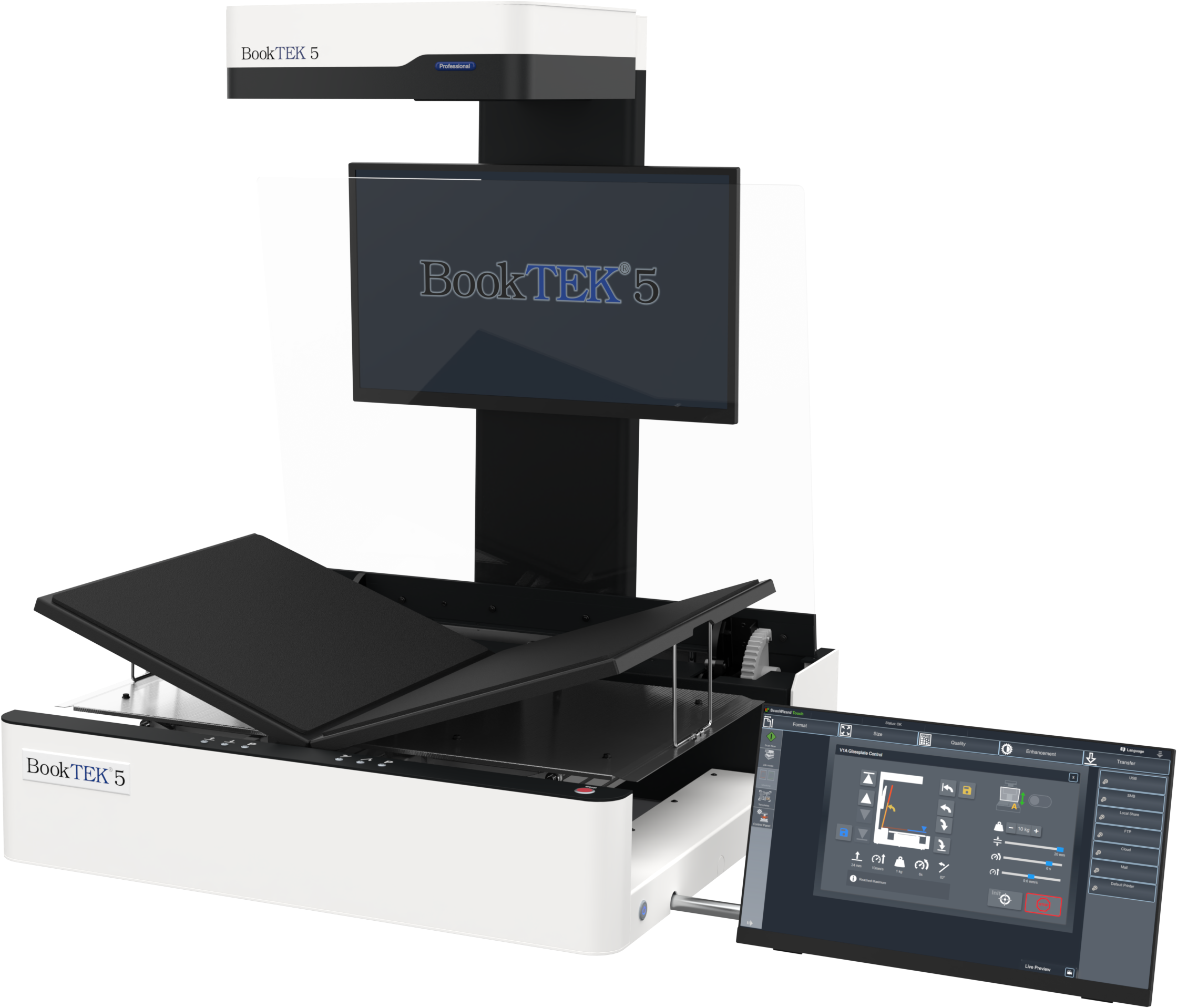

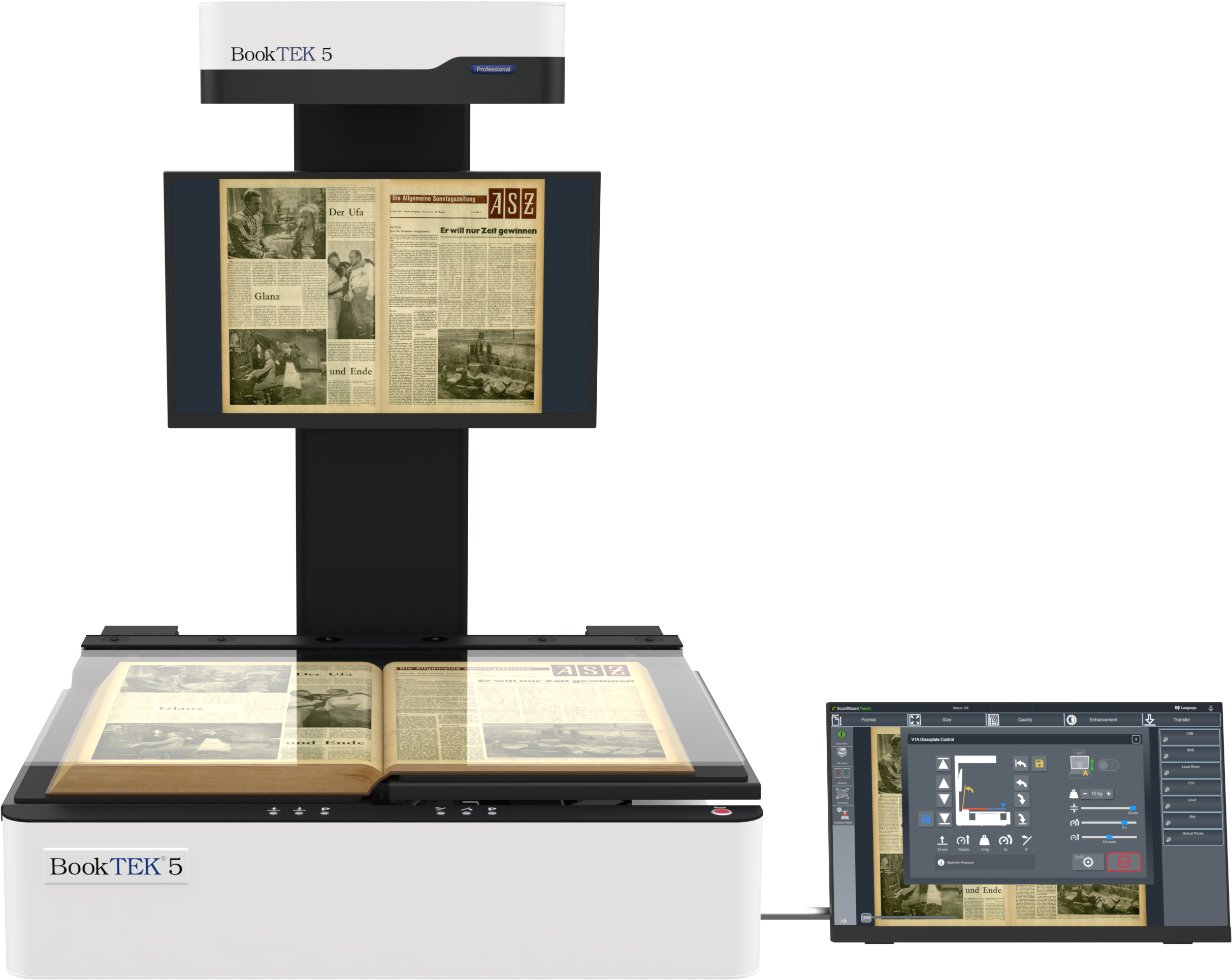

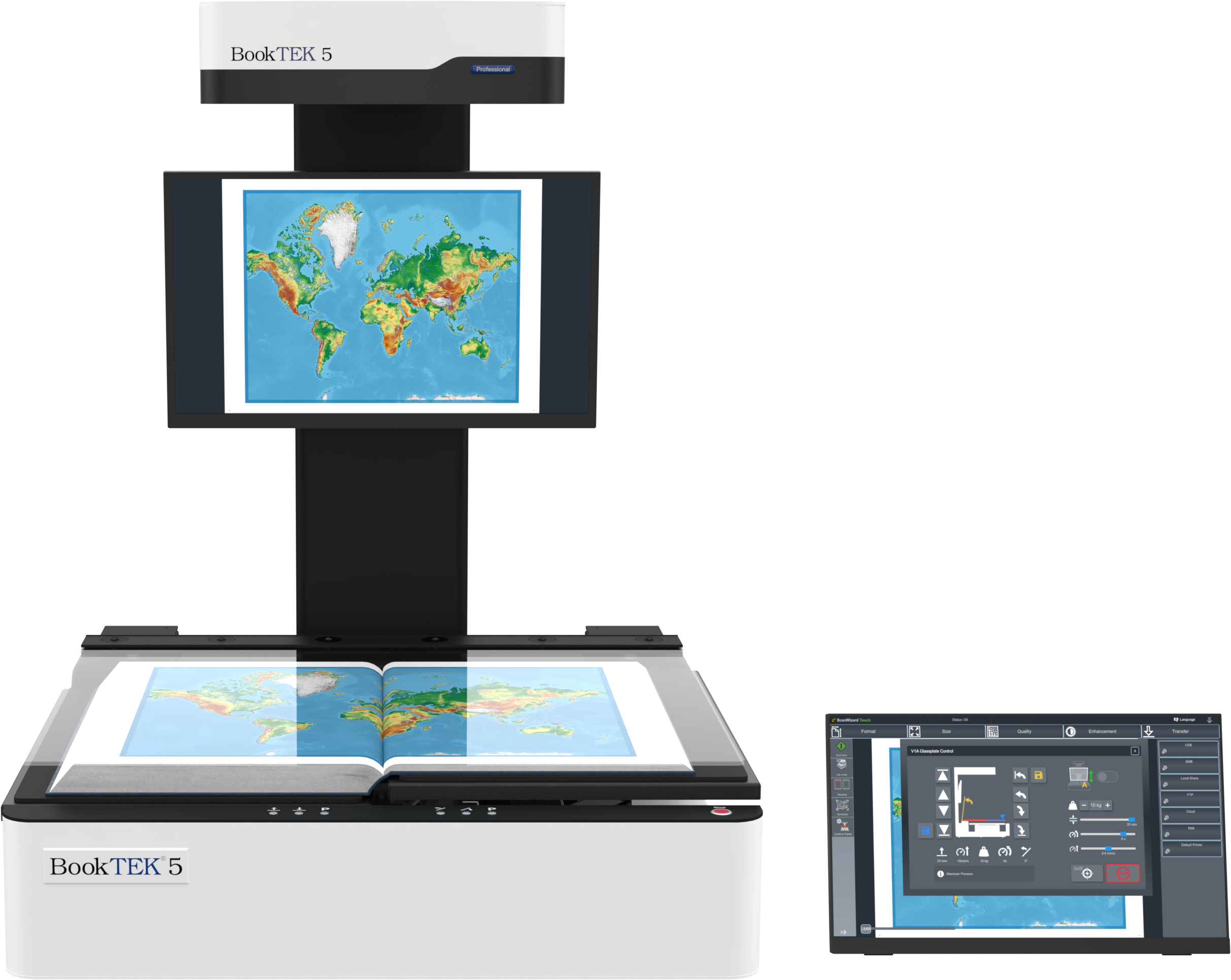

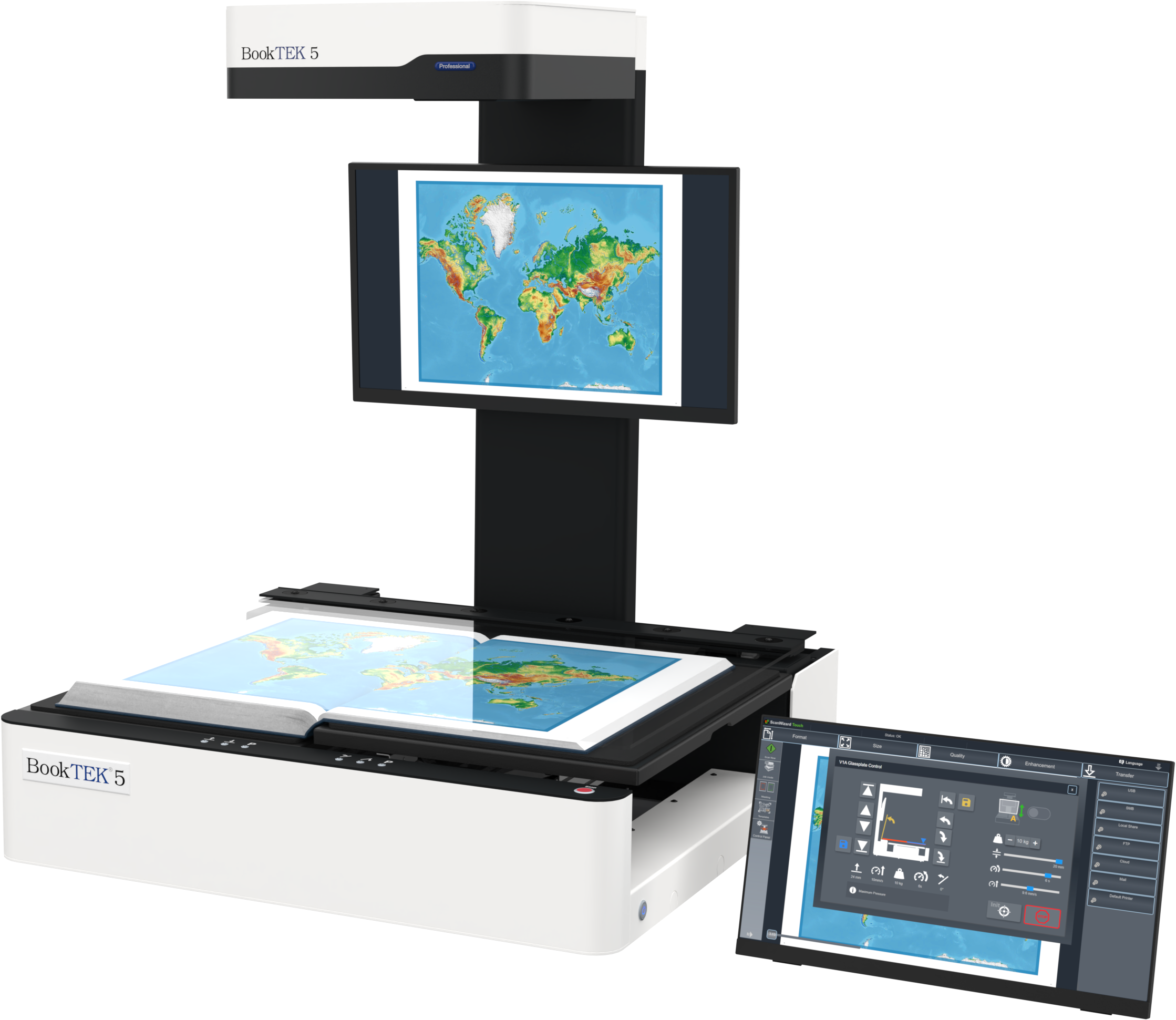

With a spacious 27-inch 4K preview monitor in front of the operator for clear, detailed scanning feedback and a 21-inch Full HD multi-touchscreen for easy operation, this setup offers optimal control and visual clarity for smooth, efficient scanning.
Gentle automation
Before scanning, the lift motor gently lowers the glass plate onto the book, with pressure finely adjustable up to 10 kg (22 lbs) under operator control. Once the book’s thickness is programmed, the scanner opens and closes the glass plate at adjustable speed, allowing the user to flip pages.
Pressing the stop button on the right side of the keyboard halts all motors instantly. Operations can resume smoothly once any interruptions are resolved.
Versatility in a single device

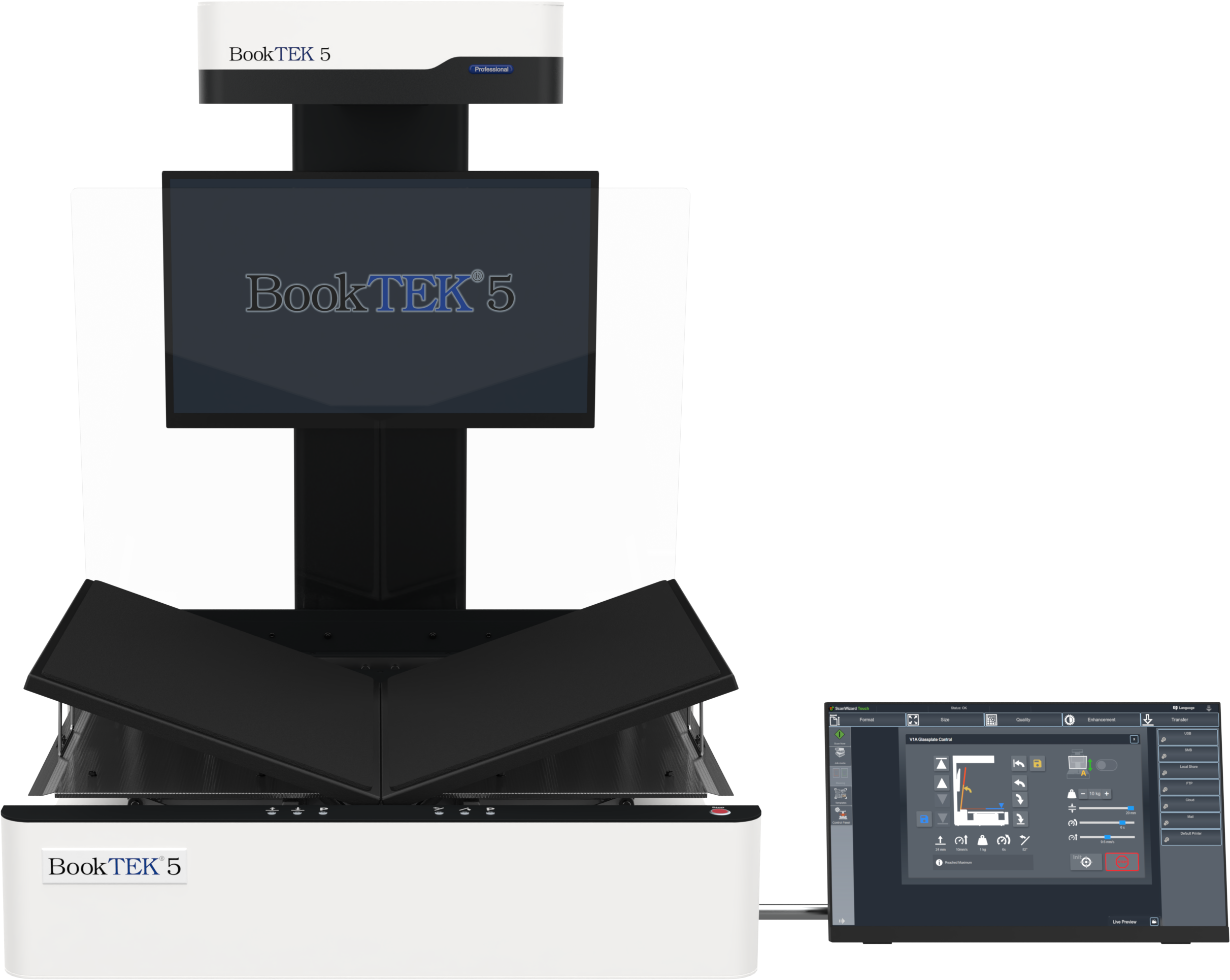

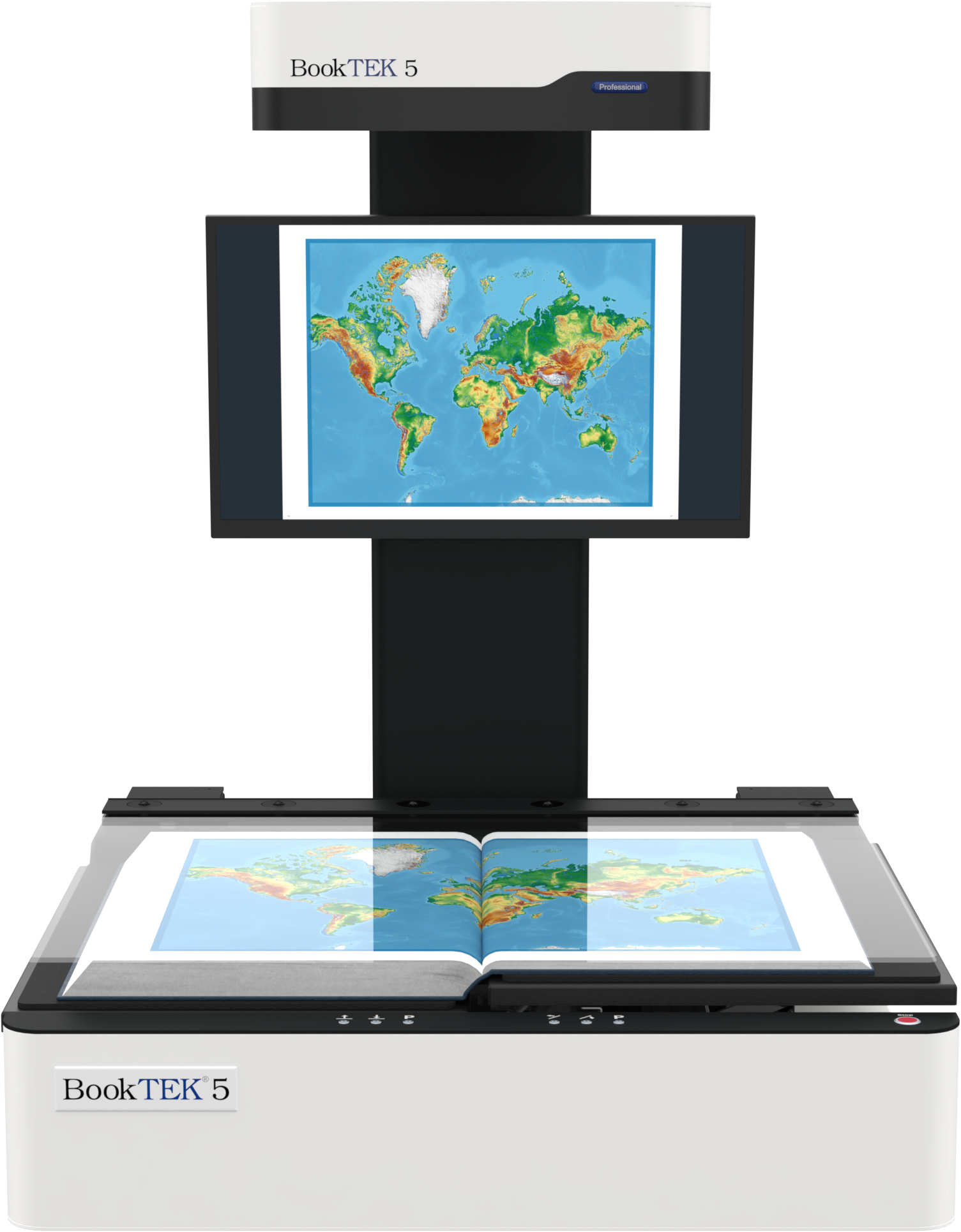

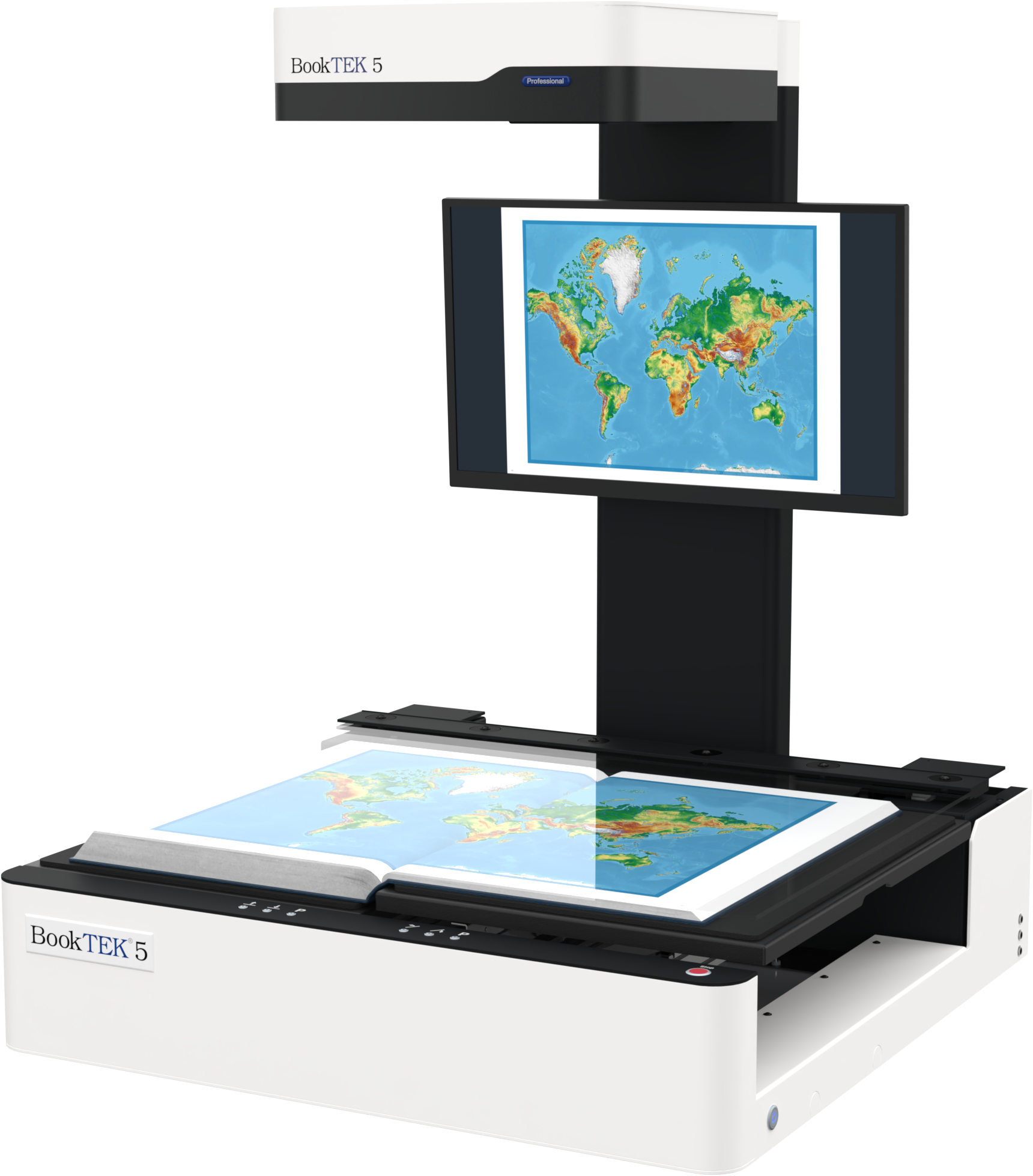

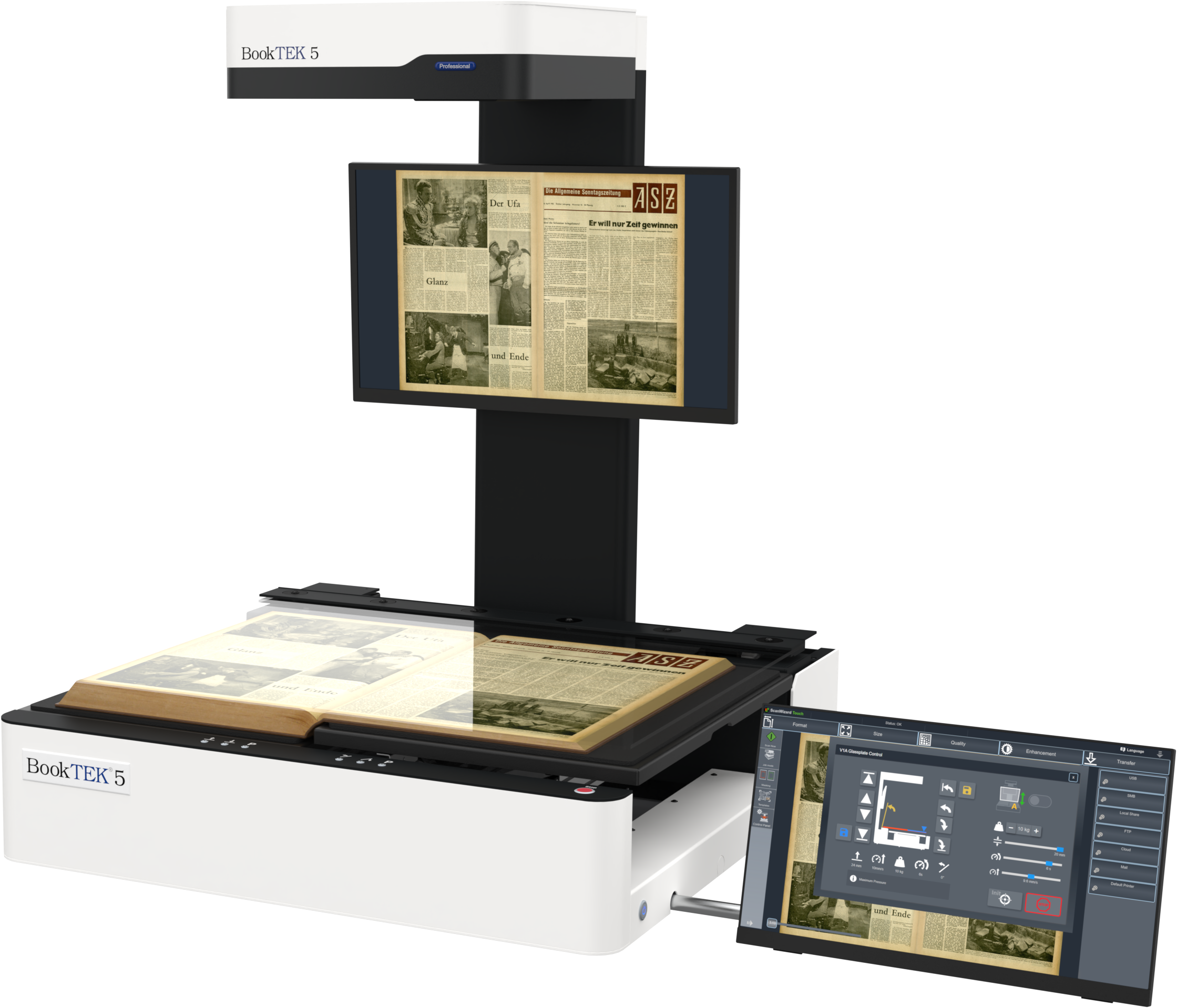

The scanner’s book cradle offers exceptional versatility, supporting fully opened books at 180° with or without the glass plate, as well as partially opened books using its V-shaped cradle. This all-in-one design eliminates the need for multiple models, providing a comprehensive solution for various scanning scenarios.
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Your Interest, Our Expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochure
Firmware
specifications
Media
Fact Sheets
Service Video
Manuals
Language
File Format
Release Date
Legal Information BE5-V1A
07/2022
Technical Specification BE5-V1A
08/2023
Setup Instructions BE5-V1A
09/2022
Assembly Instructions BE5-V1A
02/2022
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Book Scanner Buyer´s Guide
02/2021
Brochure
Language
File Format
Release Date
Product Brochure BE5-V1A
08/2023
Product Brochure Scan2Net®
09/2022
Catalogs
Image Access Product Catalog
09/2023
Fact Sheets
Language
File Format
Release Date
Fact Sheet BE5 V1A (Coming soon)
–
–.–.–
Document
Maximum Documents Size
635 x 914 mm (25 x 36 inch), 16% more than DIN/ISO A1
Output
Scanner Resolution
600 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
DIN A1+ @ 150 dpi: 1.2 s
DIN A1+ @ 200 dpi: 1.5 s
DIN A1+ @ 300 dpi: 2.1 s
DIN A1+ @ 400 dpi: 2.8 s
DIN A1+ @ 600 dpi: 4.1 s
File Formats
Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data and more
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit grayscale, bitonal, enhanced halftone
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Complies to FADGI *** guidelines, Metamorfoze Light, ISO 19264-1
Technical Specifications
Computer
64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen
21 inch Full HD 1920 * 1080 multitouch screen
Monitor
27 inch 4K preview screen
USB Port
2 x USB 3.0 port, 4 x USB 2.0 port
Interface
1 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
CCD line sensor, 22,500 pixels (11,000 scan lines equals to a 245 MPixel matrix camera)
Live Preview Camera
CMOS matrix, area sensor
Light Source
White LEDs, tested according to IEC 62471, no IR/UV emissio
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 h typ. Lamps are covered by the Extended Warranty Option
Dimensions
Dimensions Scanner (H x W x D)
1.160 x 900 x 900 mm (46 x 35 x 35 inch)
Weight Scanner
90 kg (200 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 48 dB(A) (Lift & opening motors) / < 42 dB(A) (Scanning) / < 33 dB(A) (Standby)
Technical changes, errors and omissions excepted. All information subject to change.
