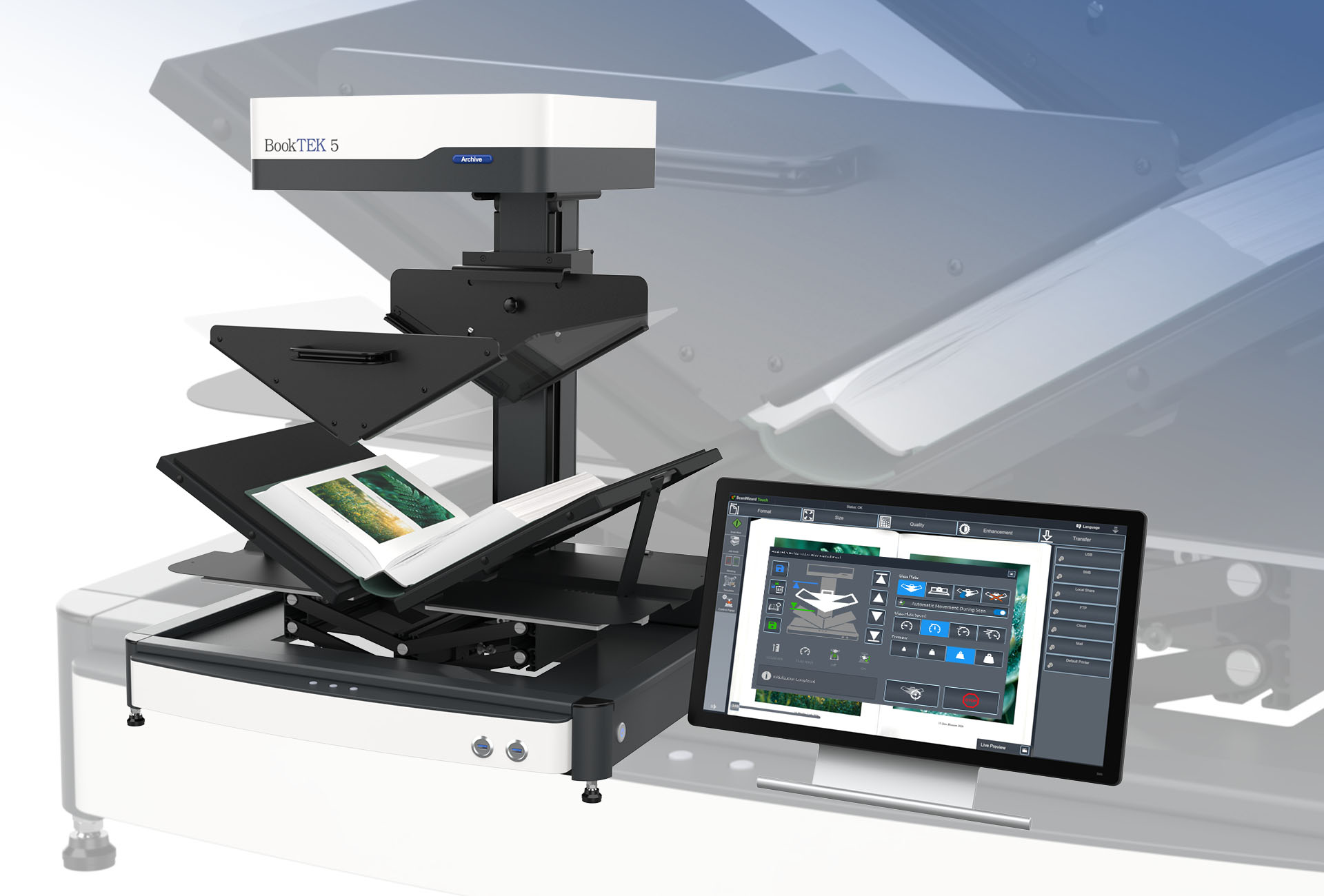

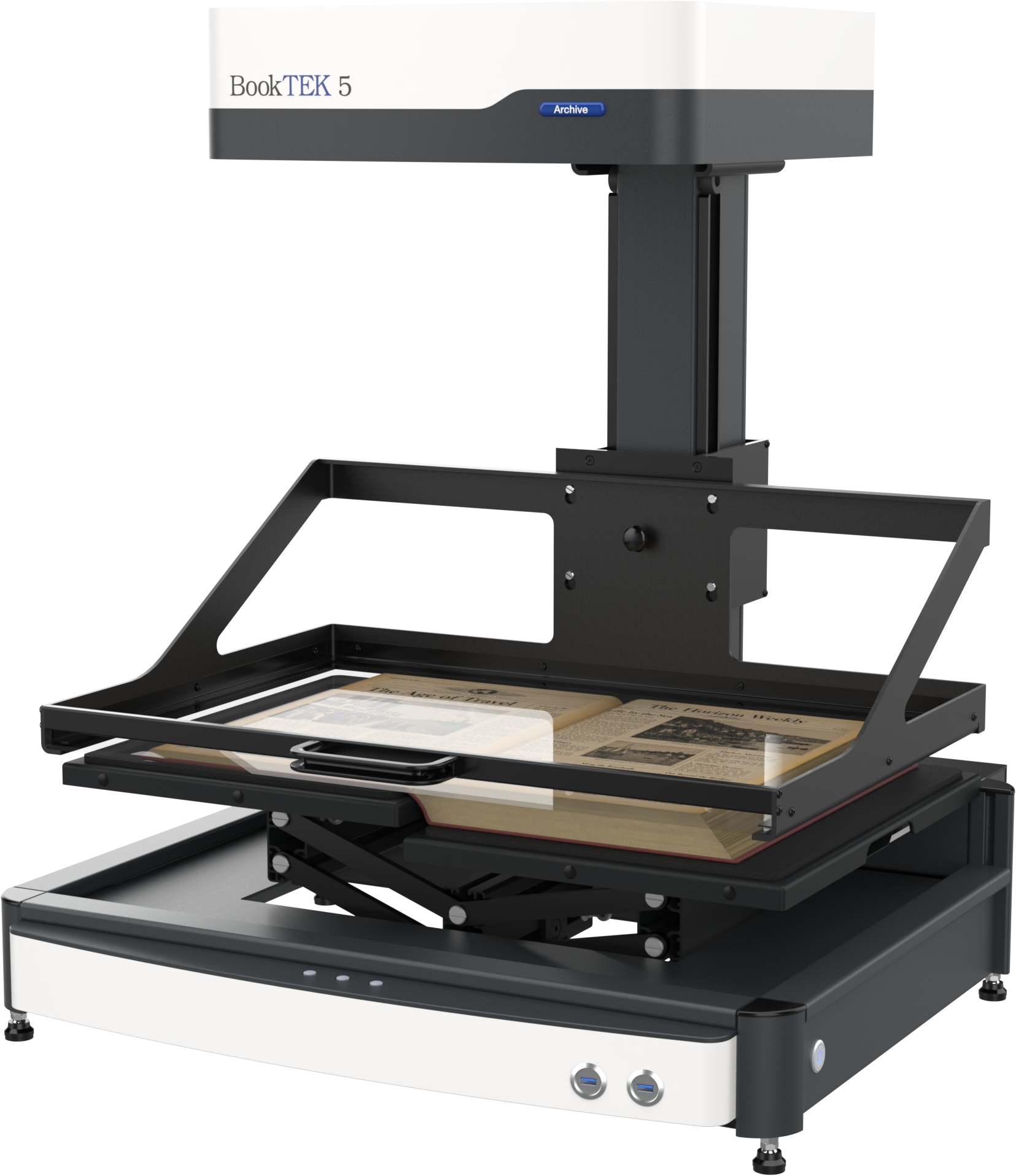

BookTEK 5 V2 Archive Automatic
Versatile A2+ book scanning with a self-adjusting cradle and high-performance
motorized glass plate.
motorized glass plate.
Versatility meets efficiency
The BookTEK 5 V2 Archive Automatic is our most versatile book scanner, designed to meet the demanding needs of archives and libraries. Its self-adjusting book cradle seamlessly adapts to both V-shaped and flat scanning modes, ensuring gentle yet precise digitization of bound materials. Paired with ergonomic motorized glass plates in flat and V-shape, it delivers exceptional results while preserving the integrity of delicate or historical documents. Perfect for high-volume digitization projects where accuracy and efficiency are key, even in 24/7 operation.
360° view
Click and drag to rotate
Productivity in brilliant quality
Using the latest camera technology from Image Access, this scanner meets FADGI and ISO 19264 specifications. Yet, it delivers remarkable speed, capturing A2+ documents in under a second and completing 600 dpi scans in just three seconds.
Advanced book cradle design

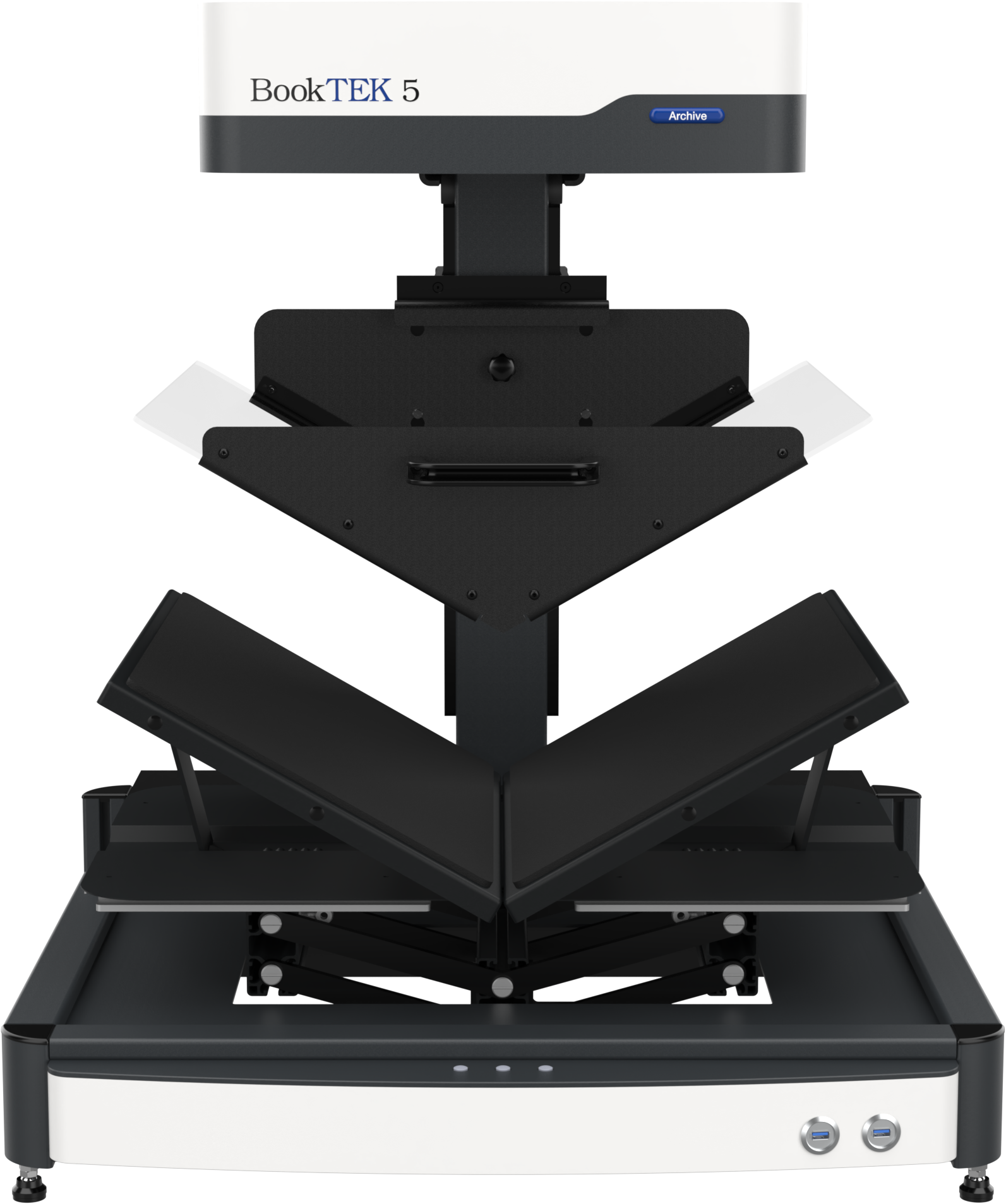

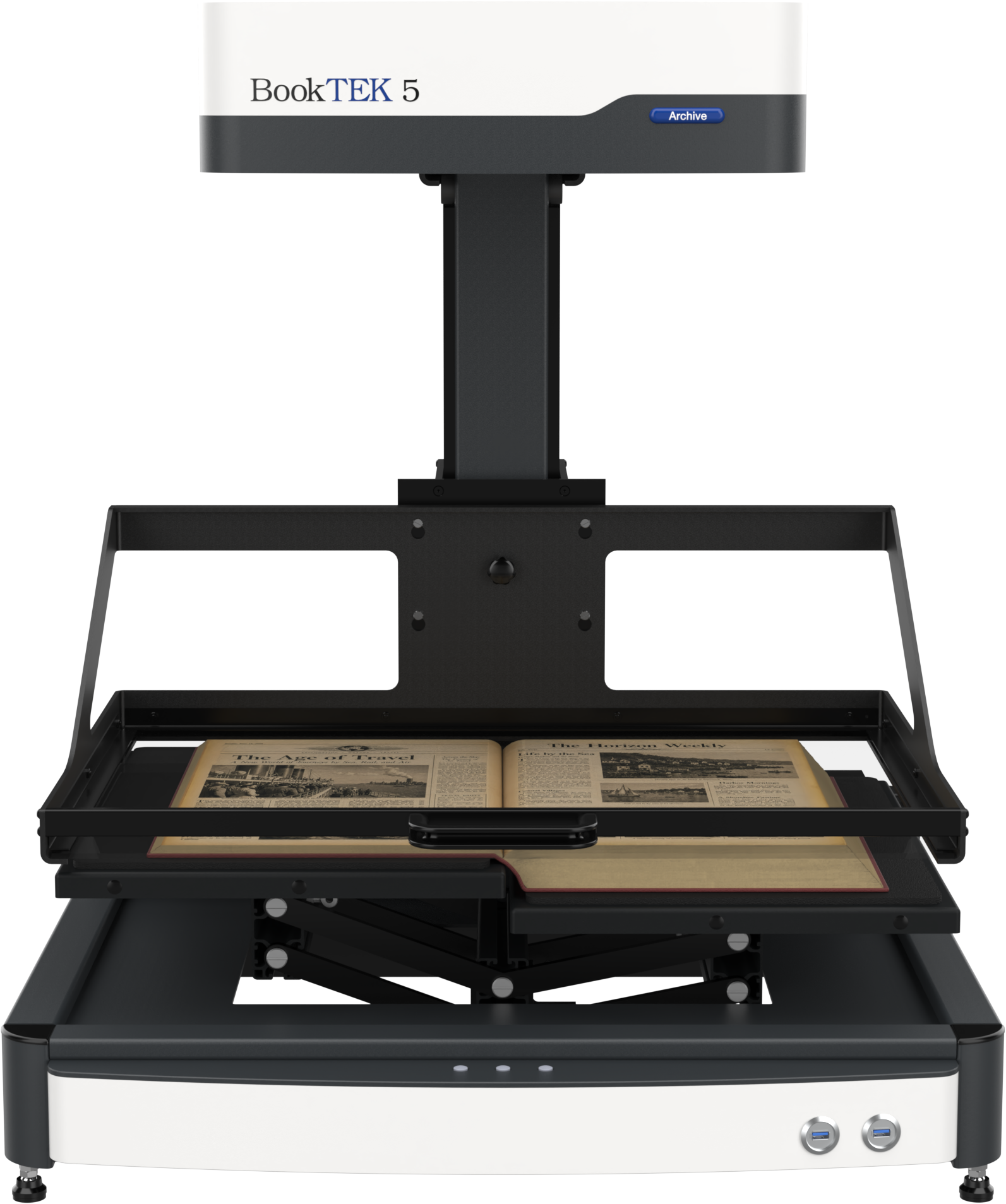

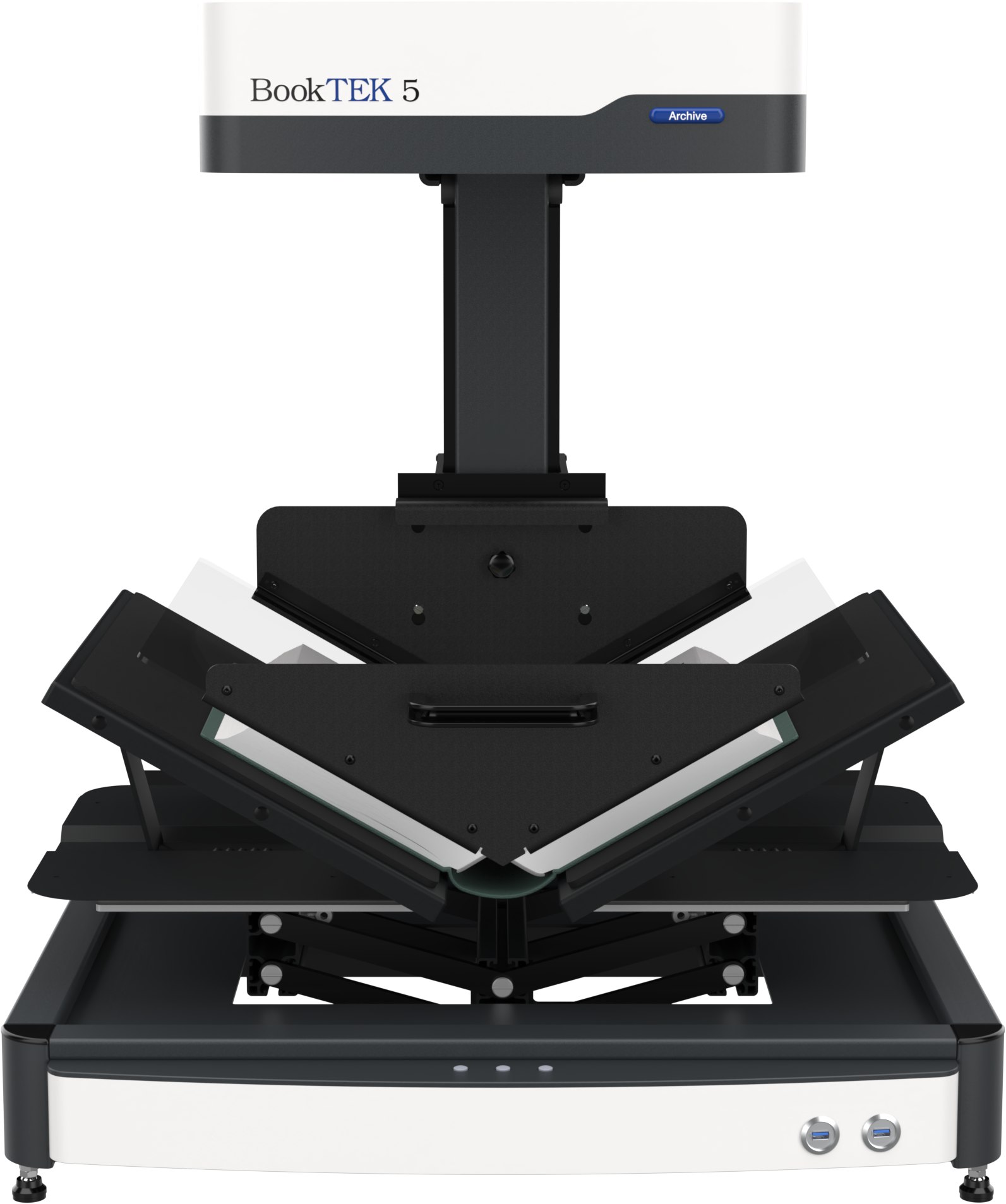

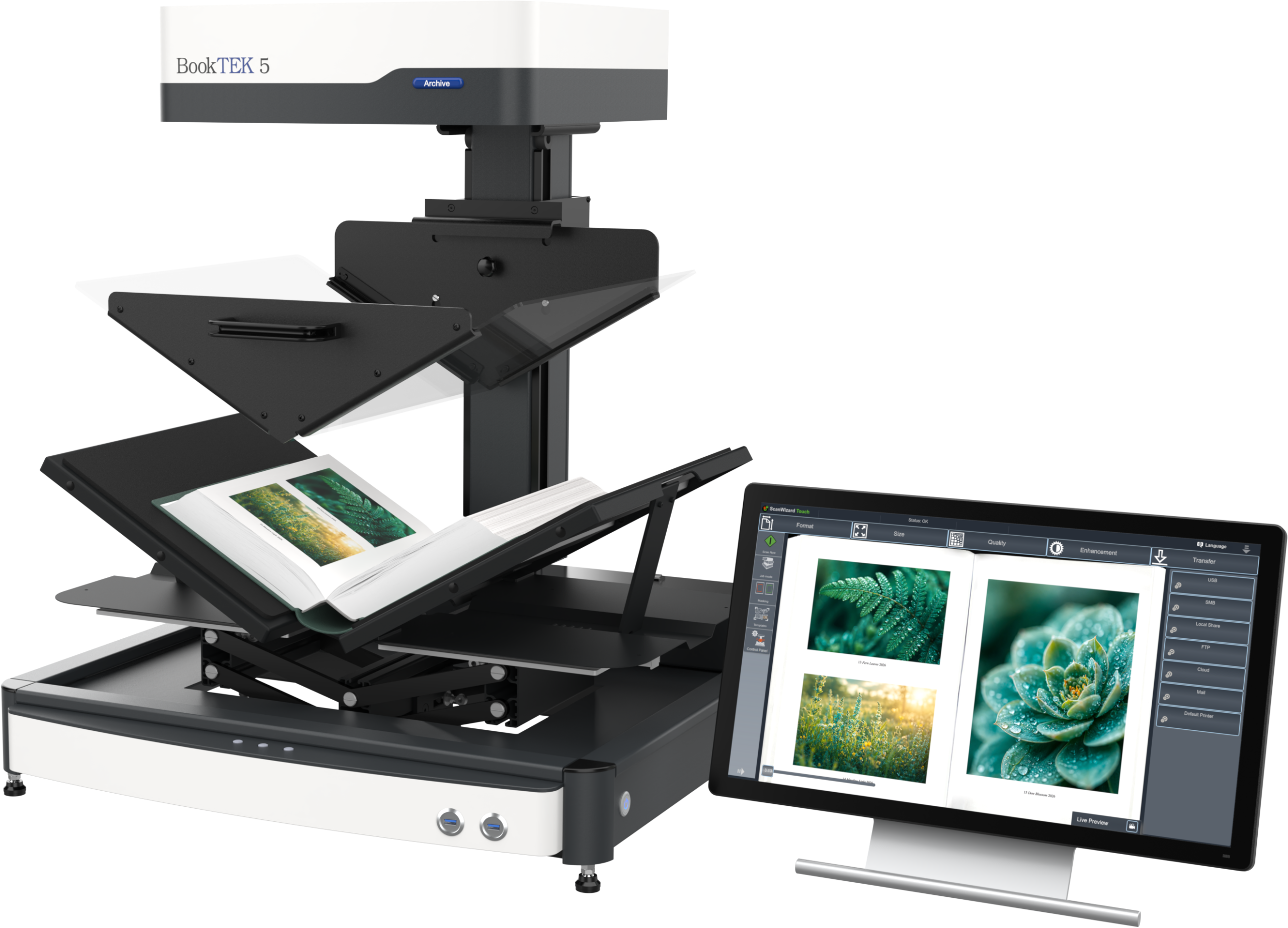

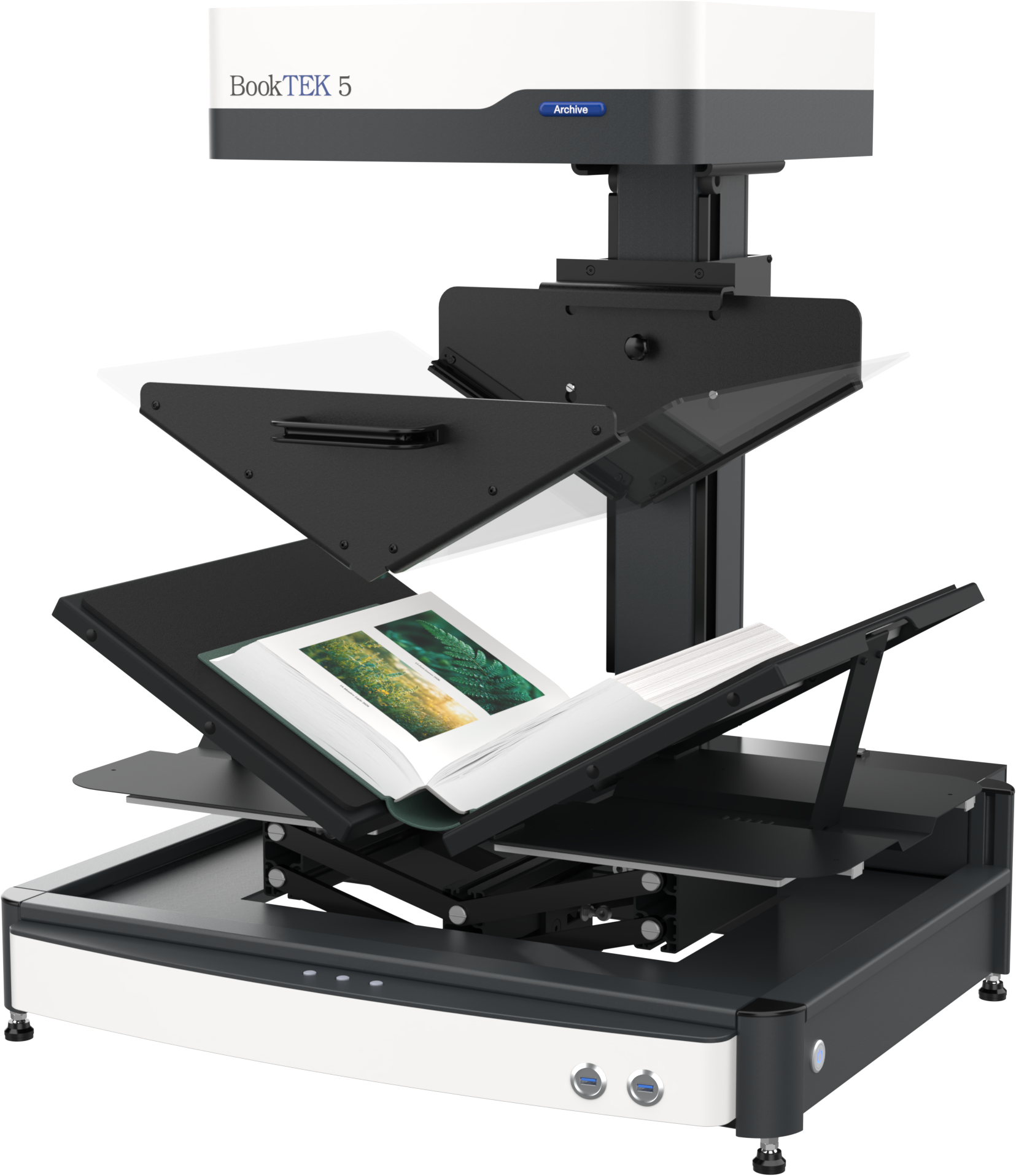

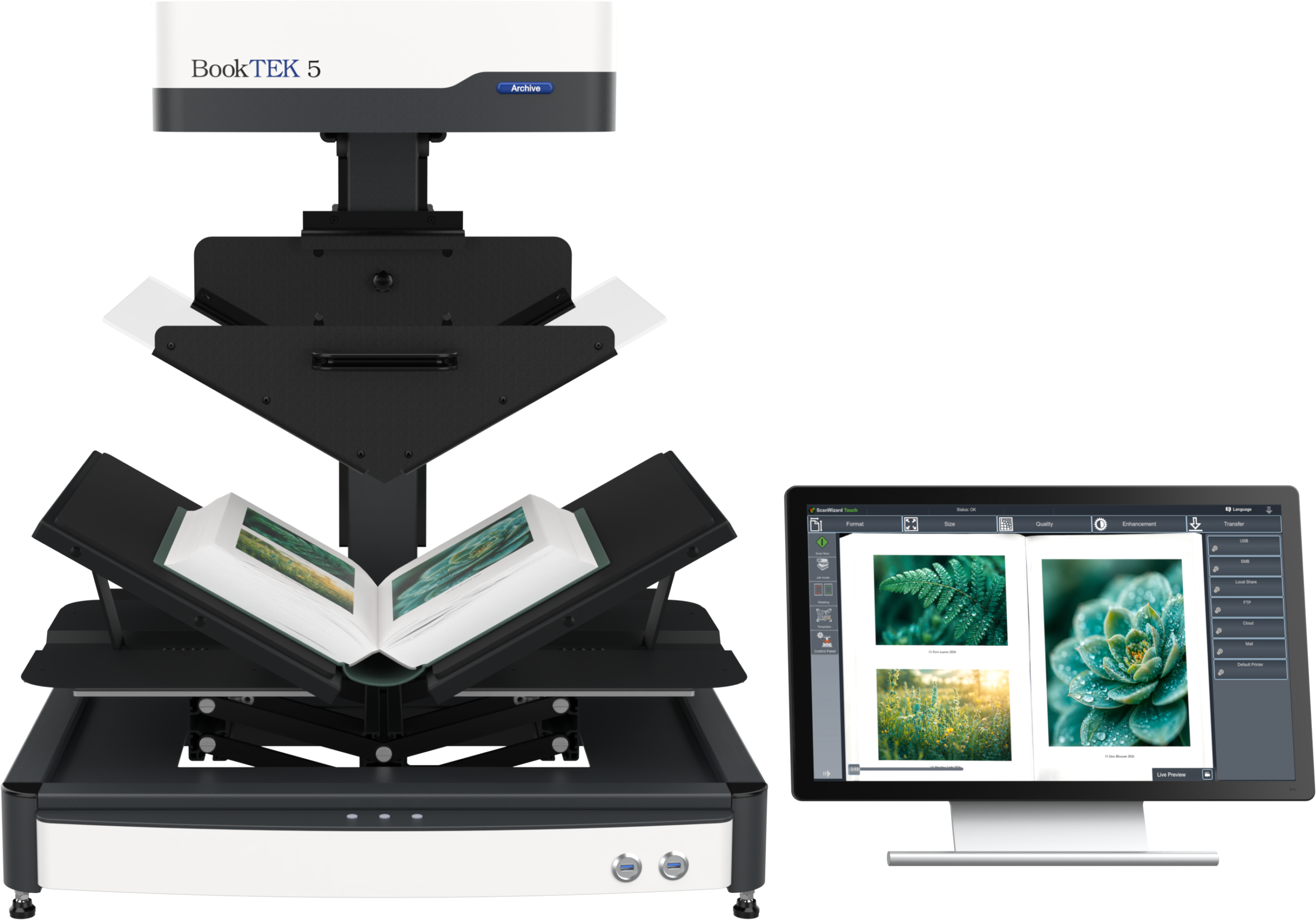

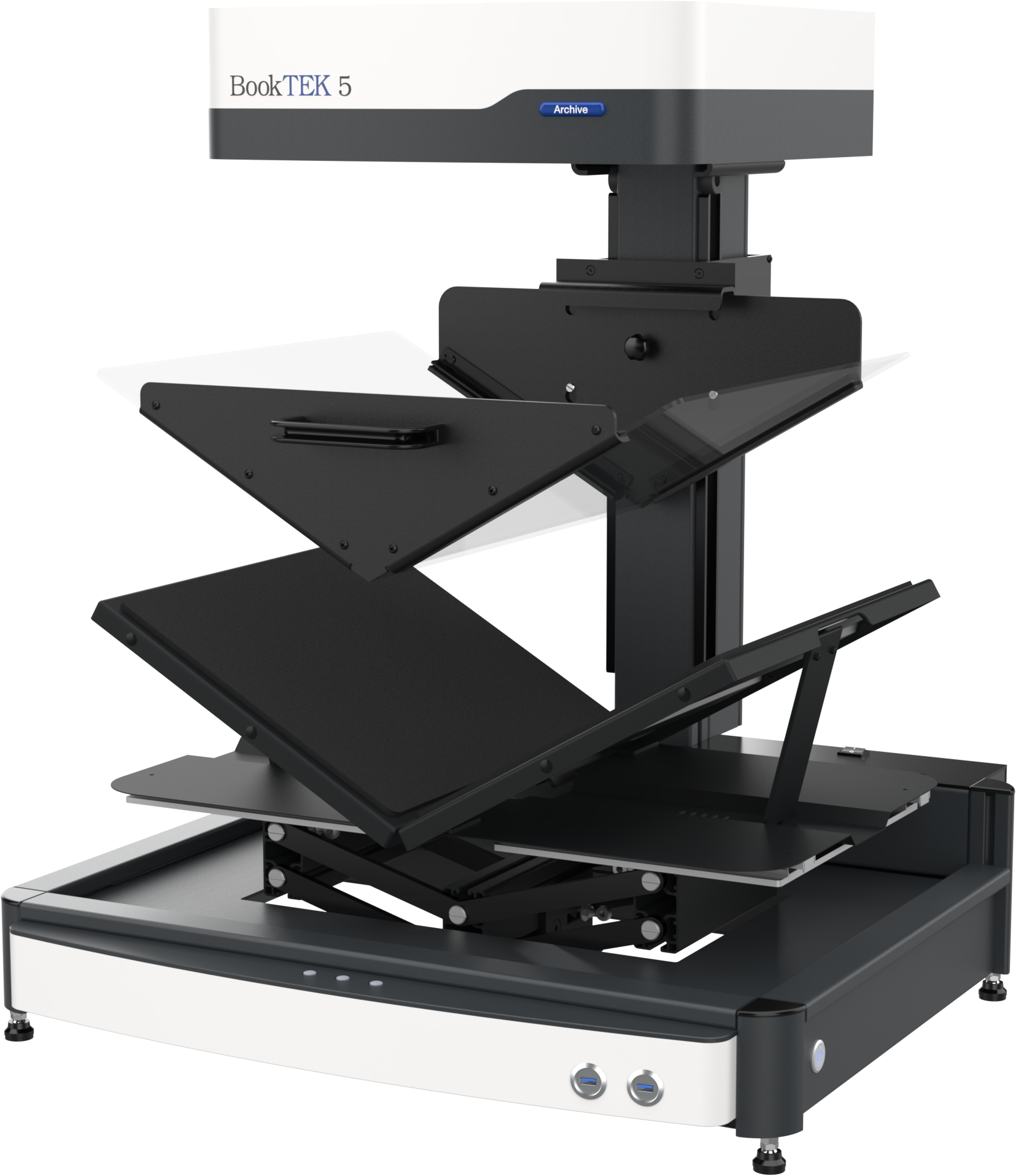

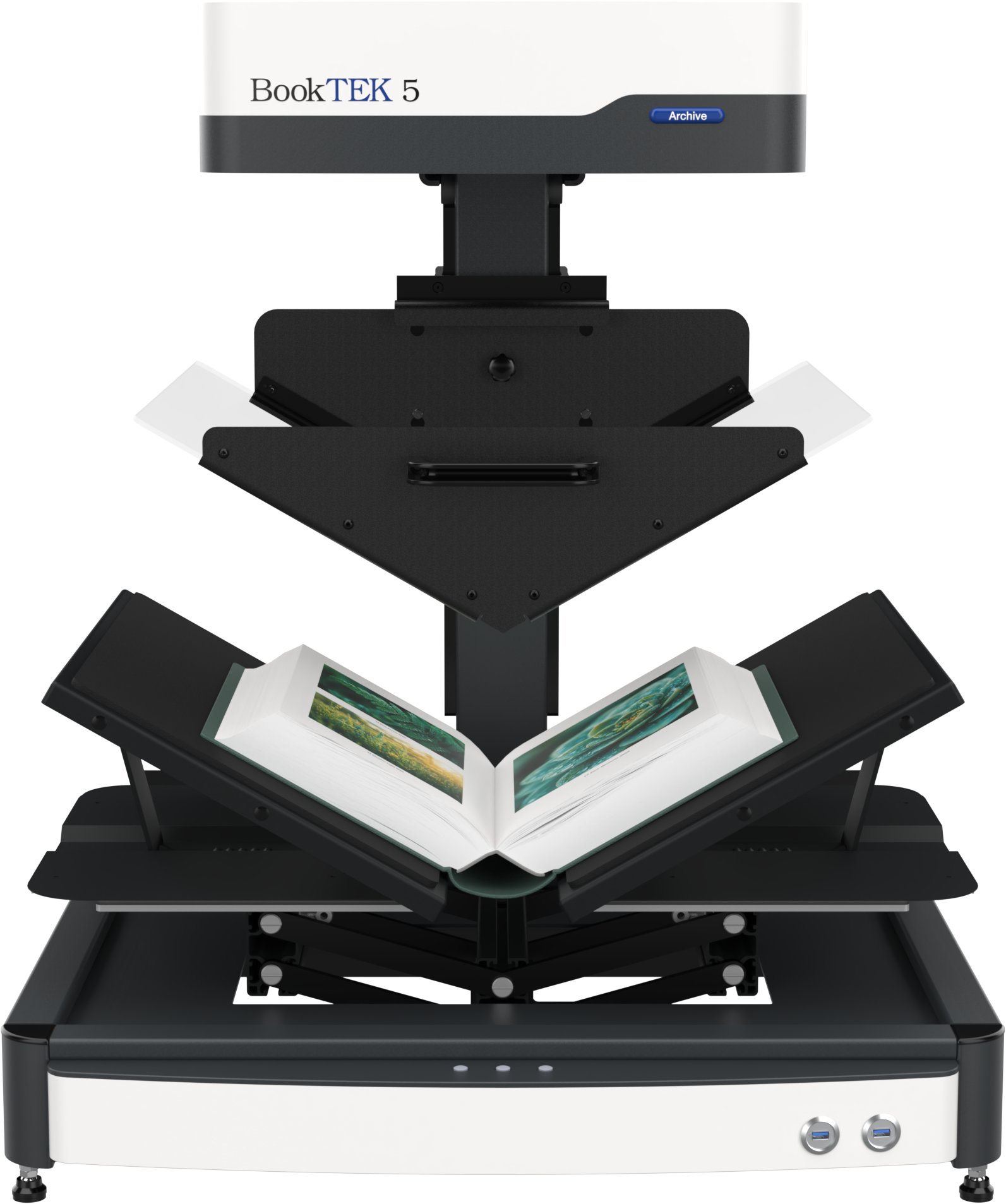

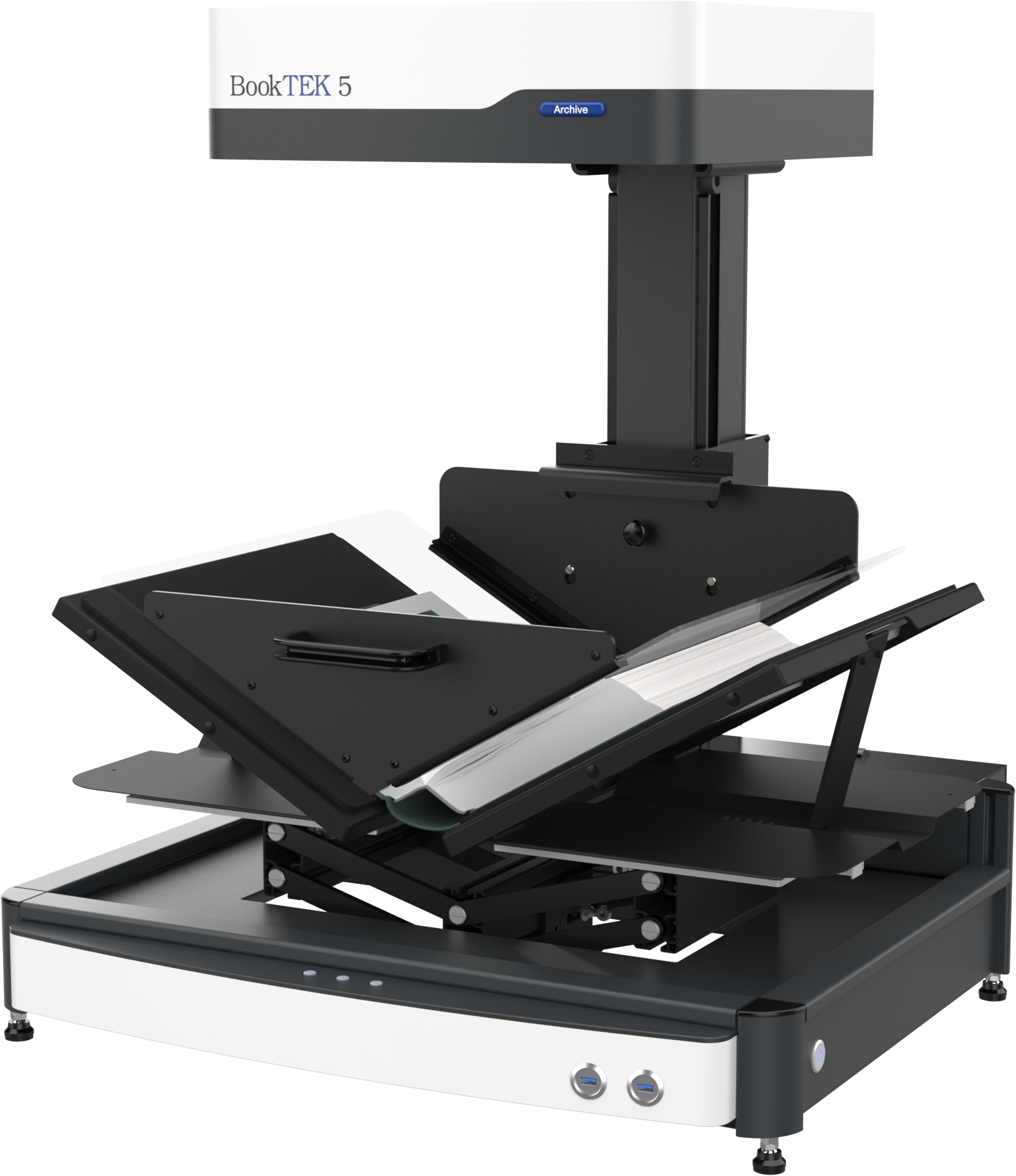

The self-adjusting book cradle ensures high-quality scans while safeguarding delicate bindings. For maximum protection, fragile books can be scanned in V-mode. Depending on the needs, the BookTEK 5 V2 Archive Automatic can be used with a motorized V-shaped or flat glass plate, or without a glass plate at all.

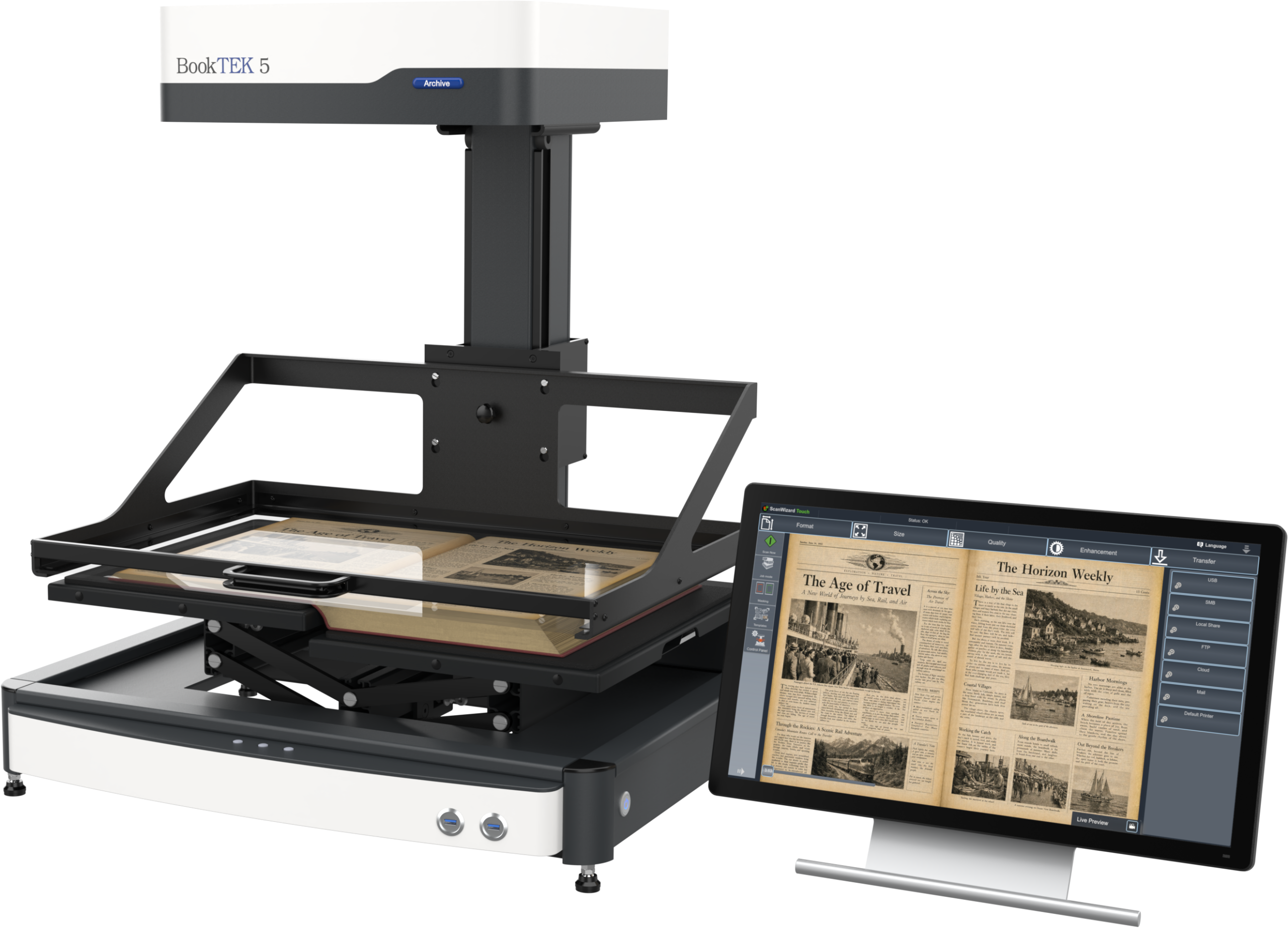

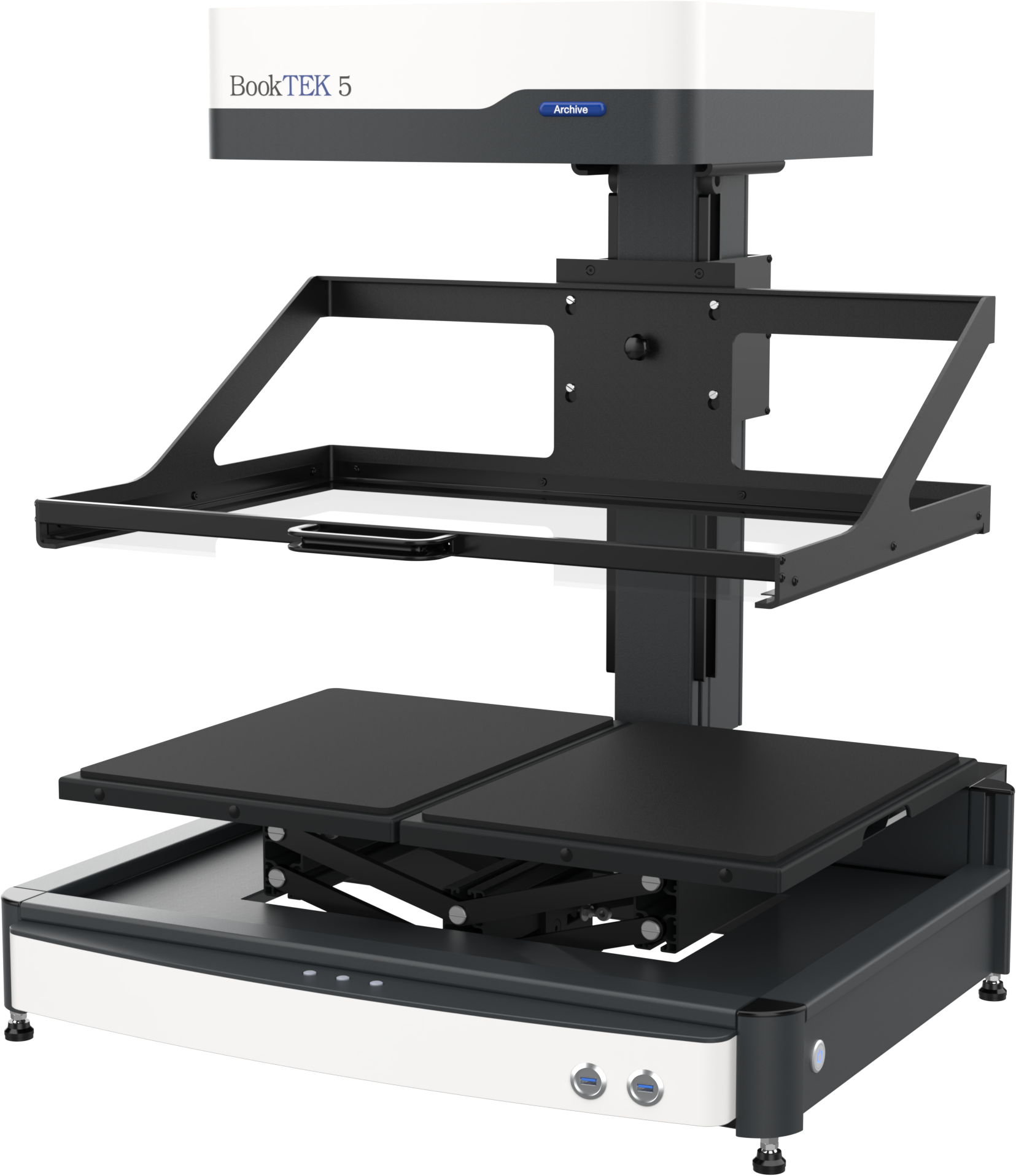

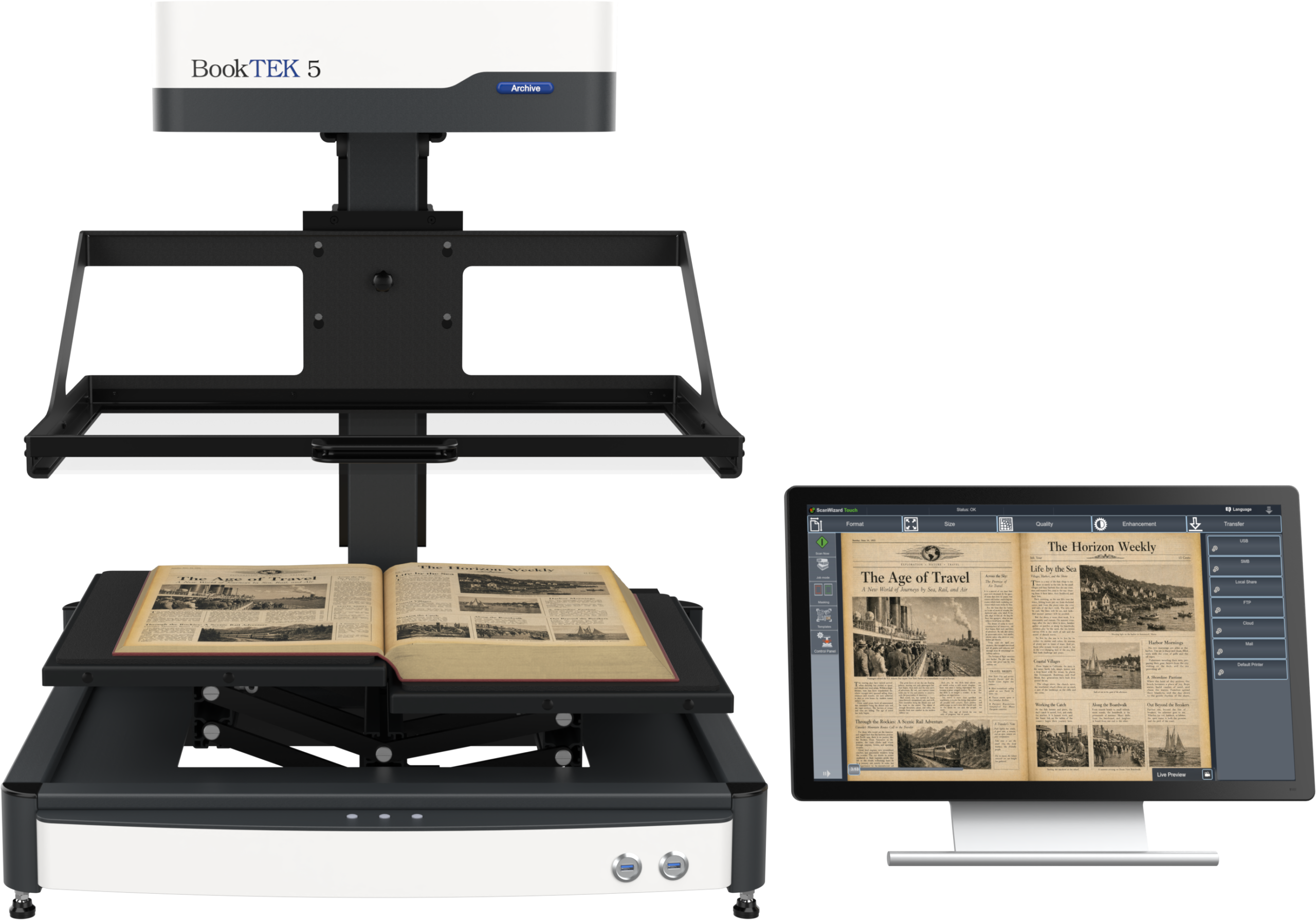

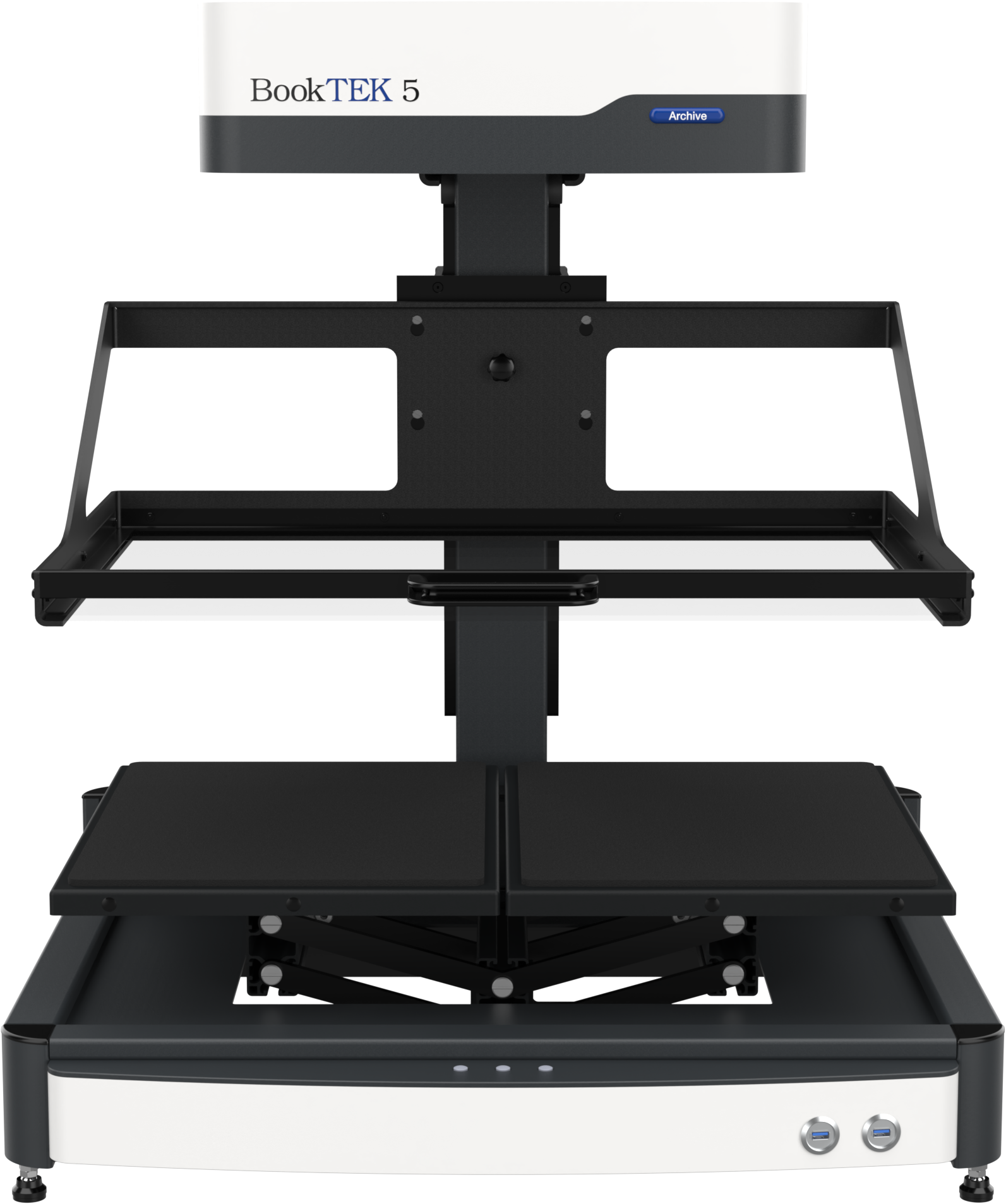

Easy to use, maximum productivity with motorized glass plate
The BookTEK® 5 V2 Archive Automatic book scanner is
ideal as a production system for all demanding digitization
projects.

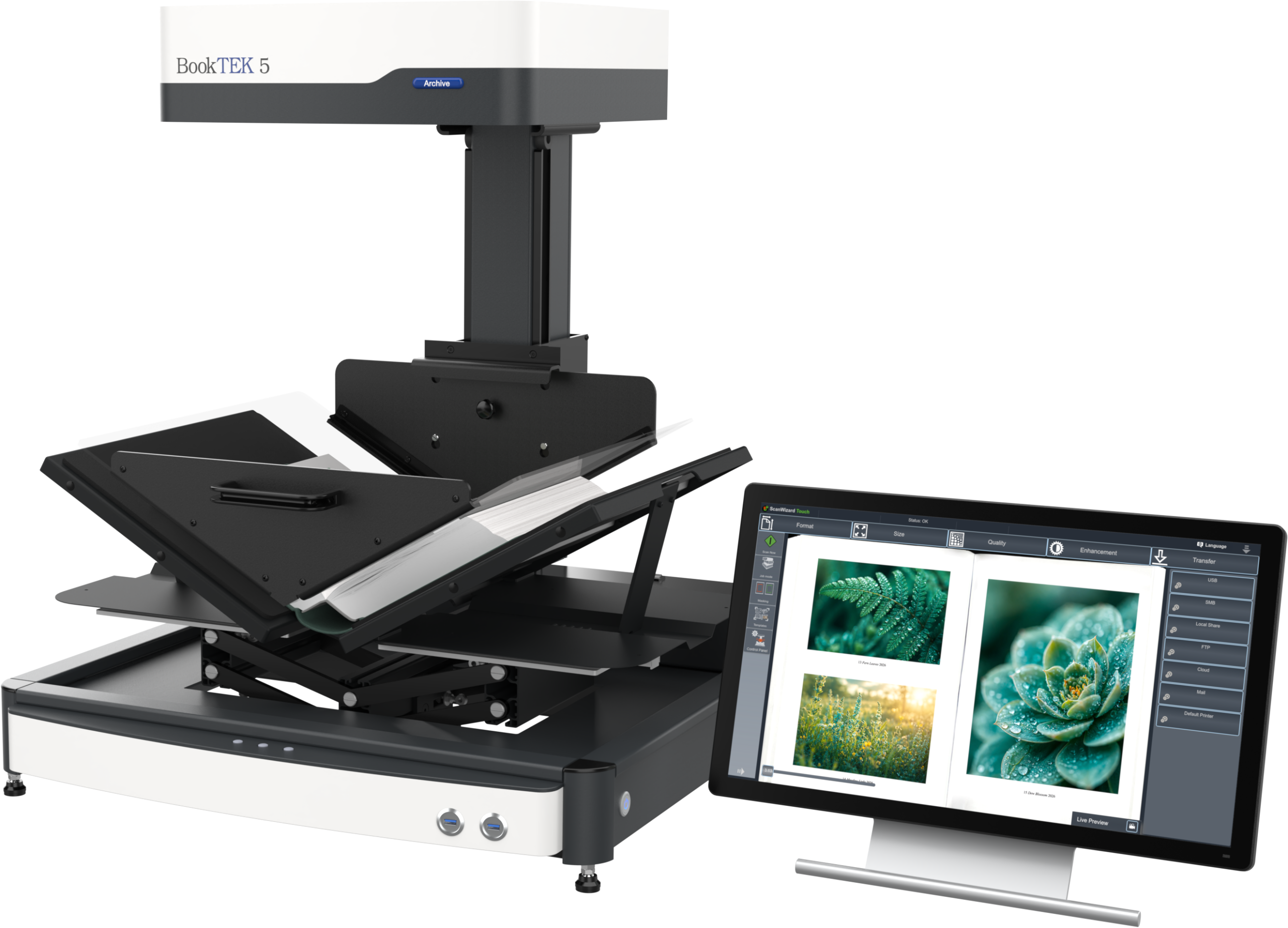

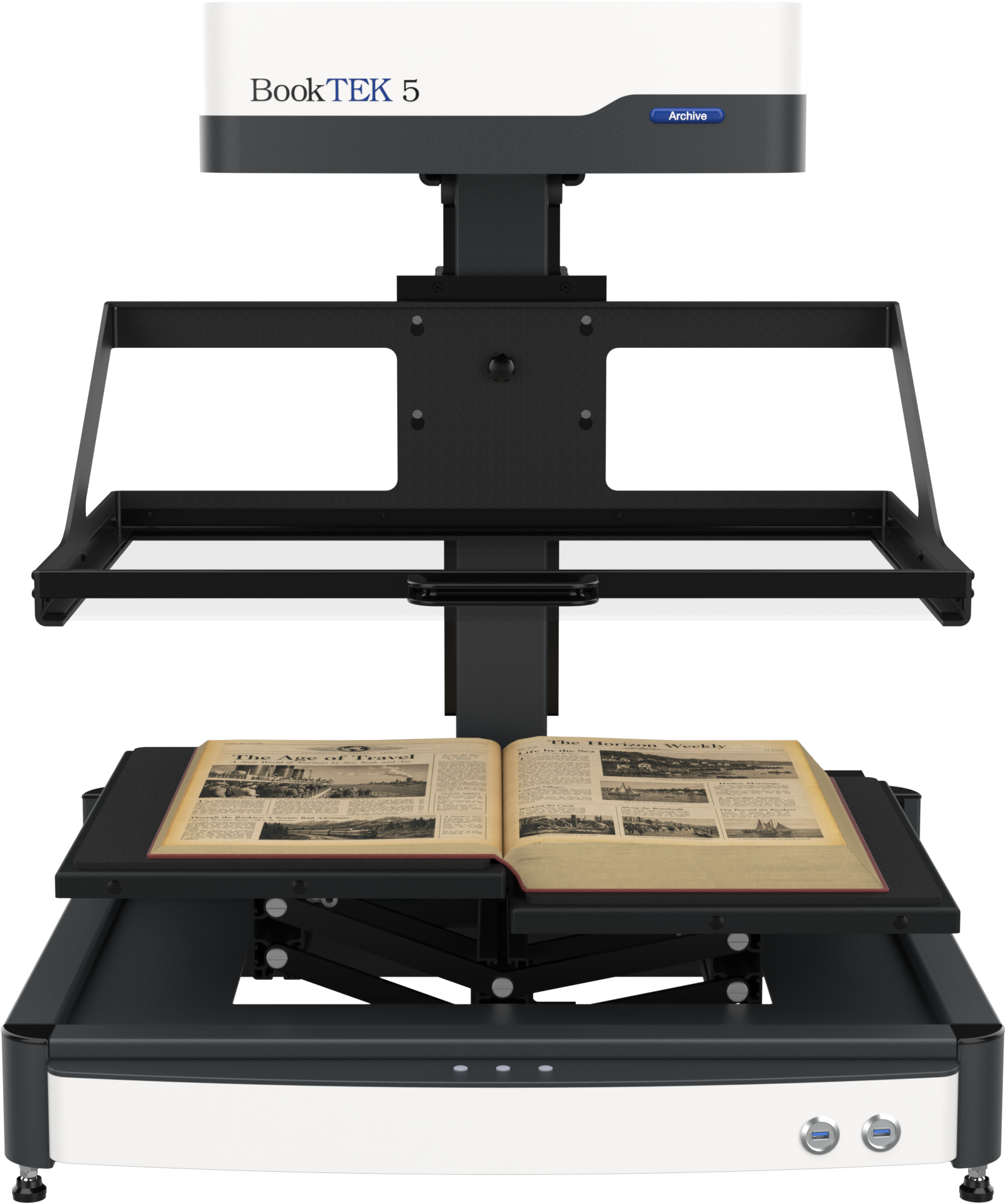

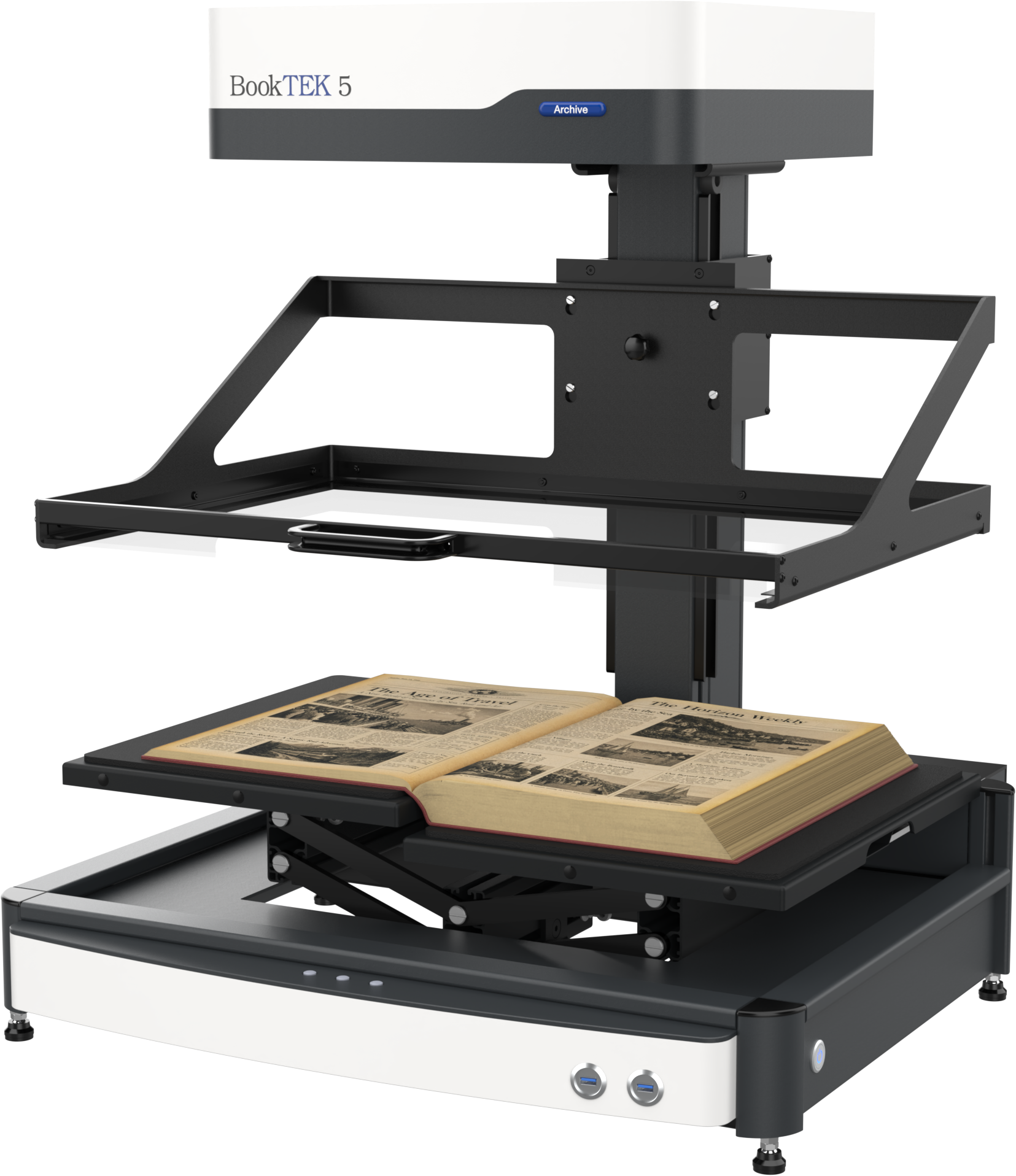

A motorized lift with a V-shaped glass plate on a self-aligning
book cradle, along with an optional flat glass plate,
ensures extremely ergonomic operation.
ideal as a production system for all demanding digitization
projects.
A motorized lift with a V-shaped glass plate on a self-aligning
book cradle, along with an optional flat glass plate,
ensures extremely ergonomic operation.
Ergonomic and flexible

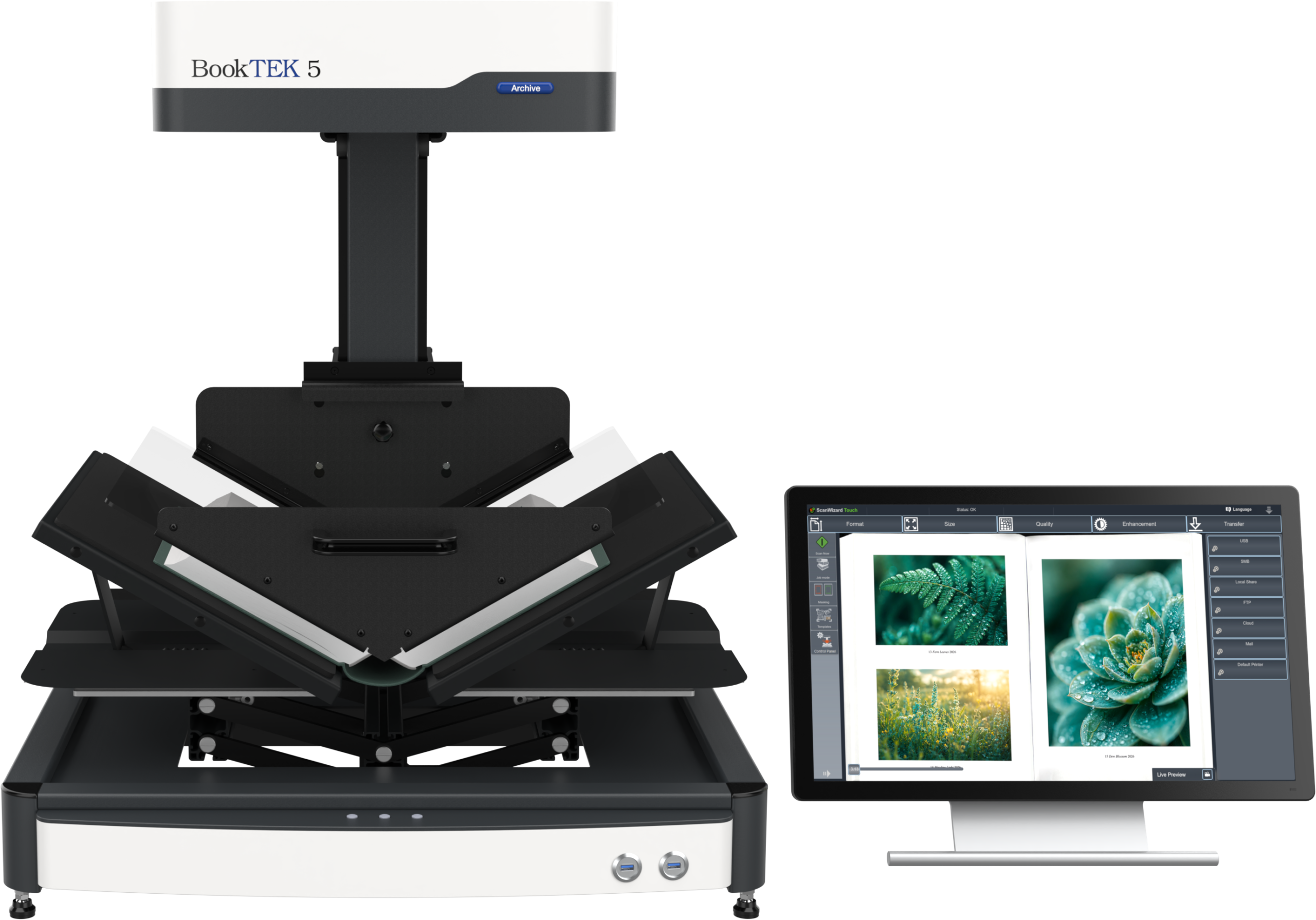

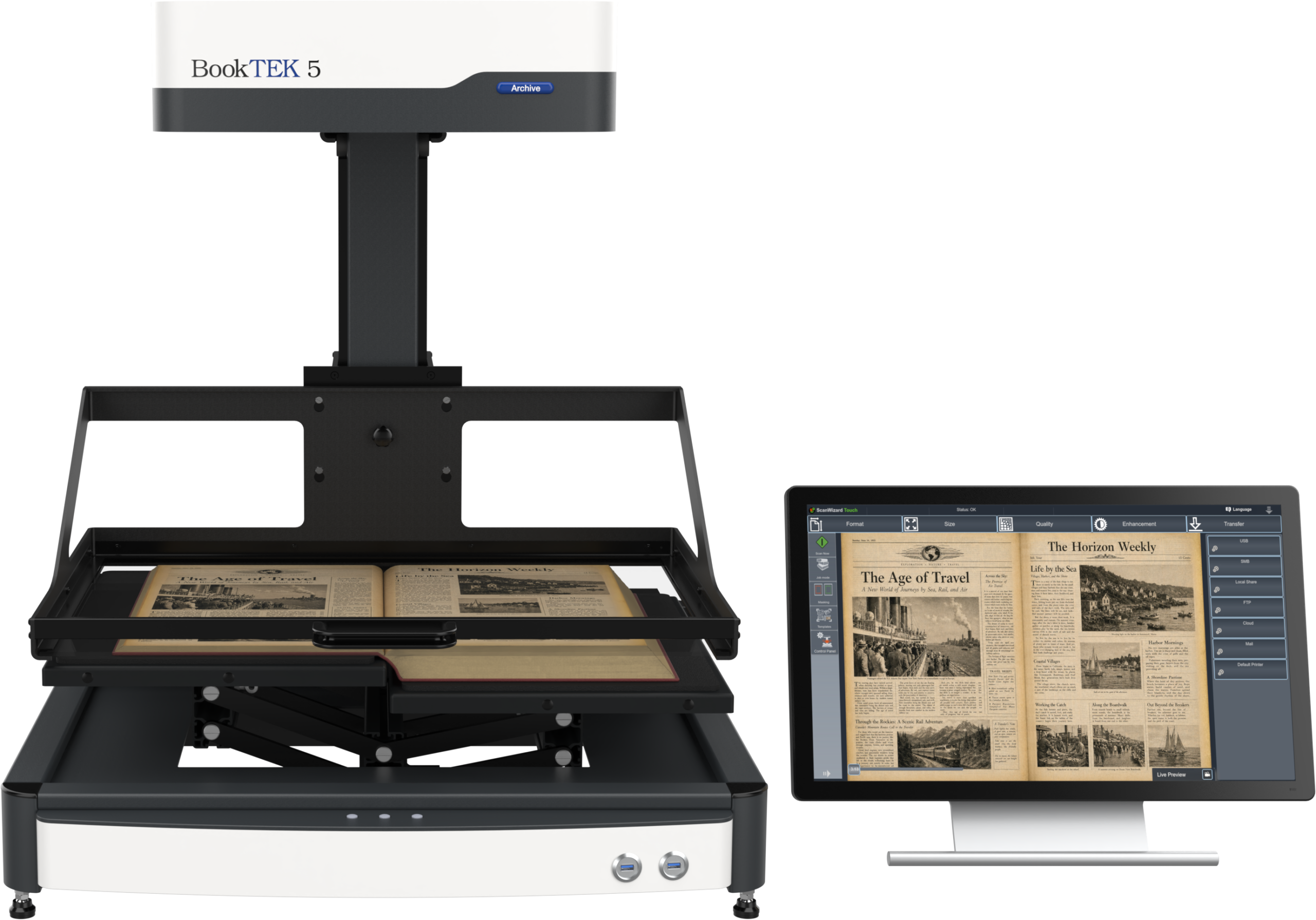

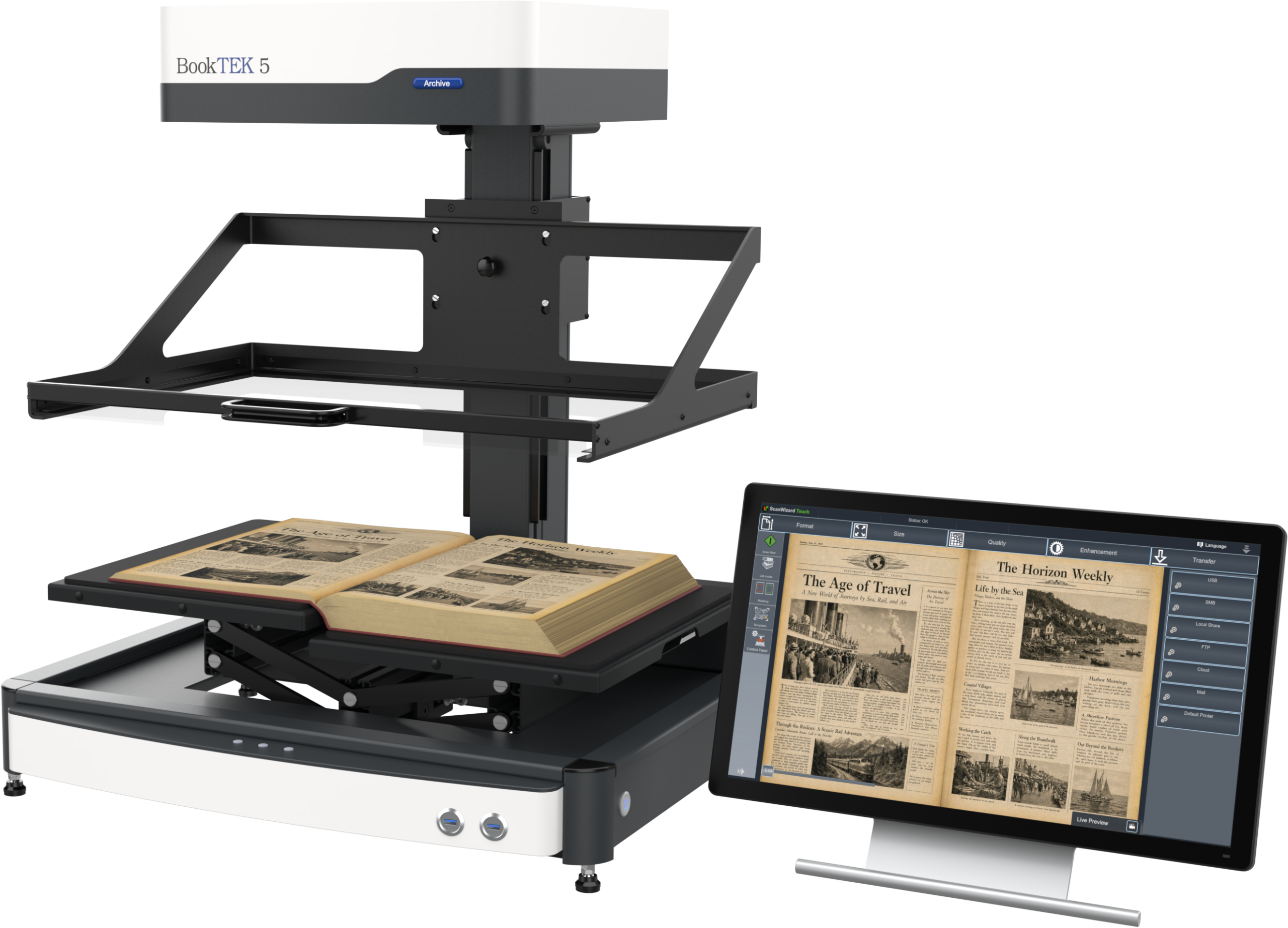

The BookTEK 5 V2 Archive is equipped with a 21-inch Full HD multitouch screen for an intuitive user experience. Centrally positioned control buttons ensure a symmetrical and ergonomic operation, making scanning more comfortable and efficient.
This scanner exceeds all criteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Your interest, our expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochures
Firmware
specifications
Media
Fact Sheets
Service Videos
Manuals
Language
Format
Date
Legal Information BE5-V2-Archive
EN
PDF
04/2025
Technical Specification BE5-V2-Archive
EN
DE
FR
ES
PDF
04/2025
Setup Instructions BE5-V2
EN
DE
FR
ES
PDF
03/2025
Assembly Instructions BE5-V2-Archive
EN
PDF
11/2023
Assembly Instructions Scan2Pad® for BE5 Kiosk
EN
PDF
03/2025
Instruction Scan2ICC
EN
PDF
09/2021
Declaration about the Emission of UV and IR radiation
EN
PDF
11/2021
Book Scanner Buyer´s Guide
EN
DE
ES
PT
PDF
02/2021
Brochures
Language
Format
Date
Product Brochure BE5-V2-Archive
EN
DE
ES
PT
PDF
03/2026
Product Brochure Scan2Net®
EN
PDF
09/2022
Catalogs
Language
Format
Date
Image Access Product Catalog
EN
DE
ES
01/2026
Fact Sheets
Language
Format
Date
Fact Sheet BE5-V2-Archive (Coming soon)
–
PDF
–.–.–
Document
Maximum Documents Size
460 x 620 mm (18 x 24 inch), 14% more than DIN/ISO A2
Output
Scanner Resolution
600 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
DIN A2+ @ 150 dpi: 0.9 s
DIN A2+ @ 200 dpi: 1.1 s
DIN A2+ @ 300 dpi: 1.6 s
DIN A2+ @ 400 dpi: 2.0 s
DIN A2+ @ 600 dpi: 3.0 s
DIN A2+ @ 200 dpi: 1.1 s
DIN A2+ @ 300 dpi: 1.6 s
DIN A2+ @ 400 dpi: 2.0 s
DIN A2+ @ 600 dpi: 3.0 s
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit grayscale, bitonal, enhanced halftone
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Complies to FADGI *** guidelines, Metamorfoze Light, ISO 19264-1
Technical Specifications
Computer
64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen
21 inch Full HD 1920 * 1080 multitouch screen
USB Port
2 x USB 3.0 port, 4 x USB 2.0 port
Interface
2.5 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
CCD line sensor, 22,500 pixels (11,000 scan lines equals to a 245 MPixel matrix camera)
Live Preview Camera
CMOS matrix, area sensor
Light Source
White LEDs, tested according to IEC 62471, no IR/UV emissio
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 h typ. Lamps are covered by the Extended Warranty Option
Dimensions
Dimensions Scanner (H x W x D)
870 x 730 x 670 mm (35 x 29 x 26 inch)
Weight Scanner
53 kg (117 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
P(Off) 0.3W / P(Sleep) 4.6W / P(Ready) 40W / P(Active) 110W
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 42 dB(A) (Scanning) / < 33 dB(A) (Standby)
Technical changes, errors and omissions excepted. All information subject to change.
