Home 9 Widetek Flatbed 9 WT12-650

Flatbed scanner

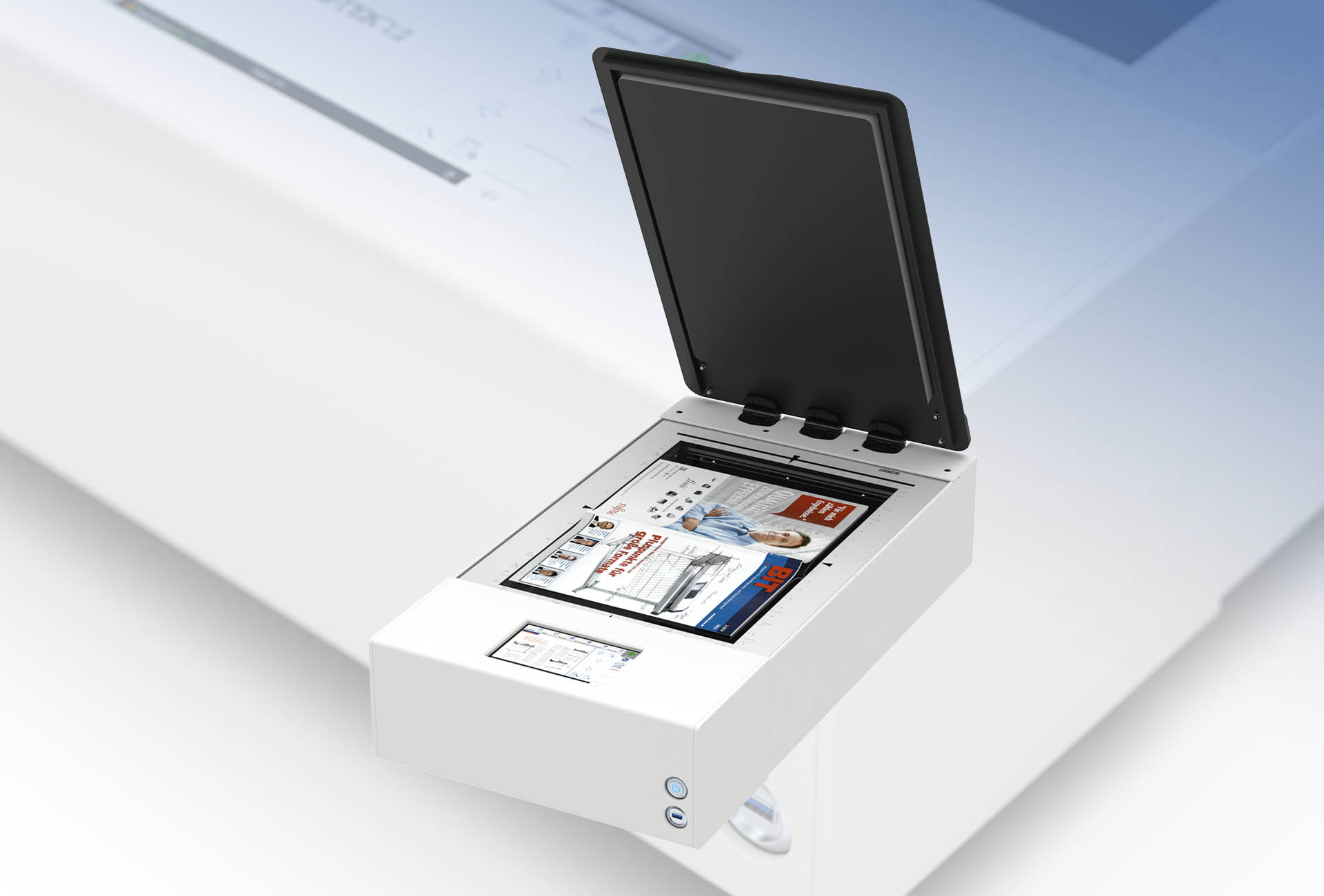

WideTEK 12-650

Production ready design and uniquely compact dimensions in a new class
of professional but affordable flatbed scanners

Lightning-fast performance

The WideTEK 12-650 is available for applications where A3+ is large enough but fast scanning speed and high optical resolution is required. The scanner needs less than three seconds to scan the largest format of 12.3 x 18.5 inches in normal mode at 300dpi and only 12 seconds in 3D mode at 600dpi, twice as fast as the closest competition.



360° view

Scroll mouse wheel or click and drag to rotate

3D surface scanning

Discover unmatched surface inspection and quality control with the 3D imaging capabilities of our flatbed scanners. Whether examining coins, Braille prints, or SMD components on electronic boards, our WideTEK flatbed scanners capture every detail with exceptional precision.

Borderless glatt plate

The scanner’s scratch resistant, non-reflective glass plate has been expanded to reach the edges of the flatbed scanner, making it 100% protective of the documents laid on it. No more bent or folded edges on your source documents.

Compact and accessible

The scanner’s footprint is so small that it can be placed on any desktop or workstation. Installation is so simple, you will be scanning within minutes after taking it out of the box. Easy, fast and affordable.

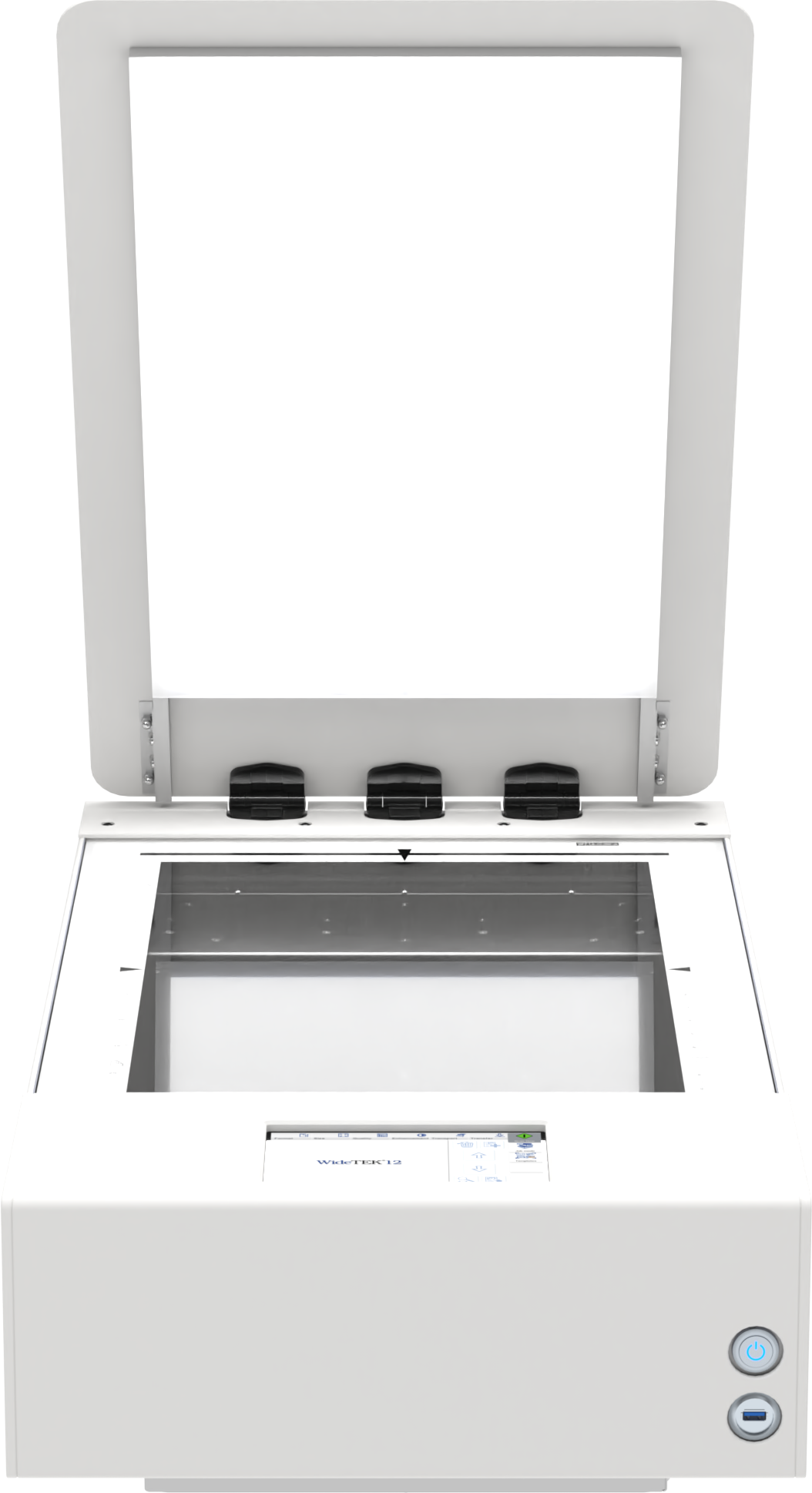

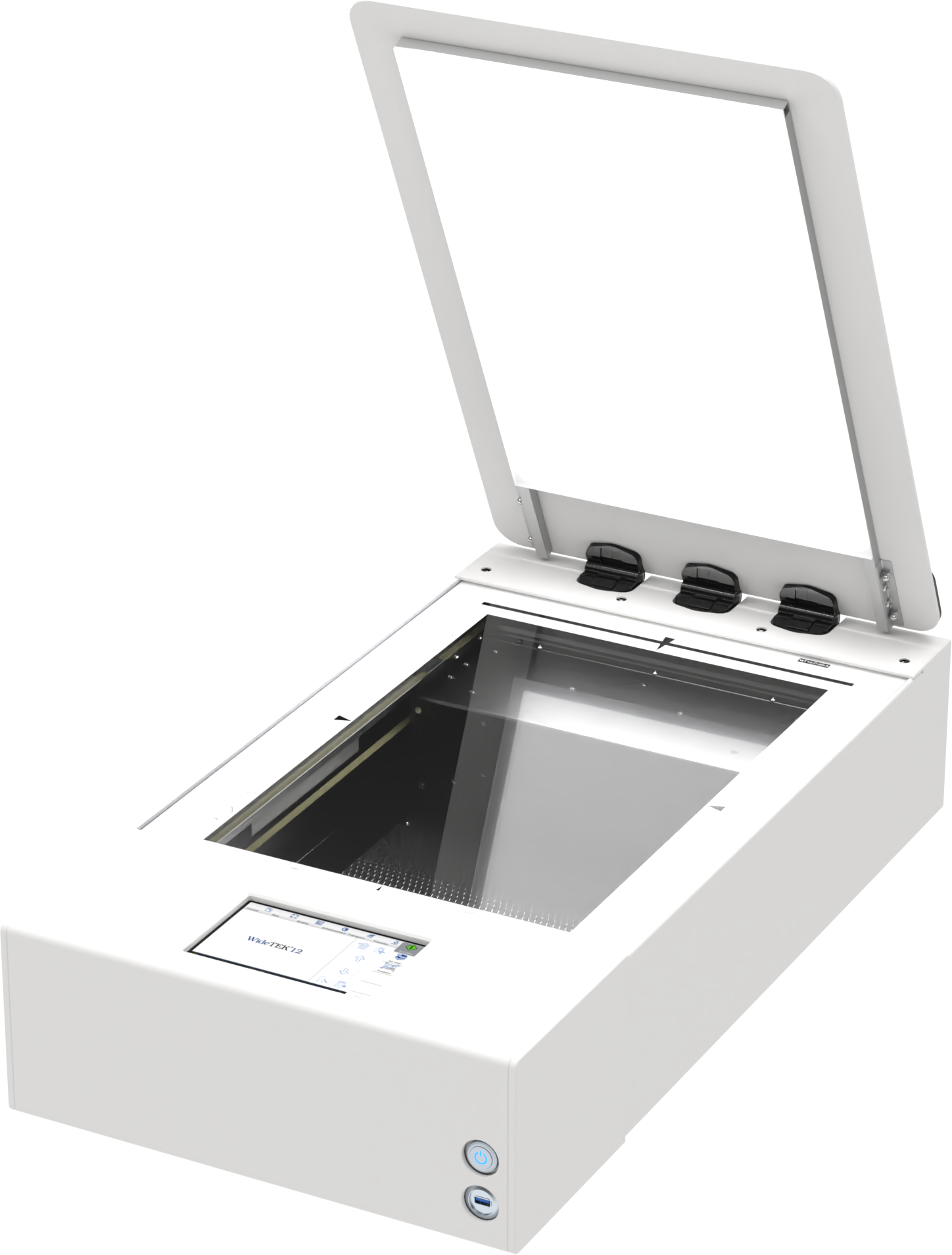

Optional backlight unit

Boost your scanner's versatility with the BACKLIGHT option, enabling high-quality scanning  of transparent material like X-rays, glass negatives, 35mm microfilm aperture cards, cutout stencils, sepias, and film.

Powerful software

Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.

Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.

No compromises on security

All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.

Versatile applications

Our WideTEK flatbed scanners are valuable production devices for a large area markets and applications. This list is neither complete nor exclusive, there are more markets and applications than listed and it should be taken only as a general guideline. If you have a specific application that is not listed here, please check with your sales representative.

Government agencies, border control, customs, immigration, police

Banks, currency traders

Inspection and industrial quality control

Quality control, 3D product presentations

This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.

Compact and accessible

Small footprint, can be placed on any desktop or workstation.
Easy installation, ready to scan within minutes after taking it out of the box.

Versatile output options

The scanner supports various output media, including direct scanning to USB devices, networked printers or hot folders, and network resources like SMB and FTP.

Virtual Rescan

Optimize images without rescanning, real time display of scanned images

Multilingual operation

With over 20 languages available for the unique Scan2Net and ScanWizard user interfaces. Customize the interfaces to comply with corporate identity norms and standards

Dark mode

Enhances scan quality through less light reflection and improves operation by reducing eye strain

Your Interest, Our Expertise

Contact us now and explore a new dimension in scanning technology!

Support & Downloads

Documentation

Brochure

Firmware

specifications

Media

Fact Sheets

Service Video

Manuals

Language

File Format

Release Date

Legal Information

All

PDF

05/2022

Technical Specification WideTEK 12-650

EN

DE

PDF

10/2023

Unpacking and Repacking Instructions WT12-650

All

PDF

08/2017

Setup Guide WT 12-650 / WT 25-650

EN

DE

FR

ES

PDF

12/2023

Assembly Instructions WT12-BACKLIGHT

All

PDF

10/2023

Best Practices WideTEK 12 + 25

EN

PDF

08/2020

Instruction Scan2ICC

EN

PDF

09/2021

Declaration about the Emission of UV and IR radiation

EN

PDF

11/2021

Wide Format Scanner Buyer´s Guide

EN
DE
ES

PDF

05/2022

Brochure

Language

File Format

Release Date

Product Brochure WT12-650

EN
DE
ES

PDF

10/2023

Product Brochure WT12-650 Backlight

EN
DE
ES

PDF

10/2023

Product Brochure Scan2Net®

EN

PDF

09/2022

Catalogs

Image Access Product Catalog

EN
DE
ES

PDF

04/2025

Fact Sheets

Language

File Format

Release Date

Fact Sheet WT12-650 (Coming soon)

PDF

–.–.–

Document

Maximum Document Size

Max. 313 x 470 mm (12.3 x 18.5 inch), 18% > DIN/ISO A3

Autoformat Size Recognition

yes, crop & deskew

DIN Format

DIN A5 – DIN A3

ANSI Format

Letter, Legal

User Defined Format

yes

Output

Scanner Resolution

1200 x 1200 dpiOptical Resolution

1200 x 600 dpi

Pixel Dimension

9.3 x 9.3 µm

Scan Speed Color

Maximum document size @ 300 dpi < 3 s
Maximum document size @ 600 dpi < 6 s

Scan Speed Color 3D

Maximum format @ 300 dpi < 6s

Color Depth

48 bit color, 16 bit grayscale

Scan Output

24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone

File Formats

Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data

Scan Modes

Plain with diffused illumination, 3D with visible surface texture, UV, IR, backlight

ICC Profiles

Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription

Quality

Exceeds FADGI **** guidelines, ISO 19264-1

Technical Specifications

Computer

64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs

Touchscreen

7 inch color WXGA (1280*800) touchscreen

USB Port

1 x USB 3.0 port

Interface

10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface

Camera

Tri-Color CCD camera, 22,500 pixels, encapsulated and dust-proof

Light Source

Dual LED lamps with white LEDs, integrated optical diffusor, no IR/UV radiation

Declaration about the Emission of UV and IR radiation

Lamp Lifetime

50,000 h (typ.)

Dimensions

Dimensions Scanner (H x W x D)

222 x 440 x 795 mm (8.7 x 17.4 x 31.3 inch)

Weight Scanner

30 kg (62 lbs.)

Electrical Specifications

Electrical Connection

100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)

Power Consumption

P(Off) 0.3W / P(Sleep) 4.1W / P(Ready) 28W / P(Active) 55W 49% below

ENERGY STAR requirements

Image Access FAQ

Ambient Conditions

Operating Temp

5 to 40 °C (40 to 105 °F)

Rel Humidity

20 to 80% (non-condensing)

Noise

< 42 dB(A) (Scanning) / < 32 dB(A) (Standby)

Technical changes, errors and omissions excepted. All information subject to change.
