Flatbed scanner

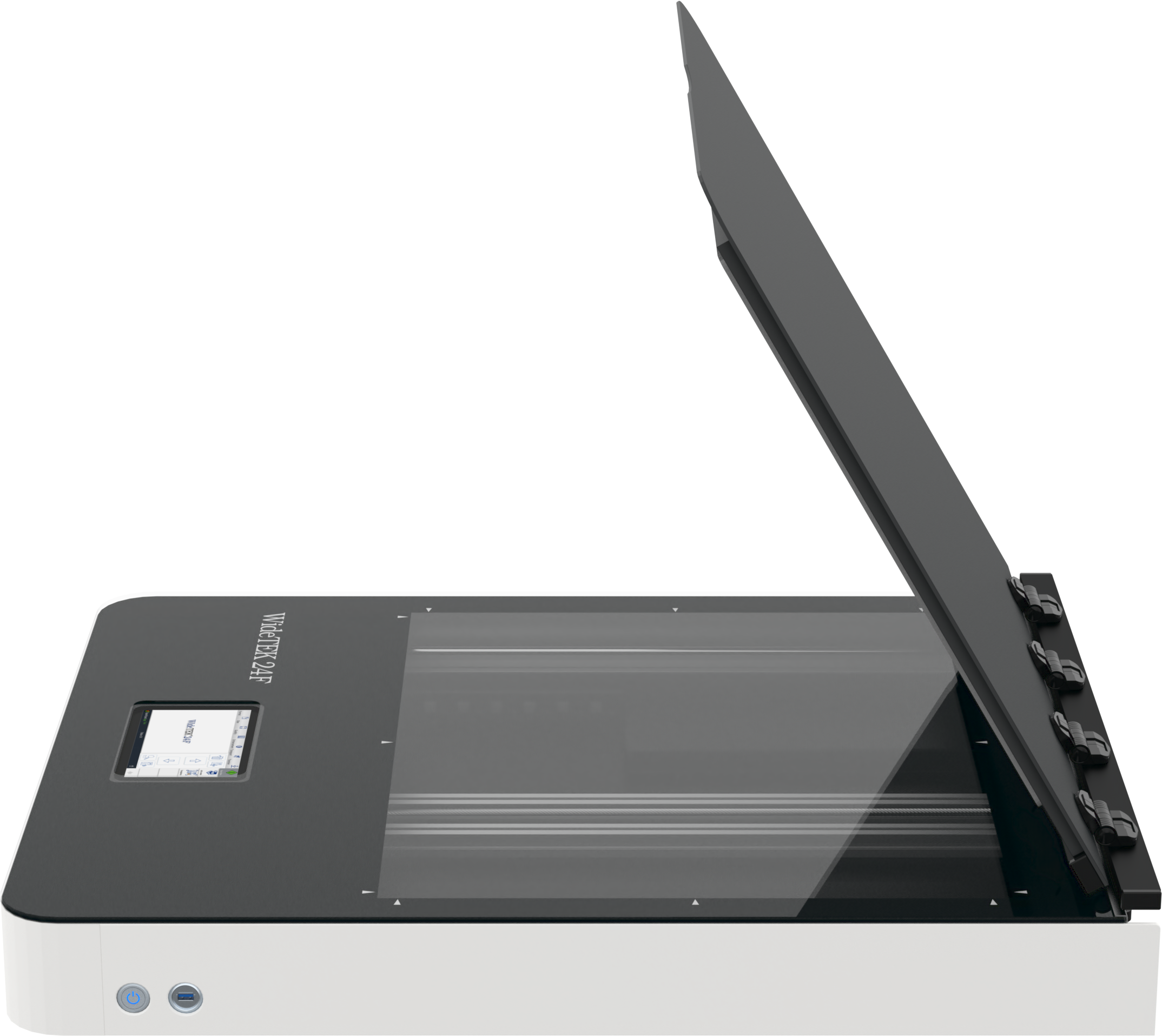

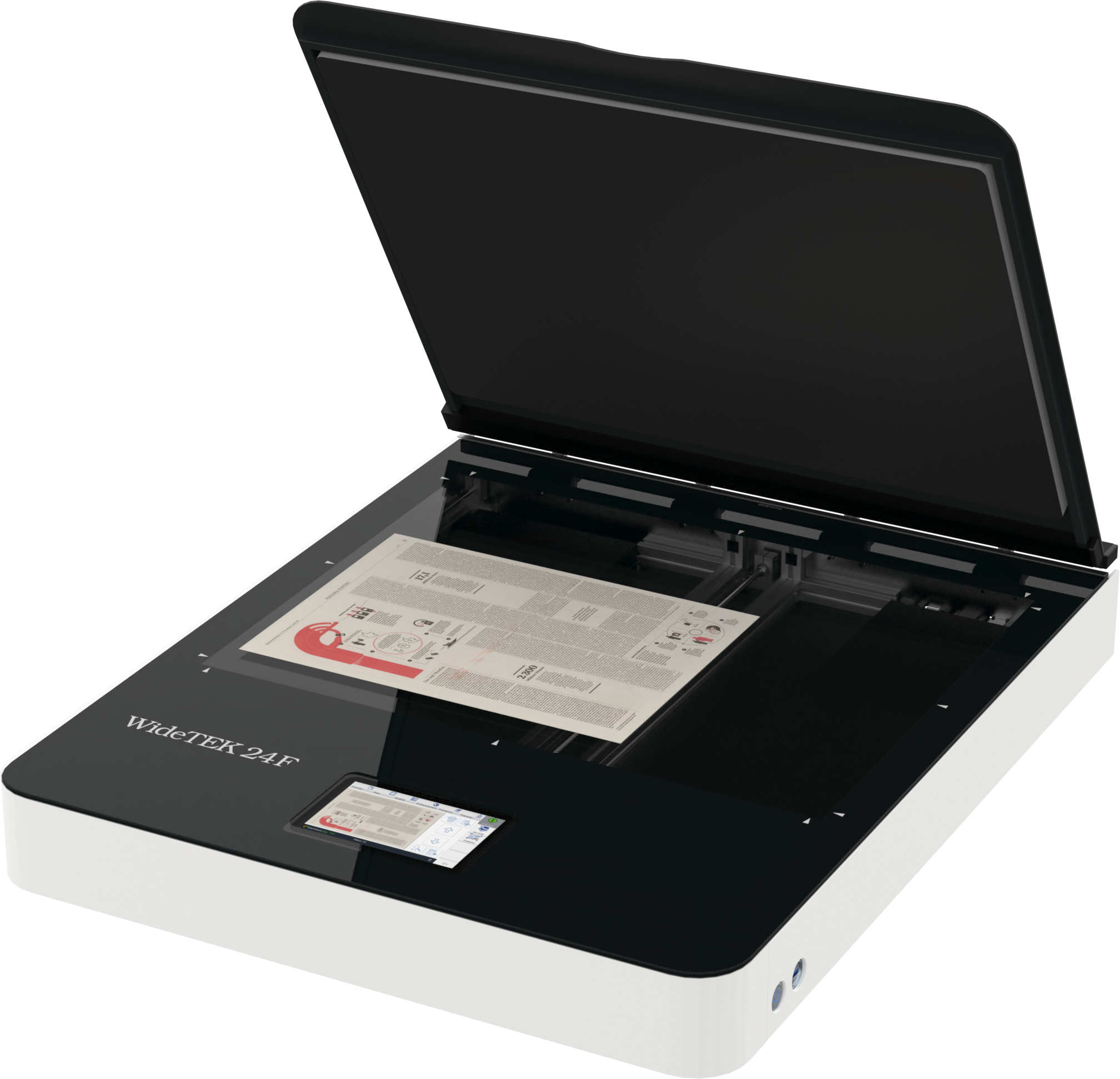

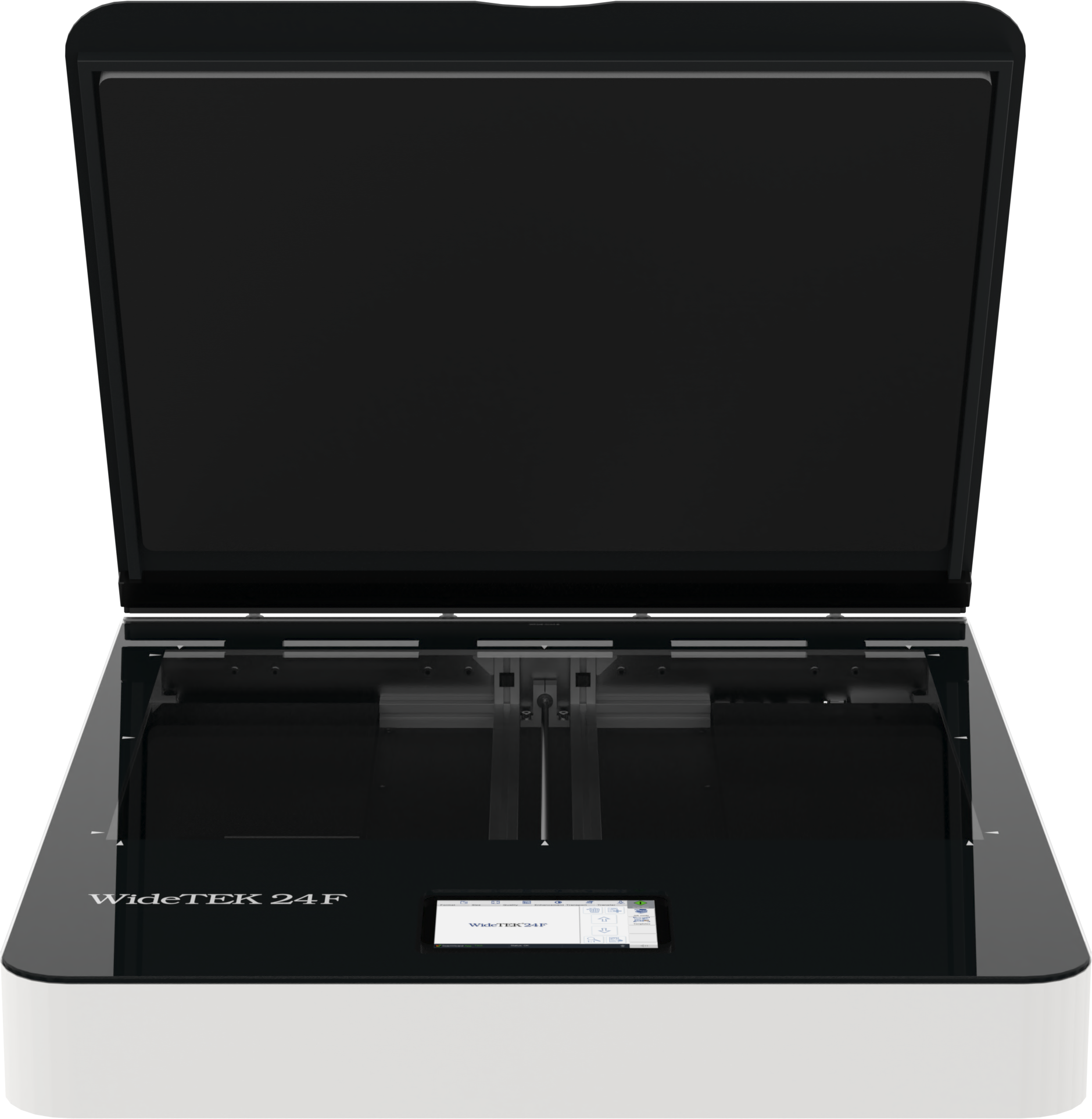

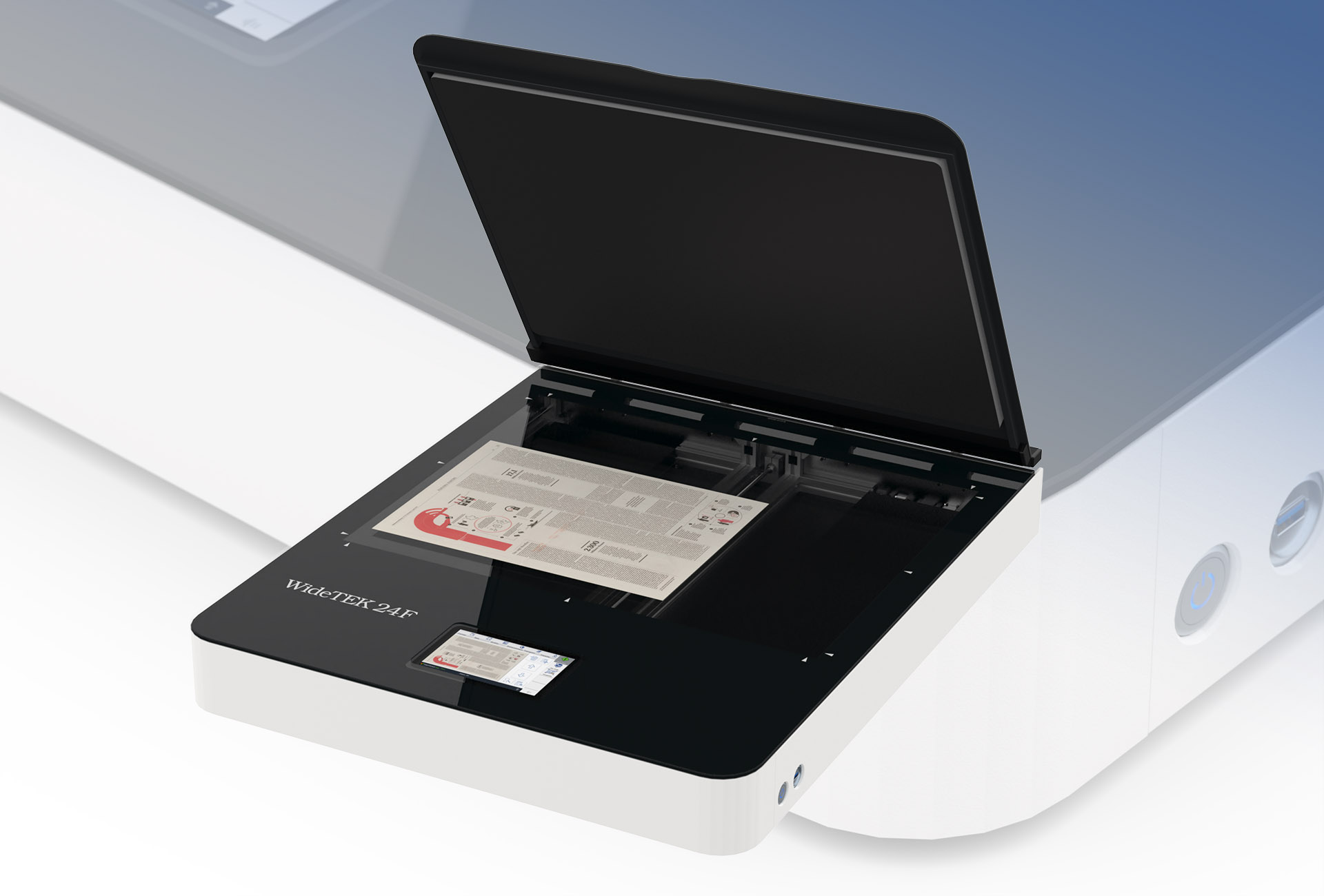

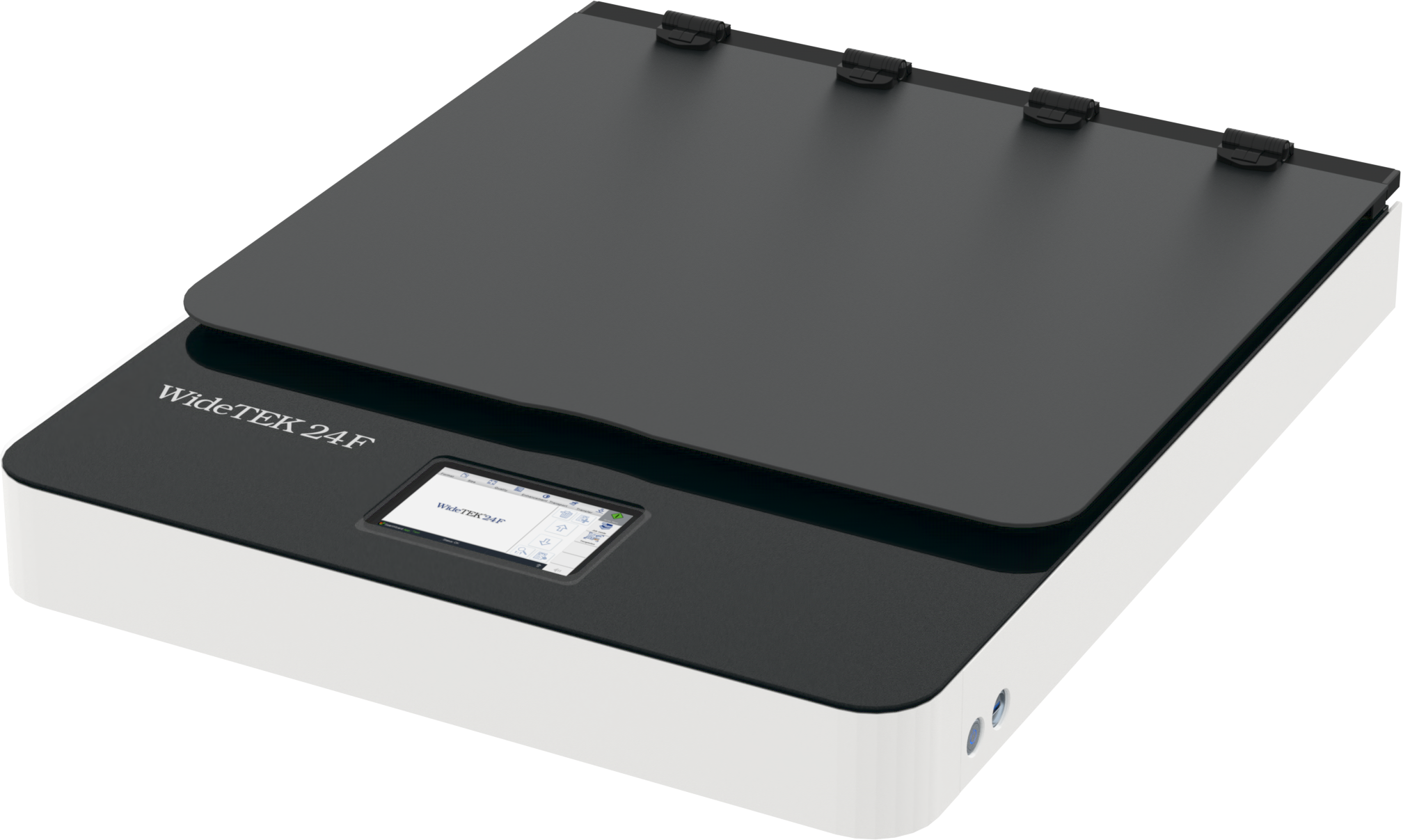

WideTEK 24F-600

Solid, edge-to-edge glass top flatbed scanner incorporating the latest CIS camera
technology and illumination techniques

Lightning-fast imaging

The WideTEK 24F is one of the latest innovations in the Image Access family of large format flatbed scanners. Featuring cutting-edge camera technology and advanced illumination techniques, it delivers exceptional speed and high accuracy at resolutions up to 1200 dpi, all while remaining an affordable solution. As the fastest CIS flatbed scanner on the market, the WideTEK 24F completes a full 600 dpi color scan of the entire area in under 4 seconds.

360° view

Scroll mouse wheel or click and drag to rotate

3D surface scanning

Discover unmatched surface inspection and quality control with the 3D imaging capabilities of our flatbed scanners. Whether examining coins, Braille prints, or SMD components on electronic boards, our WideTEK flatbed scanners capture every detail with exceptional precision.

Borderless glatt plate

The durable glass plate safeguards the scanner from dirt, dust, wet ink, paint, and other contaminants. With an edge-to-edge design, it enables the scanning of oversized items effortlessly. The scanning area remains virtually invisible thanks to its anti-reflective coating. Cleaning is easy, and a special treatment for high scratch resistance ensures the glass’s longevity.



Thick object scanning

The WideTEK 24F allows for scanning thicker objects with its adjustable lid height. Simply lift the lid and reposition the stops to accommodate items up to five centimeters (two inches) thick, such as canvases or other bulky materials. The lid can also be completely removed for added convenience.

Compact and accessible

The scanner’s footprint is so small that it can be placed on any desktop or workstation. Installation is so simple, you will be scanning within minutes after taking it out of the box. Easy, fast and affordable.



Borderless glass plate

Prevents bent edges on source documents. Scratch-resistant and non-reflective.

Compact and accessible

Small footprint, can be placed on any desktop or workstation.
Easy installation, ready to scan within minutes after taking it out of the box.

Versatile output options

The scanner supports various output media, including direct scanning to USB devices, networked printers or hot folders, and network resources like SMB and FTP.

Virtual Rescan

Optimize images without rescanning, real time display of scanned images

Multilingual operation

With over 20 languages available for the unique Scan2Net and ScanWizard user interfaces. Customize the interfaces to comply with corporate identity norms and standards

Dark mode

Enhances scan quality through less light reflection and improves operation by reducing eye strain

This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.

Versatile applications

Our WideTEK flatbed scanners are valuable production devices for a large area markets and applications. This list is neither complete nor exclusive, there are more markets and applications than listed and it should be taken only as a general guideline. If you have a specific application that is not listed here, please check with your sales representative.

Government agencies, border control, customs, immigration, police

Banks, currency traders

Inspection and industrial quality control

Quality control, 3D product presentations

Powerful software

Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.

Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.

No compromises on security

All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.

Your Interest, Our Expertise

Contact us now and explore a new dimension in scanning technology!

Support & Downloads

Documentation

Brochure

Firmware

specifications

Media

Fact Sheets

Service Video

Manuals

Language

File Format

Release Date

Product Brochure WT24F-600

EN
DE
ES

PDF

08/2023

Product Brochure Scan2Net®

EN

PDF

09/2022

Catalogs

Image Access Product Catalog

EN
DE
ES

PDF

04/2025

Fact Sheets

Language

File Format

Release Date

Fact Sheet WT24F-600 (Coming soon)

PDF

–.–.–

Manuals

Language

File Formate

Release Date

Legal Information

All

PDF

05/2022

Technical Specification WideTEK 24F-600

EN
DE
FR
ES

PDF

08/2023

Unpacking and Repacking Instructions WT24F-600

All

PDF

06/2021

Setup Guide WT24F-600

EN
DE
FR
ES

PDF

03/2023

Instruction Scan2ICC

EN

PDF

09/2021

Declaration about the Emission of UV and IR radiation

EN

PDF

11/2021

Wide Format Scanner Buyer´s Guide

EN
DE
ES

PDF

05/2022

Document

Maximum Document Size

610 x 457 mm (24 x 18 inches), 11% > DIN/ISO A2

Autoformat Size Recognition

yes, crop & deskew

DIN Format

DIN A5 – DIN A2

ANSI Format

Letter, US C

User Defined Format

yes

Output

Scanner Resolution

1200 x 1200 dpi

Optical Resolution

1200 x 600 dpi

Pixel Dimension

9.3 x 9.3 µm

Scan Speed Color

24*18″ @ 1200 dpi: < 8 s
24*18″ @ 600 dpi: < 4 s
24*18″ @ 300 dpi: < 4 s

Color Depth

48 bit color, 16 bit grayscale

Scan Output

24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone

File Formats

Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data

ICC Profiles

Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription

Quality

Exceeds FADGI **** guidelines, ISO 19264-1

Technical Specifications

Computer

<64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs

Touchscreen

7.5 inch 1280*800 multitouch screen

USB Port

1 x USB 3.0 port

Interface

10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface

Camera

CIS line sensor with long focal selfoc lens,
depth of focus > +-1mm @600dpi

Light Source

RGB LEDs, with integrated diffusor tested according to IEC 62471, no IR/UV radiation

Declaration about the Emission of UV and IR radiation

Lamp Lifetime

50,000 hours typical. Lamps are covered by the Extended Warranty Option

Dimensions

Dimensions Scanner (H x W x D)

140 x 730 x 900 mm (5.5 x 29 x 36 inches)

Weight Scanner

28 kg (62 lbs.)

Electrical Specifications

Electrical Connection

100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)

Power Consumption

P(Off) 0.3W / P(Sleep) 5.9W / P(Ready) 35W / P(Active) 70W

ENERGY STAR requirements

Image Access FAQ

Ambient Conditions

Operating Temp

5 to 40 °C (40 to 105 °F)

Rel Humidity

20 to 80% (non-condensing)

Noise

< 42 dB(A) (Scanning) / < 25 dB(A) (Standby)

Technical changes, errors and omissions excepted. All information subject to change.
