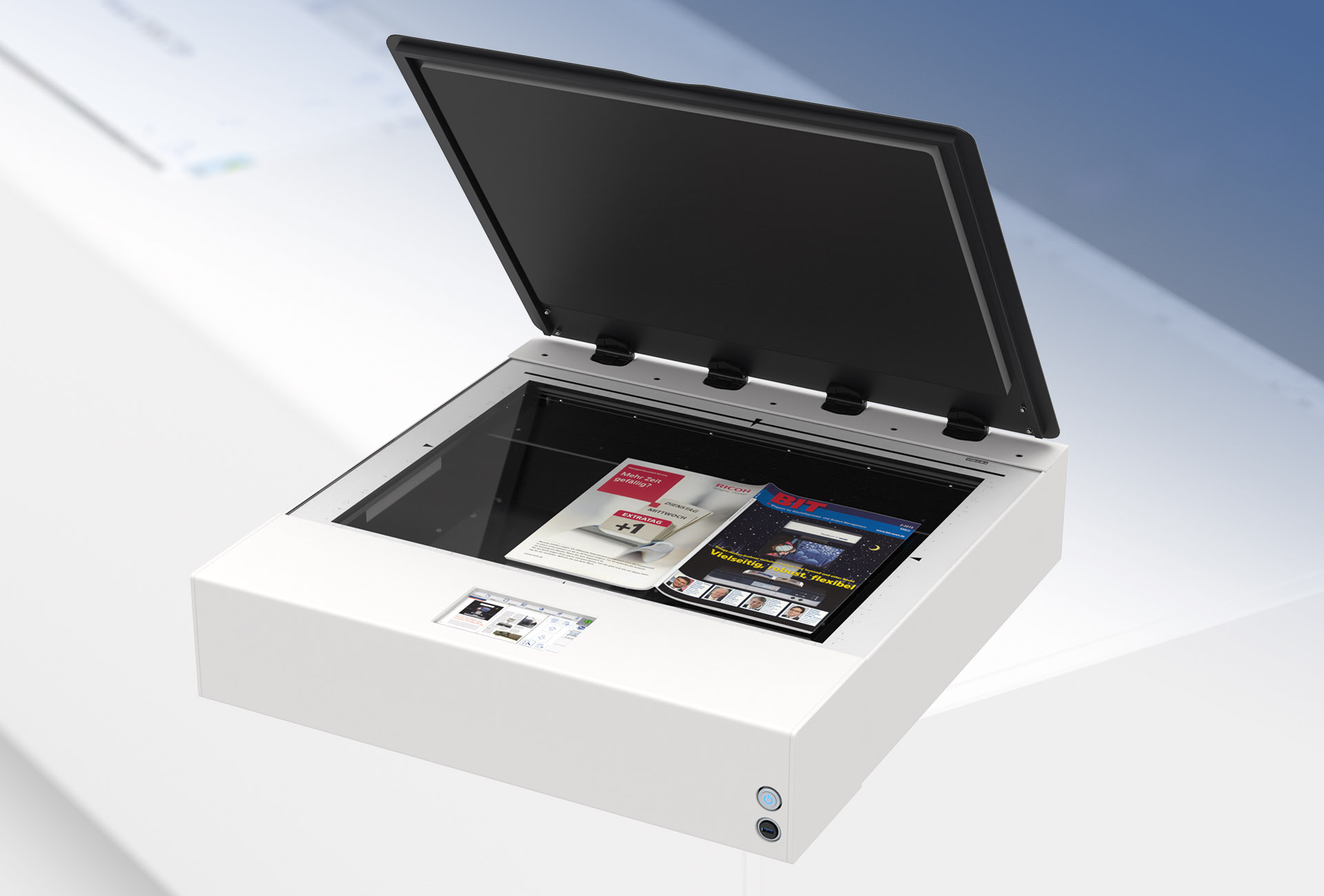

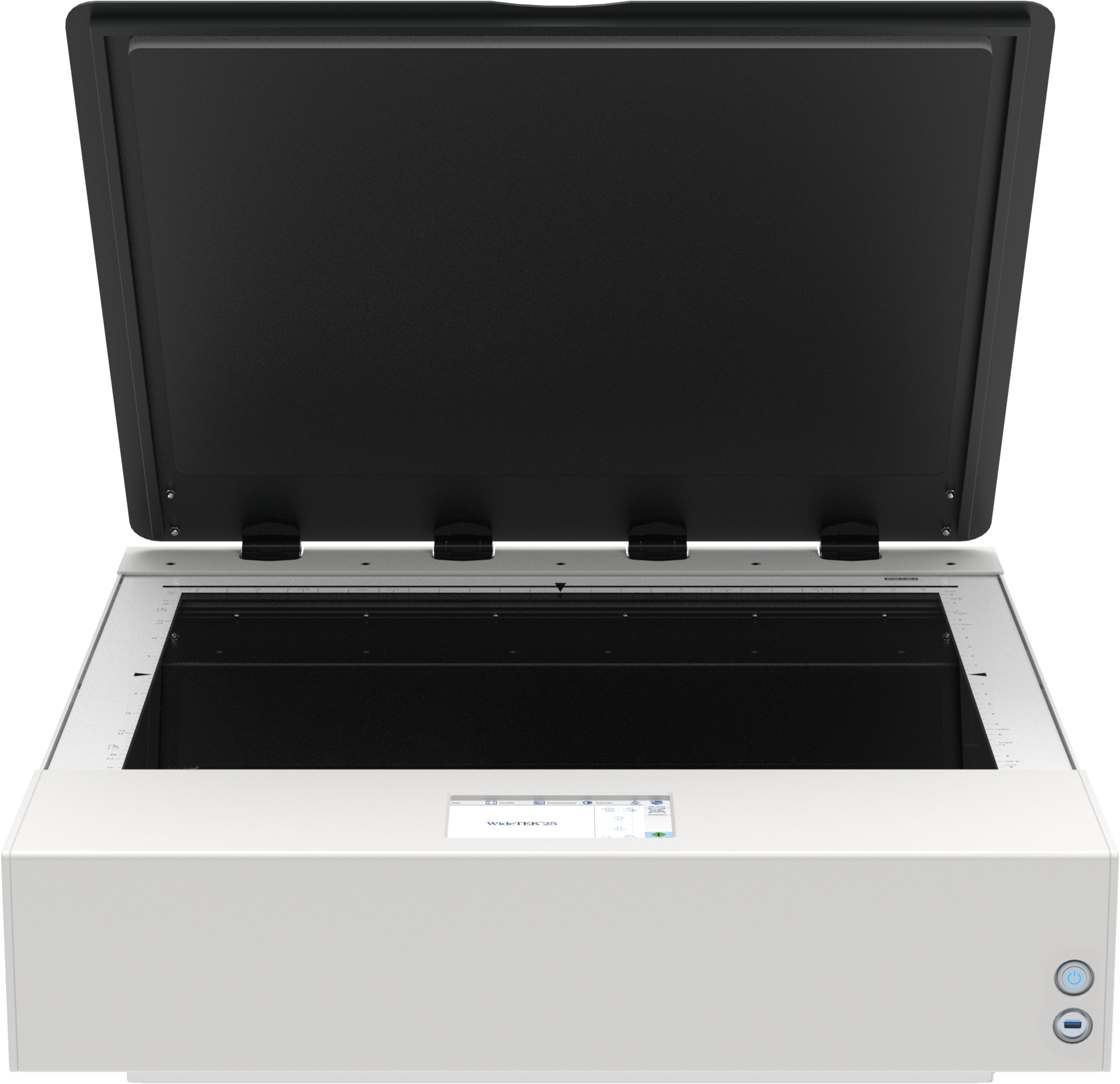

WideTEK 25-650
Production ready design and uniquely compact dimensions in a new class
Lightning-fast imaging
The WideTEK 25 is available for applications where A2+ is large enough but fast scanning speed and high optical resolution is required. The scanner needs less than three seconds to scan the largest format of 18.5×25 inches in normal mode at 300dpi . This is twice as fast as the closest competition.
360° view
Scroll mouse wheel or click and drag to rotate
3D surface scanning
Discover unmatched surface inspection and quality control with the 3D imaging capabilities of our flatbed scanners. Whether examining coins, Braille prints, or SMD components on electronic boards, our WideTEK flatbed scanners capture every detail with exceptional precision.

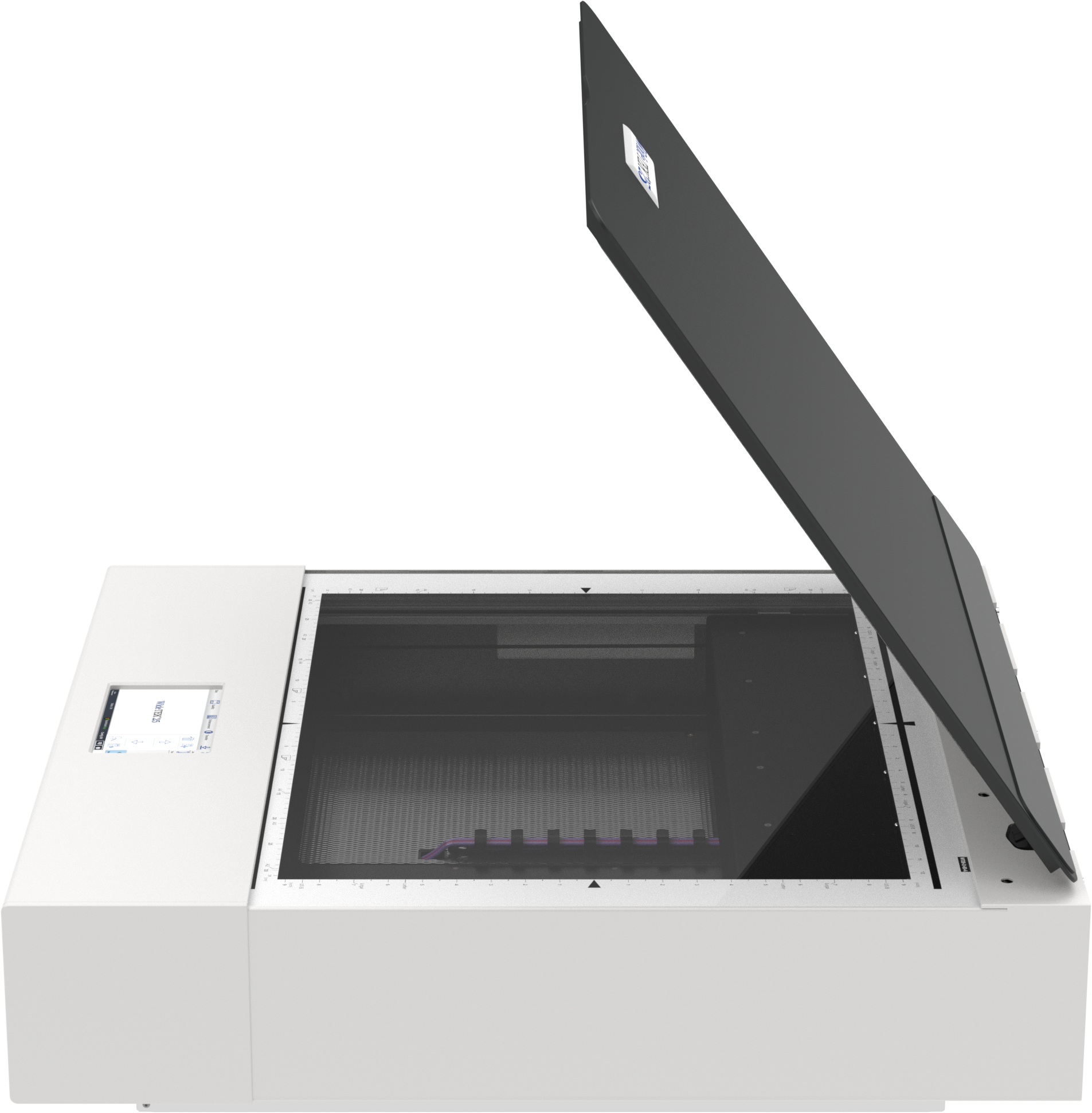

Borderless glass plate
The scratch resistant, non-reflective glass plate has been expanded to reach the edges of the flatbed scanner, making it 100% protective of the documents laid on it. No more bent or folded edges on your source documents.

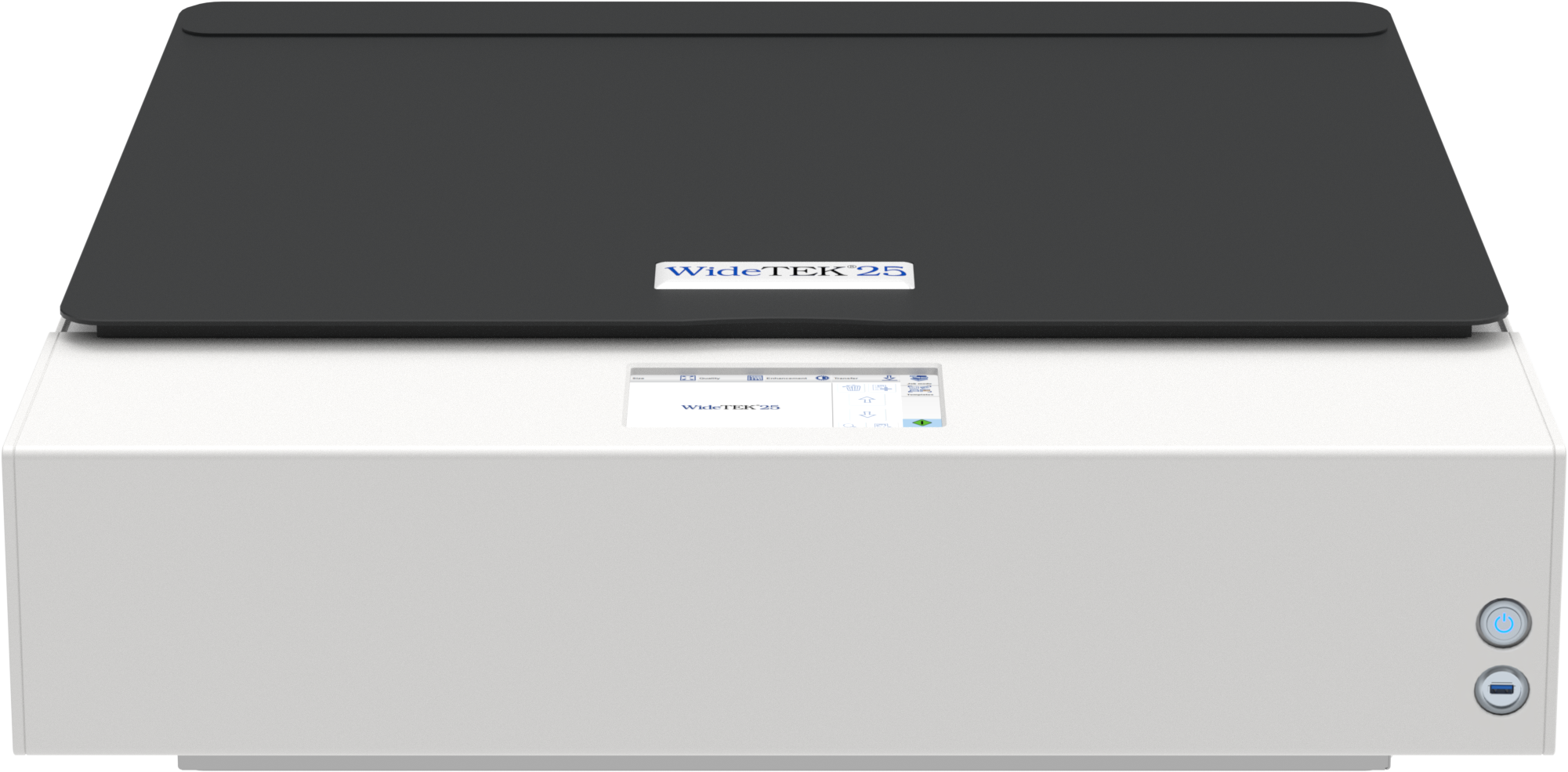

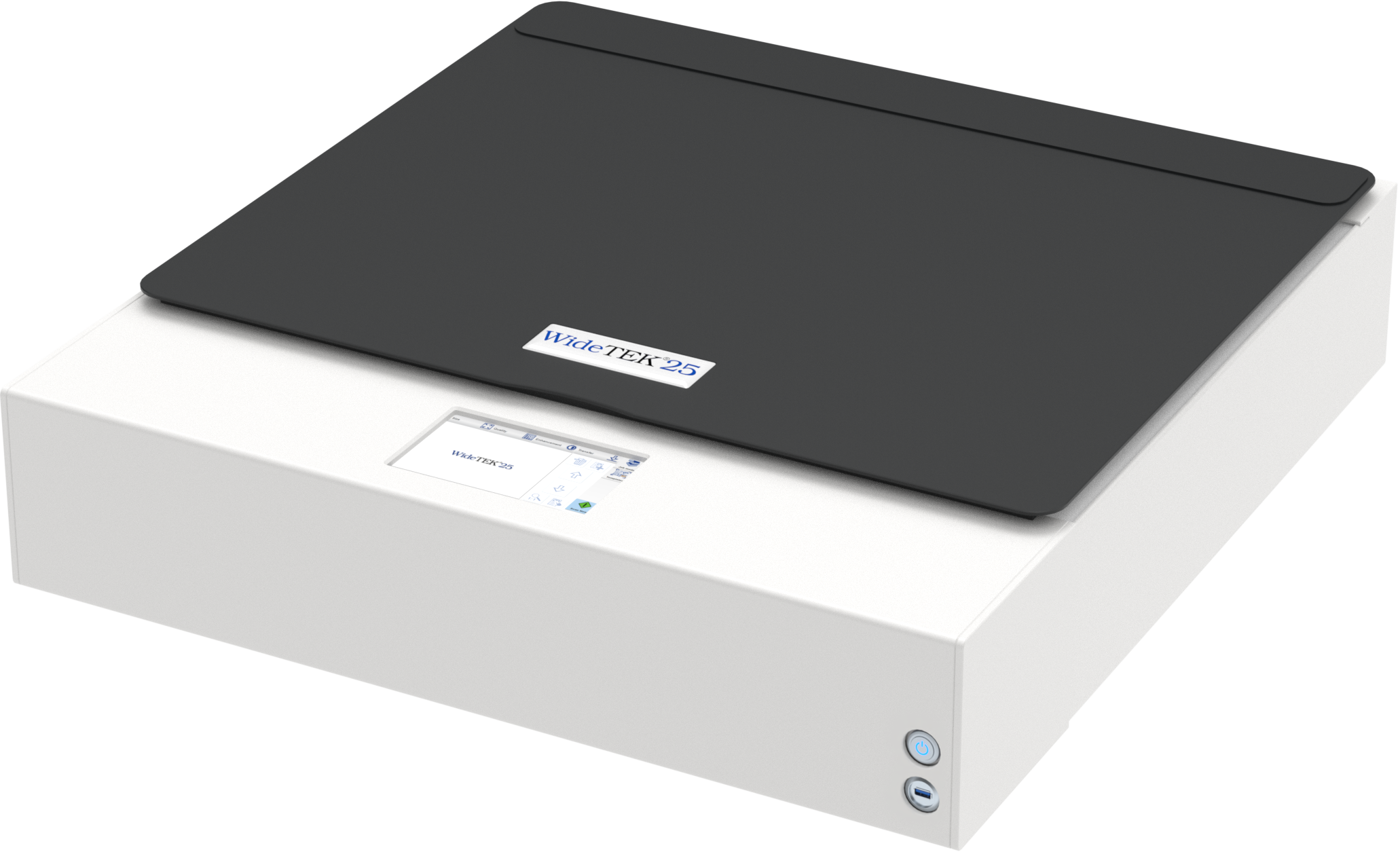

Compact and accessible
The scanner’s footprint is so small that it can be placed on any desktop or workstation. Installation is so simple, you will be scanning within minutes after taking it out of the box. Easy, fast and affordable.

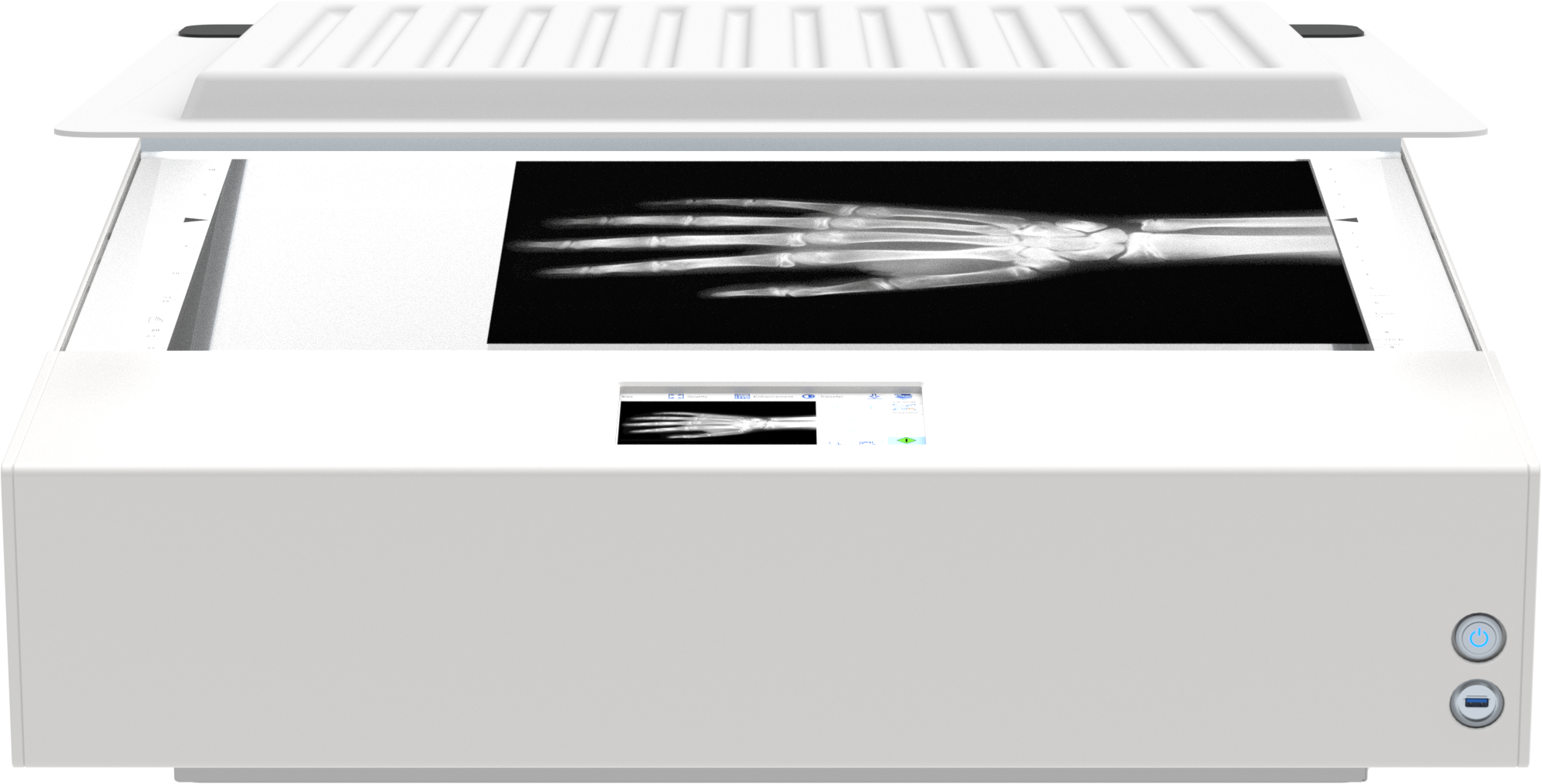

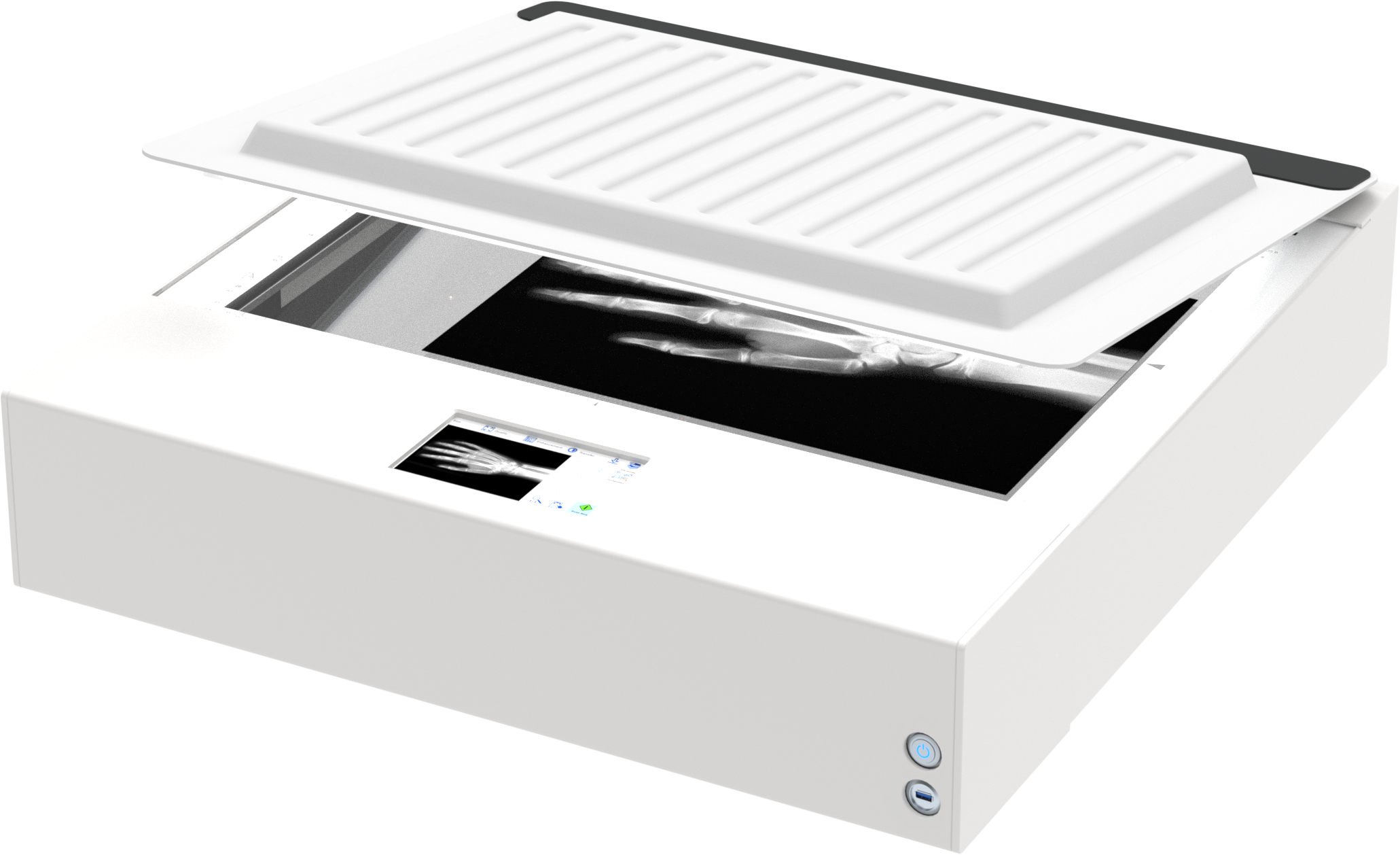

Optional backlight unit
Boost your scanner's versatility with the BACKLIGHT option, enabling high-quality scanning of transparent material like X-rays, glass negatives, 35mm microfilm aperture cards, cutout stencils, sepias, and film.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Versatile applications
Our WideTEK flatbed scanners are valuable production devices for a large area markets and applications. This list is neither complete nor exclusive, there are more markets and applications than listed and it should be taken only as a general guideline. If you have a specific application that is not listed here, please check with your sales representative.
Government agencies, border control, customs, immigration, police
Banks, currency traders
Inspection and industrial quality control
Quality control, 3D product presentations
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Your interest, our expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochures
Firmware
specifications
Media
Fact Sheets
Service Videos
Brochures
Language
Format
Date
Product Brochure WT25-650
04/2025
Product Brochure WT25-650 Backlight
04/2025
Product Brochure Scan2Net®
09/2022
Catalogs
Language
Format
Date
Image Access Product Catalog
04/2025
Fact Sheets
Language
Format
Date
Fact Sheet WT25-650 (Coming soon)
Manuals
Language
Format
Date
Legal Information
05/2022
Technical Specification WideTEK 25-650
04/2025
Unpacking and Repacking Instructions WT25-650
03/2025
Setup Guide WT 12-650 / WT 25-650
03/2025
Assembly Instructions WT25-BACKLIGHT
03/2025
Best Practices WideTEK 12 + 25
08/2020
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Wide Format Scanner Buyer´s Guide
05/2022
Document
Maximum Document Size
max. 635 x 470 mm (25 x 18.5 inches), 19% > DIN A2
Autoformat Size Recognition
yes, crop & deskew
DIN Format
DIN A5 – DIN A2
ANSI Format
Letter, US C
User Defined Format
yes
Output
Scanner Resolution
1200 x 1200 dpi
Optical Resolution
1200 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
Maximum document size @ 300 dpi < 3 s
Maximum document size @ 600 dpi < 6 s
Scan Speed Color 3D
Maximum format @ 300 dpi < 6s
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone
File Formats
Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data
Scan Modes
Plain with diffused illumination, 3D with visible surface texture, UV, IR, backlight
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Exceeds FADGI **** guidelines, ISO 19264-1
Technical Specifications
Computer
64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen
7 inch color WXGA (1280*800) touchscreen
USB Port
1 x USB 3.0 port
Interface
10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
2x Tri-Color CCD camera, 45,000 pixels, encapsulated and dust-proof
Light Source
Dual LED lamps with white LEDs, integrated optical diffusor, no IR/UV radiation
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 h (typ.)
Dimensions
Dimensions Scanner (H x W x D)
225 x 760 x 795 mm (8.9 x 29.9 x 31.3 inches)
Weight Scanner
45 kg (100 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
P(Off) 0.3W / P(Sleep) 5.9W / P(Ready) 35W / P(Active) 72W
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 42 dB(A) (Scanning) / < 32 dB(A) (Standby)
