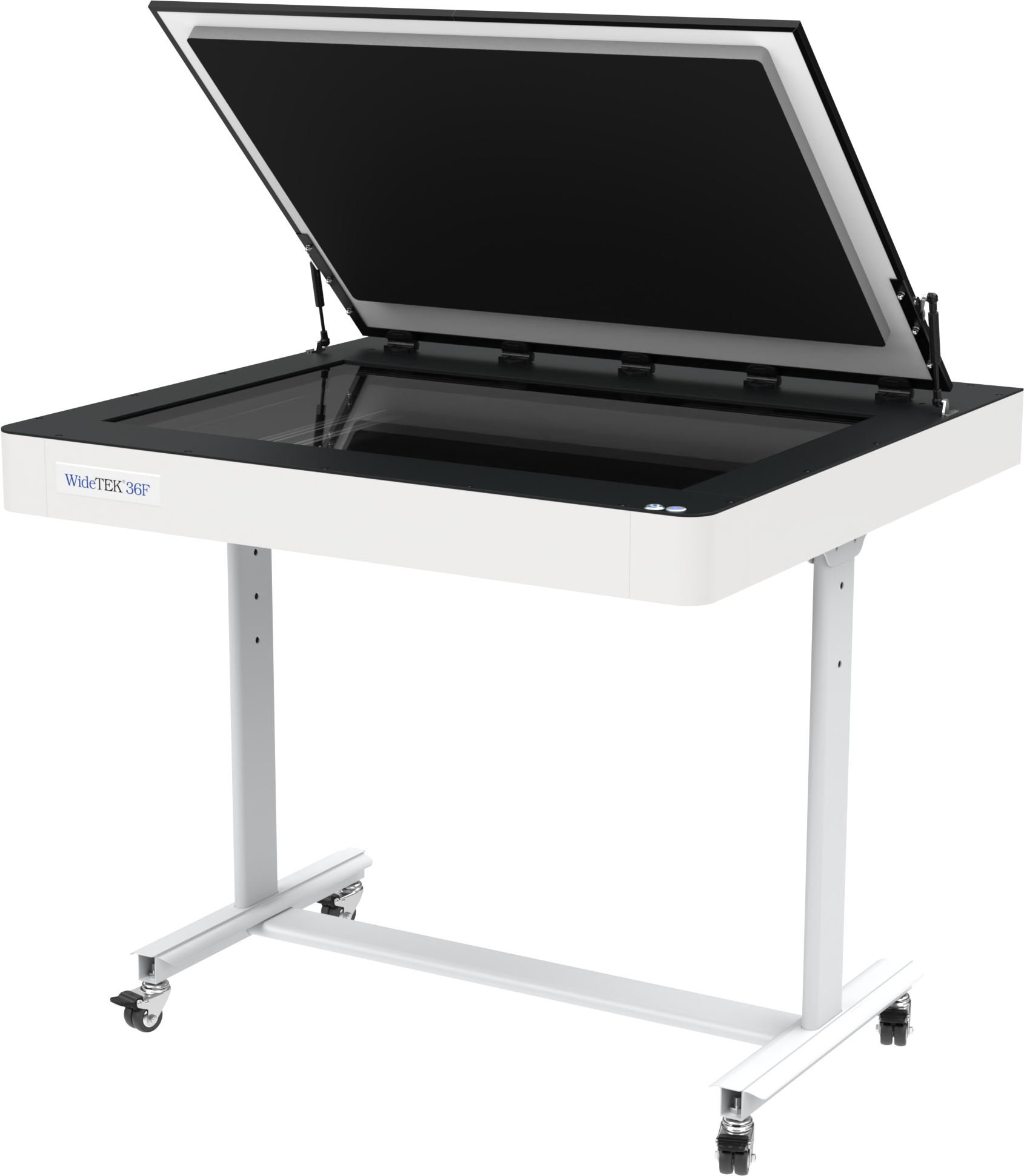

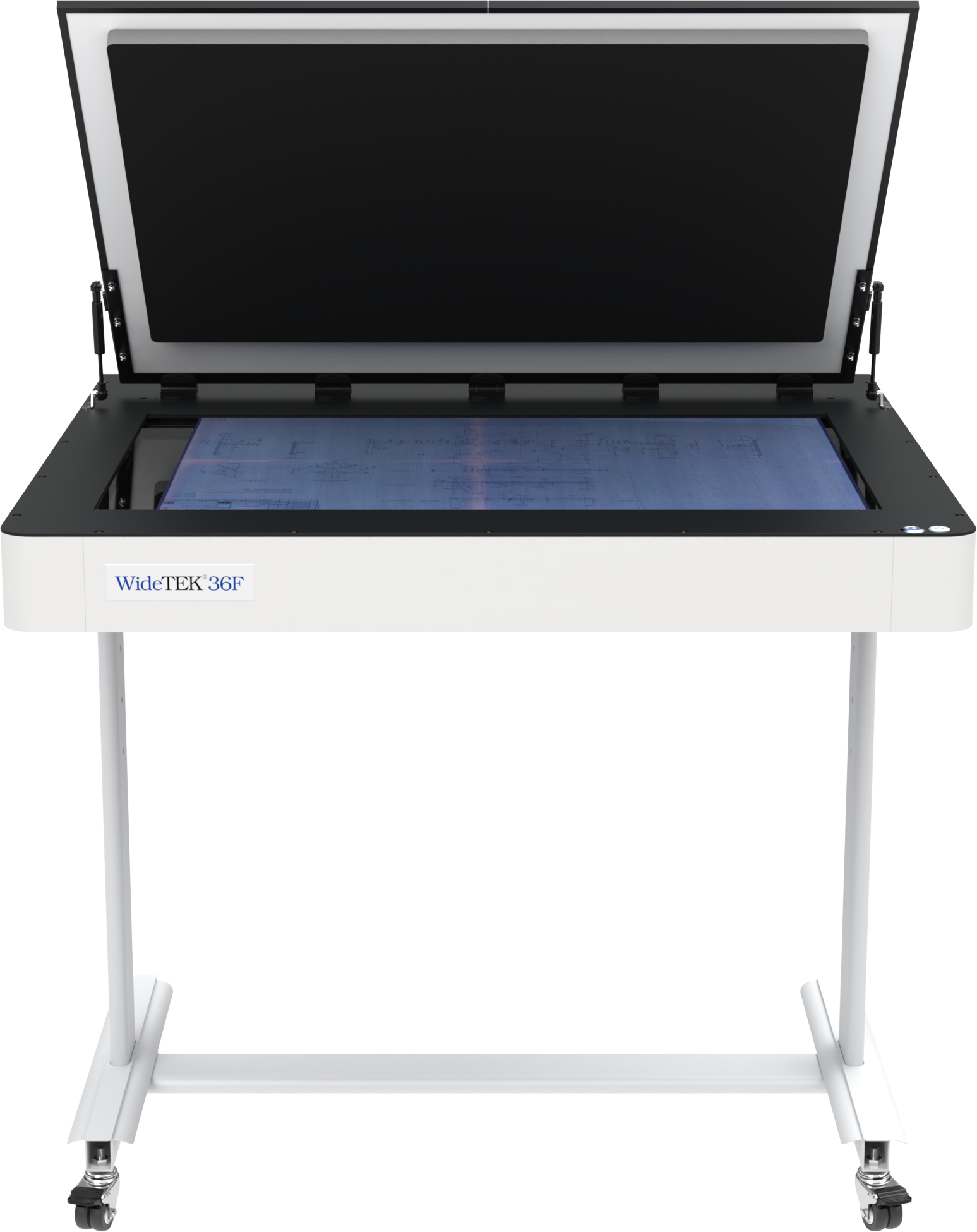

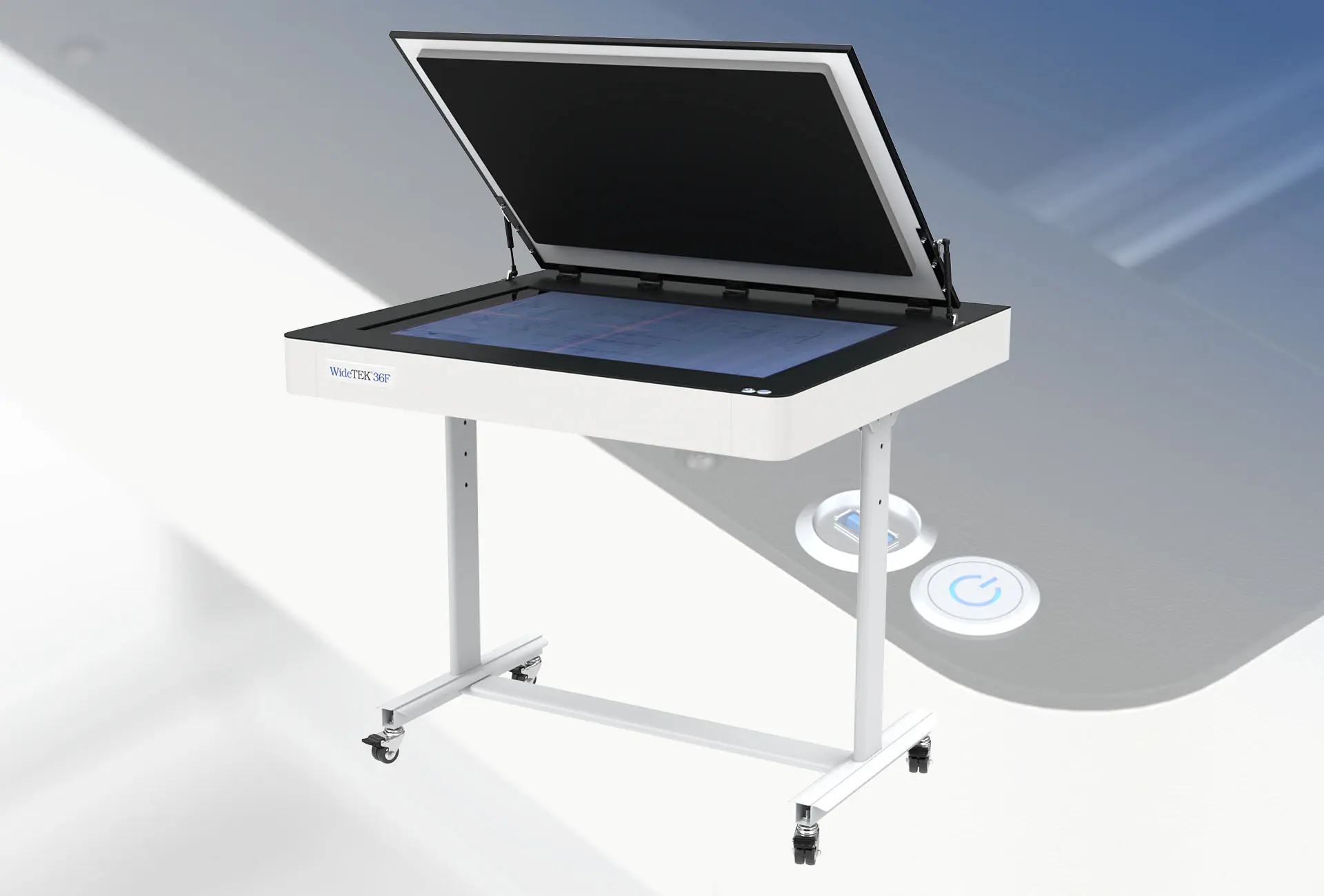

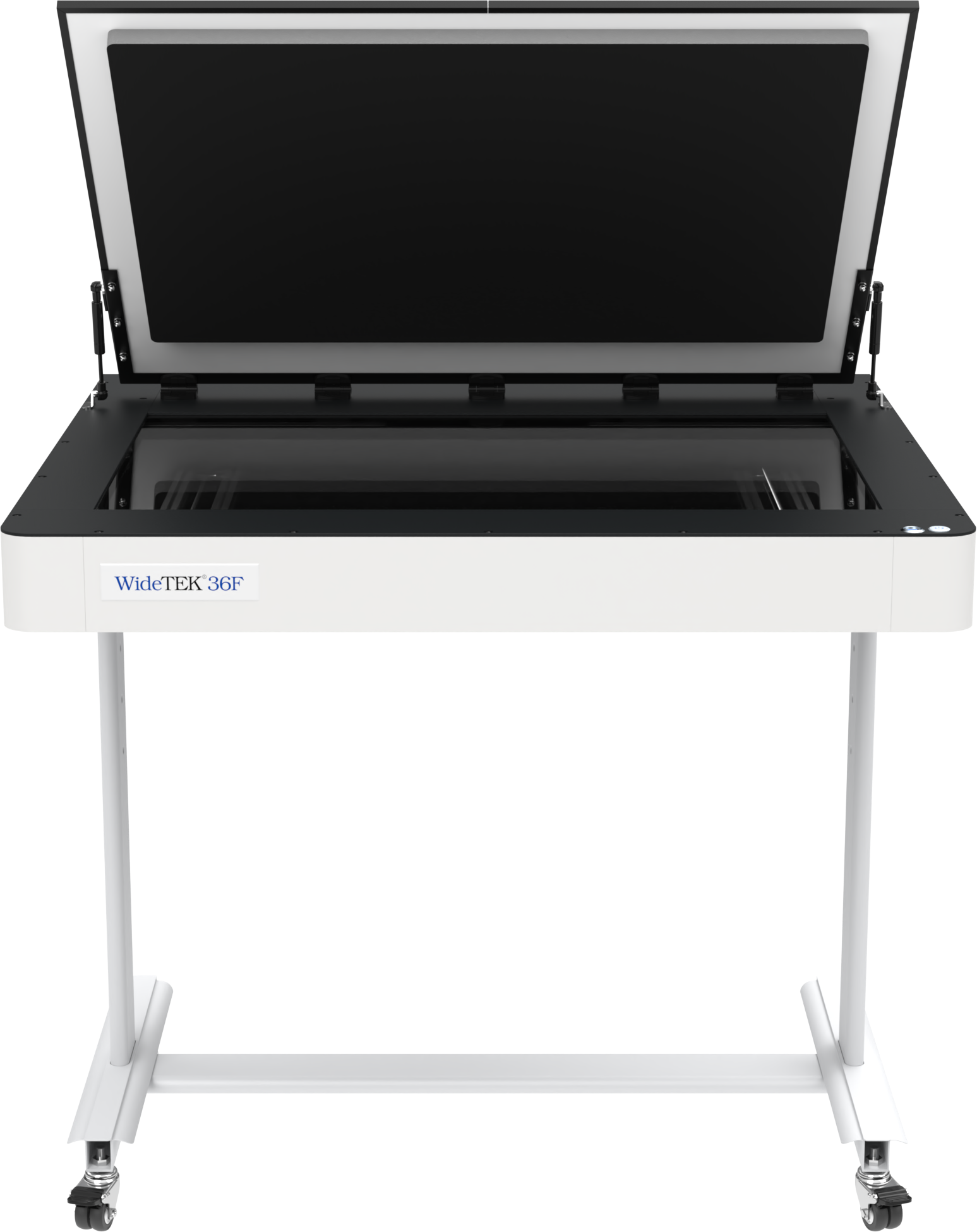

WideTEK 36F-600
World´s fastest DINA1+ flatbed with CIS-cameras, highly accurate and easy to operate
Lightning-fast imaging
The WideTEK 36F is the latest innovation in the Image Access family of large format flatbed scanners. Featuring cutting-edge camera technology and advanced illumination techniques, it delivers exceptional speed and high accuracy at resolutions up to 1200 dpi, all while remaining an affordable solution. As the fastest CIS flatbed scanner on the market, the WideTEK 36F completes a full 600 dpi color scan of the entire area in under 6 seconds.
360° view
Scroll mouse wheel or click and drag to rotate
Robust glass plate
The WideTEK 36F features a robust glass plate that is both scratch-resistant and easy to clean. This durable surface effectively protects the scanner from dirt, dust, wet ink, paint, and other contaminants, ensuring consistent performance and longevity.
Flexible operation

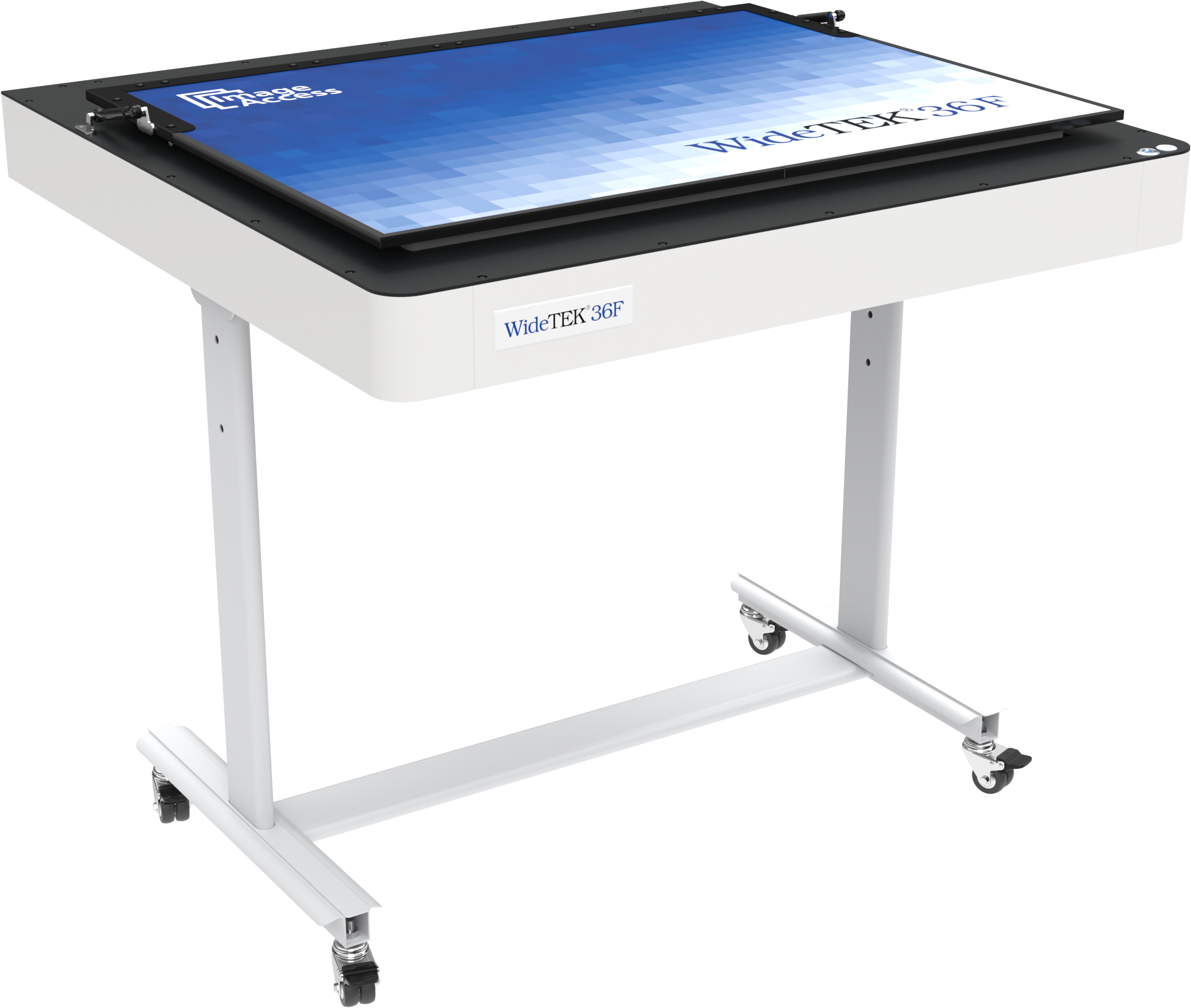

The scanner is mounted on a sturdy floor stand with wheels, allowing for easy mobility and repositioning as needed. This design ensures you can operate the scanner freely, facilitating a comfortable workflow without being confined to a fixed location.
3D surface scanning
Discover unmatched surface inspection and quality control with the 3D imaging capabilities of our flatbed scanners. Whether examining coins, Braille prints, or SMD components on electronic boards, our WideTEK flatbed scanners capture every detail with exceptional precision.
Rapid data transfer
The 1 Gbit Fast Ethernet connection with TCP/IP-based Scan2Net® interface provides ultra-fast data transfer speeds. Scanned images move across your network nearly instantaneously, ensuring efficient workflow.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Versatile applications
Our WideTEK flatbed scanners are valuable production devices for a large area markets and applications. This list is neither complete nor exclusive, there are more markets and applications than listed and it should be taken only as a general guideline. If you have a specific application that is not listed here, please check with your sales representative.
Government agencies, border control, customs, immigration, police
Banks, currency traders
Inspection and industrial quality control
Quality control, 3D product presentations
Your Interest, Our Expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochure
Firmware
specifications
Media
Fact Sheets
Service Video
Brochure
Language
File Format
Release Date
Product Brochure Scan2Net®
09/2022
Catalogs
Image Access Product Catalog
04/2025
Fact Sheets
Language
File Format
Release Date
Fact Sheet WT36F-600 (Coming soon)
–.–.–
Manuals
Language
File Format
Release Date
Legal Information
05/2022
Unpacking and Repacking Instructions WT36F-600
06/2021
Setup Guide WT36F-600
03/2023
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Wide Format Scanner Buyer´s Guide
05/2022
Document
Maximum Document Size
915 x 610 mm (36 x 24 inches), 11% > DIN/ISO A1
Autoformat Size Recognition
yes, crop & deskew
DIN Format
DIN A5 – DIN A1
ANSI Format
Letter, US C
User Defined Format
yes
Output
Scanner Resolution
1200 x 1200 dpi
Optical Resolution
1200 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
36*24″ @ 1200 dpi: < 12 s
36*24″ @ 600 dpi: < 6 s
36*24″ @ 300 dpi: < 6 s
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone
File Formats
Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Exceeds FADGI **** guidelines, ISO 19264-1
Technical Specifications
Computer
64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen
External 21“ Full HD touchscreen optional
USB Port
1 x USB 3.1 port
Interface
10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
CIS line sensor with long focal selfoc lens,
depth of focus > +-1mm @600dpi
Light Source
RGB LEDs, with integrated diffusor tested according to IEC 62471, no IR/UV radiation
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 hours typical. Lamps are covered by the Extended Warranty Option
Dimensions
Dimensions Scanner (H x W x D)
160 x 1110 x 1110 mm (6.2 x 43.3 x 43.3 inches)
Weight Scanner
45 kg (99.2 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
P(Off)Â 0.3W / P(Sleep)Â 4.5W / P(Ready)Â 35W / P(Active) 100W
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 42 dB(A) (Scanning) / < 25 dB(A) (Standby)
