Wide format scanner

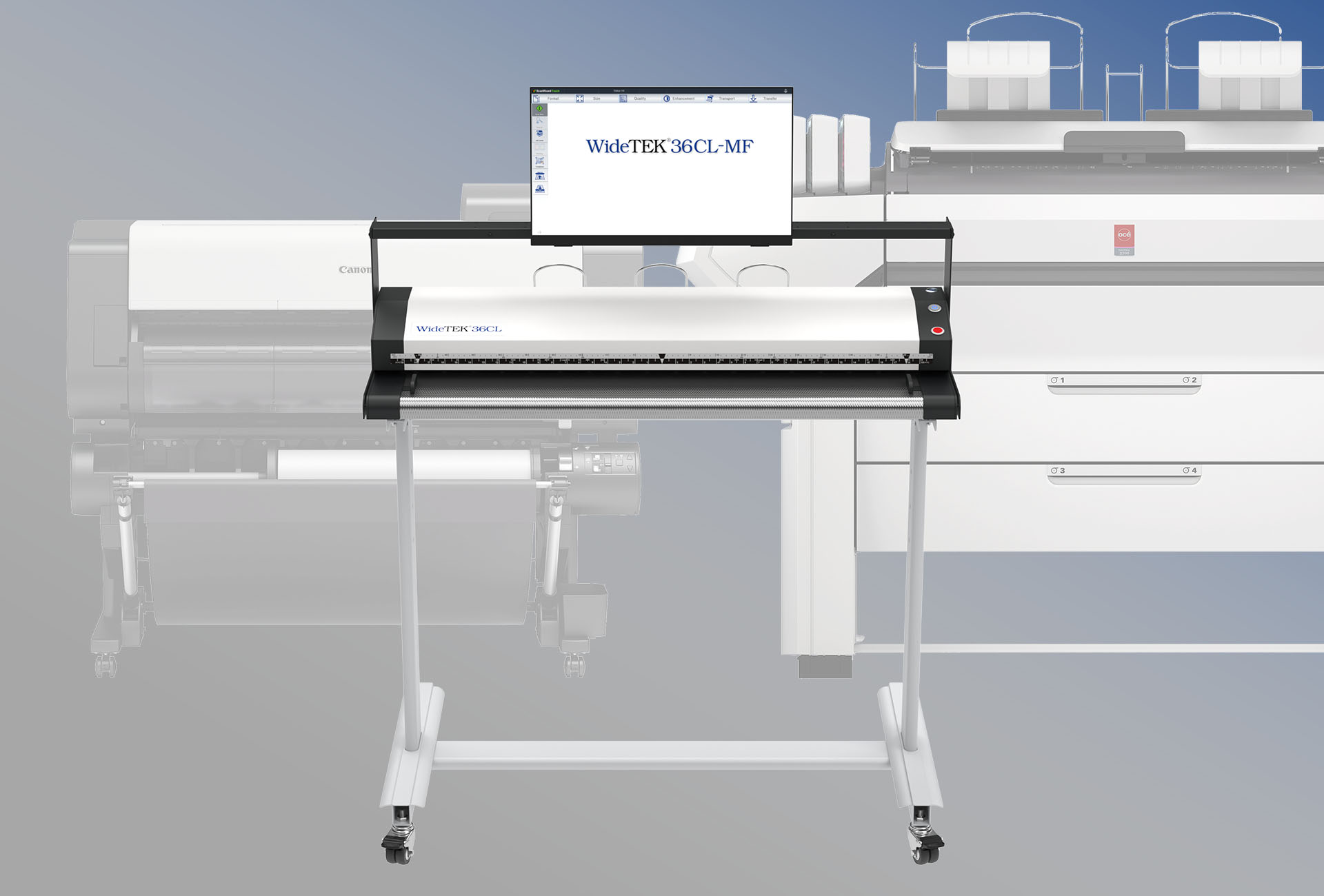

WideTEK 36CL-600-MFP

The fastest MFP solution at the best price on the market

The heart of a powerful MFP solution

Our WideTEK 36CL-600-MF scanner serves as the foundation of a powerful, high-quality MFP system for fast document scanning, copying, and archiving. With exceptional speed, image quality, and color accuracy, this CIS scanner exceeds industry standards for all your scanning needs. Its integrated 64-bit Linux PC ensures outstanding performance in an economical MFP setup.

High-speed digitization

The WideTEK® 36CL-600-MF is the fastest color CIS scanner available, achieving speeds of 10 inches per second at 200 dpi in full color. Even at its full width of 36 inches and a resolution of 600 dpi, it maintains a speed of 1.7 inches per second.

Scanning speeds are tripled in black and white and greyscale modes, allowing for individual configuration to accommodate fragile or valuable documents when needed.

Color calibration for optimal copying

The WideTEK® 36CL-600-MF1 includes a built-in closed-loop color calibration function, ensuring optimal copies for your chosen printer and paper combination. Users can easily select media type, printing quality, and more, while also monitoring ink levels through the complete integration of printer functionality in ScanWizard. With all necessary software option keys pre-installed, this MFP solution is simple to implement.

WT36CL-600-MF1

For the Canon TX-3/4000 Printer Series

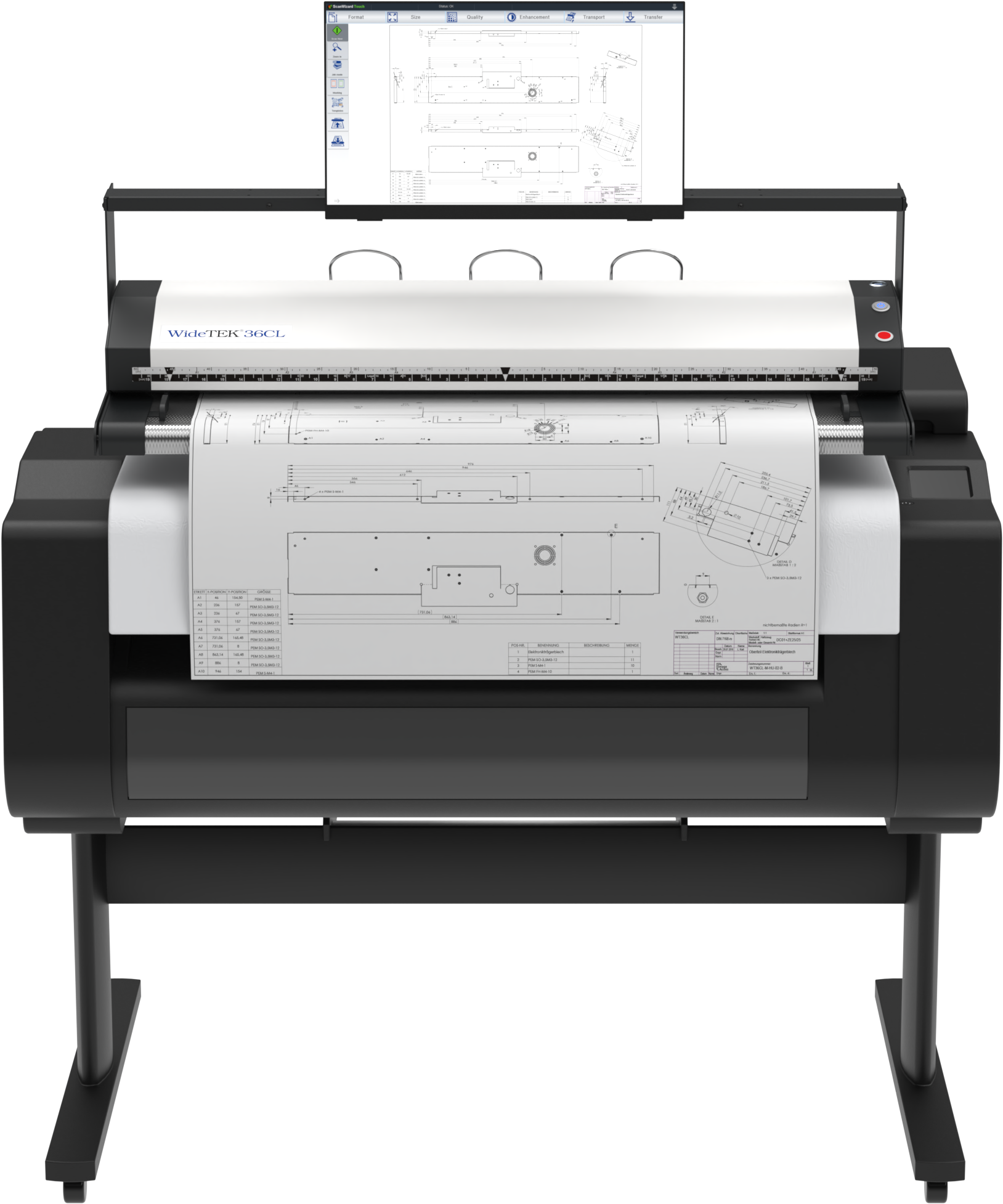

The WideTEK 36CL-600-MF1 bundle includes the scanner and the Canon TX stand, designed to mount seamlessly on top of a Canon TX3000/4000 or iPF 4000(S) wide format printer. The 21-inch touchscreen monitor can be conveniently mounted on the scanner with the screen bridge.

Smallest footprint possible

The Canon TX stand is purpose-built for the TX series printers, designed to perfectly complement the printer’s contours. It attaches quickly and easily with just two screws, ensuring a straightforward assembly process with only 13 parts — no service technician needed.

Flexible access and operation

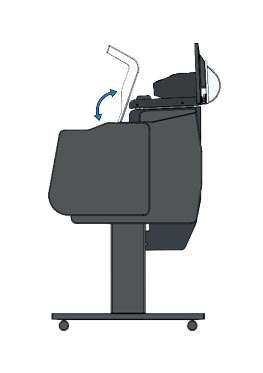

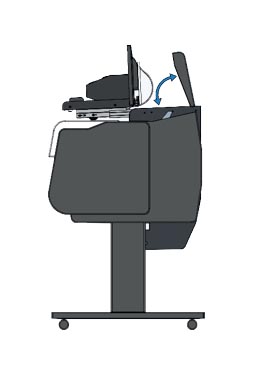

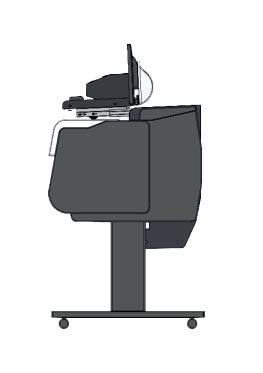

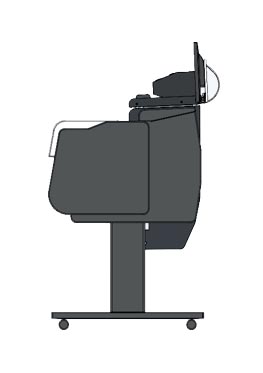

The Canon TX stand allows smooth sliding between forward and rear positions for convenient access to the printer. In the forward position, the scanner is fully operational, and ink tanks remain accessible. Slide the scanner to the rear to access the front cover, with operation possible in either position to suit user preference.

Scanner operating in front position

Scanner operating in back position

Back position with access to the front cover

Front position with access to the tanks

WT36CL-600-MF2

For the Canon LFP Printer Series

Compatible with all Canon wide format printers, the WideTEK 36CL-600-MF2 bundle features the scanner with a WT36-STAND, our sturdy, mobile standard stand. It also features a 21-inch touchscreen monitor, which can be conveniently mounted on the scanner with the screen bridge.

WT36CL-600-MF3

For the HP DesignJet and HP PageWide Printer Series

Compatible with the HP DesignJet and HP PageWide series of printers the WideTEK 36CL-600-MF3  bundle features the scanner with a WT36-STAND, our sturdy, mobile standard stand. It also features a 21-inch touchscreen monitor, which can be conveniently mounted on the scanner with the screen bridge.

WT36CL-600-MF4

For the Epson Large Format Printer Series

Compatible with the Epson large format printers, the WideTEK 36CL-600-MF4 bundle features the scanner with the WideTEK Adjustable Stand, the most versatile MFP stand in the industry. It also features a 22-inch touchscreen monitor and a sturdy, adjustable monitor arm.

Sturdiness meets flexibility

The Adjustable Stand offers customizable height options and accommodates printers of any width, up to 1180mm (46.5”) high, with a minimum height of 880mm (34.5”). Mounted on telescopic guides, the scanner slides forward for easy access.

Designed for stability, the stand discreetly houses the power supply, network switch, and extension bar in the lower crossbar. The 22-inch monitor is fully adjustable with a durable monitor holder, allowing flexible positioning.

WT36CL-600-MF5

For the Canon TM-300 Printer Series

The WideTEK 36CL-600-MF5 bundle includes the scanner and the Canon TM stand, designed to mount seamlessly on top of a Canon TM-300 wide format printer. The 21-inch touchscreen monitor can be conveniently mounted on the scanner with the screen bridge.

Tiny footprint, easy assembly

The Canon TM stand is designed specifically for TM series printers to keep this MFP solution compact. Assembly is straightforward, with only two parts that fit seamlessly to the printer’s contour for easy attachment.

WT36CL-600-MF6

For the Canon PlotWave Printer Series

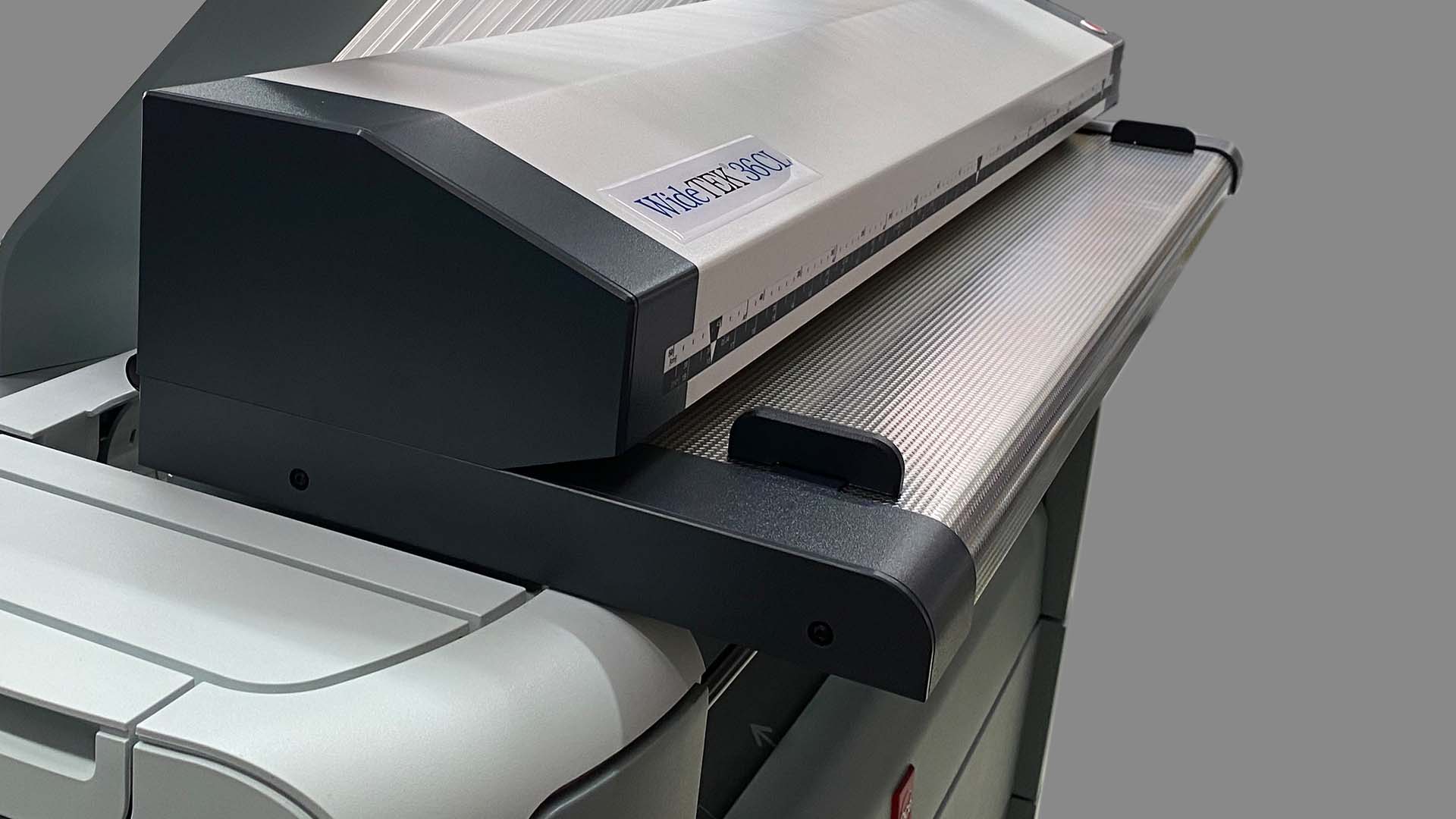

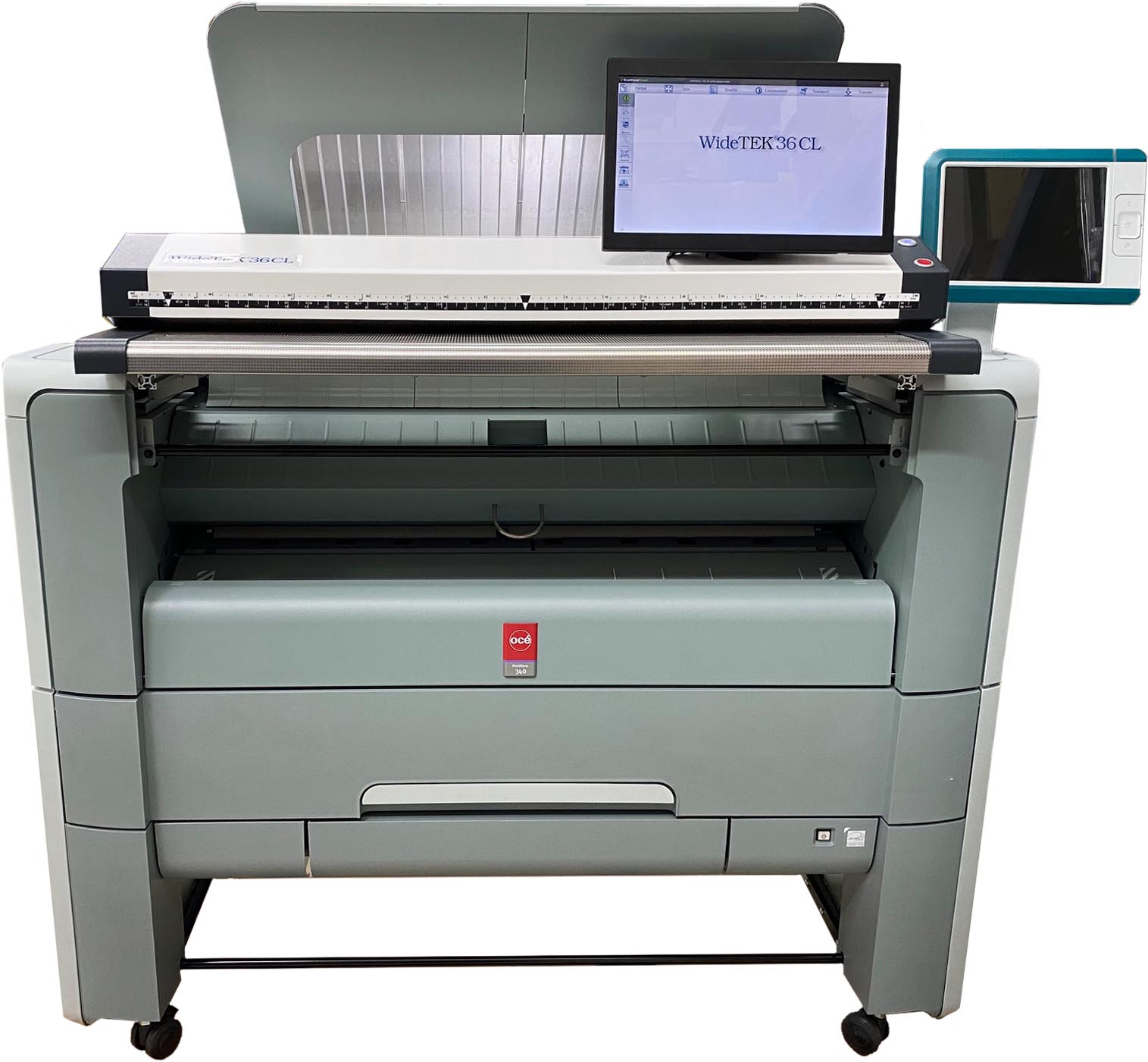

The WideTEK 36CL-600-MF6 bundle includes the scanner and the Canon PW stand, designed to mount seamlessly on top of a Canon PlotWave series printer. The 21-inch touchscreen monitor can be conveniently mounted on the scanner.

Compact and accessible

Like our other MFP stands, the Canon PW stand keeps your MFP solution compact and efficient. Mounted directly on the plotter, it provides easy scanner access without adding to the overall footprint.

Your Interest, Our Expertise

Contact us now and explore a new dimension in scanning technology!

Support & Downloads

Documentation

Brochure

Firmware

specifications

Media

Fact Sheets

Service Video

Manuals

Language

File Format

Release Date

Legal Information

all

PDF

06/2022

Technical Specification WideTEK 36CL-600

EN
DE

PDF

11/2023

Unpacking and Repacking Instructions WT36CL-600/48CL-600/WT60CL-600

EN

09/2018

Pallet Runner WT36CL-600

EN

PDF

11/2016

Setup Instructions WT36CL/48CL/60CL-600

EN
DE
FR
ES

PDF

09/2023

Setup Instructions WT36CL-600-MF1-2-5 with Canon imagePROGRAF,
TX, TDS or TM printer

EN
DE

PDF

09/2023

Setup Instructions WT36CL-600-MF3 for HP Printers

EN
DE

PDF

09/2023

Setup Instructions WT36CL-600-MF4 for Epson Printers

EN
DE

PDF

09/2023

Assembly Instructions WT36/48/60-STAND

EN

PDF

03/2023

Assembly Instructions WT36CL-TX-MFP-STAND

EN
DE

PDF

03/2023

Assembly Instructions WT-STAND-ADJ

EN
DE

PDF

03/2023

Assembly Instructions WT36CL/WT48CL-SCREEN-BRIDGE

EN

PDF

03/2022

Assembly Instructions WT-TOUCH21

EN

PDF

07/2020

Usage of Transparent Document Carrier

EN
FR

PDF

02/2018

Instruction Scan2ICC

EN

PDF

09/2021

Declaration about the Emission of UV and IR radiation

EN

PDF

11/2021

Wide Format Scanner Buyer´s Guide

EN
DE
ES

PDF

05/2022

Brochure

Language

File Format

Release Date

Product Brochure WideTEK® 36CL

EN
DE
ES

PDF

11/2023

Product Brochure WideTEK® 36”, 48” 60” Stand

EN
DE
ES

PDF

09/2022

Product Brochure WideTEK® 36″ Adjustable Stand

EN
DE
ES

PDF

09/2022

Product Brochure WideTEK 36CL-MF1

EN
DE
ES

PDF

09/2022

Product Brochure WideTEK 36CL-MF2

EN
DE
ES

PDF

09/2022

Product Brochure WideTEK 36CL-MF3

EN
DE
ES

PDF

09/2022

Product Brochure WideTEK 36CL-MF4

EN
DE
ES

PDF

PDF

09/2022

Product Brochure WideTEK 36CL-MF5

EN
DE
ES

PDF

09/2022

Product Brochure 21” Full HD Touch Mounting Bridge

EN
DE
ES

PDF

09/2022

Product Brochure 21” Full HD Touch

EN
DE
ES

PDF

09/2022

Brochure WideTEK® Transparent Document Carrier

EN
DE
ES

PDF

09/2022

Product Brochure Scan2Net®

EN

PDF

09/2022

Catalogs

Image Access Product Catalog

EN
DE
ES

PDF

04/2025

Fact Sheets

Language

File Format

Release Date

Fact Sheet WT36CL-600 (Coming soon)

PDF

–.–.–

Download as PDF

Document

Maximum Document Size

965 mm (38 inch) width

Maximum Scan Width

max. 915 mm (36 inch)

Document Thickness

max. 2.5 mm (0.1 inch)

Autoformat Size Recognition

yes, crop and deskrew

DIN Format

DIN A5 – DIN A0

ANSI Format

Legal, US E

Output

Scanner Resolution

1200 x 1200 dpi (optionally 9600 x 9600 dpi interpolated)

Pixel Dimension

9.3 x 9.3 µm

Paper Path

Face up, Front entry, Front or rear exit

Scan Speed Color

200 dpi – 15 m/min (10 inch/s)
300 dpi – 10.2 m/min (6.7 inch/s)
600 dpi – 2.5 m/min (1.7 inch/s)
1200 dpi – 1.2 m/min (0.8 inch/s)

Scan Speed BW

200 dpi – 22.9 m/min (15 inch/s)
300 dpi – 22.9 m/min (15 inch/s)
600 dpi – 8 m/min (5 inch/s)
1200 dpi – 3.8 m/min (2.5 inch/s)

Color Depth

48 bit color, 16 bit grayscale

Scan Output

24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone

File Formats

Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data

ICC Profiles

Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription

Quality

Exceeds FADGI **** guidelines, ISO 19264-1

Accuracy

Scan direction

± 0.08% across 36 inch scanning width

Transport direction

± 0.08% with new transport rollers

Technical Specifications

Computer

64 bit Linux, Intel quad core processor,
8 Gigabyte RAM, 128GB SSD for very long scans

Touchscreen

7 inch color WVGA (wide VGA) touchscreen,
21” full HD 1920 * 1080 multitouch screen (included in the bundle)

USB Port

1 x USB 3.0 port

Interface

10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface

Camera

3x CIS modules, 22,389 pixels, encapsulated and dust-proof

Light Source

RGB LED

Declaration about the Emission of UV and IR radiation

Dimensions

Dimensions Scanner (H x W x D)

170 x 1088 x 358 mm (7 x 43 x 14 inch)

Weight Scanner

16.5 kg (37 lbs.)

Electrical Specifications

Electrical Connection

100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)

Power Consumption

P(Off) 0.3W / P(Sleep) 2.8W / P(Ready) 25W / P(Active) 45W 65% below

ENERGY STAR requirements

Image Access FAQ

Ambient Conditions

Operating Temp

5 to 40 °C (40 to 105 °F)

Rel Humidity

20 to 80% (non-condensing)

Noise

< 35 dB(A) (Scanning) / < 25 dB(A) (Standby)

Software

Software Preinstalled

ScanWizard, Print Wizard Canon LFP

Software Options

PrintWizards for Canon TDS, HP Page Wide and DesignJet, Epson SureColor

Technical changes, errors and omissions excepted. All information subject to change.
