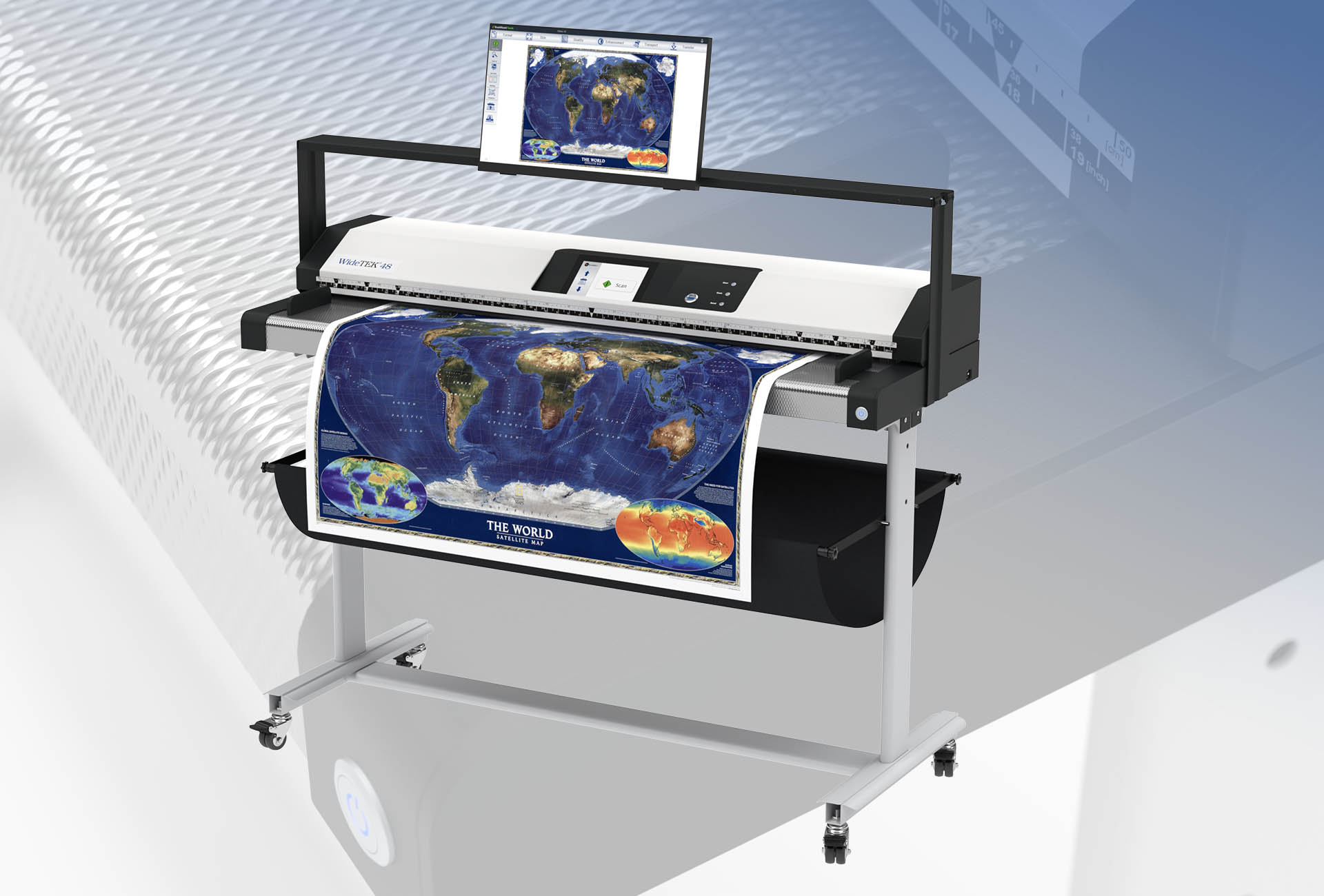

WideTEK 44/48
Redefining wide format scanning with cutting-edge technology.
Precision, speed and ease for wide format documents up to 48 inches.
High-performance scanning
Available in a 44-inch and a 48-inch version, this WideTEK wide format scanner provides reliable and efficient scanning for documents up to A0 landscape (48 inches or 1220 mm) in width. Equipped with a high-quality CCD camera system, it delivers exceptional image clarity and accuracy. Built for productivity and durability, this scanner ensures long-lasting performance for demanding scanning tasks.
360° view
Scroll mouse wheel or click and drag to rotate

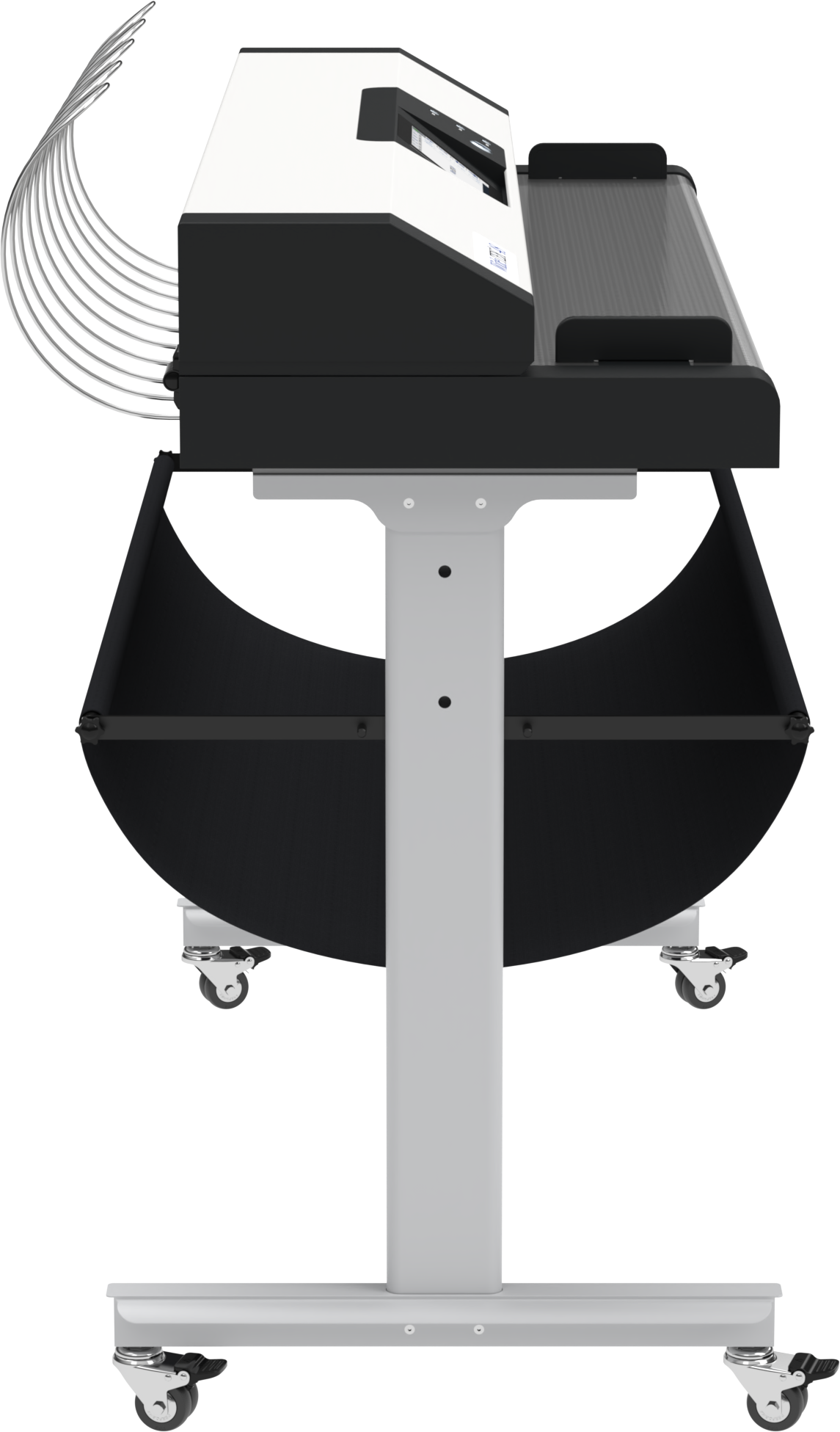

Gentle document handling
Our wide format scanners excels in handling delicate documents with care. Specialized transport rollers apply minimal pressure, ensuring safe passage for fragile materials. Automatic document size recognition allows flexible feeding, while cropping and deskewing adjust for perfect image alignment.
Dust-protected and encapsulated optical components ensure long-term reliability and performance.
Walk-up scanning with integrated PC
Walk-up scanning is made simple and efficient, with access available through the scanner’s intuitive touchscreen or via mobile devices. This flexible setup allows users to start scanning quickly, with no need for additional computers or complicated setups.
The WideTEK 44/48 features a specialized background drum that enhances image quality while protecting delicate documents. This drum remains entirely separate from the glass plate, eliminating the risk of scratches and misalignment.
For added versatility, the drum can be easily swapped between a standard black for high contrast and a white option for enhanced visibility on sepia and film-based documents. No tools are required for this simple exchange, ensuring flexibility and convenience for various document types.
Two versions, upgradable from 44 to 48"
The scanner is available in two versions: the 48-inch version and a more cost-effective 44-inch (1120 mm) version for users with smaller format needs. For maximum flexibility, the WideTEK 44 can be seamlessly upgraded to the full 48-inch width at any time with an upgrade key, ensuring your scanner adapts to your evolving requirements.

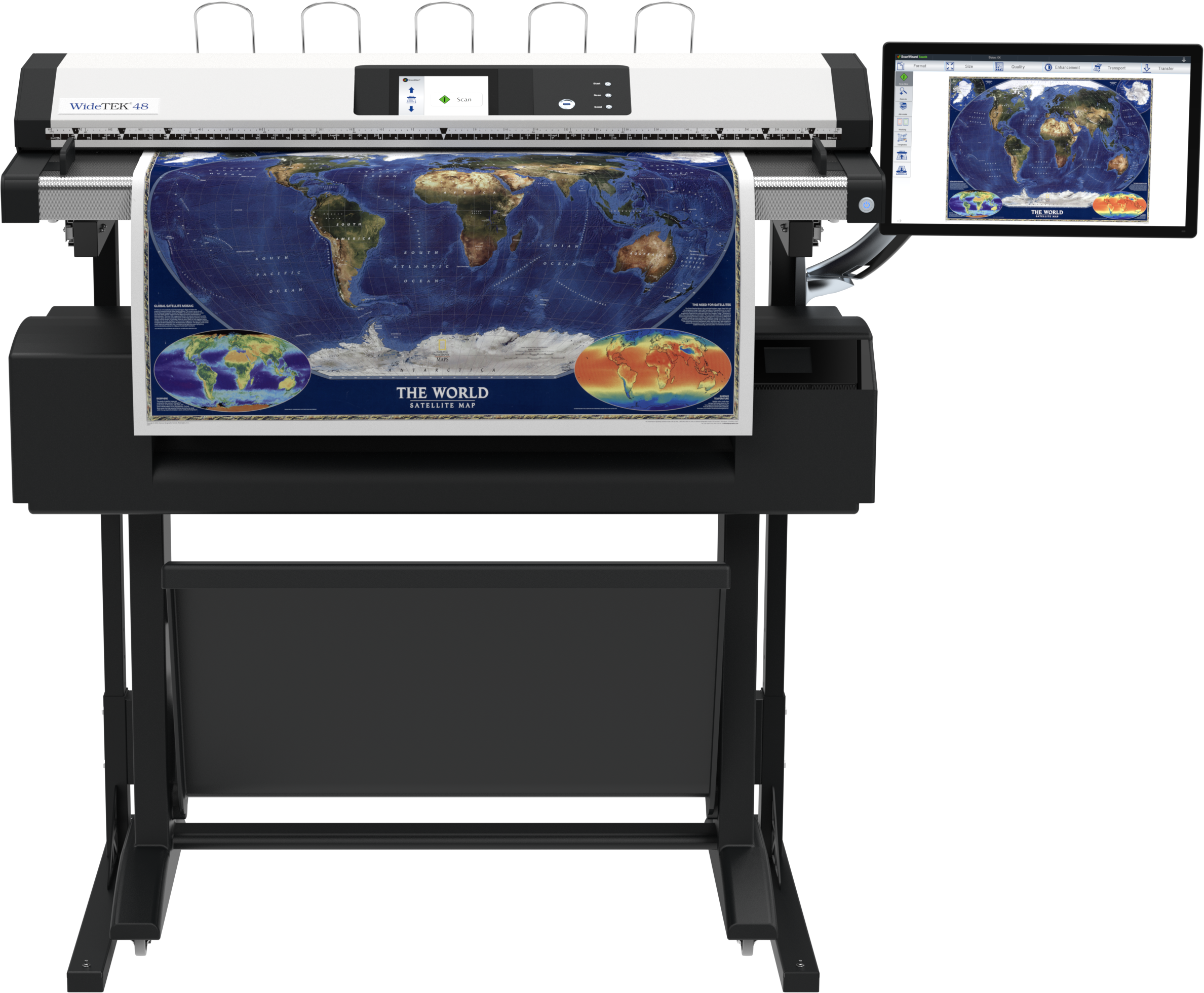

Direct connection to wide format printers
The scanner connects directly to wide format printers from Canon, HP, and Epson. Integrated printer drivers ensure seamless communication, providing full feature compatibility with all major wide format printers. This integration enhances your workflow by allowing easy printing directly from the scanner, ensuring efficient and smooth operation across your devices.
Virtual rescan
You can easily modify scanned images without the need to rescan, allowing you to adjust essential settings like color mode, brightness, contrast, and other parameters. Additionally, you can rotate, crop, and mirror images after scanning, offering even more flexibility to achieve the desired output.
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Your Interest, Our Expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochure
Firmware
specifications
Media
Fact Sheets
Service Video
Manuals
Language
File Format
Release Date
Legal Information
05/2022
Technical Specification WideTEK 44-600
11/2023
Technical Specification WideTEK 48-600
11/2023
Unpacking and Repacking Instructions WT36-600 / WT44-600 / WT48-600
03/2021
Setup Instructions
09/2023

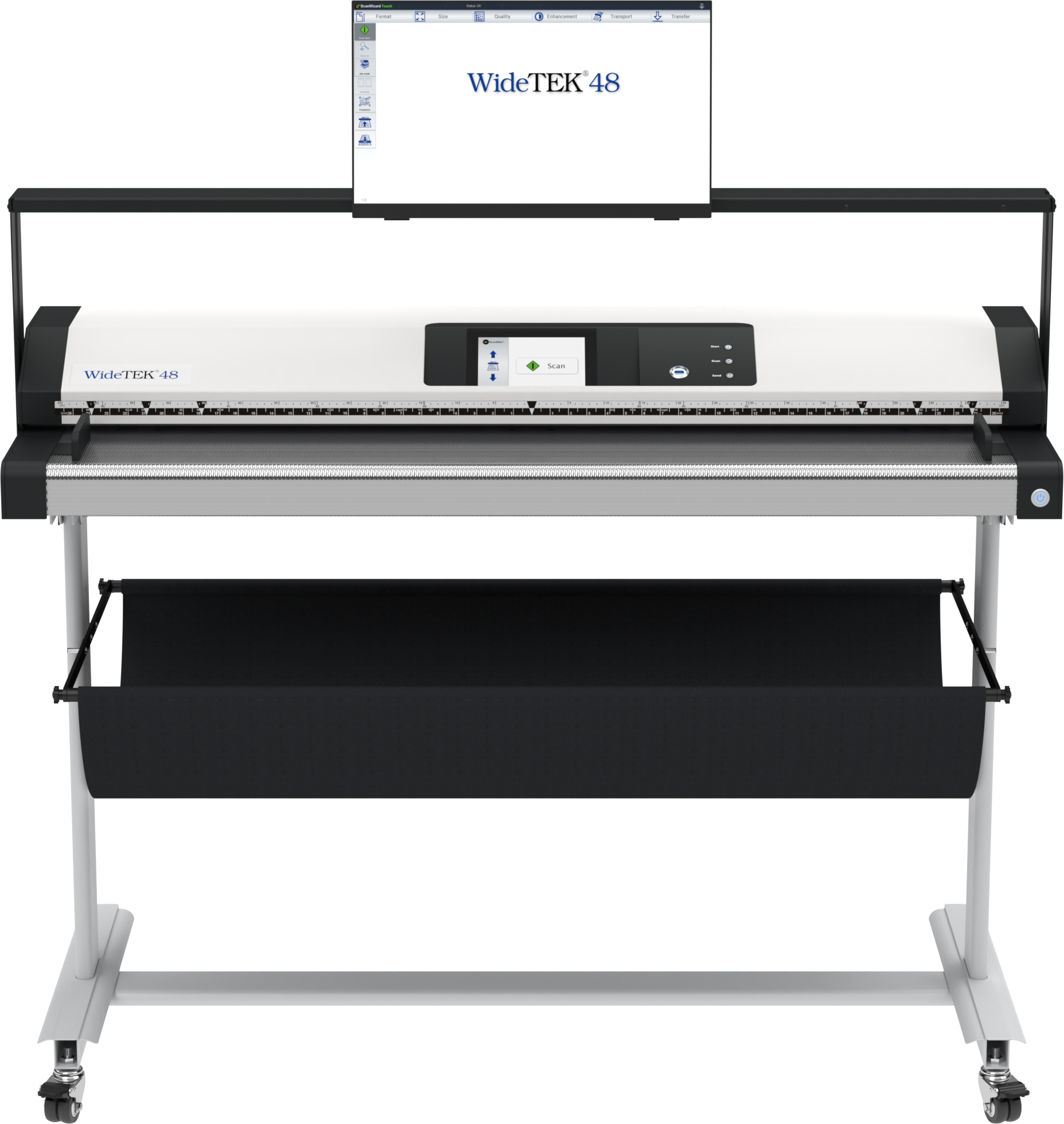

Assembly Instructions WT36/WT48-SCREEN-BRIDGE
10/2023
Assembly Instructions WT36/48/60-STAND
03/2023
Assembly Instructions WT44STACK-1000
06/2019

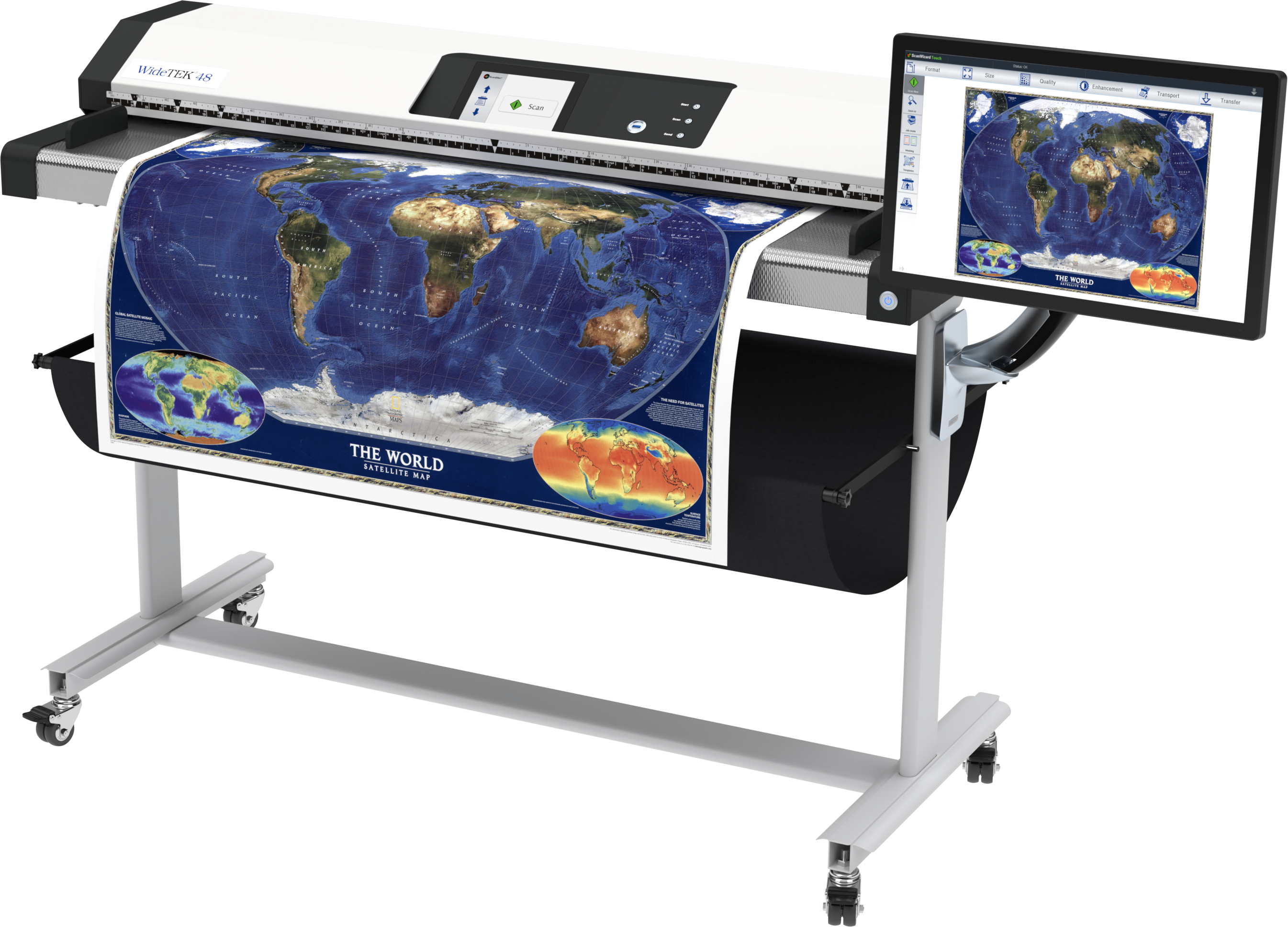

Assembly Instructions WT-TOUCH22-AA
11/2018
Usage of Transparent Document Carrier
02/2018
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Wide Format Scanner Buyer´s Guide
05/2022
Document
Maximum Document Size
1270 mm (50 inch) width. Information about the maximum scan length in the technical specification.
Maximum Scan Width
max. 1118 mm (44 inch)
max. 1220 mm (48 inch)
Document Thickness
max. 3.0 mm (0.1 inch)
Autoformat Size Recognition
yes
DIN Format
DIN A5 – DIN A0
ANSI Format
Legal, US E
User Defined Format
yes
Output
Scanner Resolution
1200 x 1200 dpi (optionally 9600 x 9600 dpi interpolated)
Optical Resolution
1200 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Paper Path
Face up, Front entry, Front or rear exit
Scan Speed Color
200 dpi – 22.9 m/min (15 inch/s)
300 dpi – 15.4 m/min (10.1 inch/s)
600 dpi – 7.6 m/min (5 inch/s)
1200 dpi – 3.8 m/min (2.5 inch/s)
Scan Speed BW
Same as 24 bit Color
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone
File Formats
Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Exceeds FADGI **** guidelines, ISO 19264-1
Accuracy
Scan direction
± 0.08% across 44/48 inch scanning width
Transport direction
± 0.08%
Technical Specifications
Computer
64 bit Linux, Intel® Core™ Gen 9 processor,
250GB SSD, 16GB RAM for very long scans
Touchscreen
7 inch multi-touch display
Monitor
22 inch touchscreen with arm (included in the bundle)
USB Port
1 x USB 3.0 port
Interface
10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
4x Tri-color CCD camera, 90,000 pixels, encapsulated and dust-proof
Light Source
Two linear lamps with white LEDs, no IR/UV emission
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 hours typ. Lamps are covered by the Extended Warranty Option
Dimensions
Dimensions Scanner (H x W x D)
228 x 1425 x 507 mm (9 x 56 x 20 inches)
Weight Scanner
60 kg (132 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
P(Off) 0.3W / P(Sleep) 4.5W / P(Ready) 60W / P(Active) 120W 63% below
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
