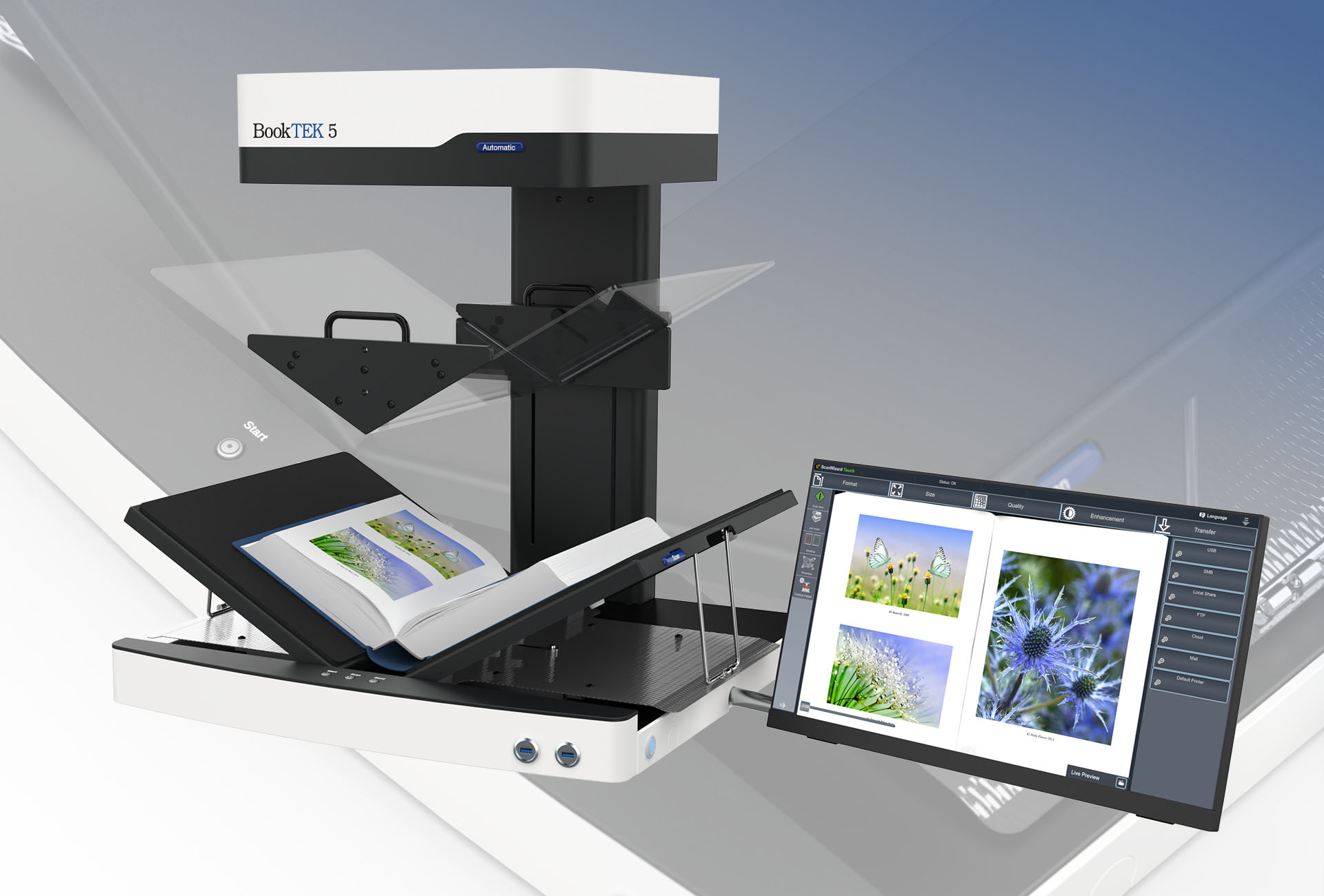

BookTEK 5 V2 Automatic
Gentle A2+ document digitization with maximum productivity thanks to the motorized V-shaped glass plate
Automated high-end digitization
The BookTEK 5 V2 Automatic is the latest model in Image Access’ 5th generation of book scanners. Redesigned to meet the latest technological and environmental standards, it offers unsurpassed image quality, simple operation, modern design and maintenance-free use for professional applications.
With its 600 dpi and a scan time of less than 3 seconds for the entire A3+ capture area, it is equally suitable for large and small digitization projects.
360° view
Scroll mouse wheel or click and drag to rotate

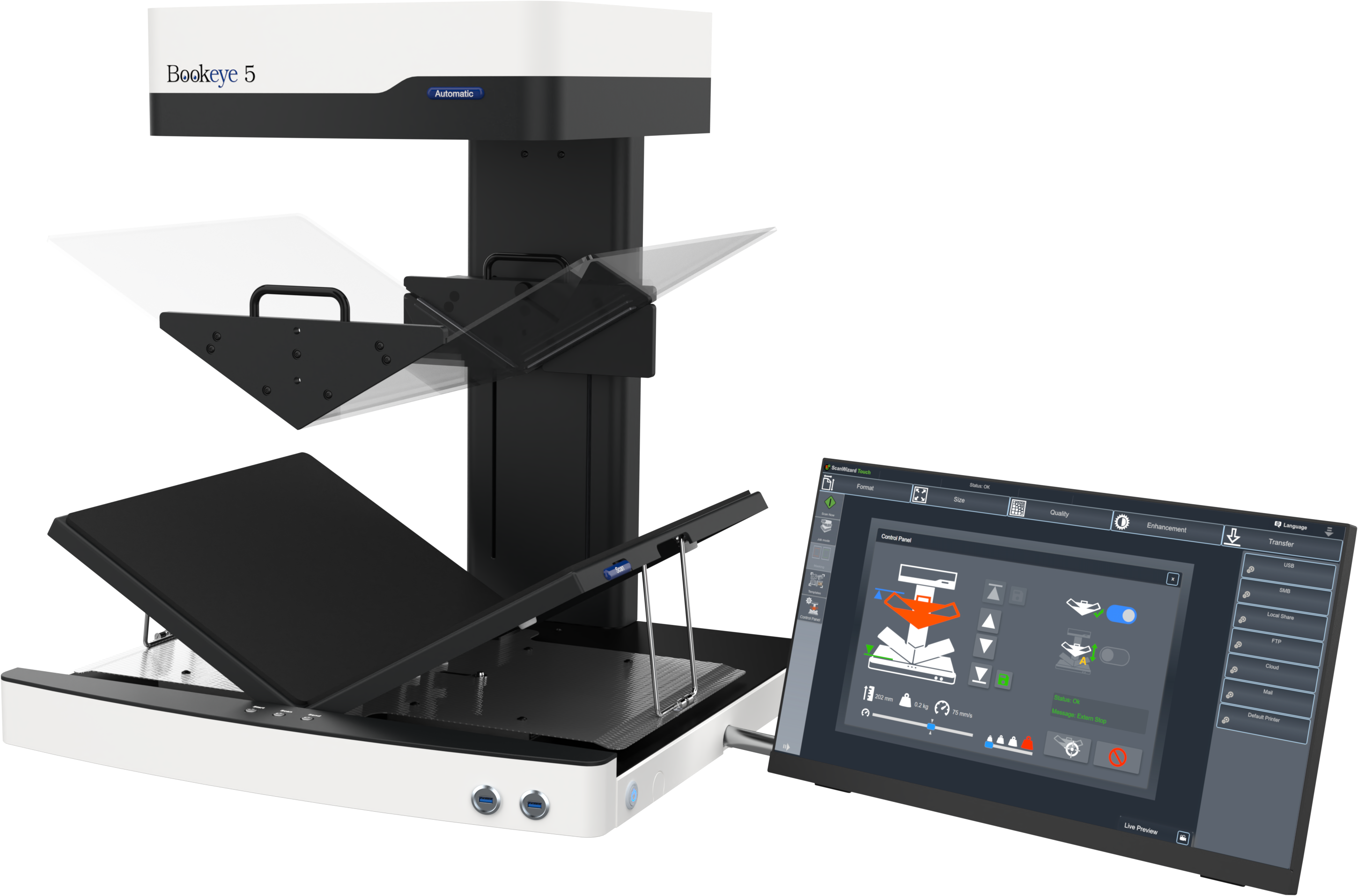

Motor-driven glass plate

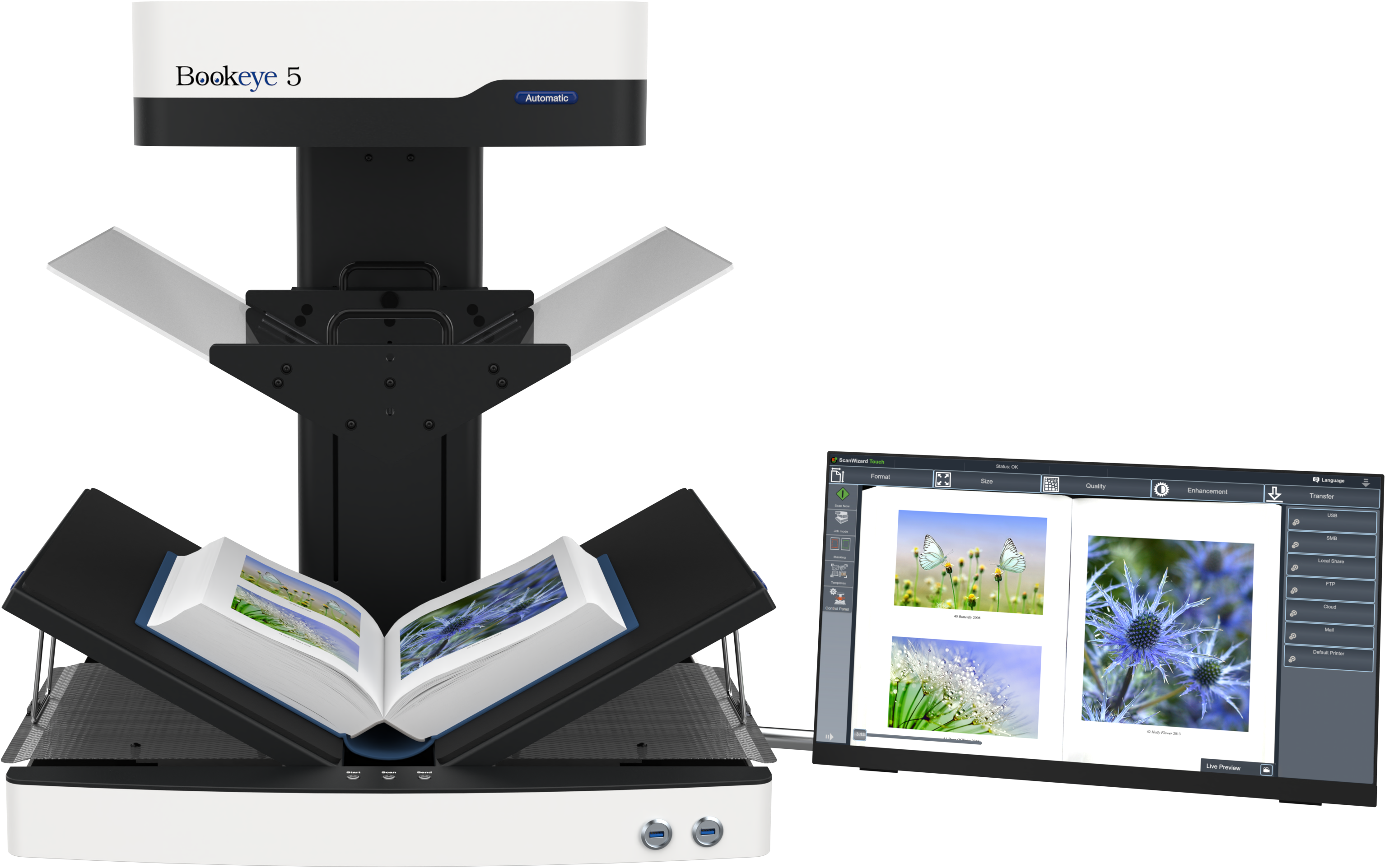

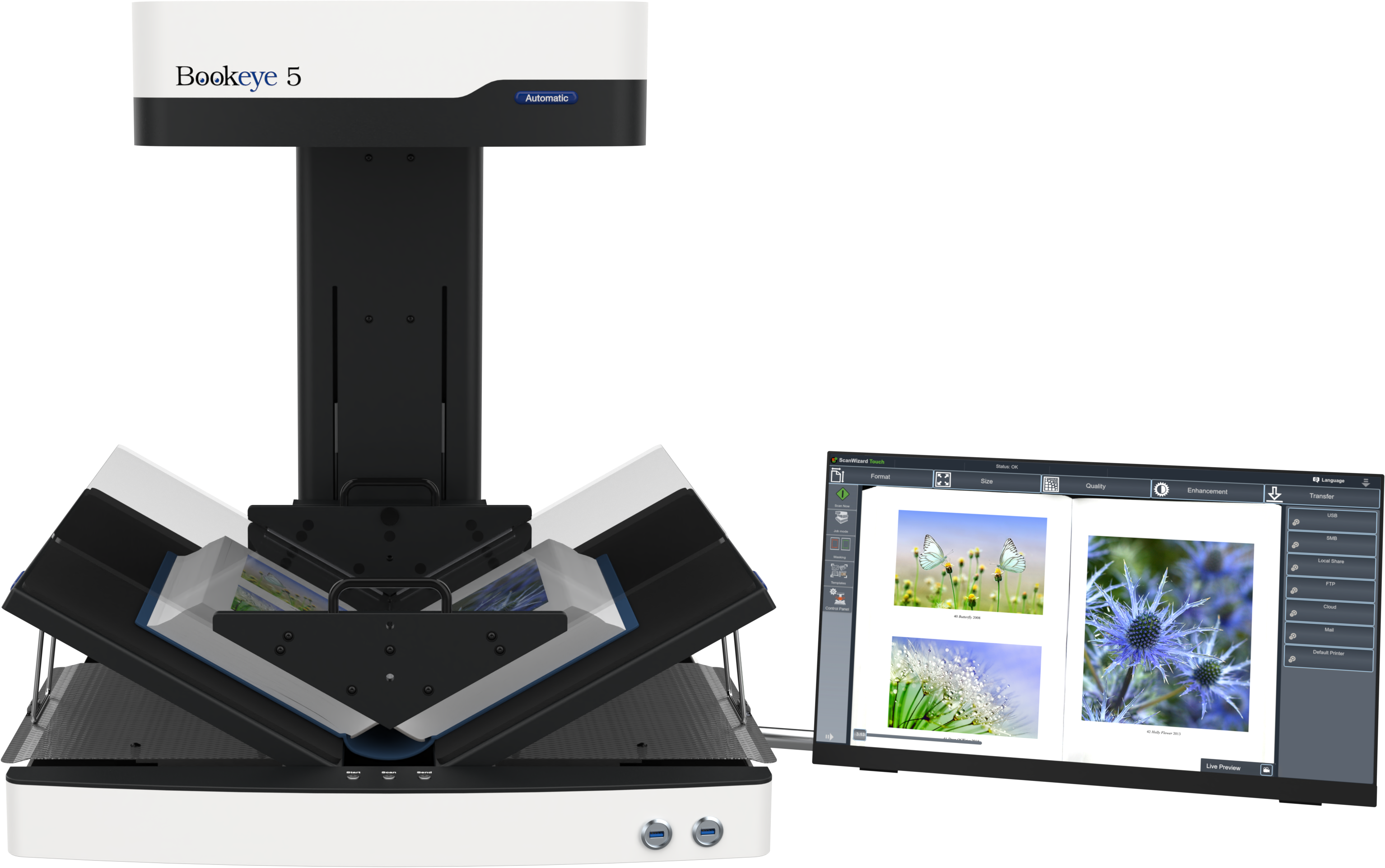

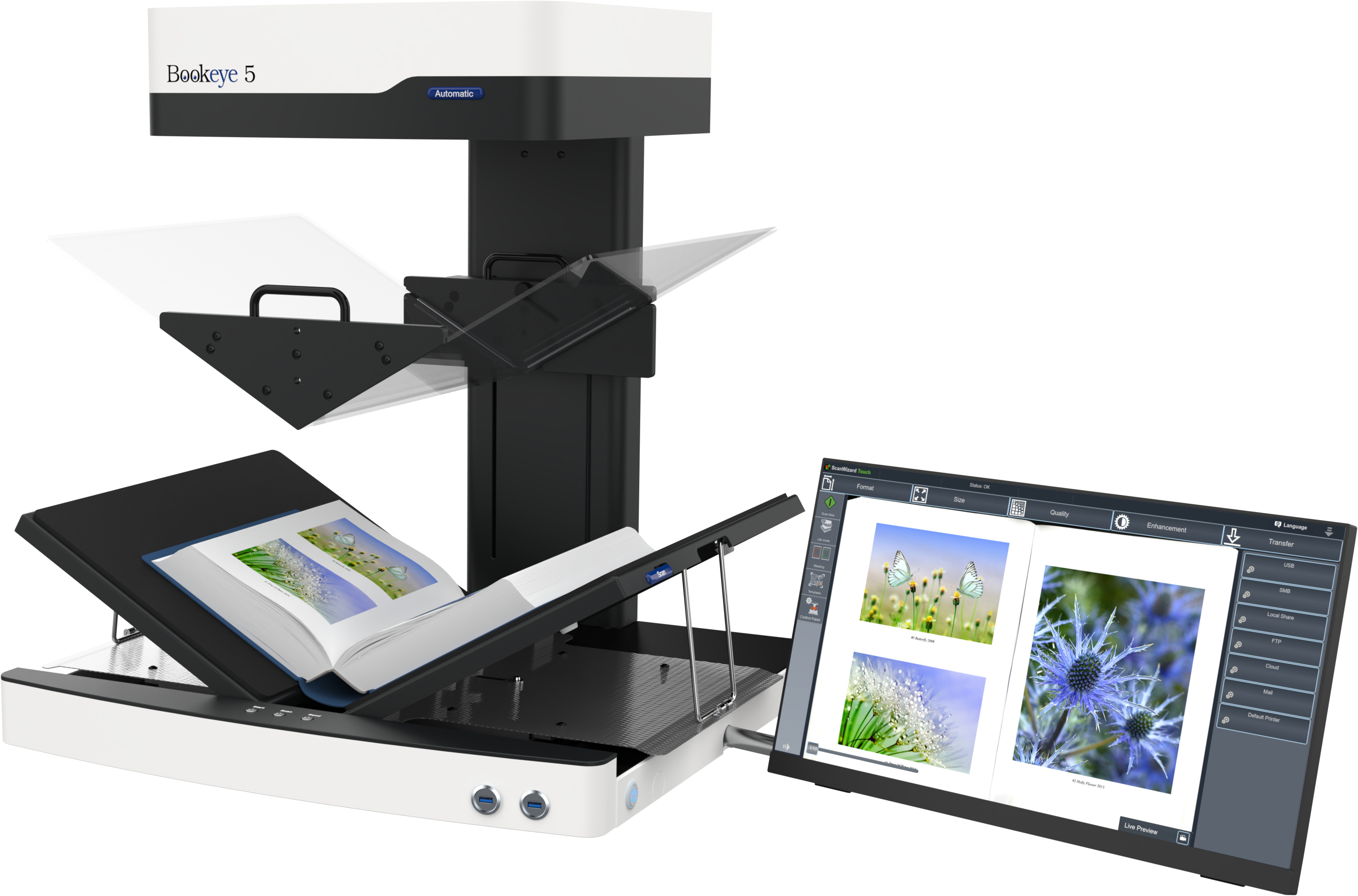

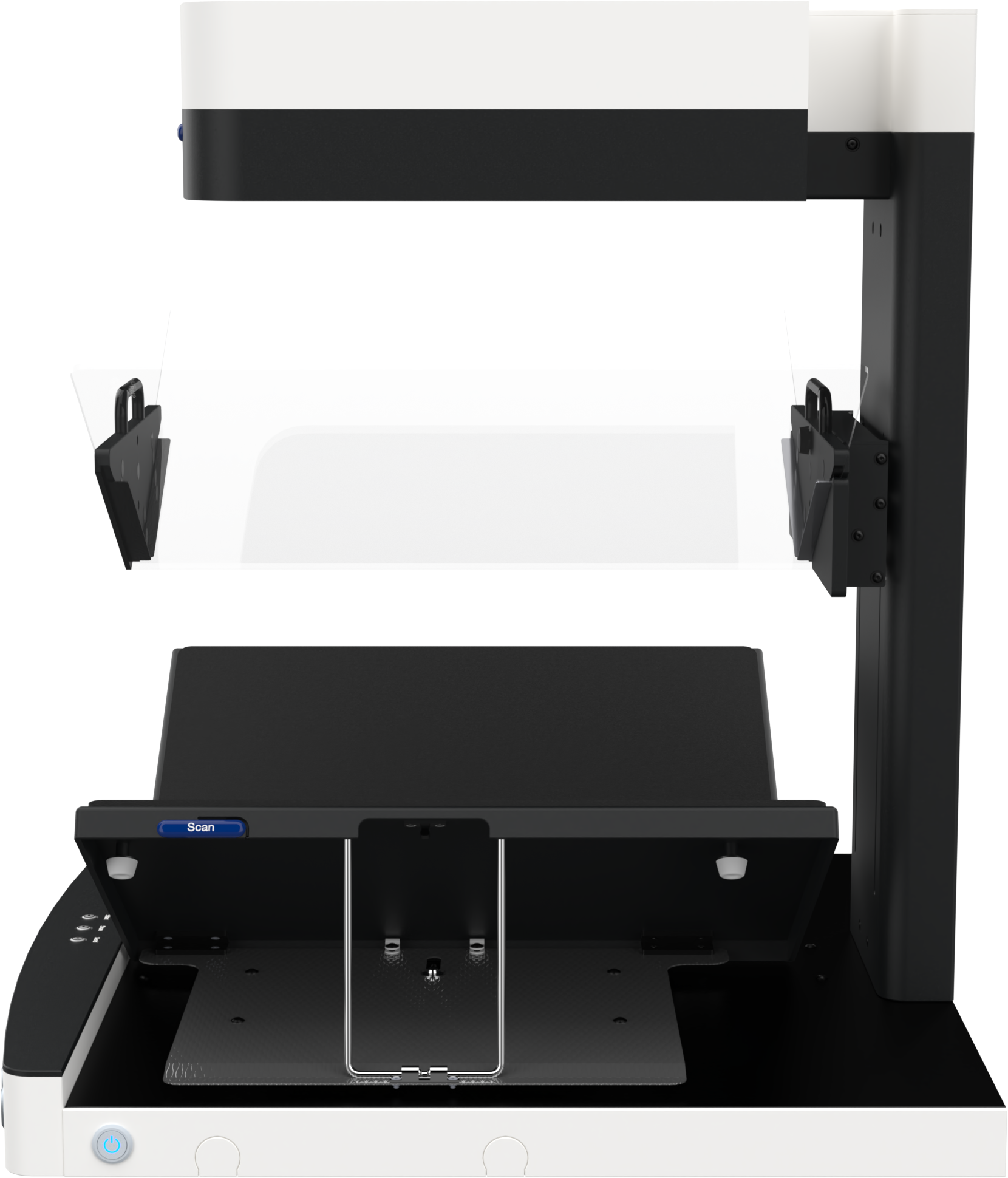

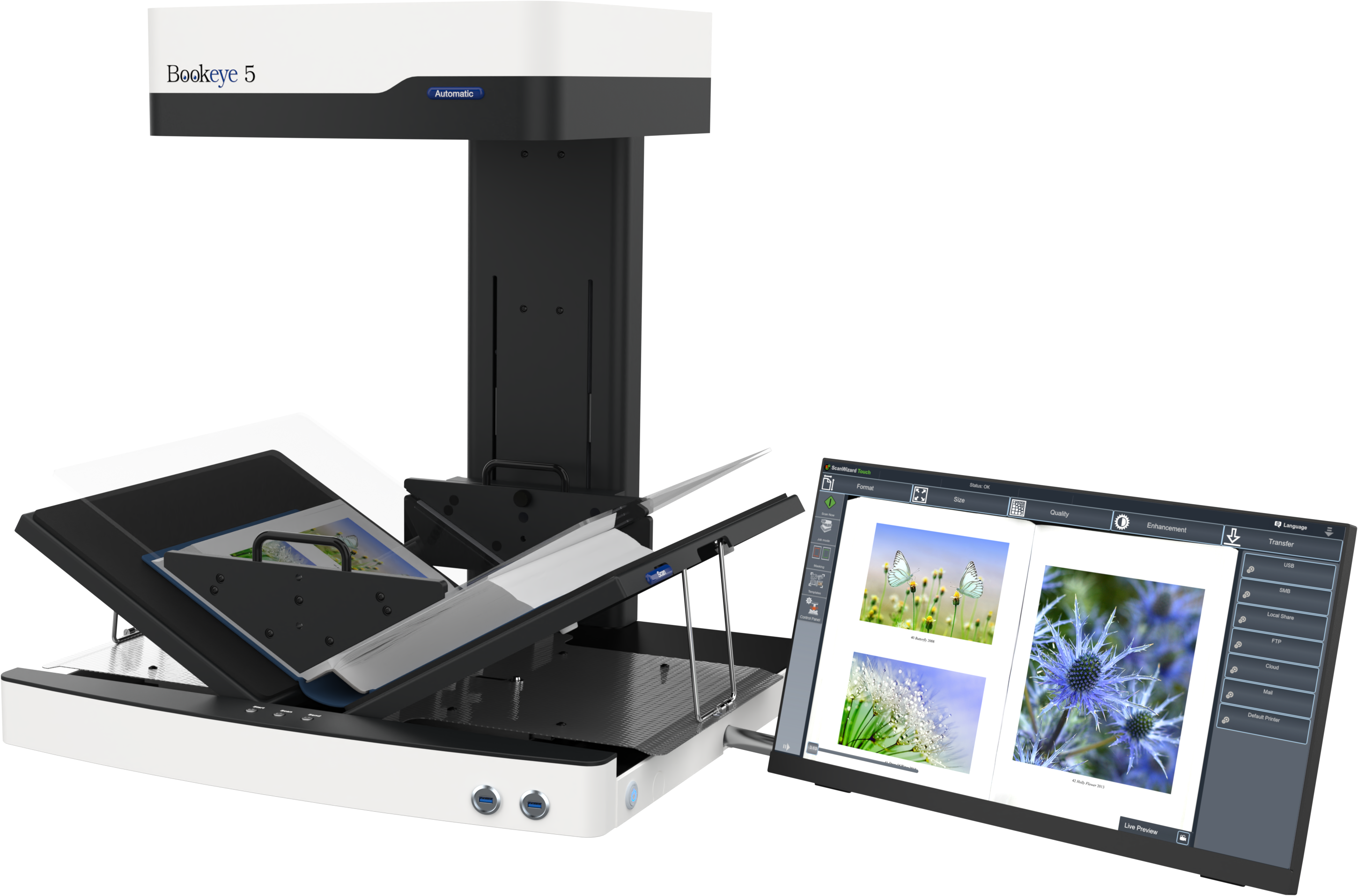

The new motor-driven V-shaped glass plate traverses at speeds ranging from 19mm/sec to 113mm/sec, with a total stroke of 25cm, gently flattening originals using the V-shaped cradle. The contact pressure is individually adjustable, ensuring the gentlest handling of originals and distortion-free scans, suitable for a variety of materials including books, magazines, posters, folders, and bound documents of all kinds.

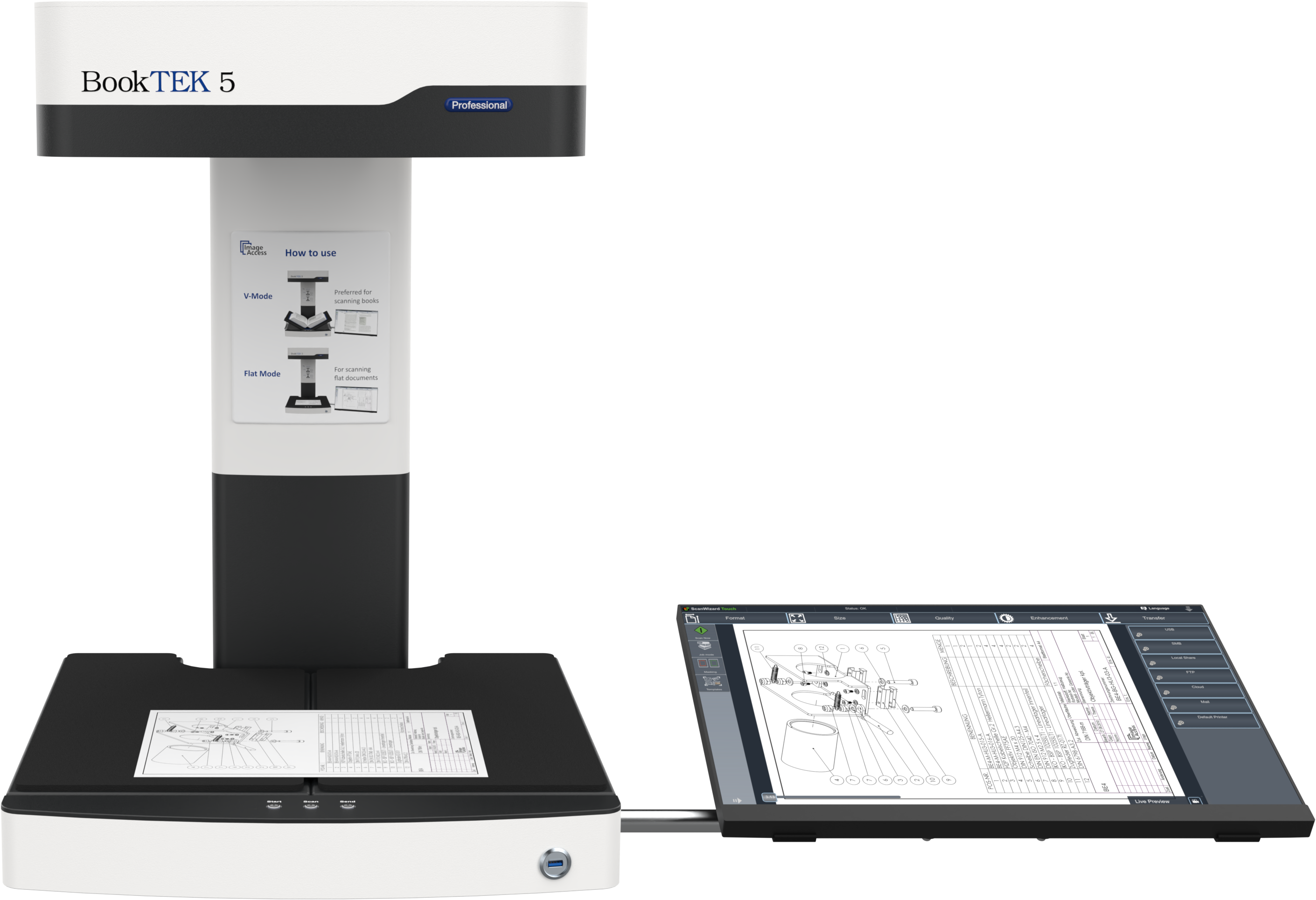

Additionally, the book cradle can be used in flat mode, like all other BookTEK scanners from Image Access.

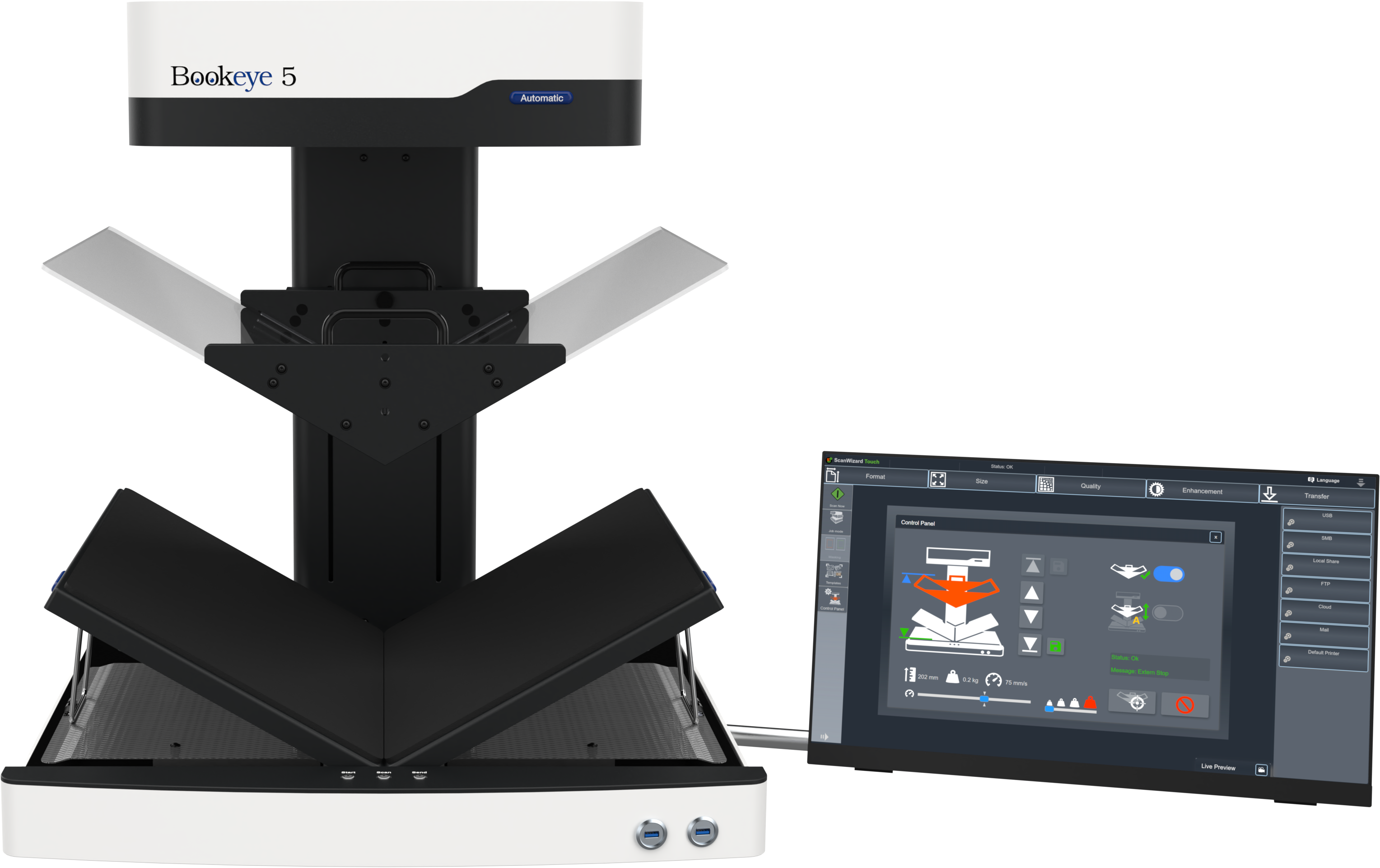

Intuitive interface
The V-shaped glass plate is seamlessly controlled via ScanWizard’s enhanced user interface. The new control panel, featuring animated function buttons, allows for horizontal movement, speed adjustment, and setting the post-scan position of the glass plate, which can be customized to any level, not just the top or bottom.
If needed, the glass plate can be easily removed and reattached in two simple steps without the need for tools, offering maximum flexibility.
Full visual control

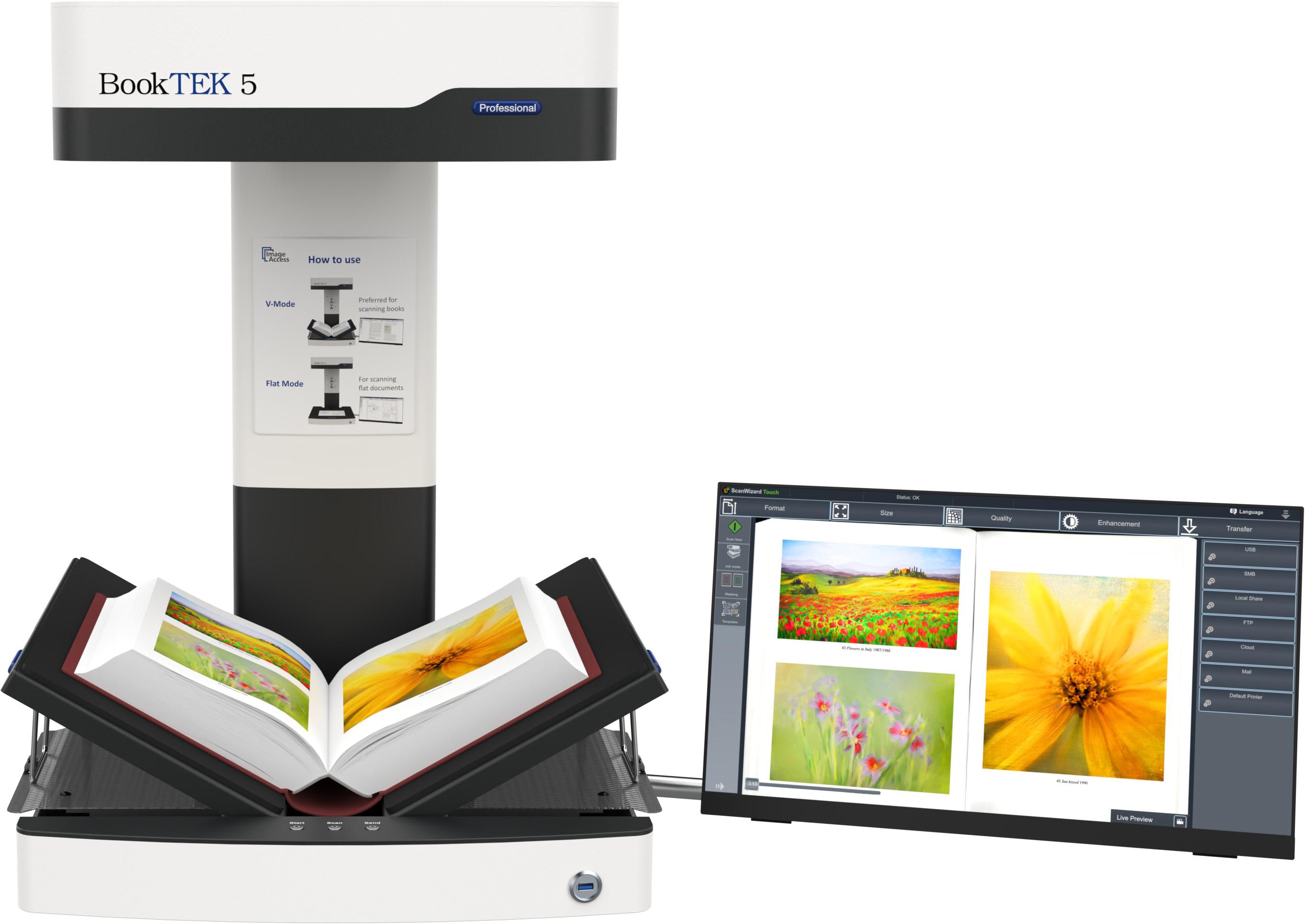

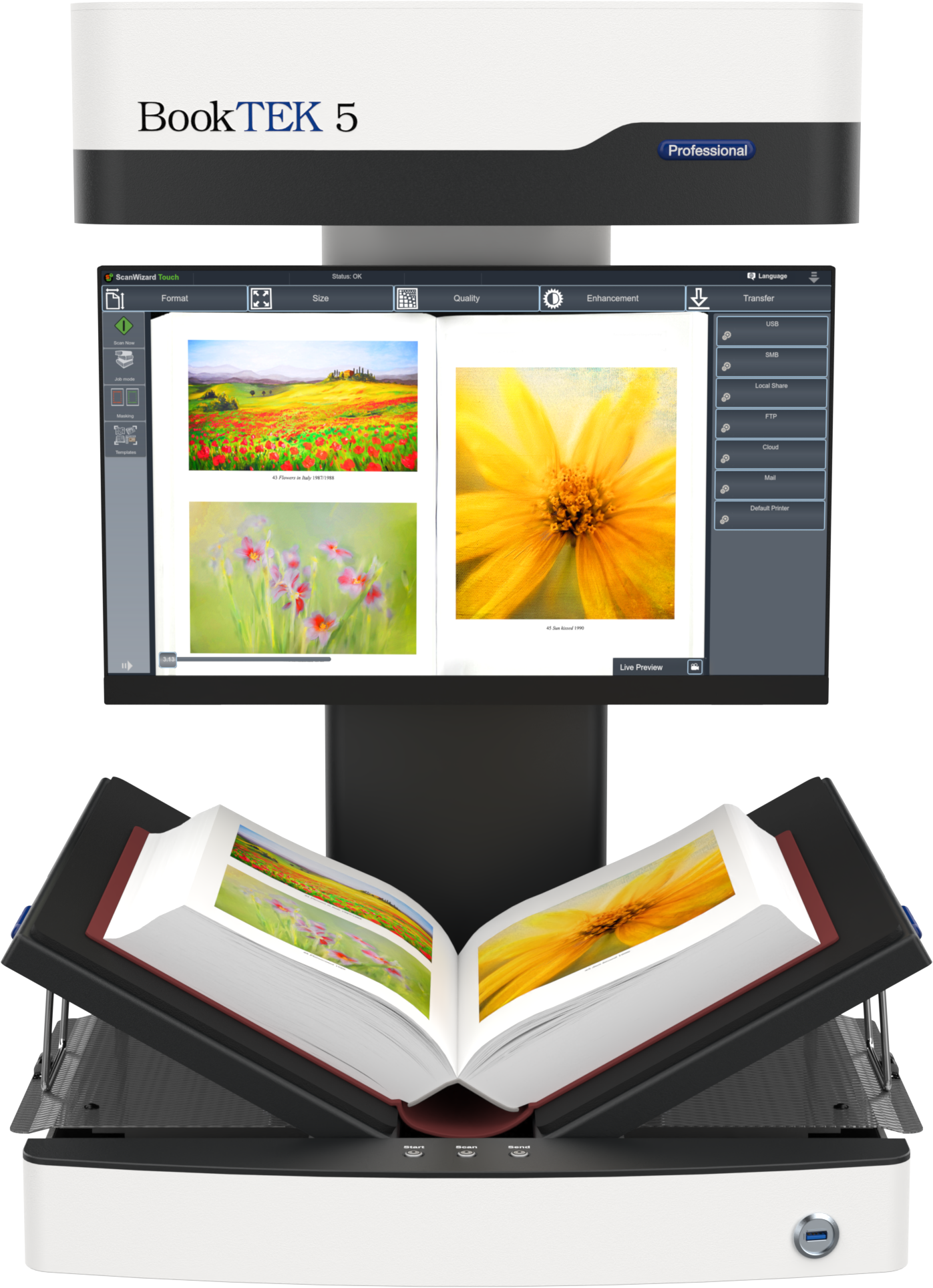

A 21 inch full HD multitouch screen allows the operator to control image quality and make many modifications on the fly. Pinch and swipe on the touchscreen the same way you would on a smartphone to zoom or move around in the image during preview.
The Live Preview function uses a second matrix camera to present a live video view of the document position before scanning.
Compact and accessible
Thanks to its very small footprint and a weight of just 37 kg, the book scanner fits comfortably on any desk or workspace. The integrated installation wizard prepares the BookTEK 5 for operation only a few minutes after unpacking.
It can be integrated into the network, enabling scanning to an SMB drive, cloud storage, Scan2Pad, email and other output targets.
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Your interest, our expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochures
Firmware
specifications
Media
Fact Sheets
Service Videos
Manuals
Language
Format
Date
Legal Information BE5-V2A
07/2022
Technical Specification BE5-V2A
07/2023
Setup Instructions BE5-V2
10/2022
Setup Instructions BE5-V2A
10/2022
Assembly Instructions BE5-V2
03/2021
Assembly Instructions BE5-V2A
08/2021
Assembly Instructions Scan2Pad® for BE5 Kiosk
04/2022
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Book Scanner Buyer´s Guide
02/2021
Brochures
Language
Format
Date
Product Brochure BE5-V2A
07/2023
Product Brochure Scan2Net®
09/2022
Catalogs
Image Access Product Catalog
09/2023
Fact Sheets
Language
Format
Date
Fact Sheet BE5 V2A (Coming soon)
–
–.–.–
Document
Maximum Documents Size
460 x 620 mm (18 x 24 inch), 14% more than DIN/ISO A2
Output
Scanner Resolution
600 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Scan Speed Color
DIN A2+ @ 150 dpi: 0.9 s
DIN A2+ @ 200 dpi: 1.1 s
DIN A2+ @ 300 dpi: 1.6 s
DIN A2+ @ 400 dpi: 2.0 s
DIN A2+ @ 600 dpi: 3.0 s
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit grayscale, bitonal, enhanced halftone
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Complies to FADGI *** guidelines, Metamorfoze Light, ISO 19264-1
Technical Specifications
Computer
64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen
21 inch Full HD 1920 * 1080 multitouch screen
USB Port
2 x USB 3.0 port, 4 x USB 2.0 port
Interface
1 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
CCD line sensor, 22,500 pixels (11,000 scan lines equals to a 245 MPixel matrix camera)
Live Preview Camera
CMOS matrix, area sensor
Light Source
White LEDs, tested according to IEC 62471, no IR/UV emissio
Declaration about the Emission of UV and IR radiation
Lamp Lifetime
50,000 h typ. Lamps are covered by the Extended Warranty Option
Dimensions
Dimensions Scanner (H x W x D)
720 x 655 x 645 mm (28 x 26 x 25 inch)
Weight Scanner
37 kg (82 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 42 dB(A) (Scanning) / < 33 dB(A) (Standby)
Technical changes, errors and omissions excepted. All information subject to change.
