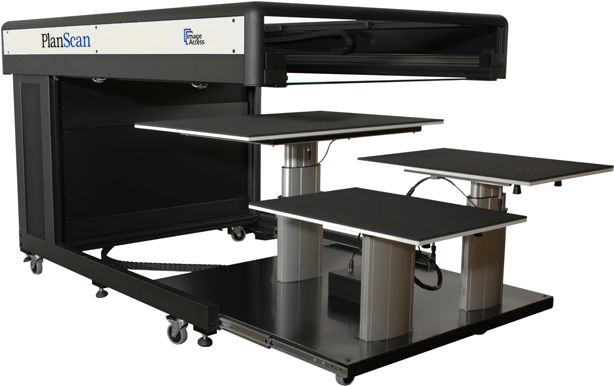

PlanScan 3650
An all-in-one scanner solution for books, maps, newspapers, or small sheets
This scanner, with its threefold book cradle, is the most versatile A0 book scanner in the world and can be used as A1 book scanner, A0 book scanner and as a flatbed scanner.With a motorized standard book cradle of 35 cm range, it can handle extremely large originals.
Gentle document handling
Die Kunstwerke verfahren vollautomatisch unter den CCD Scanzeilen, ohne dass die Oberfläche mit dem Scanner in Berührung kommt. Somit lassen sich Gemälde sogar dann digitalisieren, wenn diese nicht vollständig durchgetrocknet sind.
Efficient and user-friendly
In Verbindung mit Großformatdruckern von HP, Canon und Epson bildet der WideTEK® 36ART-600 Kunstscanner die perfekte Basis zur professionellen Kunstreproduktion. Vorinstallierte Druckertreiber gewährleisten höchste Farbgenauigkeit der Ausdrucke.
Title
Der WideTEK® 36ART wurde für die Archivierung und die Reproduktion von Kunstwerken entwickelt. Mit diesem Scanner ist jedes Museum in der Lage, die eigene Kunstsammlung in höchster Qualität zu digitalisieren, in Print- und Onlinemedien zu veröffentlichen, oder als Kunstdruck zum Kauf anzubieten. Der Scanner eignet sich zudem perfekt für die Reprographie Branche oder die Digitalisierung von Kunstwerken als Dienstleistung.
Scan flach
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Your interest, our expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochures
Firmware
specifications
Media
Fact Sheets
Service Videos
Manuals
Language
File Formate
Release Date
Legal Information
06/2022
Technical Specification WideTEK 36-600
EN DE11/2023
Unpacking and Repacking Instructions WT36-600 / WT44-600 / WT48-600
EN03/2021
Setup Instructions
EN DE FR ES09/2023

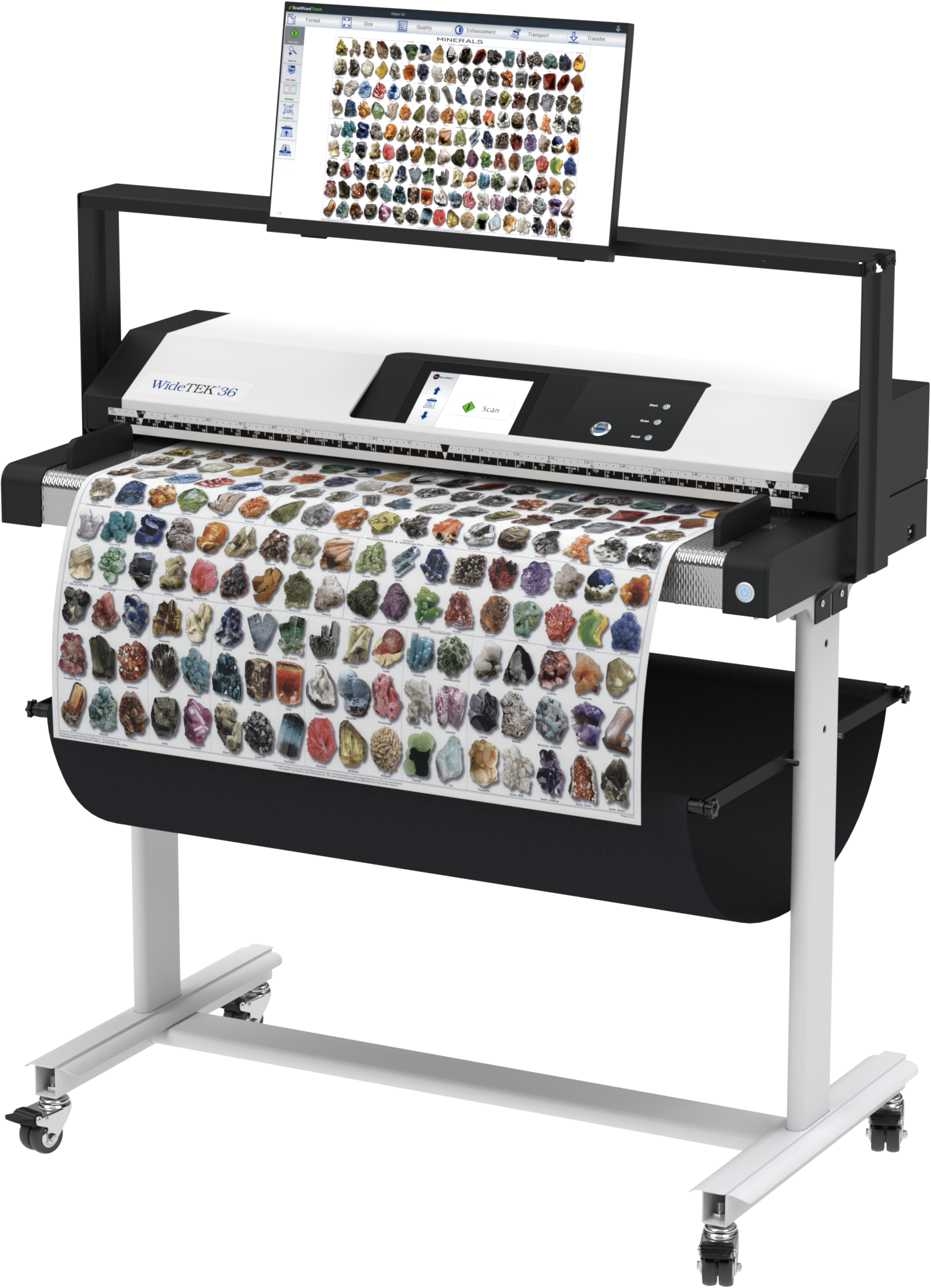

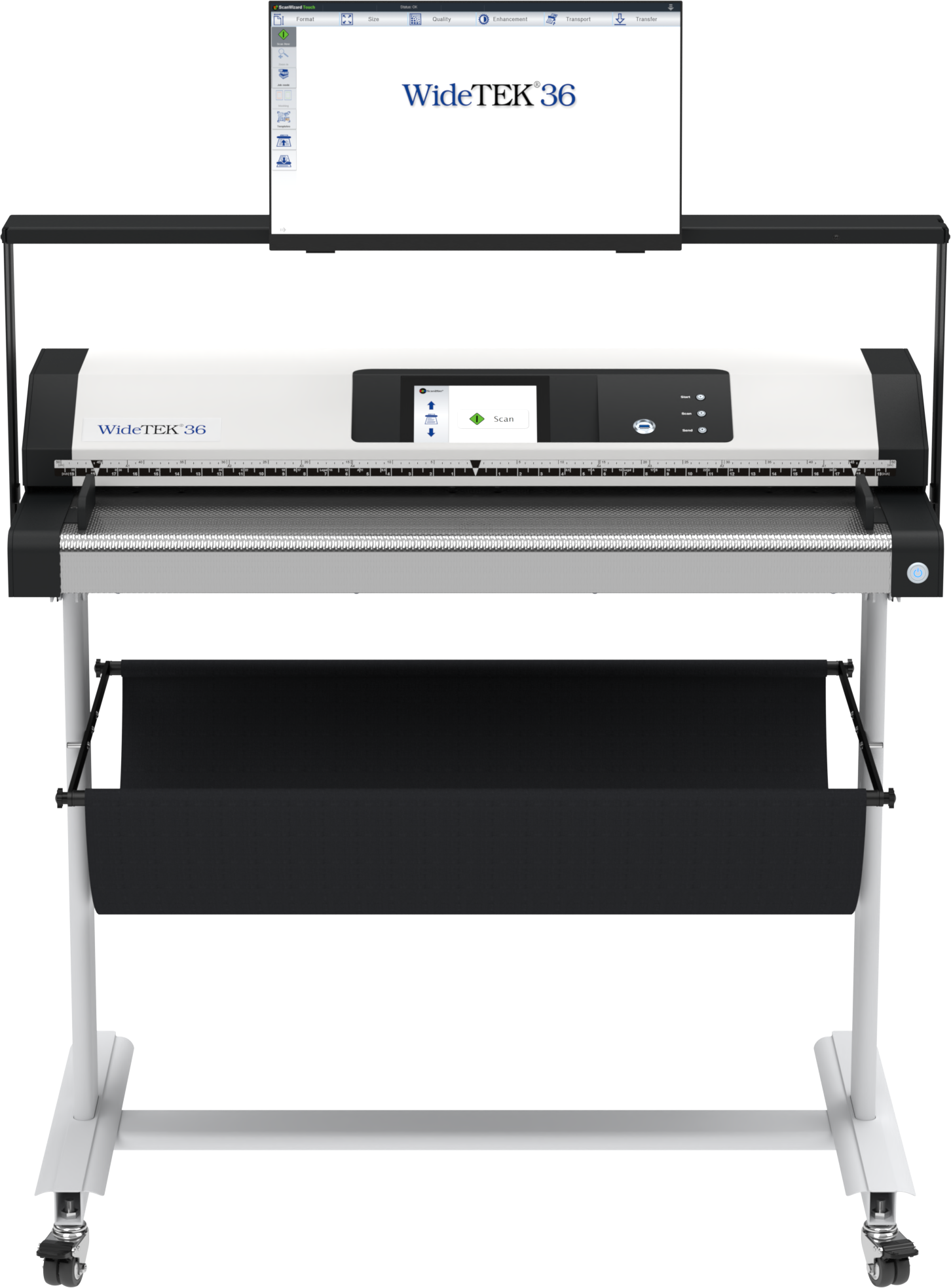

Assembly Instructions WT36/WT48-SCREEN-BRIDGE
EN10/2023
Assembly Instructions WT36/48/60-STAND
EN03/2023
Assembly Instructions WT44STACK-1000
EN06/2019
Assembly Instructions WT-TOUCH22-AA
EN11/2018
Usage of Transparent Document Carrier
EN FR02/2018
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Wide Format Scanner Buyer´s Guide
05/2022
Brochures
Language
Format
Date
Product Brochure WideTEK® 36”, 48” 60” Stand
EN DE ES09/2022
Product Brochure WideTEK® 36″ Adjustable Stand
EN DE ES09/2022
Product Brochure WideTEK® Stacker
EN DE ES09/2022
Product Brochure 22” Full HD Touch
EN DE ES09/2022
Brochure WideTEK® Transparent Document Carrier
EN DE ES09/2022
Product Brochure Scan2Net®
09/2022
Catalogs
Image Access Product Catalog
04/2025
Fact Sheets
Language
Format
Date
Fact Sheet WT36-600 (Coming soon)
Document
Maximum Document Size
950 mm (37.4 inch) width. Information about the maximum scan length in the technical specification.
Maximum Scan Width
max. 915 mm (36 inch)
Document Thickness
max. 3.0 mm (0.1 inch)
Autoformat Size Recognition
yes
DIN Format
DIN A5 – DIN A0
ANSI Format
Legal, US E
User Defined Format
yes
Output
Scanner Resolution
1200 x 1200 dpi (optionally 9600 x 9600 dpi interpolated)
Optical Resolution
1200 x 600 dpi
Pixel Dimension
9.3 x 9.3 µm
Paper Path
Face up, Front entry, Front or rear exit
Scan Speed Color
200 dpi – 22.9 m/min (15 inch/s)
300 dpi – 15.4 m/min (10.1 inch/s)
600 dpi – 7.6 m/min (5 inch/s)
1200 dpi – 3.8 m/min (2.5 inch/s)
Scan Speed BW
Same as 24 bit Color
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone
File Formats
Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Exceeds FADGI **** guidelines, ISO 19264-1
Accuracy
Scan direction
± 0.08% across 36 inch scanning width
Transport direction
± 0.08%
Technical Specifications
Computer
64 bit Linux, Intel® Core™ Gen 9 processor,
250GB SSD, 16GB RAM for very long scans
Touchscreen
7 inch multi-touch display
Monitor

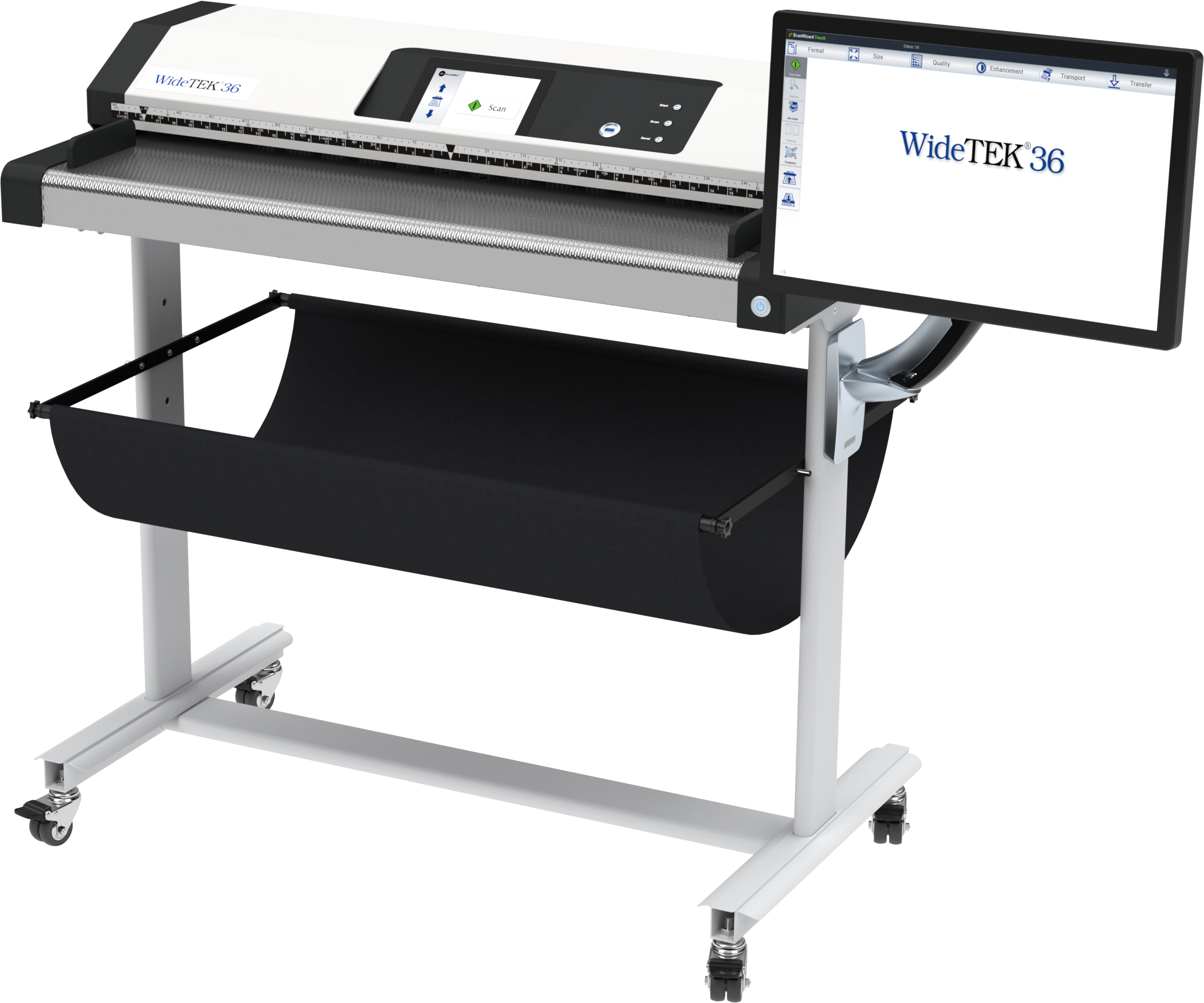

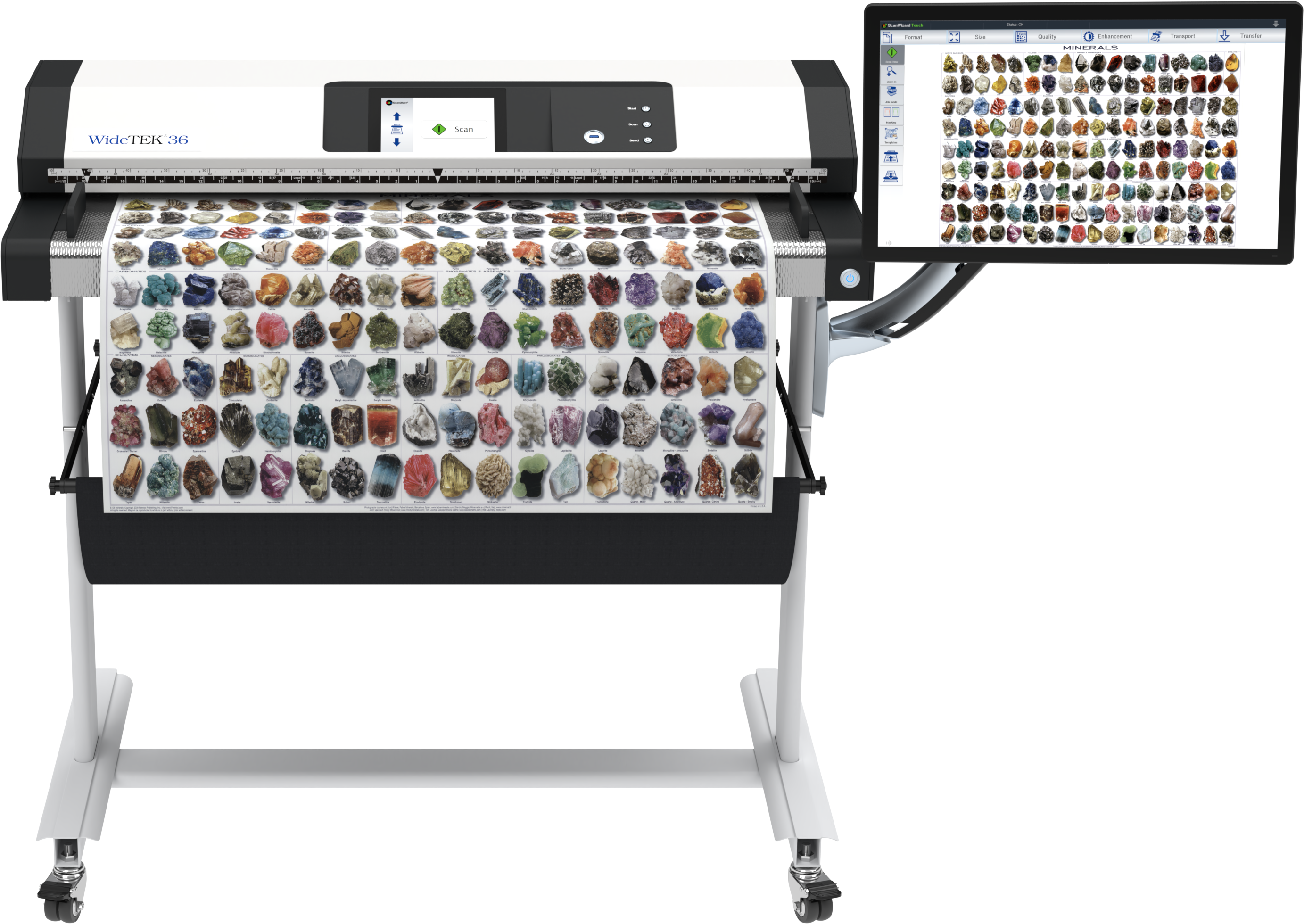

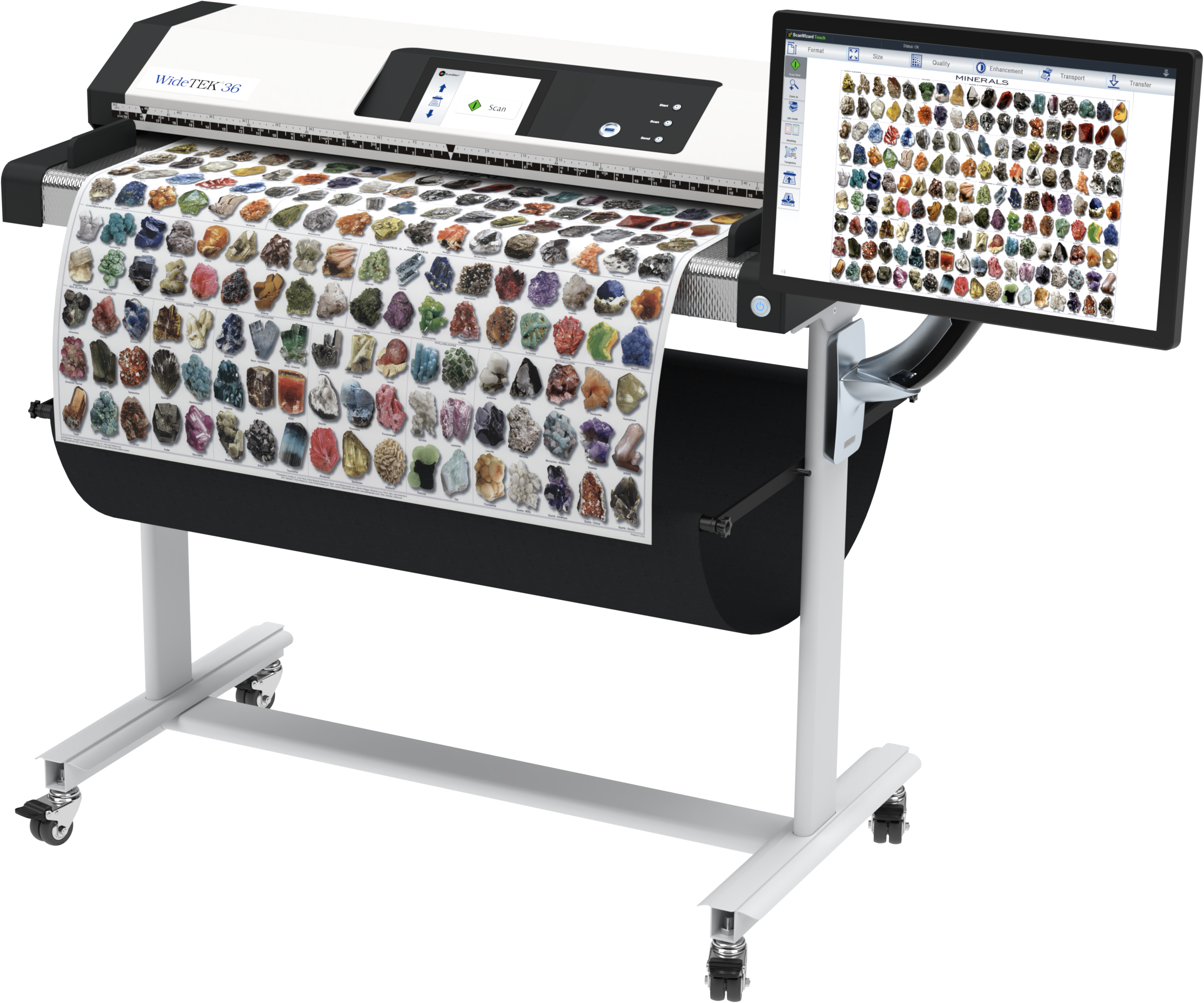

22 inch touchscreen with arm (included in the bundle)
USB Port
1 x USB 3.0 port
Interface
1 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
3x Tri-color CCD camera, 67,500 pixels, encapsulated and dust-proof
Light Source
Two linear lamps with white LEDs, no IR/UV emission
Lamp Lifetime
50,000 hours typ. Lamps are covered by the Extended Warranty Option
Dimensions
Dimensions Scanner (H x W x D)
228 x 1095 x 507 mm (9 x 43 x 20 inches)
Weight Scanner
45 kg (99 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
P(Off) 0.3W / P(Sleep) 4.7W / P(Ready) 60W / P(Active) 120W 61% below
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
