WideTEK 60CL
Ultra-fast color CIS scanner with unmatched affordability and performance.
A true standalone system for digitizing documents up to 60 inches.
High-performance scanning

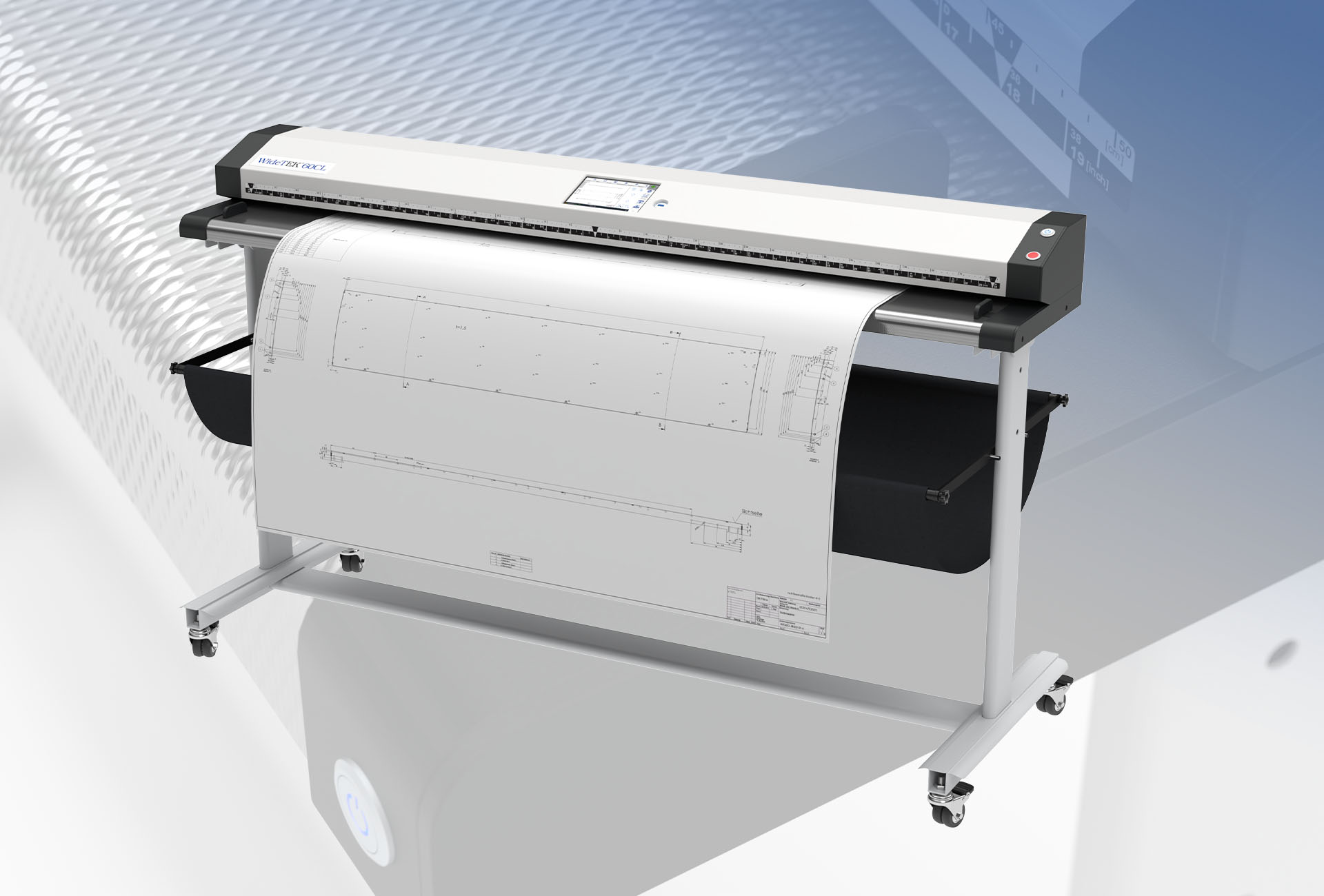

The WideTEK 60CL is a cost-effective solution for wide format scanning up to 60 inches (1570 mm) in width, with an adjustable document thickness of up to 0.5 inches (12 mm). Featuring the fastest high-quality CIS camera system, it delivers excellent performance and reliability. Designed for productivity and affordability, this scanner is ideal for high-demand scanning environments.
360° view
Scroll mouse wheel or click and drag to rotate
Gentle document handling
Our wide format scanners excels in handling delicate documents with care. Specialized transport rollers apply minimal pressure, ensuring safe passage for fragile materials. Automatic document size recognition allows flexible feeding, while cropping and deskewing adjust for perfect image alignment.
Dust-protected and encapsulated optical components ensure long-term reliability and performance.
Walk-up scanning with integrated PC
Walk-up scanning is made simple and efficient, with access available through the scanner’s intuitive touchscreen or via mobile devices. This flexible setup allows users to start scanning quickly, with no need for additional computers or complicated setups.
Direct connection to wide format printers
The scanner connects directly to wide format printers from Canon, HP, and Epson. Integrated printer drivers ensure seamless communication, providing full feature compatibility with all major wide format printers. This integration enhances your workflow by allowing easy printing directly from the scanner, ensuring efficient and smooth operation across your devices.
Virtual rescan
You can easily modify scanned images without the need to rescan, allowing you to adjust essential settings like color mode, brightness, contrast, and other parameters. Additionally, you can rotate, crop, and mirror images after scanning, offering even more flexibility to achieve the desired output.
This scanner exceeds all creteria set forth in the FADGI *** and ISO 19264-1 level B guidelines.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Your interest, our expertise
Contact us now and explore a new dimension in scanning technology!
Support & Downloads
Documentation
Brochures
Firmware
specifications
Media
Fact Sheets
Service Videos
Manuals
Language
Format
Date
Legal Information
06/2022
Technical Specification WideTEK 60CL-600
10/2023
Unpacking and Repacking Instructions WT36CL-600/48CL-600/WT60CL-600
03/2025
Setup Instructions WT36CL/48CL/60CL-600
03/2025
Assembly Instructions WT36/48/60-STAND
03/2025
Assembly Instructions WT-TOUCH21
03/2025
Usage of Transparent Document Carrier
02/2018
Instruction Scan2ICC
09/2021
Declaration about the Emission of UV and IR radiation
11/2021
Wide Format Scanner Buyer´s Guide
05/2022
Brochures
Language
Format
Date
Product Brochure WideTEK® 60CL
04/2025
Product Brochure WideTEK® 36”, 48” 60” Stand
04/2025
Product Brochure 21” Full HD Touch
04/2025
Product Brochure 22” Full HD Touch
04/2025
Brochure WideTEK® Transparent Document Carrier
04/2025
Product Brochure Scan2Net®
09/2022
Catalogs
Language
Format
Date
Image Access Product Catalog
04/2025
Fact Sheets
Language
Format
Date
Fact Sheet WT60CL-600 (Coming soon)
–.–.–
Document
Maximum Document Size
1570 mm (61,85 inch)
Maximum Scan Width
max. 1524 mm (60 inch)
Document Thickness
max. 12 mm (0.5 inch)
Autoformat Size Recognition
yes, crop and deskrew
DIN Format
DIN A5 – DIN A0
ANSI Format
Legal, US E
Output
Scanner Resolution
1200 x 1200 dpi (optionally 9600 x 9600 dpi interpolated)
Pixel Dimension
9.3 x 9.3 µm
Paper Path
Face up, Front entry, Front or rear exit
Scan Speed Color
200 dpi – 9.1 m/min (6 inch/s)
300 dpi – 6.1 m/min (4 inch/s)
600 dpi – 1.5 m/min (1 inch/s)
1200 dpi – 0.8 m/min (0.5 inch/s)
Scan Speed BW
200 dpi – 22.9 m/min (15 inch/s)
300 dpi – 18.3 m/min (12 inch/s)
600 dpi – 4.6 m/min (3 inch/s)
1200 dpi – 2.3 m/min (1.5 inch/s)
Color Depth
48 bit color, 16 bit grayscale
Scan Output
24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone
File Formats
Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data
ICC Profiles
Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality
Exceeds FADGI **** guidelines, ISO 19264-1
Accuracy
Scan direction
± 0.08% across 60 inch scanning width
Transport direction
± 0.08%
Technical Specifications
Computer
64 bit Linux, Intel quad core processor,
16 Gigabyte RAM, 128GB SSD for very long scans
Touchscreen
7 inch color WVGA (wide VGA) touchscreen,
21” full HD 1920 * 1080 multitouch screen (included in the bundle)
USB Port
1 x USB 3.0 port
Interface
10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera
4x CIS modules, 29,852 pixels, encapsulated and dust-proof
Light Source
RGB LED
Declaration about the Emission of UV and IR radiation
Dimensions
Dimensions Scanner (H x W x D)
170 x 1697 x 358 mm (7 x 67 x 14 inch)
Weight Scanner
35 kg (77 lbs.)
Electrical Specifications
Electrical Connection
100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption
P(Off) 0.3W / P(Sleep) 6.5W / P(Ready) 30W / P(Active) 50W 46% below
ENERGY STAR requirements
Image Access FAQ
Ambient Conditions
Operating Temp
5 to 40 °C (40 to 105 °F)
Rel Humidity
20 to 80% (non-condensing)
Noise
< 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
Hardware
Monitor Options
Stand Options
Product Pictures
High resolution PNG files with transparent background
Videos
Logos
Certificates
Language
Format
Date
CB Certificate Power Supply
07/2010
CB Certificate WTxxCL-600
04/2019
cETLus Authorization to Mark WTxxCL-600
02/2019
CCC Certificate WTxxCL-600
05/2018
Declaration about the Emission of UV and IR radiation
11/2021
In addition to service and support options available 24/7, software and firmware updates can be found and downloaded
from our Customer Service Portal.
We offer videos for remote training from certified service technicians. These can be found in our Customer Service Portal.
